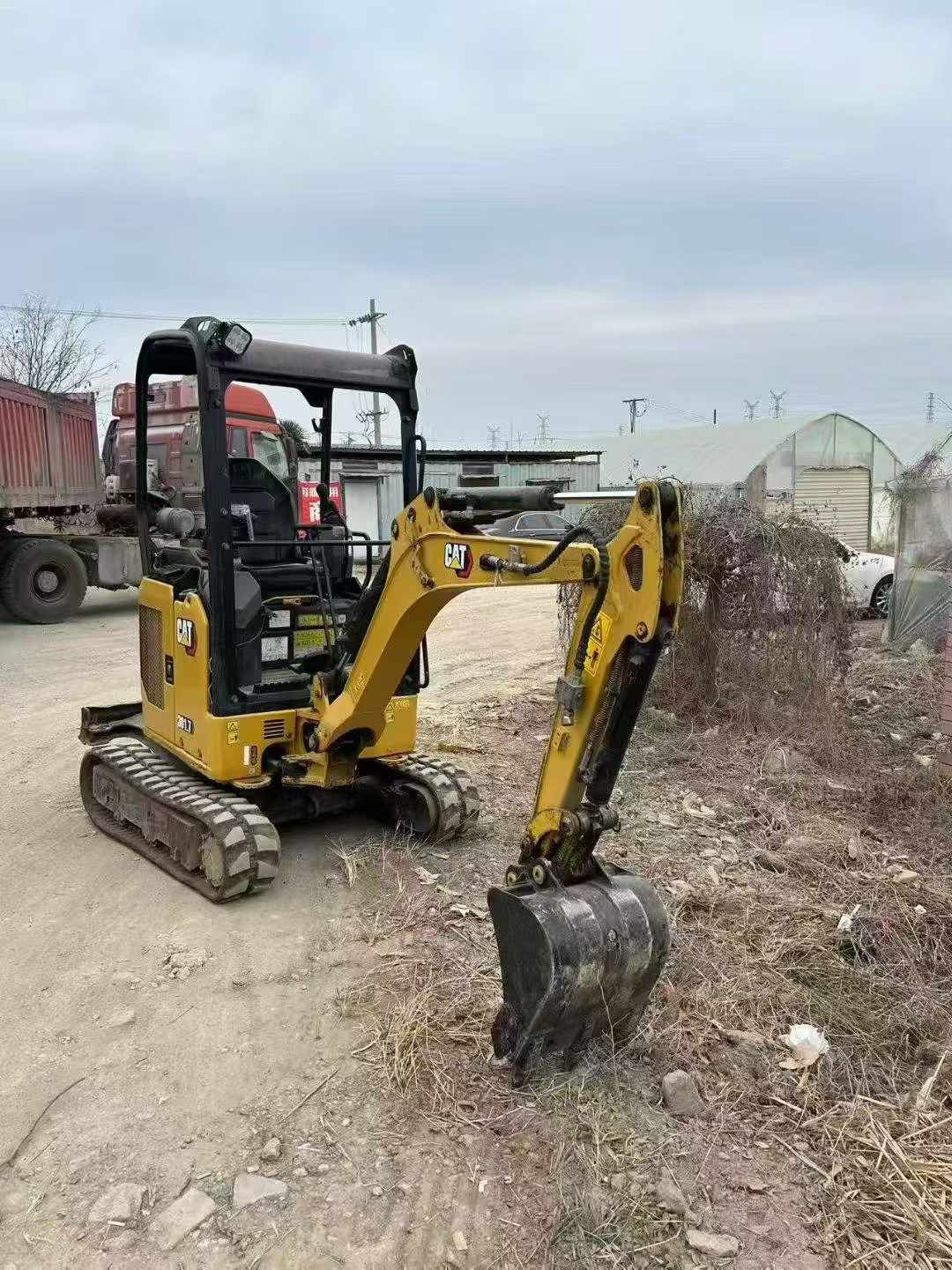

2022 Caterpillar 301.4C
Product Description

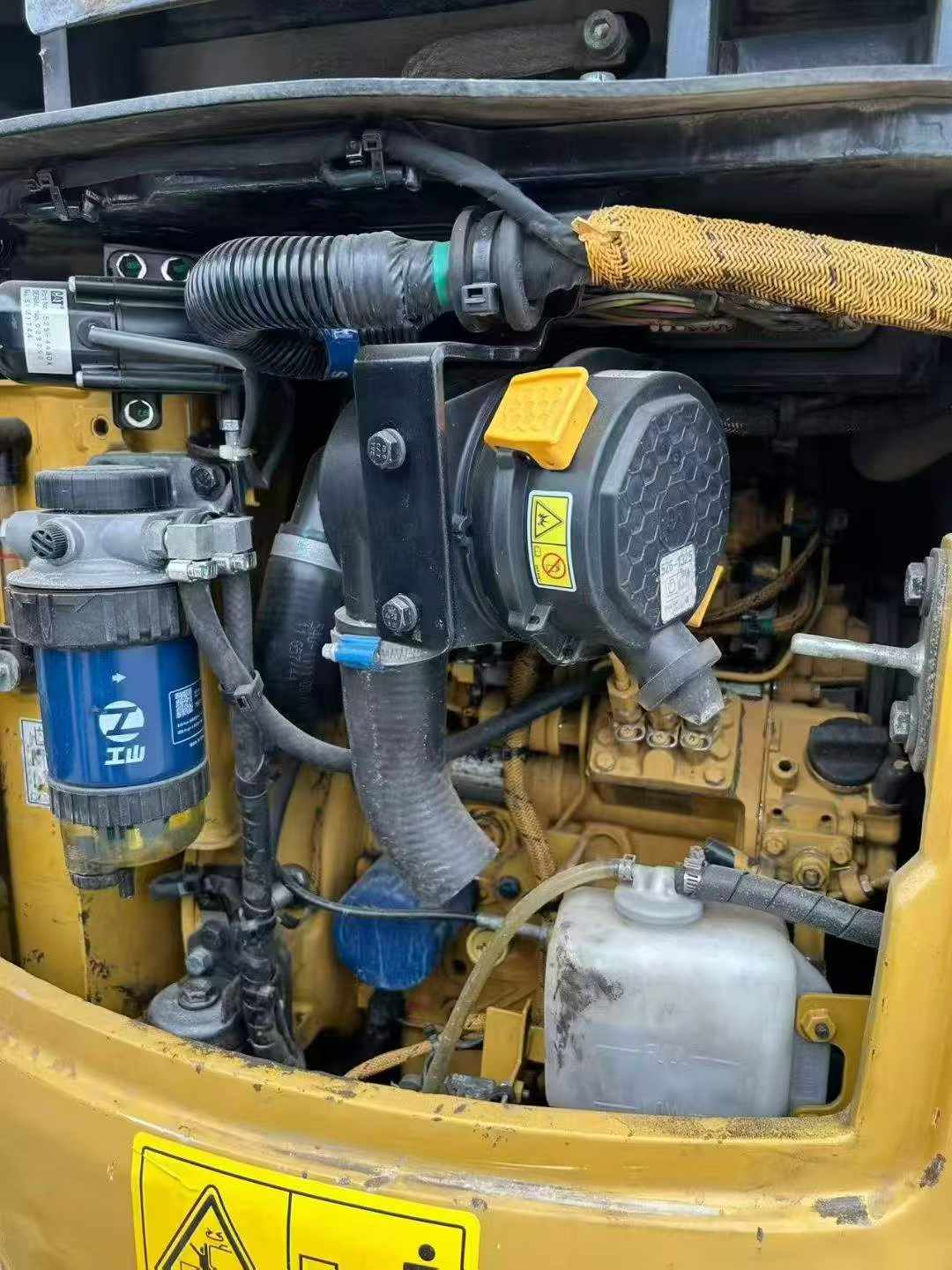

Powered by a Yanmar 3TNV76 engine delivering 13.2 kW at rated RPM, this 2022 Caterpillar 301.4C mini excavator combines robust hydraulics with compact engineering. Operating at 1,380-1,558 kg working weight, the machine generates 16 kN bucket digging force and 7.1 kN stick force through a 35 L/min main pump system. Hydraulic circuits maintain precise pressure control: 20 MPa for travel and work functions, 15 MPa for swing operations.
Engineered for confined jobsites, the 301.4C offers a 990 mm transport width with a minimal 1,075 mm rear swing radius. Maximum digging reach extends to 3,700 mm, while vertical depth capability reaches 2,240 mm. The water-cooled three-cylinder diesel provides reliable performance with a 1.116 L displacement, supporting travel speeds up to 2.5 km/h and climbing grades of 30° (58%). Fuel efficiency is optimized through a 24 L tank paired with a 20 L hydraulic reservoir.
Currently located in Hangzhou, Zhejiang, this joint-venture manufactured unit represents Caterpillar's commitment to compact equipment durability and operational precision for urban construction and utility applications.
| Specifications | Value |
|---|---|
| No. | 1023804 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1380-1558 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar Yanmar 3TNV76 |
| Rated power (kw/rpm) | 13.2 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 1.116 |
| Climbing ability (%) | 30 ° / 58% |
| Bucket digging force (kN) | 16 |
| Rod digging force (kN) | 7.1 |
| Travel speed (km/h) | 2.5 |
| Maximum flow of main pump (l/min) | 35 |
| Traveling Hydraulic Circuit (Mpa) | 20 |
| Rotary Hydraulic Circuit (Mpa) | 15 |
| Working Hydraulic Circuit (Mpa) | 20 |
| Fuel Tank (L) | 24 |
| Hydraulic Tank (L) | 20 |
| Total transport length (mm) | 3645 |
| Total transport width (mm) | 990 |
| Total transport height (mm) | 2276 |
| Full cab height (mm) | 2276 |
| Back end turning radius (mm) | 1075 |
| Total track length (mm) | 1460 |
| Track plate width (mm) | 230 |
| Maximum digging radius (mm) | 3700 |
| Maximum digging depth (mm) | 2240 |
| Maximum excavation height (mm) | 3390 |
| Maximum unloading height (mm) | 2370 |
| Maximum vertical digging depth (mm) | 1640 |
| Bulldozer lift or depth (mm) | 264/211 |
| Dodging plate width × height (mm) | 980 x 232 |
| Maximum excavation radius of stop surface (mm) | 3650 |
| Boom turning Angle (left/right °) | 49 ° 73 ° / |
Overview
No.1023804
Brand Name：
CaterpillarModel Number：
301.4CYear：
2022
Location：
Zhejiang China
Pub Date：
