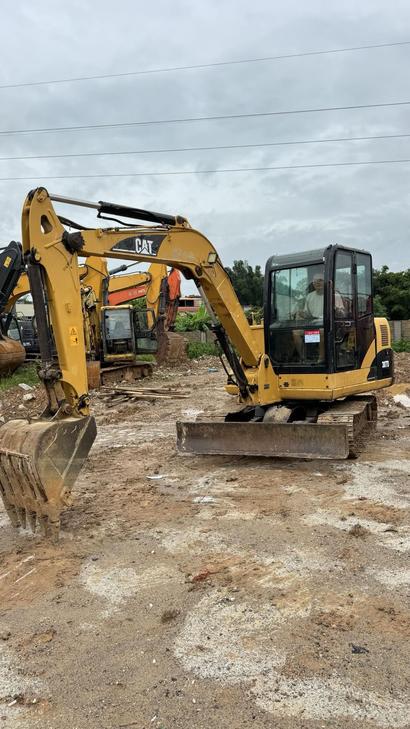

2012 Caterpillar 305.5E2











Product Description
Discover the reliability and efficiency of the 2020 Caterpillar 305.5E2, now available from our location in Guangxi, China. This compact excavator is designed to meet the demands of a variety of construction and excavation projects, offering robust performance and durability. With a proven track record, this machine is in excellent condition, ensuring that it can handle your most challenging tasks with ease. Priced at just 39,000 RMB, this used 305.5E2 represents a cost-effective solution for businesses looking to enhance their fleet without compromising on quality or performance.
- Year: 2020
- Brand: Caterpillar
- Model: 305.5E2
- Location: Guangxi, China
- Price: 39,000 RMB
| Specifications | Value |
|---|---|
| No. | 1109923 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5400 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3200.0 |
| Rod length (mm) | 1500.0 |
| Bucket width (mm) | 766.0 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cat C2.4 DI |
| Rated power (kw/rpm) | 34.1 |
| Cylinder diameter × stroke (mm) | 87.0*102.4 |
| Displacement (L) | 2.4 |
| Rotation speed (rpm) | 10.5 min-1 |
| Climbing ability (%) | 50 |
| Bucket digging force (kN) | 35.0 |
| Rod digging force (kN) | 27.2 |
| Maximum tractive force (kN) | 40.2 |
| Travel speed (km/h) | 4.3/2.8 |
| Turning torque (Nm) | 13.9 N·m |
| Maximum flow of main pump (l/min) | 140.0 |
| Main pump type | Load sensing hydraulic system with variable displacement piston pump |
| Fuel Tank (L) | 78 |
| Hydraulic Tank (L) | 58 |
| Engine Oil changes (L) | 9.5 |
| Coolant (L) | 9.8 |
| Hydraulic System (L) | 85 |
| Total transport length (mm) | 5765.0 |
| Total transport width (mm) | 1950.0 |
| Total transport height (mm) | 2540.0 |
| Minimum ground clearance (mm) | 628.0 |
| Back end turning radius (mm) | 1580.0 |
| Total track length (mm) | 2440.0 |
| Track gauge (mm) | 1550.0 |
| Track plate width (mm) | 400.0 |
| Center distance of support wheel (mm) | 1920.0 |
| Maximum digging radius (mm) | 5955.0 |
| Maximum digging depth (mm) | 3720.0 |
| Maximum excavation height (mm) | 5460.0 |
| Maximum unloading height (mm) | 3835.0 |
| Maximum vertical digging depth (mm) | 2210.0 |
| Bulldozer lift or depth (mm) | 365.0/480.0 |
| Dodging plate width × height (mm) | 1950.0*360.0 |
| Maximum excavation radius of stop surface (mm) | 5830.0 |
Overview
No.1109923
Brand Name:
CaterpillarModel Number:
305.5E2
Year:
2012
Location:
Guangxi China
Pub Date:
