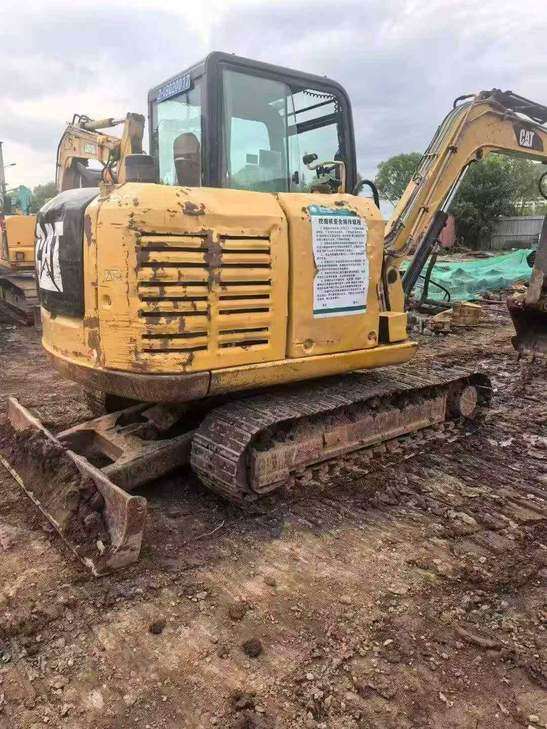

2020 Caterpillar 306D







Product Description
Discover the reliability and efficiency of the 2020 Caterpillar 306D, now available in Qinghai, China. This compact excavator is designed for a variety of applications, from construction to utility work, offering exceptional performance and durability. Built with the quality and precision that Caterpillar is known for, this machine is equipped to handle tough jobs while providing ease of operation and maintenance.
- Year: 2020
- Brand: Caterpillar
- Model: 306D
- Location: Qinghai, China
| Specifications | Value |
|---|---|
| No. | 1097512 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5775 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | 4M40 |
| Rated power (kw/rpm) | 41 |
| Cylinder diameter × stroke (mm) | 95 x100 |
| Rotation speed (rpm) | 8.8 RPM |
| Bucket digging force (kN) | 38.6 |
| Rod digging force (kN) | 25.5 |
| Maximum tractive force (kN) | 48.2 kN |
| Travel speed (km/h) | 4.8 km/h |
| Turning torque (Nm) | 12.3 kN·m |
| Main overflow set pressure (Mpa) | 24500 |
| Maximum flow of main pump (l/min) | 152 |
| Fuel Tank (L) | 135 L |
| Hydraulic Tank (L) | 57 L |
| Engine Oil changes (L) | 11.2 L |
| Hydraulic System (L) | 85 L |
| Track plate width (mm) | 400 mm |
see more
Overview
No.1097512
Brand Name:
CaterpillarModel Number:
306DYear:
2020
Location:
Qinghai China
