2016 Caterpillar 307C
Product Description
Strengthen your fleet with this reliable 2016 Caterpillar 307C mini excavator, currently located in Luzhou, Sichuan. Powered by a proven Mitsubishi 4M40E1 engine delivering 41kW at 2200 rpm, this 7-ton workhorse meets US Tier2 and EU Stage II emission standards while maintaining exceptional fuel efficiency. Built in Xuzhou as a joint venture model, it combines Caterpillar's engineering excellence with robust construction quality.
Operational specifications include:
- Working weight: 7,210 kg with 0.31 m³ bucket capacity
- Maximum digging depth of 4,110 mm and reach of 6,340 mm
- Impressive digging forces: 50.6 kN bucket, 37.1 kN rod
- Compact transport dimensions: 6,070 mm length × 2,290 mm width
- Dual main pumps providing 64 l/min each for responsive hydraulics
- 70% climbing ability for challenging terrain access
Perfect as a backup unit during peak season or to expand capacity without major capital investment, this 307C delivers consistent performance across residential, utility, and light commercial applications. Water-cooled reliability and straightforward maintenance keep your crew productive when schedules demand it.
| Specifications | Value |
|---|---|
| No. | 1008273 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7210 |
| Bucket capacity (m³) | 0.31 |
| Rod length (mm) | 1665 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

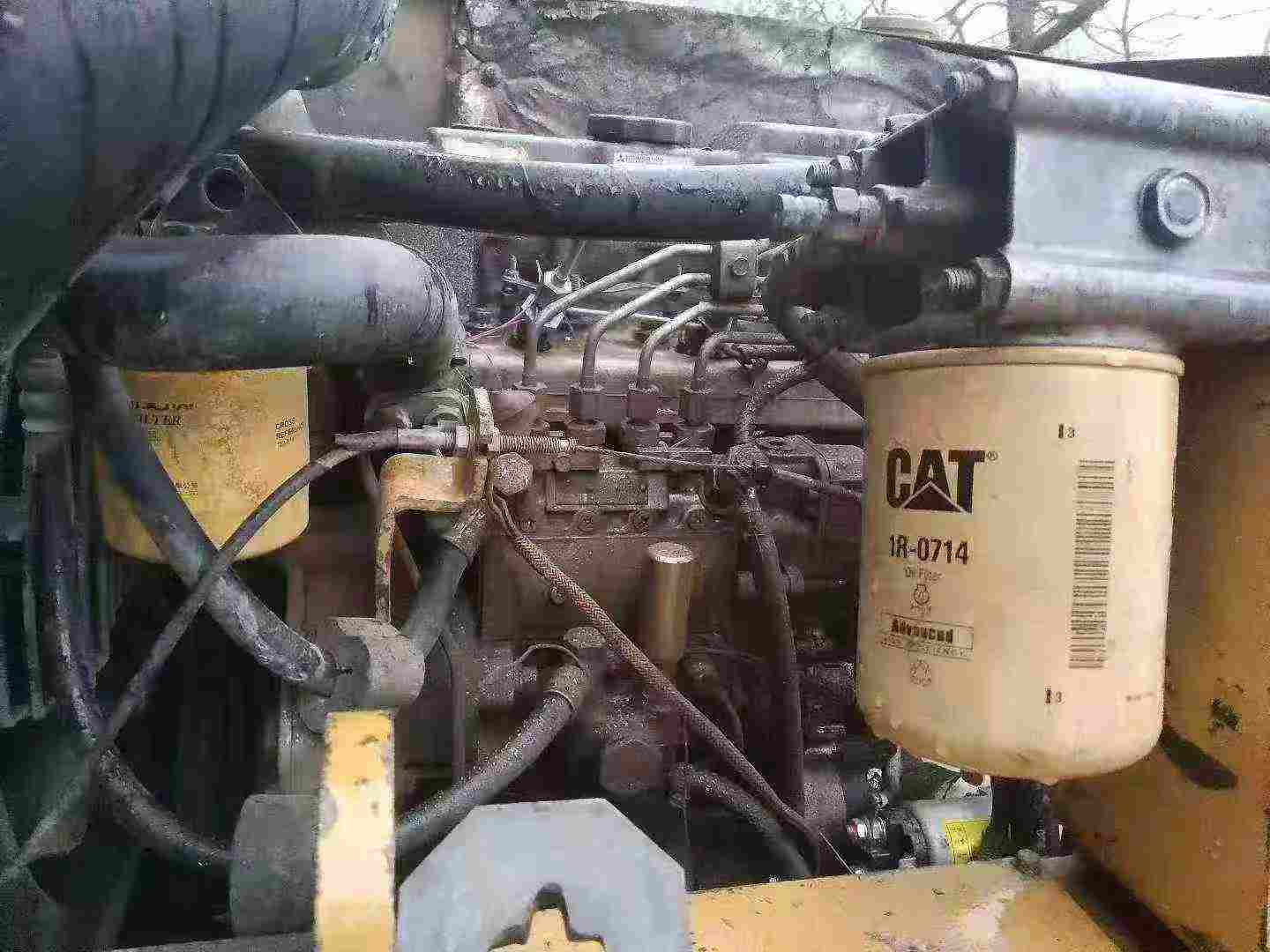

| Engine type | Mitsubishi 4M40E1 |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 95 x 100 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.84 |
| Working form | Meet US Tier2 and EU StageII emission requirements |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 50.6 |
| Rod digging force (kN) | 37.1 |
| Travel speed (km/h) | 3.3/5.2 |
| Maximum flow of main pump (l/min) | 64 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 31.38 |
| Rotary Hydraulic Circuit (Mpa) | 19.61 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 27.46 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 90 x 932 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 998 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 57 |
| Engine Oil changes (L) | 11.2 |
| Coolant (L) | 15.5 |
| Hydraulic System (L) | 94(including fuel tank) |
| Total transport length (mm) | 6070 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2760 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2290 |
| Maximum digging radius (mm) | 6340 |
| Maximum digging depth (mm) | 4110 |
| Maximum excavation height (mm) | 7290 |
| Maximum unloading height (mm) | 5150 |
| Maximum vertical digging depth (mm) | 3640 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 6200 |
