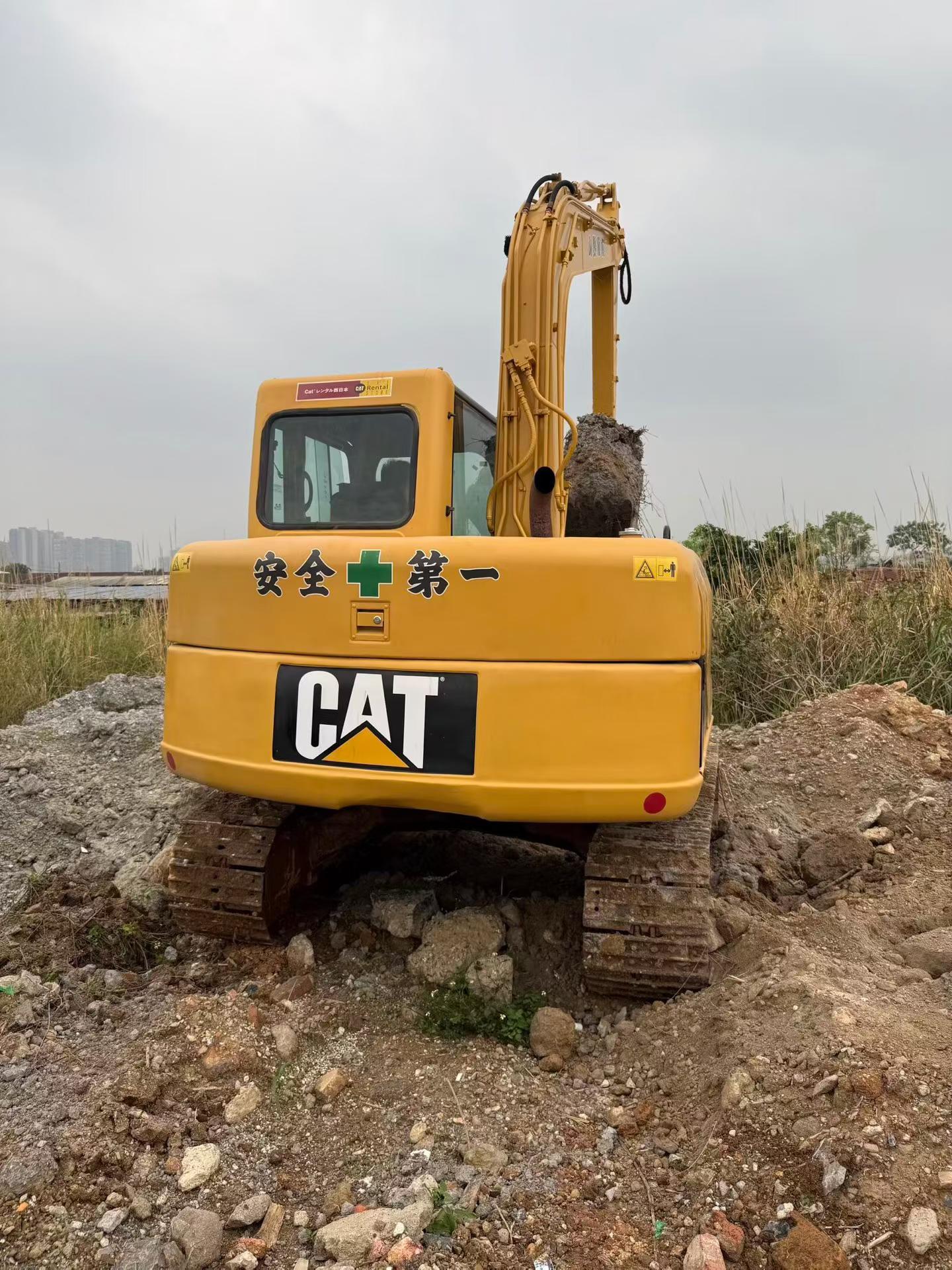

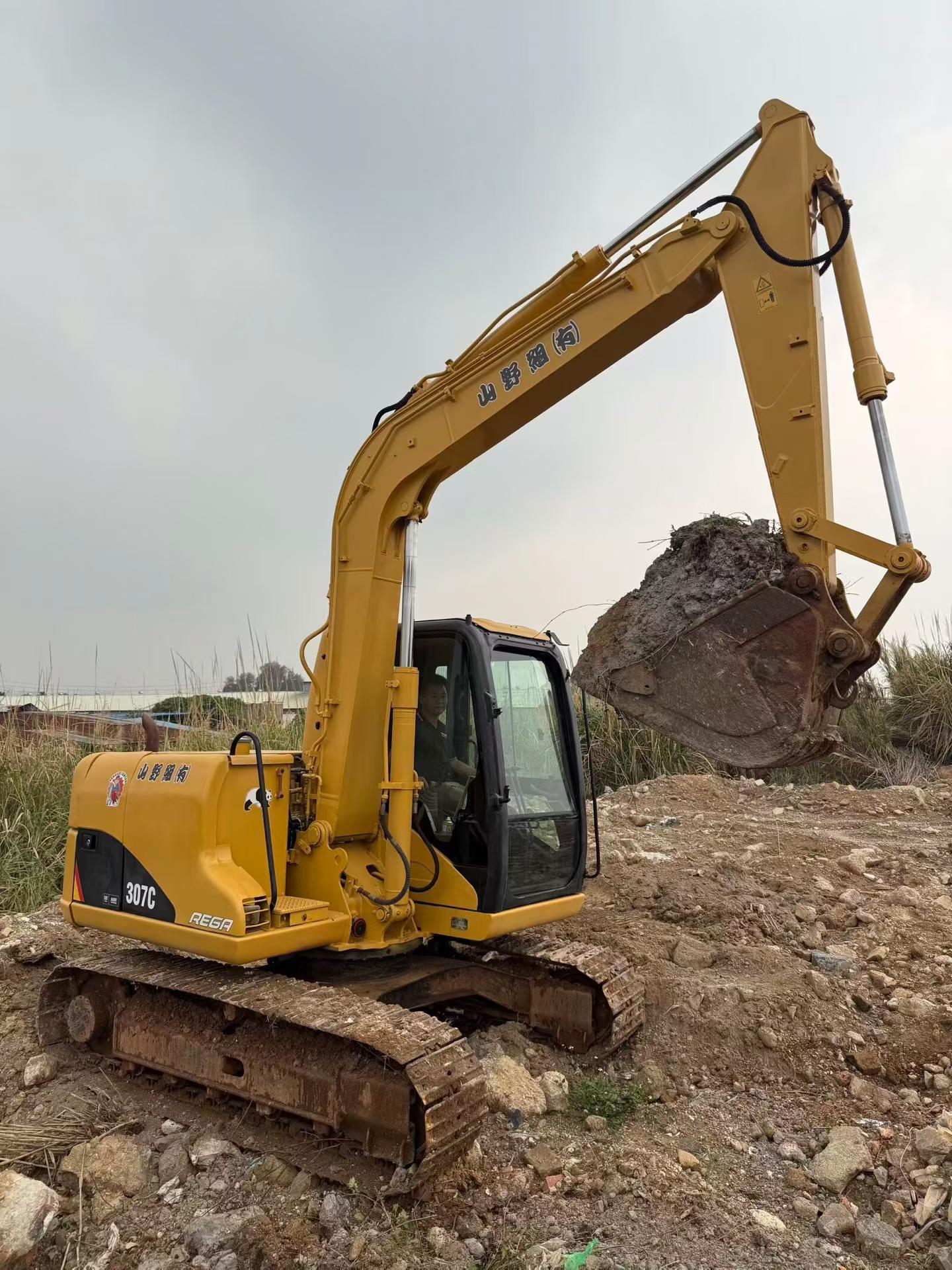

2020 Caterpillar 307C
Product Description
This 2020 Caterpillar 307C mini hydraulic excavator offers reliable performance for contractors and rental operations. Located in Guangxi, China, this used machine comes with documentation and operational video for verification. The Cat 307C is known for its compact footprint and versatility in tight jobsites, combining zero tail swing design with solid digging power for utility work, landscaping, and residential construction.
- Year: 2020
- Make: Caterpillar
- Model: 307C
- Location: Guangxi, China
- Documentation and video available
- Compact design suitable for confined spaces
- Zero tail swing for safe operation near obstacles
This machine is ready for inspection. Contact us for detailed specifications, service history, and shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1101272 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7210 |
| Bucket capacity (m³) | 0.31 |
| Rod length (mm) | 1665 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 4M40E1 |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 95 x 100 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.84 |
| Working form | Meet US Tier2 and EU StageII emission requirements |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 50.6 |
| Rod digging force (kN) | 37.1 |
| Travel speed (km/h) | 3.3/5.2 |
| Maximum flow of main pump (l/min) | 64 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 31.38 |
| Rotary Hydraulic Circuit (Mpa) | 19.61 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 27.46 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 90 x 932 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 998 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 57 |
| Engine Oil changes (L) | 11.2 |
| Coolant (L) | 15.5 |
| Hydraulic System (L) | 94(including fuel tank) |
| Total transport length (mm) | 6070 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2760 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2290 |
| Maximum digging radius (mm) | 6340 |
| Maximum digging depth (mm) | 4110 |
| Maximum excavation height (mm) | 7290 |
| Maximum unloading height (mm) | 5150 |
| Maximum vertical digging depth (mm) | 3640 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 6200 |
