2020 Caterpillar 307C
Product Description

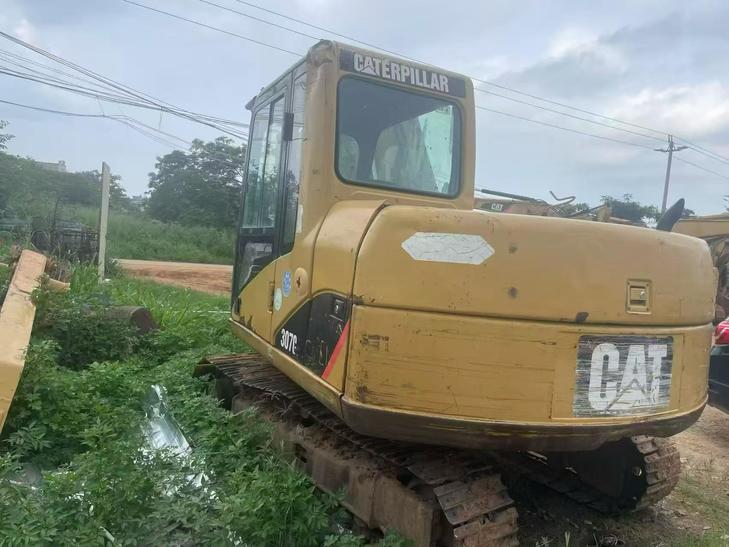

This 2020 Caterpillar 307C mini hydraulic excavator offers proven reliability for contractors and landscaping operations. With approximately 50,000 operating hours, this machine has been maintained in Guangdong, China and remains ready for continued service in demanding applications.
The Cat 307C is built for versatility in confined job sites, delivering consistent performance across trenching, grading, and material handling tasks. Its compact dimensions allow access to restricted areas while maintaining the stability and digging force expected from Caterpillar equipment.
- Robust hydraulic system for efficient operation
- Operator-friendly cab design with good visibility
- Durable undercarriage engineered for extended service life
- Currently located in Guangdong, China
- Suitable for construction, utilities, and landscaping work
This excavator represents a cost-effective solution for businesses seeking dependable equipment with Caterpillar's established engineering standards.
| Specifications | Value |
|---|---|
| No. | 1107800 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7210 |
| Bucket capacity (m³) | 0.31 |
| Rod length (mm) | 1665 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 4M40E1 |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 95 x 100 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.84 |
| Working form | Meet US Tier2 and EU StageII emission requirements |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 50.6 |
| Rod digging force (kN) | 37.1 |
| Travel speed (km/h) | 3.3/5.2 |
| Maximum flow of main pump (l/min) | 64 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 31.38 |
| Rotary Hydraulic Circuit (Mpa) | 19.61 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 27.46 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 90 x 932 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 998 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 57 |
| Engine Oil changes (L) | 11.2 |
| Coolant (L) | 15.5 |
| Hydraulic System (L) | 94(including fuel tank) |
| Total transport length (mm) | 6070 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2760 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2290 |
| Maximum digging radius (mm) | 6340 |
| Maximum digging depth (mm) | 4110 |
| Maximum excavation height (mm) | 7290 |
| Maximum unloading height (mm) | 5150 |
| Maximum vertical digging depth (mm) | 3640 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 6200 |
Overview
No.1107800
Brand Name：
CaterpillarModel Number：
307CYear：
2020
Location：
Guangdong China
Pub Date：
