2020 Caterpillar 307C
Product Description

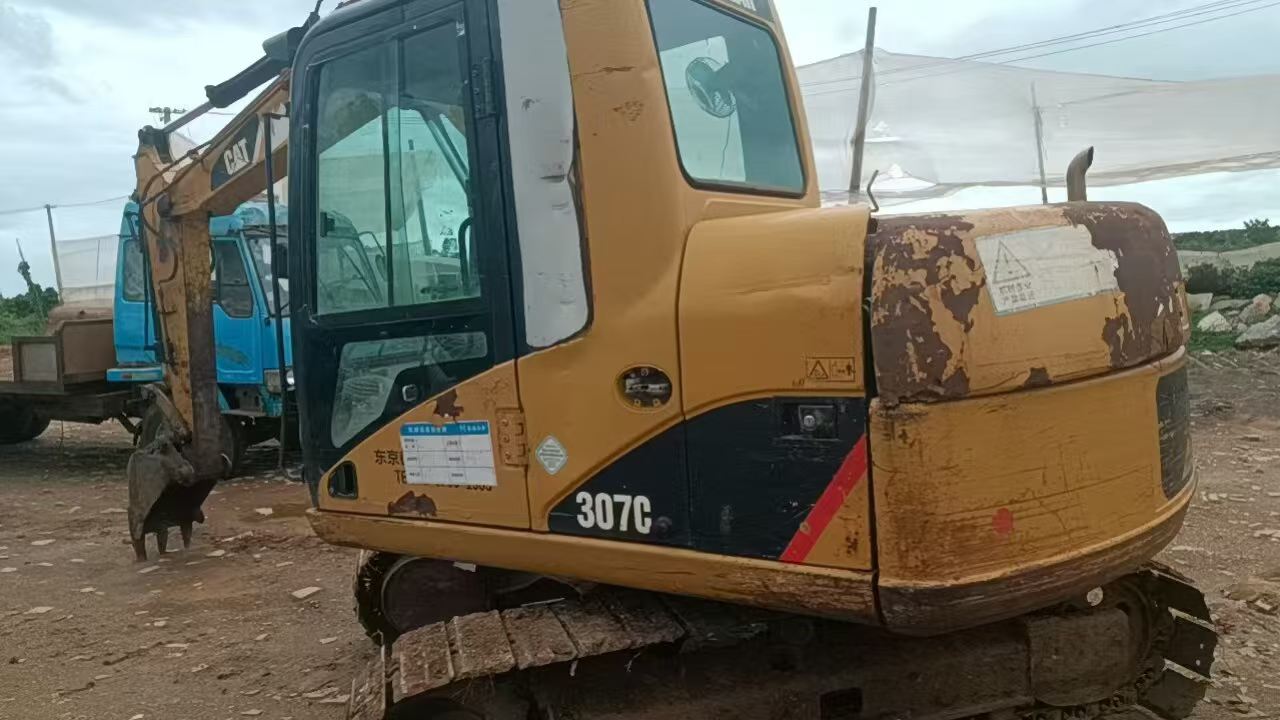

Discover the reliability and performance of the 2020 Caterpillar 307C, now available in Guangdong, China. This compact excavator is ideal for a variety of applications, from construction to landscaping, offering the durability and efficiency Caterpillar is known for. With approximately 40,000 hours of operational data, this machine has been thoroughly utilized but remains in excellent working condition, ready to tackle your next project. The 307C is designed for versatility and ease of operation, ensuring it meets the demands of various job sites. Invest in a machine that combines power, precision, and proven performance.
- Year: 2020
- Brand: Caterpillar
- Model: 307C
- Location: Guangdong, China
- Operational Hours: Approximately 40,000
| Specifications | Value |
|---|---|
| No. | 1133477 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7210 |
| Bucket capacity (m³) | 0.31 |
| Rod length (mm) | 1665 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 4M40E1 |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 95 x 100 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.84 |
| Working form | Meet US Tier2 and EU StageII emission requirements |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 50.6 |
| Rod digging force (kN) | 37.1 |
| Travel speed (km/h) | 3.3/5.2 |
| Maximum flow of main pump (l/min) | 64 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 31.38 |
| Rotary Hydraulic Circuit (Mpa) | 19.61 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 27.46 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 90 x 932 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 998 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 57 |
| Engine Oil changes (L) | 11.2 |
| Coolant (L) | 15.5 |
| Hydraulic System (L) | 94(including fuel tank) |
| Total transport length (mm) | 6070 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2760 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2290 |
| Maximum digging radius (mm) | 6340 |
| Maximum digging depth (mm) | 4110 |
| Maximum excavation height (mm) | 7290 |
| Maximum unloading height (mm) | 5150 |
| Maximum vertical digging depth (mm) | 3640 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 6200 |
