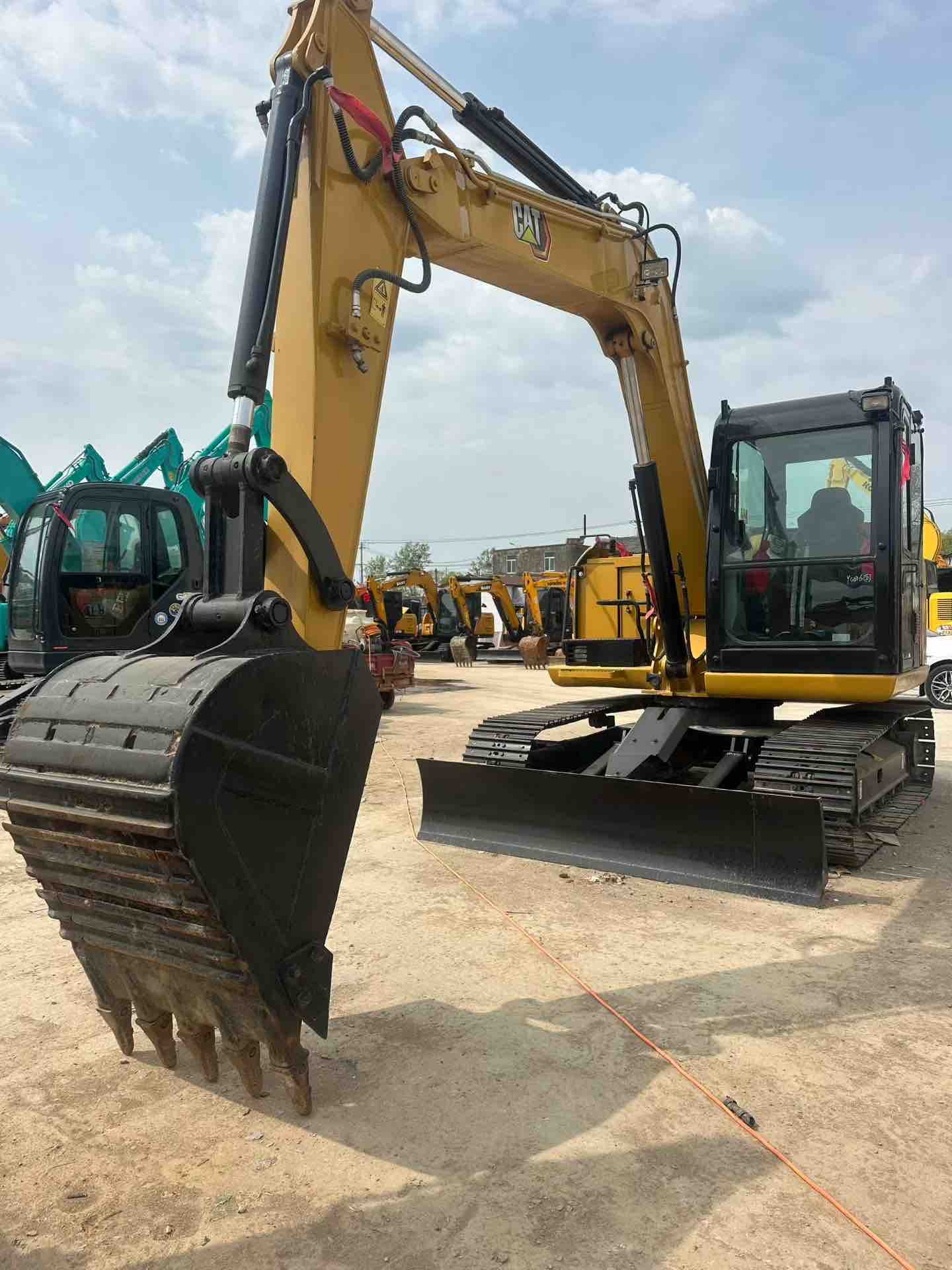

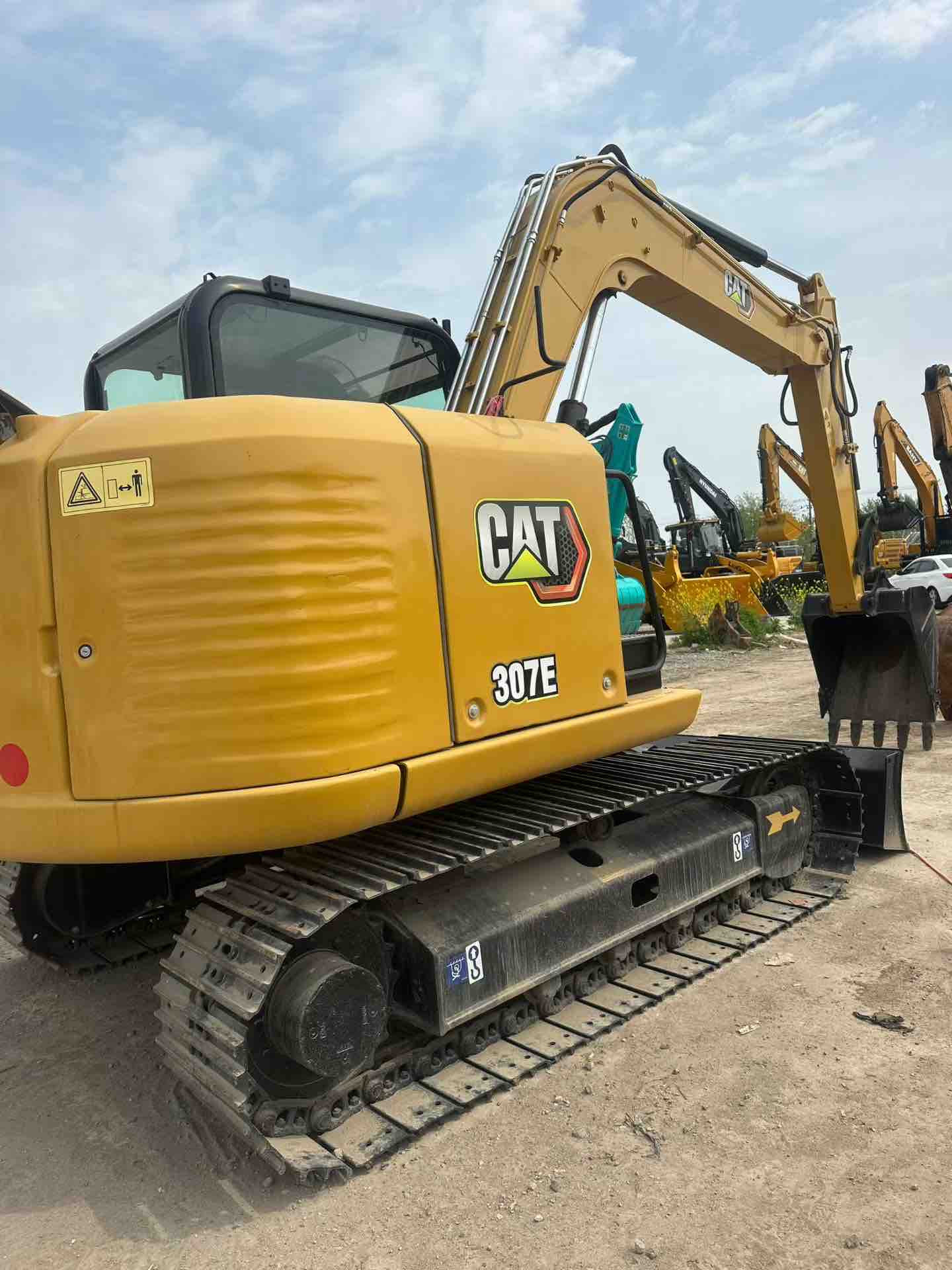

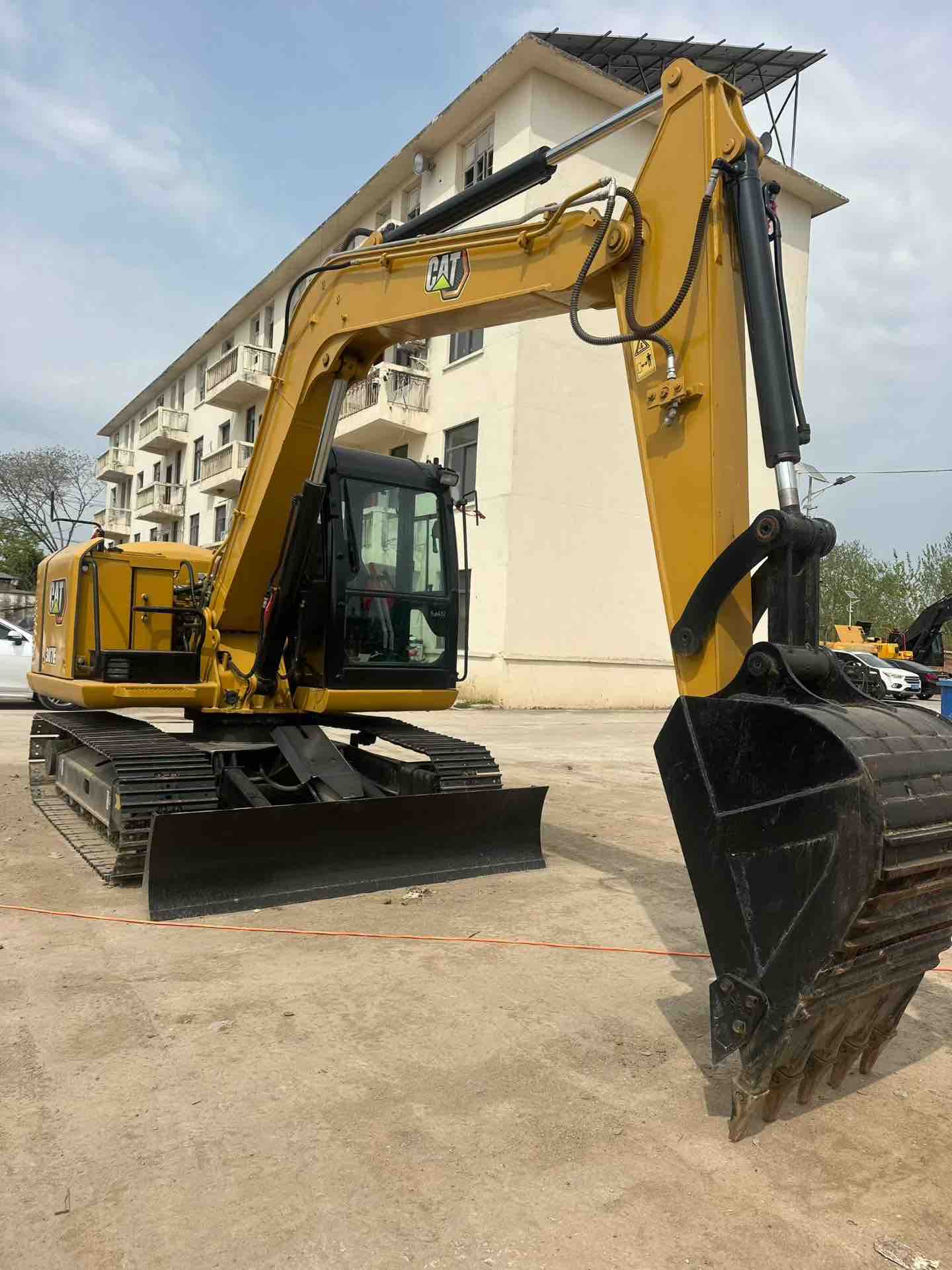

Caterpillar 307E











Product Description

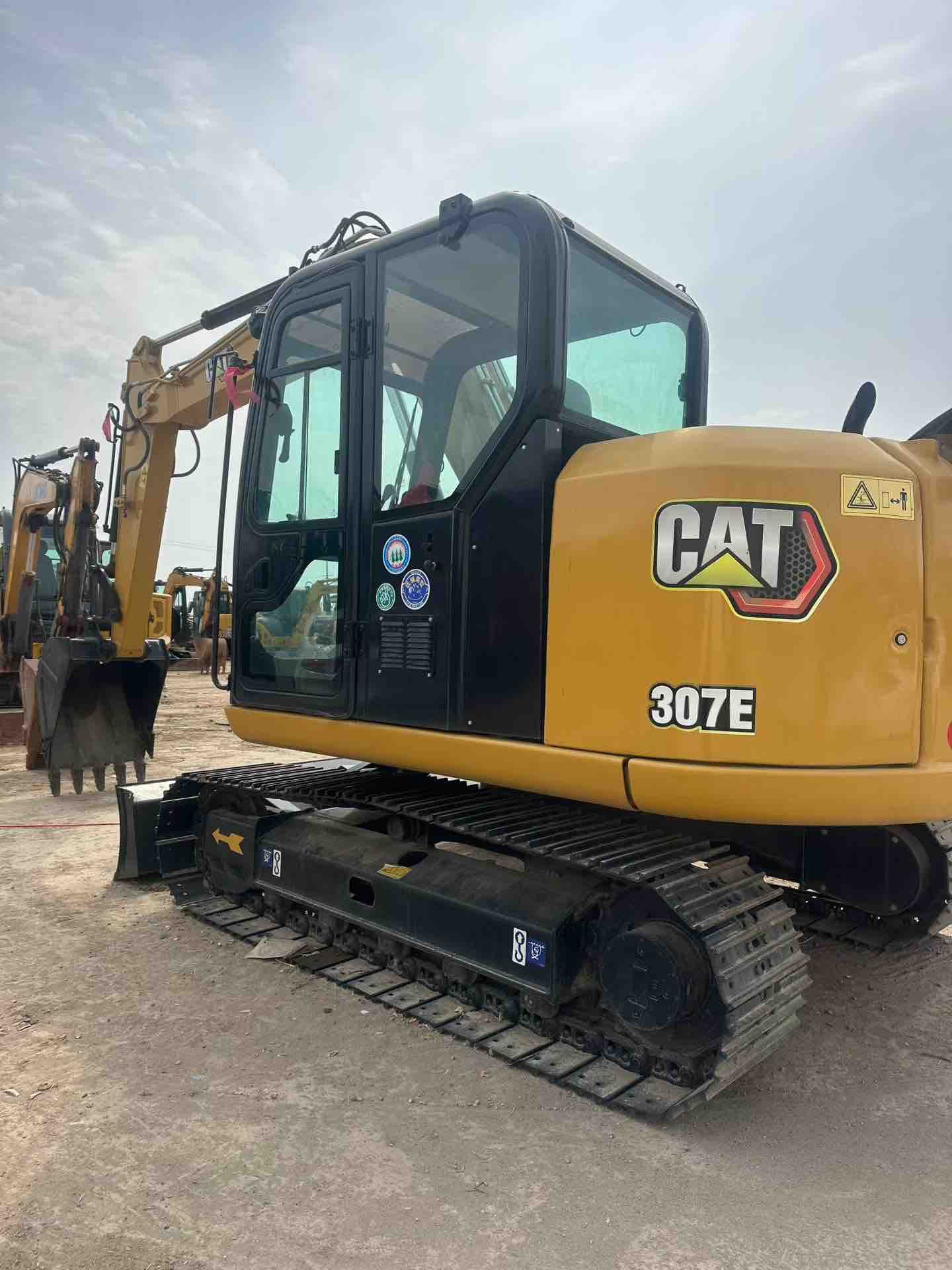

We are pleased to offer this Caterpillar 307E mini hydraulic excavator, currently located in Anhui, China. This compact machine represents Caterpillar's commitment to reliable performance in a versatile package suitable for urban construction, landscaping, and light excavation applications.
The CAT 307E is recognized in the industry for its efficient operation and maneuverability in confined spaces. This unit has been maintained to operational standards and is available at a competitive price point for the current market.
Key attributes include:
- Caterpillar 307E mini excavator configuration
- Currently positioned in Anhui, China
- Operational condition with competitive pricing
- Suitable for contractors seeking reliable compact equipment
This machine offers an opportunity for businesses looking to expand their fleet with proven Caterpillar engineering. Contact us for detailed specifications, current condition assessment, and export documentation assistance.
| Specifications | Value |
|---|---|
| No. | 1052921 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6900 |
| Bucket capacity (m³) | 0.33 |
| Boom length (mm) | 3700 |
| Rod length (mm) | 1665 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

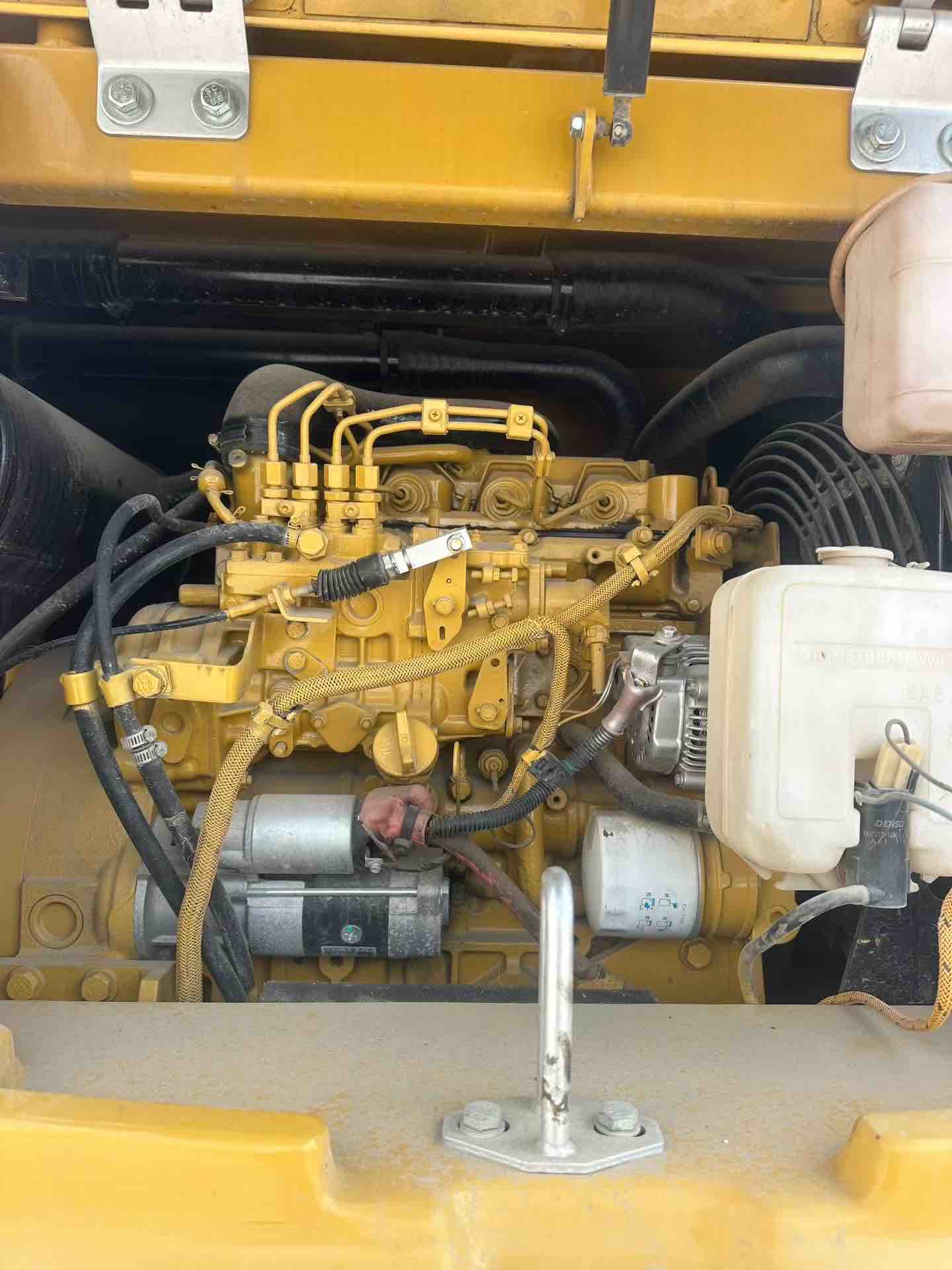

| Engine type | Cat C2.6 DI Turbo |
| Rated power (kw/rpm) | 41.5 |
| Cylinder diameter × stroke (mm) | 87 x 110 |
| Displacement (L) | 2.6 |
| Rotation speed (rpm) | 10.8 |
| Climbing ability (%) | 60 |
| Bucket digging force (kN) | 50.6 |
| Rod digging force (kN) | 37.1 |
| Maximum tractive force (kN) | 56.9 |
| Travel speed (km/h) | High: 5.1 / Low: 3.2 |
| Turning torque (Nm) | 16.3 |
| Main overflow set pressure (Mpa) | 28 |
| Maximum flow of main pump (l/min) | 147 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Rotary Hydraulic Circuit (Mpa) | 24 |
| Main pump type | Load sensing hydraulic system with variable displacement piston pump |
| Fuel Tank (L) | 135.0 |
| Hydraulic Tank (L) | 51.0 |
| Engine Oil changes (L) | 10.2 |
| Coolant (L) | 11.9 |
| Hydraulic System (L) | 94.0 |
| Total transport length (mm) | 6070 |
| Total transport width (mm) | 2300 |
| Full cab height (mm) | 2540 |
| Counterweight ground clearance (mm) | 775 |
| Minimum ground clearance (mm) | 370 |
| Back end turning radius (mm) | 1750 |

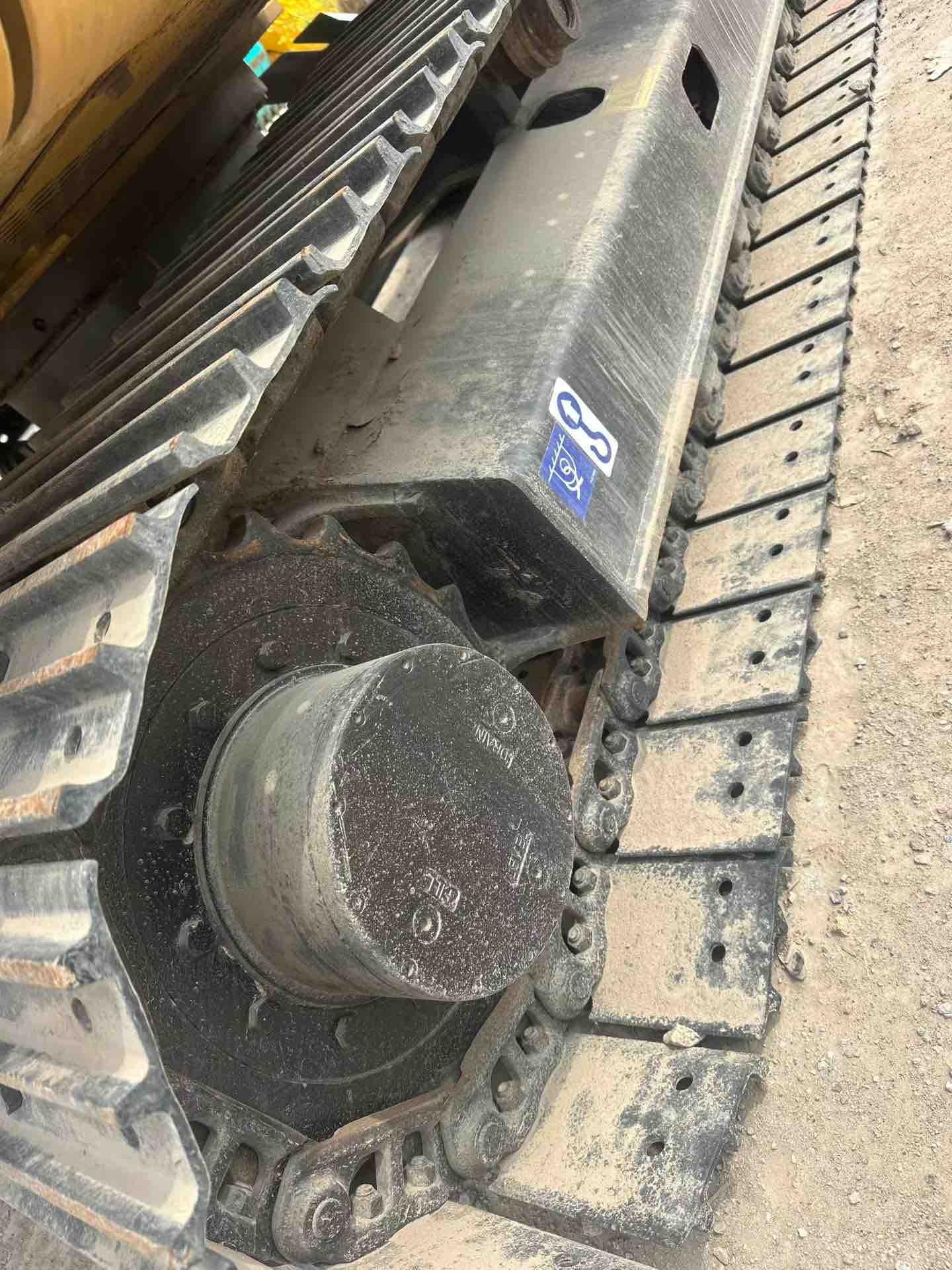

| Total track length (mm) | 2760 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2120 |
| Maximum digging radius (mm) | 6300 |
| Maximum digging depth (mm) | 4070 |
| Maximum excavation height (mm) | 7240 |
| Maximum unloading height (mm) | 5190 |

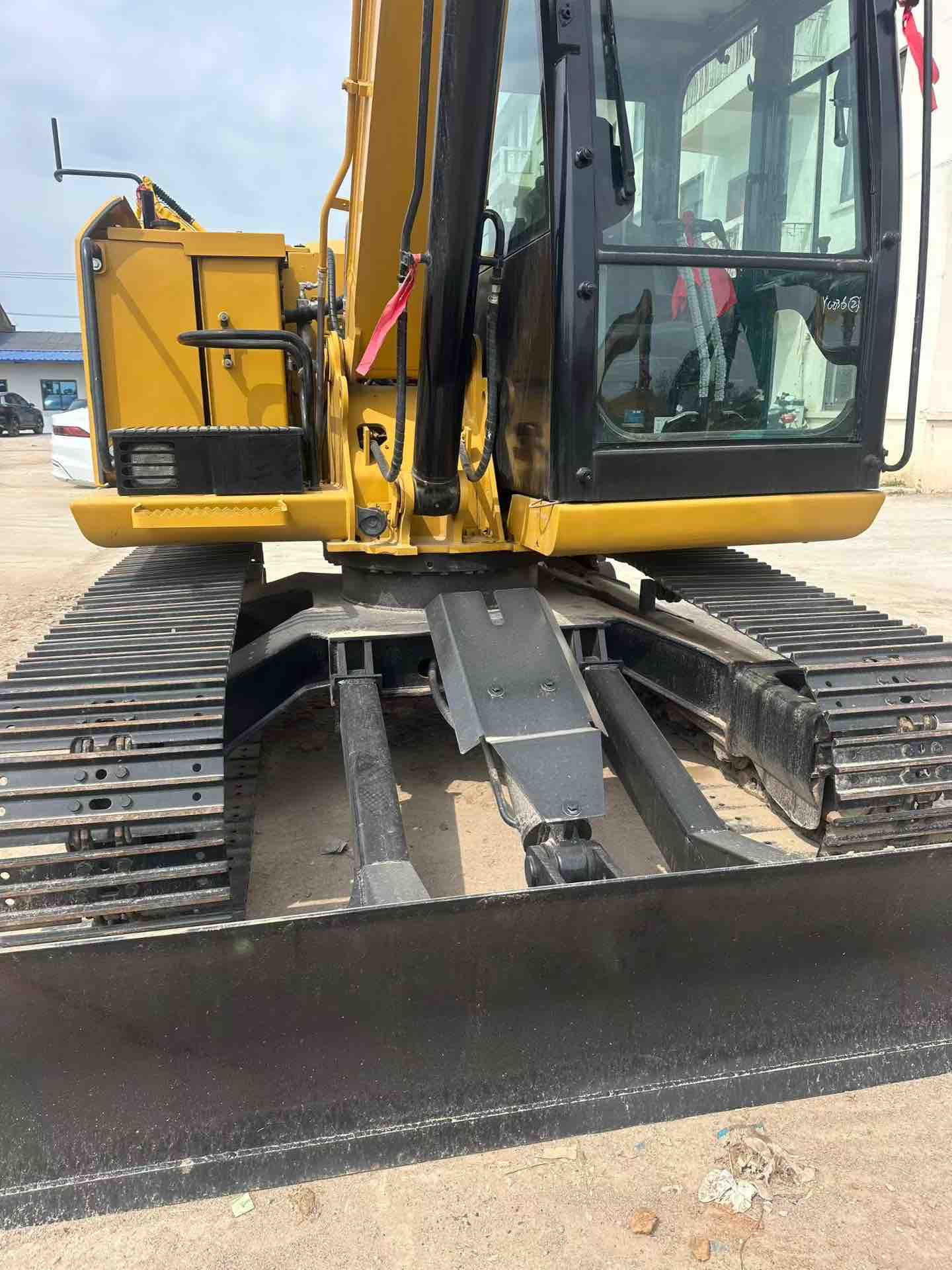

| Bulldozer lift or depth (mm) | 390 / 350 |
| Dodging plate width × height (mm) | 2300 x 450 |
| Maximum excavation radius of stop surface (mm) | 6180 |
Overview
No.1052921
Brand Name:
CaterpillarModel Number:
307E
Year:
Location:
Anhui China
