2012 Caterpillar 307E
Product Description

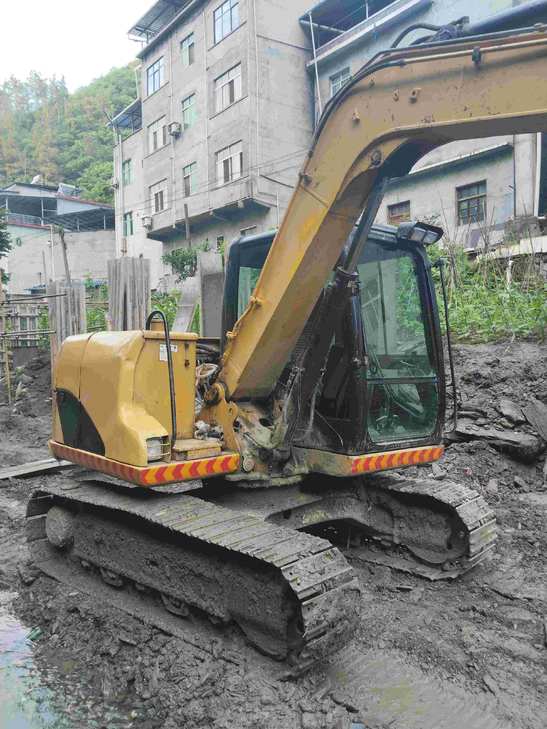

This 2012 Caterpillar 307E mini hydraulic excavator is currently available from Shaanxi, China. This compact machine remains in active operational condition, demonstrating reliable performance in day-to-day applications. The unit maintains proper operating temperatures without overheating issues and shows no excessive oil consumption. Regular maintenance protocols have been consistently followed throughout its service life.
Key attributes include:
- Year of Manufacture: 2012
- Brand: Caterpillar
- Model: 307E Mini Excavator
- Current Location: Shaanxi Province, China
- Operational Status: Active working condition
- No overheating concerns reported
- Normal oil consumption levels
- No significant hydraulic leaks observed
- Well-maintained service history
This machine represents a practical solution for contractors and operators seeking dependable compact excavation equipment from Caterpillar's proven mini excavator lineup.
| Specifications | Value |
|---|---|
| No. | 1086995 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6900 |
| Bucket capacity (m³) | 0.33 |
| Boom length (mm) | 3700 |
| Rod length (mm) | 1665 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cat C2.6 DI Turbo |
| Rated power (kw/rpm) | 41.5 |
| Cylinder diameter × stroke (mm) | 87 x 110 |
| Displacement (L) | 2.6 |
| Rotation speed (rpm) | 10.8 |
| Climbing ability (%) | 60 |
| Bucket digging force (kN) | 50.6 |
| Rod digging force (kN) | 37.1 |
| Maximum tractive force (kN) | 56.9 |
| Travel speed (km/h) | High: 5.1 / Low: 3.2 |
| Turning torque (Nm) | 16.3 |
| Main overflow set pressure (Mpa) | 28 |
| Maximum flow of main pump (l/min) | 147 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Rotary Hydraulic Circuit (Mpa) | 24 |
| Main pump type | Load sensing hydraulic system with variable displacement piston pump |
| Fuel Tank (L) | 135.0 |
| Hydraulic Tank (L) | 51.0 |
| Engine Oil changes (L) | 10.2 |
| Coolant (L) | 11.9 |
| Hydraulic System (L) | 94.0 |
| Total transport length (mm) | 6070 |
| Total transport width (mm) | 2300 |
| Full cab height (mm) | 2540 |
| Counterweight ground clearance (mm) | 775 |
| Minimum ground clearance (mm) | 370 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2760 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2120 |
| Maximum digging radius (mm) | 6300 |
| Maximum digging depth (mm) | 4070 |
| Maximum excavation height (mm) | 7240 |
| Maximum unloading height (mm) | 5190 |
| Bulldozer lift or depth (mm) | 390 / 350 |
| Dodging plate width × height (mm) | 2300 x 450 |
| Maximum excavation radius of stop surface (mm) | 6180 |
