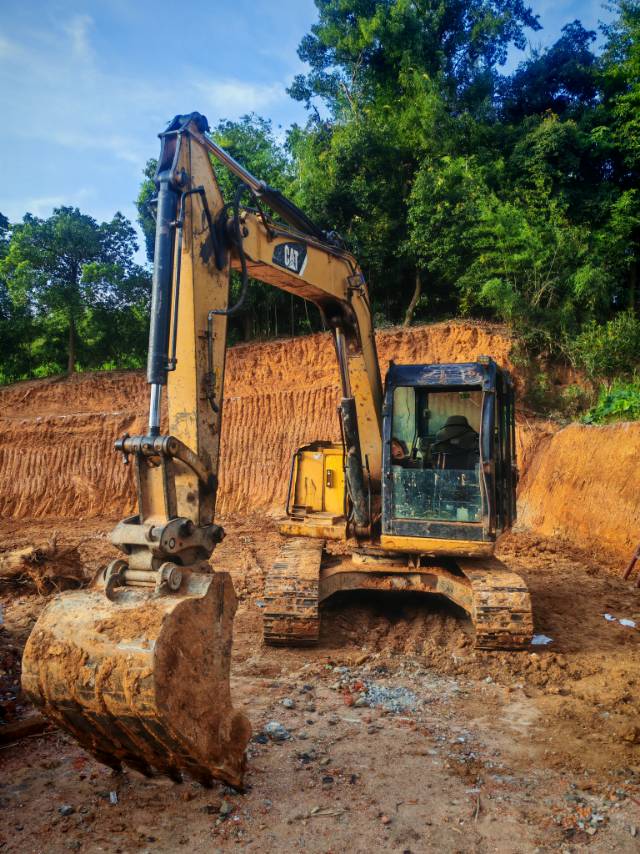

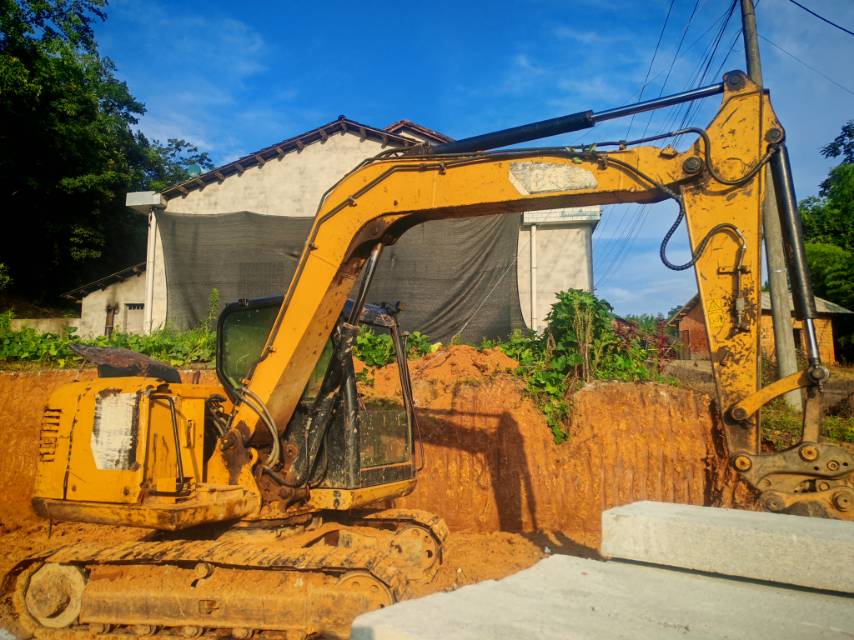

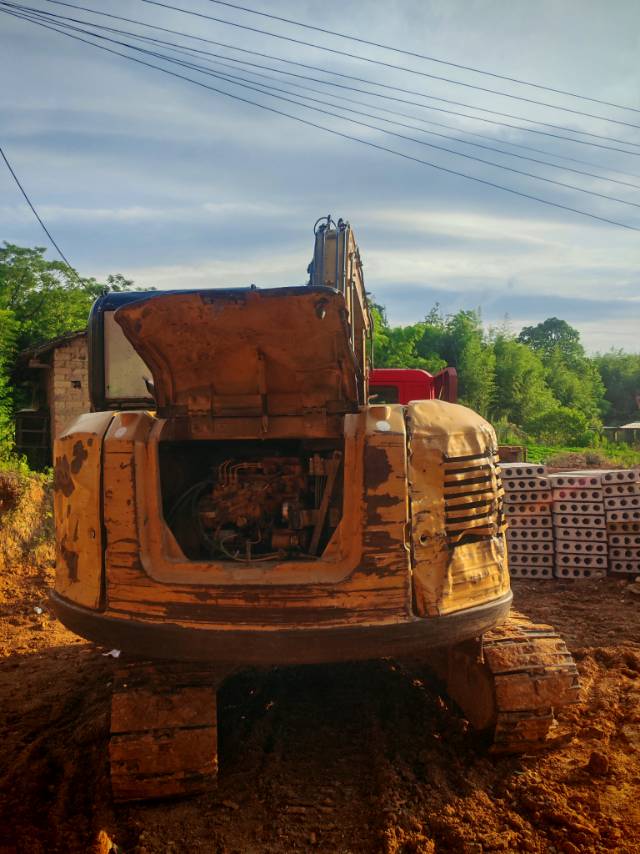

2014 Caterpillar 307E











Product Description
Discover the reliability and performance of the 2014 Caterpillar 307E, now available from our location in Hunan, China. This compact excavator is a proven workhorse, designed to tackle a wide range of construction and excavation tasks with ease. Ideal for both small and large projects, the 307E offers the durability and efficiency that Caterpillar is known for, ensuring consistent productivity on any job site.
- Year: 2014
- Brand: Caterpillar
- Model: 307E
- Location: Hunan, China
- Condition: Operational, ready for immediate use
| Specifications | Value |
|---|---|
| No. | 1116603 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6900 |
| Bucket capacity (m³) | 0.33 |
| Boom length (mm) | 3700 |
| Rod length (mm) | 1665 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

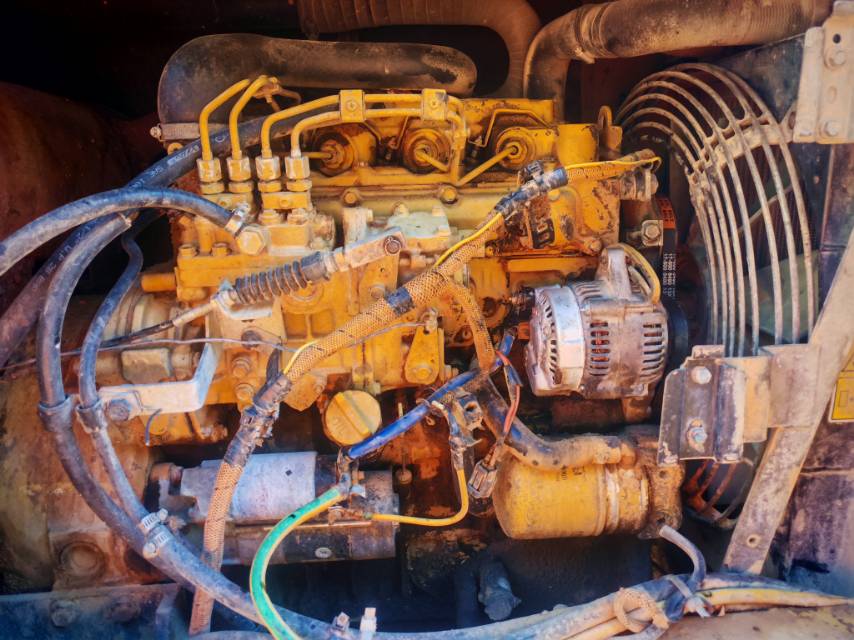

| Engine type | Cat C2.6 DI Turbo |
| Rated power (kw/rpm) | 41.5 |
| Cylinder diameter × stroke (mm) | 87 x 110 |
| Displacement (L) | 2.6 |
| Rotation speed (rpm) | 10.8 |
| Climbing ability (%) | 60 |
| Bucket digging force (kN) | 50.6 |
| Rod digging force (kN) | 37.1 |
| Maximum tractive force (kN) | 56.9 |
| Travel speed (km/h) | High: 5.1 / Low: 3.2 |
| Turning torque (Nm) | 16.3 |
| Main overflow set pressure (Mpa) | 28 |
| Maximum flow of main pump (l/min) | 147 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Rotary Hydraulic Circuit (Mpa) | 24 |
| Main pump type | Load sensing hydraulic system with variable displacement piston pump |
| Fuel Tank (L) | 135.0 |
| Hydraulic Tank (L) | 51.0 |
| Engine Oil changes (L) | 10.2 |
| Coolant (L) | 11.9 |
| Hydraulic System (L) | 94.0 |
| Total transport length (mm) | 6070 |
| Total transport width (mm) | 2300 |
| Full cab height (mm) | 2540 |
| Counterweight ground clearance (mm) | 775 |
| Minimum ground clearance (mm) | 370 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2760 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2120 |
| Maximum digging radius (mm) | 6300 |
| Maximum digging depth (mm) | 4070 |
| Maximum excavation height (mm) | 7240 |
| Maximum unloading height (mm) | 5190 |
| Bulldozer lift or depth (mm) | 390 / 350 |
| Dodging plate width × height (mm) | 2300 x 450 |
| Maximum excavation radius of stop surface (mm) | 6180 |
