2020 Caterpillar 307E











Product Description

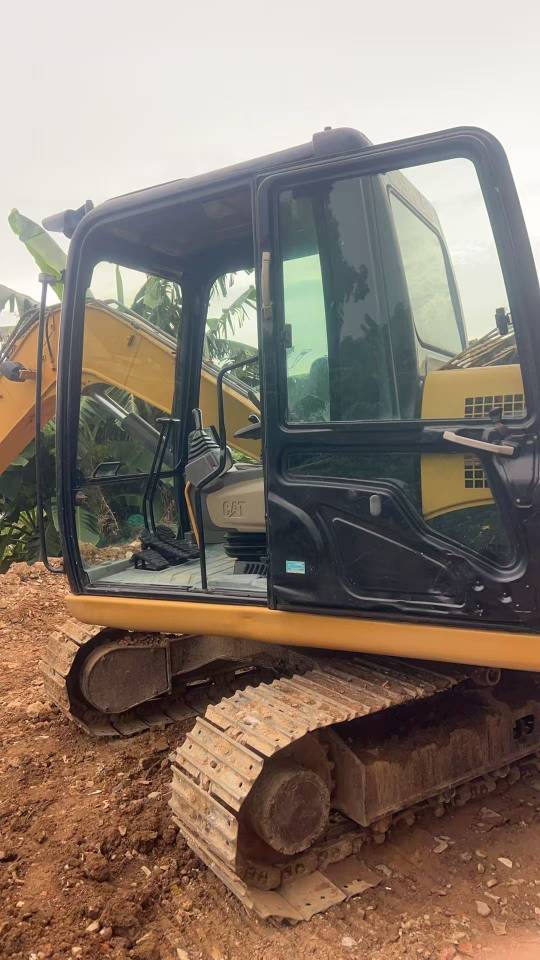

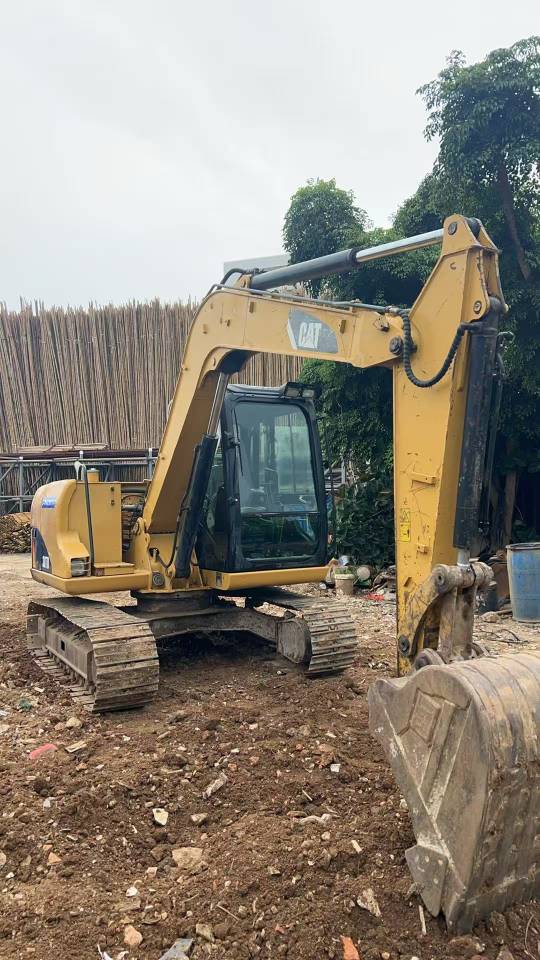

2020 Caterpillar 307E mini hydraulic excavator available from Jiangxi, China. This compact machine offers reliable performance for construction, landscaping, and utility applications where maneuverability and precision are essential.

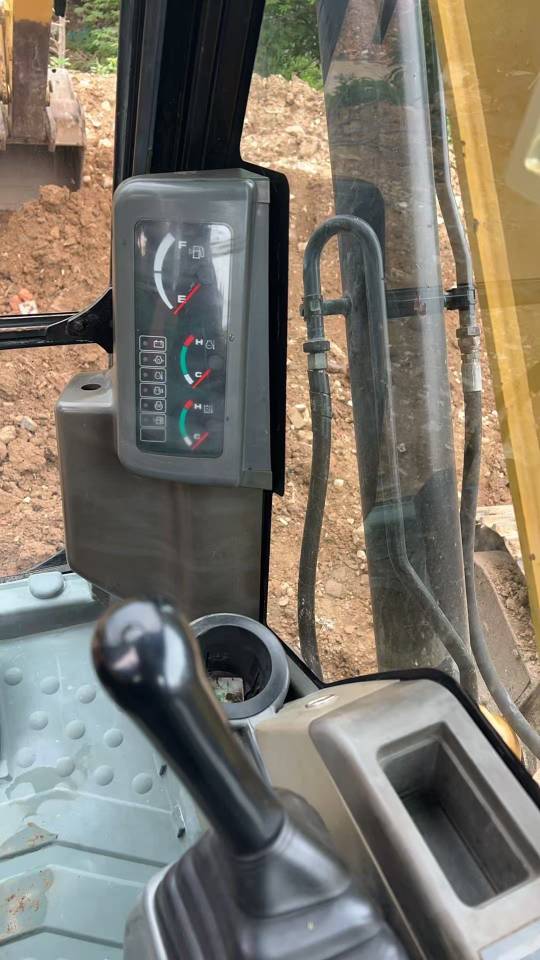

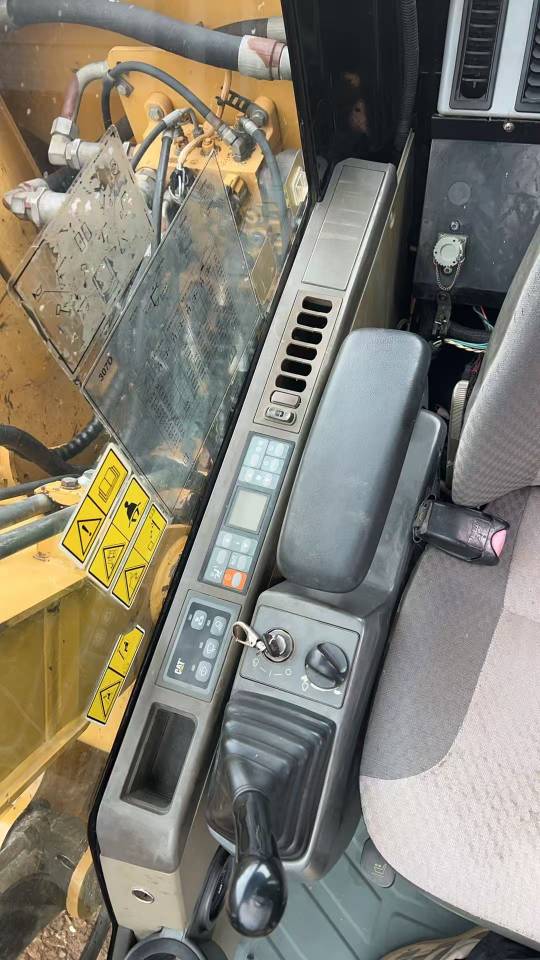

The 307E features Caterpillar's proven hydraulic system, a comfortable operator station, and the durability expected from Cat equipment. Well-maintained unit with solid operational history, ready for immediate deployment on your next project.
- Year: 2020
- Make: Caterpillar
- Model: 307E
- Location: Jiangxi Province, China
- Category: Mini Excavator
- Condition: Used, well-maintained
Suitable for contractors and operators seeking a compact excavator with Cat reliability. Contact us for pricing, additional specifications, and shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1083335 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6900 |
| Bucket capacity (m³) | 0.33 |
| Boom length (mm) | 3700 |
| Rod length (mm) | 1665 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cat C2.6 DI Turbo |
| Rated power (kw/rpm) | 41.5 |
| Cylinder diameter × stroke (mm) | 87 x 110 |
| Displacement (L) | 2.6 |
| Rotation speed (rpm) | 10.8 |
| Climbing ability (%) | 60 |
| Bucket digging force (kN) | 50.6 |
| Rod digging force (kN) | 37.1 |
| Maximum tractive force (kN) | 56.9 |
| Travel speed (km/h) | High: 5.1 / Low: 3.2 |
| Turning torque (Nm) | 16.3 |
| Main overflow set pressure (Mpa) | 28 |
| Maximum flow of main pump (l/min) | 147 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Rotary Hydraulic Circuit (Mpa) | 24 |

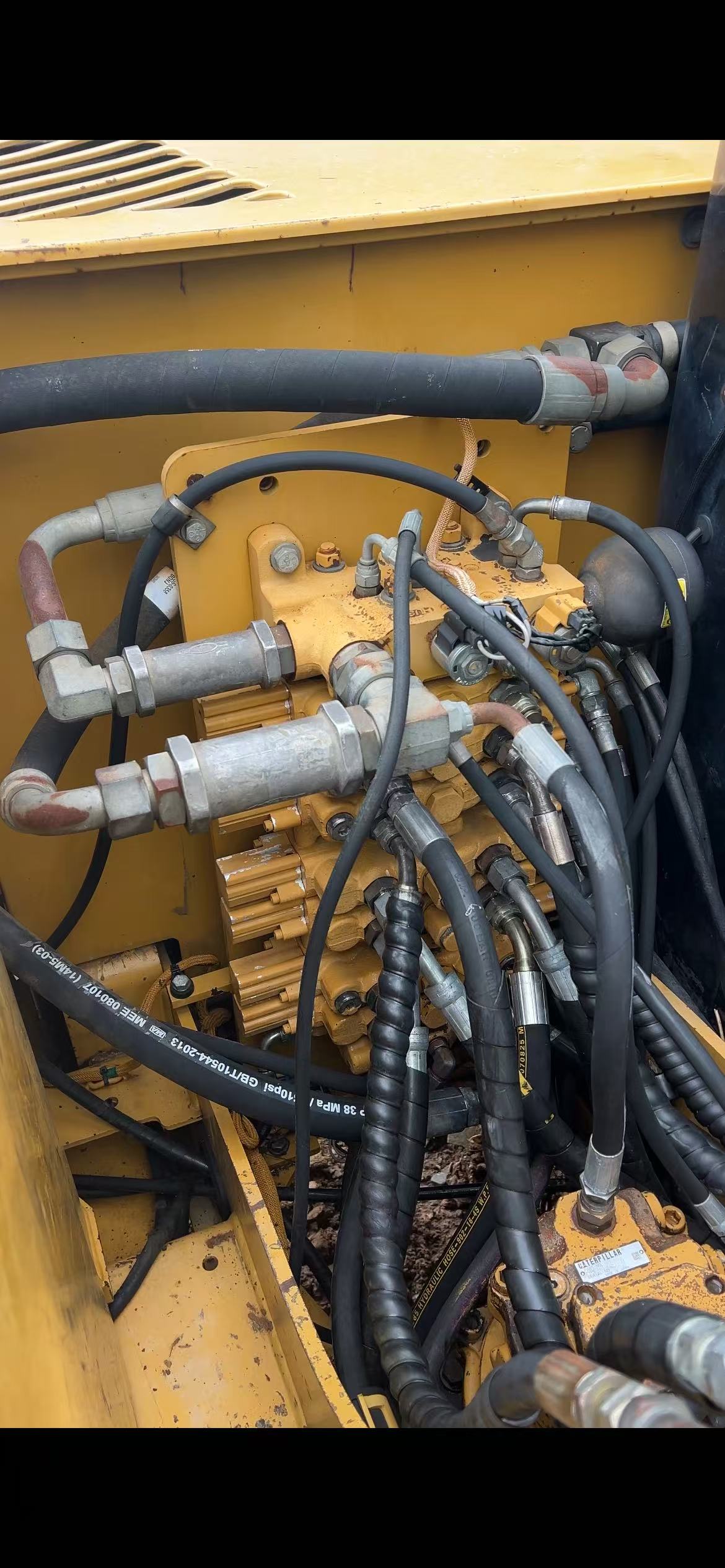

| Main pump type | Load sensing hydraulic system with variable displacement piston pump |
| Fuel Tank (L) | 135.0 |
| Hydraulic Tank (L) | 51.0 |
| Engine Oil changes (L) | 10.2 |
| Coolant (L) | 11.9 |
| Hydraulic System (L) | 94.0 |
| Total transport length (mm) | 6070 |
| Total transport width (mm) | 2300 |
| Full cab height (mm) | 2540 |
| Counterweight ground clearance (mm) | 775 |
| Minimum ground clearance (mm) | 370 |
| Back end turning radius (mm) | 1750 |

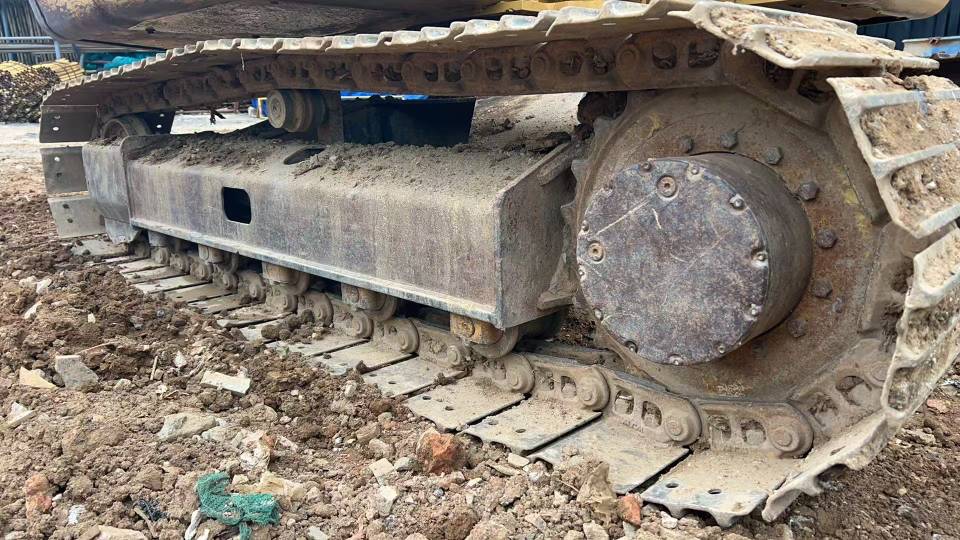

| Total track length (mm) | 2760 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2120 |
| Maximum digging radius (mm) | 6300 |
| Maximum digging depth (mm) | 4070 |
| Maximum excavation height (mm) | 7240 |
| Maximum unloading height (mm) | 5190 |
| Bulldozer lift or depth (mm) | 390 / 350 |
| Dodging plate width × height (mm) | 2300 x 450 |
| Maximum excavation radius of stop surface (mm) | 6180 |
