2020 Caterpillar 307E2

1/9
Buy Caterpillar 307E2 Used Excavator / 1

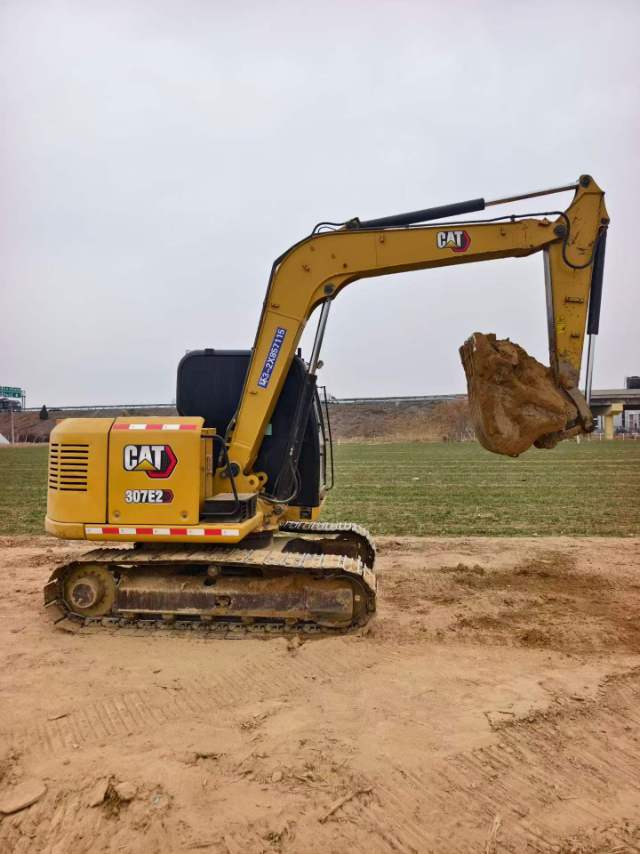

Buy Caterpillar 307E2 Used Excavator / 2

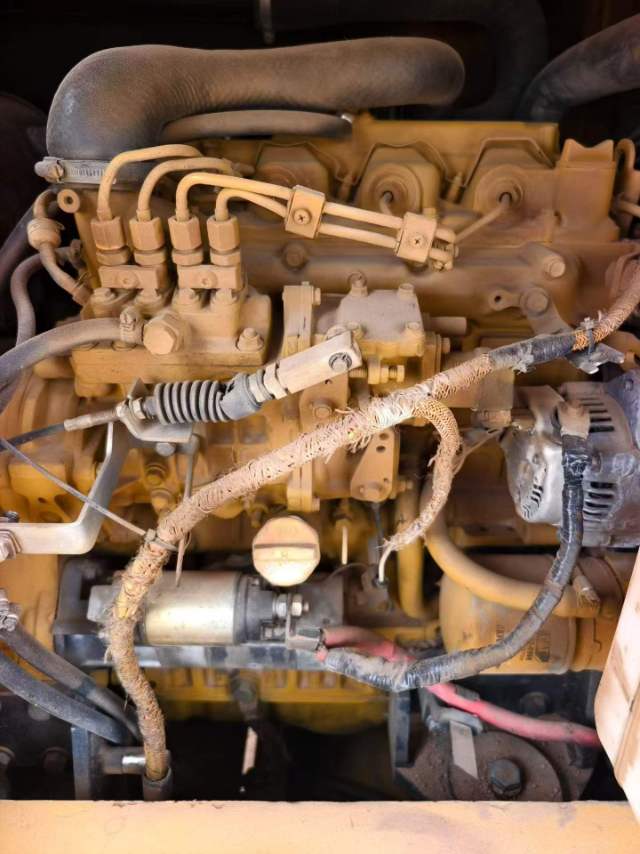

Buy Caterpillar 307E2 Used Excavator / 3

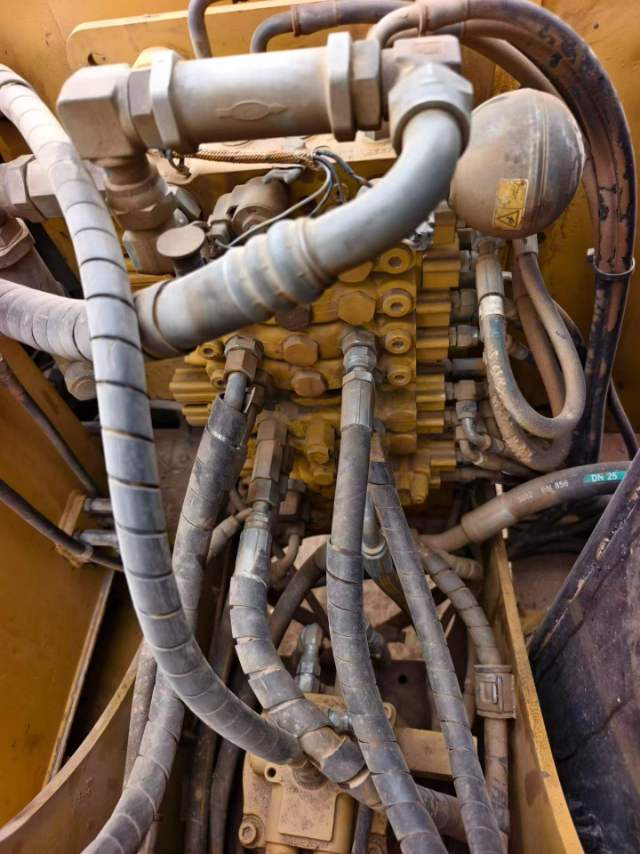

Buy Caterpillar 307E2 Used Excavator / 4

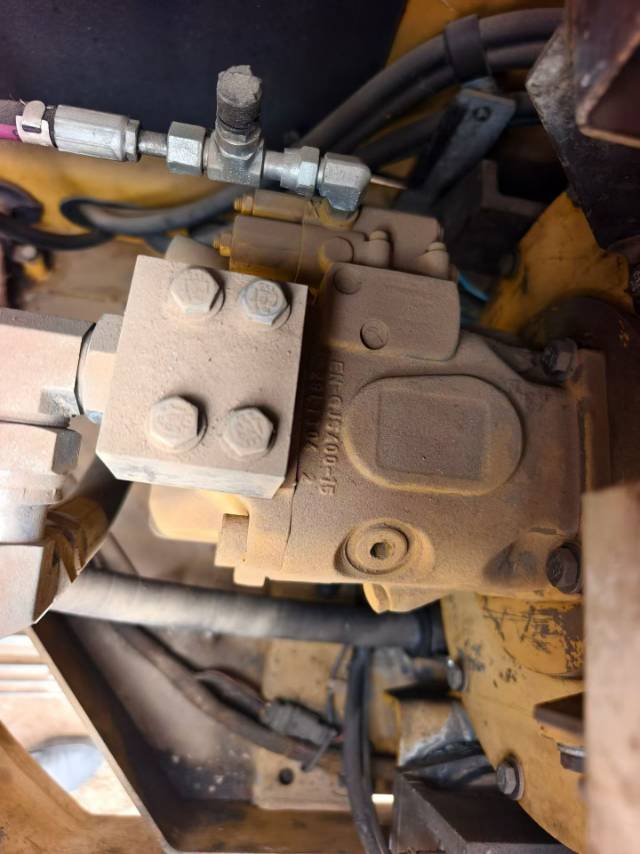

Buy Caterpillar 307E2 Used Excavator / 5

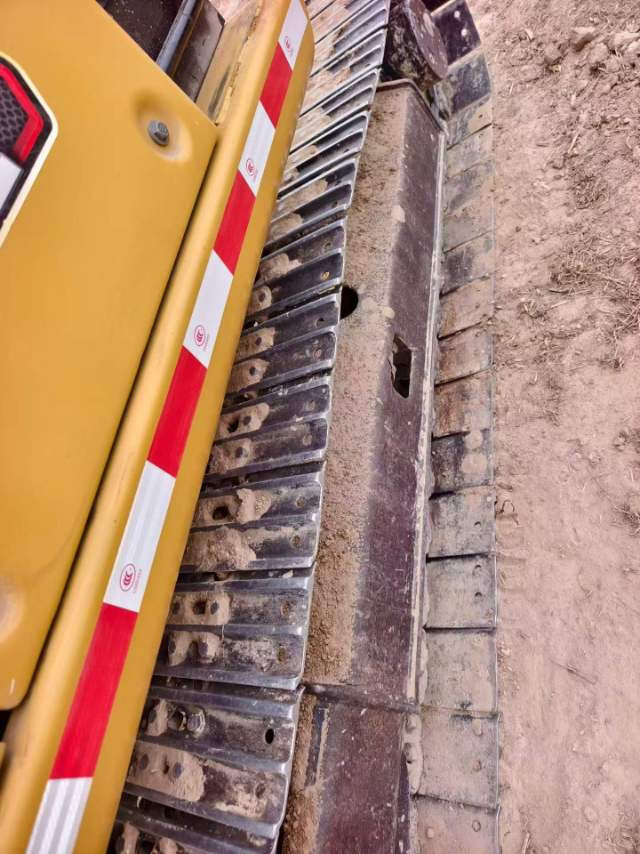

Buy Caterpillar 307E2 Used Excavator / 6

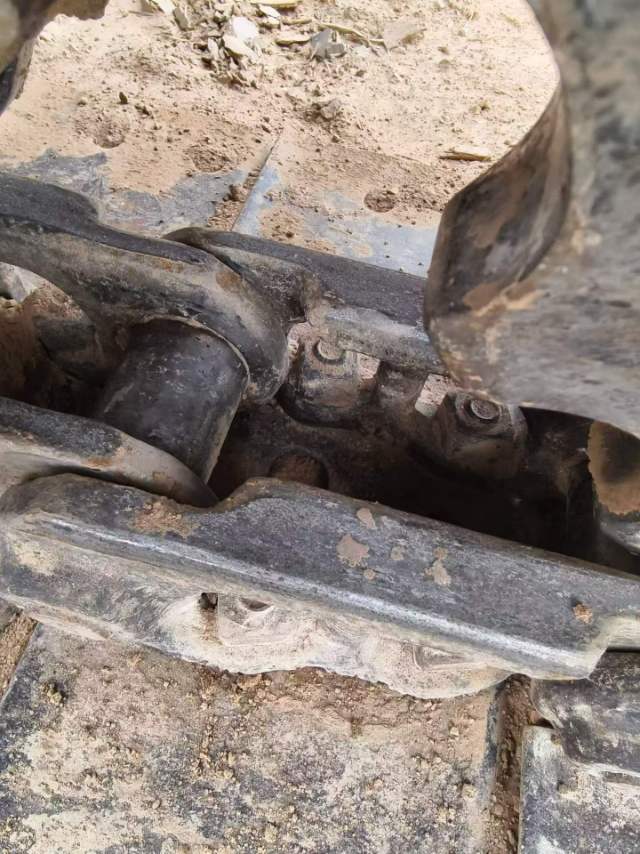

Buy Caterpillar 307E2 Used Excavator / 7

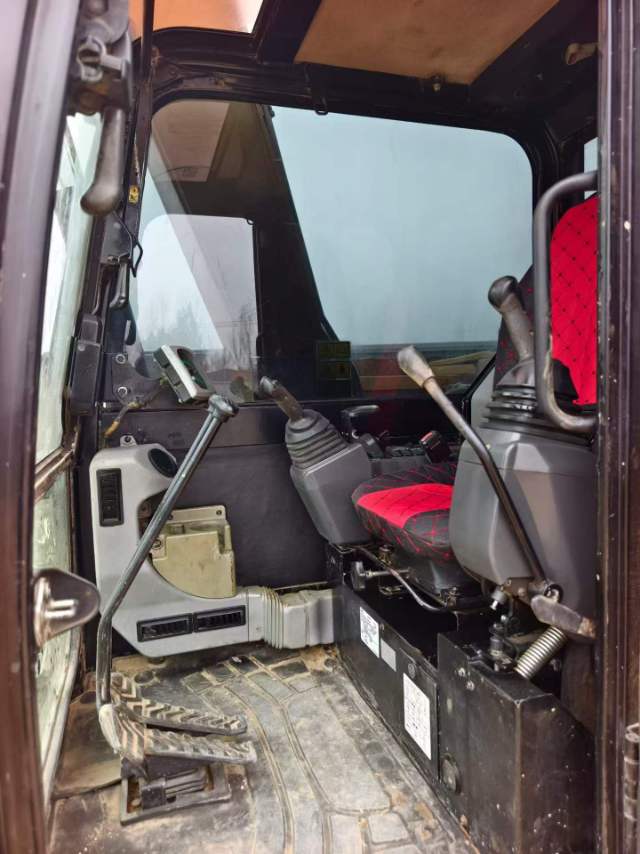

Buy Caterpillar 307E2 Used Excavator / 8

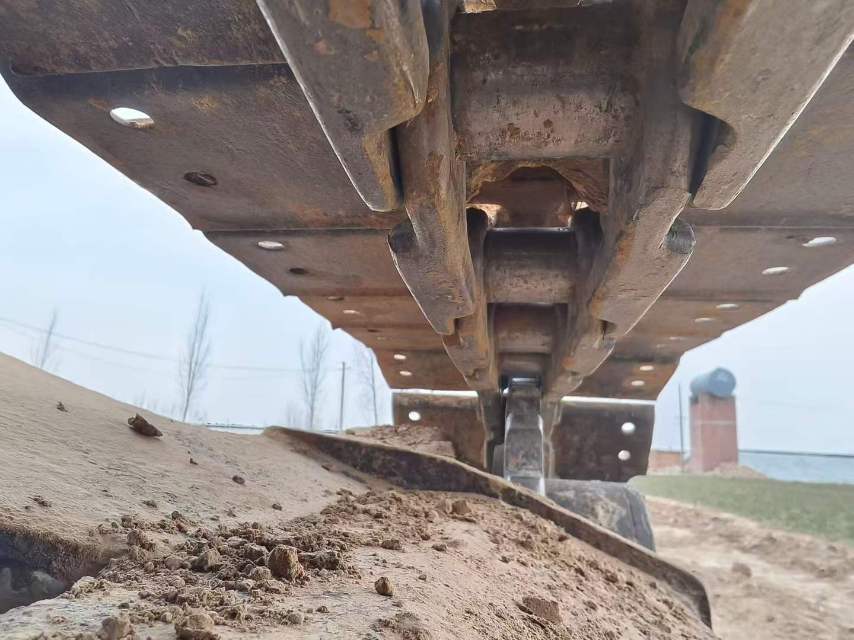

Buy Caterpillar 307E2 Used Excavator / 9

Product Description

Discover the reliability and performance of this 2020 Caterpillar 307E2, available now in Shandong, China. This compact excavator is in exceptional condition, meticulously maintained, and ready for immediate use. Known for its durability and efficiency, the 307E2 model is a trusted choice for various construction and excavation projects. The machine is leak-free, with all components functioning optimally, ensuring a seamless addition to your fleet. With its well-preserved appearance and top-notch maintenance, this excavator offers new-machine quality at a competitive price. Ideal for operators seeking a dependable and cost-effective solution, this unit is a solid investment that will deliver outstanding results on any job site.

  • Year: 2020
  • Brand: Caterpillar
  • Model: 307E2
  • Location: Shandong, China
SpecificationsValue
No.1134675
Tonnage (tons)7
Working weight (kg)6900
Bucket capacity (m³)0.33
Boom length (mm)3700
Rod length (mm)1665
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCat C2.6 DI Turbo
Rated power (kw/rpm)41.5
Cylinder diameter × stroke (mm)87 x 110
Displacement (L)2.6
Rotation speed (rpm)10.8
Climbing ability (%)60
Bucket digging force (kN)50.6
Rod digging force (kN)37.1
Maximum tractive force (kN)56.9
Travel speed (km/h)High: 5.1 / Low: 3.2
Turning torque (Nm)16.3
Main overflow set pressure (Mpa)28
Maximum flow of main pump (l/min)147
Traveling Hydraulic Circuit (Mpa)28
Rotary Hydraulic Circuit (Mpa)24
Main pump typeLoad sensing hydraulic system with variable displacement piston pump
Fuel Tank (L)135.0
Hydraulic Tank (L)51.0
Engine Oil changes (L)10.2
Coolant (L)11.9
Hydraulic System (L)94.0
Total transport length (mm)6070
Total transport width (mm)2300
Full cab height (mm)2540
Counterweight ground clearance (mm)775
Minimum ground clearance (mm)370
Back end turning radius (mm)1750
Total track length (mm)2760
Track plate width (mm)450
Track ground length (mm)2120
Maximum digging radius (mm)6300
Maximum digging depth (mm)4070
Maximum excavation height (mm)7240
Maximum unloading height (mm)5190
Bulldozer lift or depth (mm)390 / 350
Dodging plate width × height (mm)2300 x 450
Maximum excavation radius of stop surface (mm)6180
see more

Overview

No.1134675

Brand Name:

Caterpillar

Model Number:

307E2

Year:

2020

Location:

Shandong China
