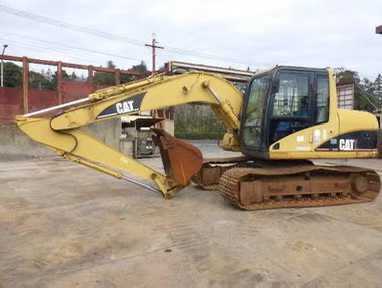

2006 Caterpillar 312C
Product Description
Available now in Guangdong Shenzhen, this 2006 Caterpillar 312C hydraulic excavator eliminates factory lead times and accelerates your project timeline. Powered by a reliable 3046T engine delivering 70.1 kW at 1950 rpm with water-cooling technology, this 12-ton workhorse is ready for immediate deployment to your site.
Key specifications include:
- Working weight: 12,777.7 kg with 0.55 m³ bucket capacity
- Maximum digging depth: 5,550 mm; maximum reach: 8,175 mm
- Boom/arm configuration: 4,650 mm / 3,000 mm for versatile operation
- Robust digging forces: 96 kN stick, 62 kN bucket
- Hydraulic system: 126.8 L/min main pump flow at 34.3 MPa
- Compact transport dimensions: 7,570 × 2,590 × 2,760 mm
Positioned in China's major logistics hub, fast shipping to domestic and international destinations reduces downtime. Skip the wait—this Cat 312C is inspection-ready and prepared for rapid mobilization to your construction, mining, or earthmoving operation.
| Specifications | Value |
|---|---|
| No. | 1021463 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12777.7 |
| Bucket capacity (m³) | 0.55 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 3000 |
| Country of origin | Japan/Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | 3046T |
| Rated power (kw/rpm) | 70.1/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 4.3 |
| Rotation speed (rpm) | 12.9 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 62 |
| Rod digging force (kN) | 96 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 126.8 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.3 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.05 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 17.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162(including fuel tank) |
| Total transport length (mm) | 7570 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2760 |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2590 |
| Track ground length (mm) | 2780 |
| Maximum digging depth (mm) | 5550 |
| Maximum excavation height (mm) | 8475 |
| Maximum unloading height (mm) | 6095 |
| Maximum vertical digging depth (mm) | 4970 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8175 |
