2016 Caterpillar 312C
Product Description
Maximize productivity without the premium price tag with this 2016 Caterpillar 312C excavator, currently available in Guangzhou, Guangdong. Delivering 70.1 kW of reliable power through its proven 3046T engine, this 12-ton workhorse offers exceptional value for contractors seeking dependable performance at a fraction of new equipment costs.
Engineered for versatility across demanding jobsites, this machine combines a 4650mm boom and 3000mm arm with a 0.55m³ bucket capacity, reaching maximum digging depths of 5550mm and excavation heights up to 8475mm. Robust digging forces—96 kN stick force and 62 kN bucket force—tackle tough materials efficiently, while the water-cooled 6-cylinder engine ensures consistent operation in challenging conditions.
Key investment advantages include:
- Proven Caterpillar reliability with joint venture/import manufacturing quality
- Compact transport dimensions (7570mm length) for easy mobilization
- Efficient hydraulic system with 126.8 L/min main pump flow
- 70% gradeability for superior slope work capability
- Comprehensive fluid capacities supporting extended operation cycles
Acquire professional-grade excavation capability while pres
| Specifications | Value |
|---|---|
| No. | 1045460 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12777.7 |
| Bucket capacity (m³) | 0.55 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 3000 |
| Country of origin | Japan/Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

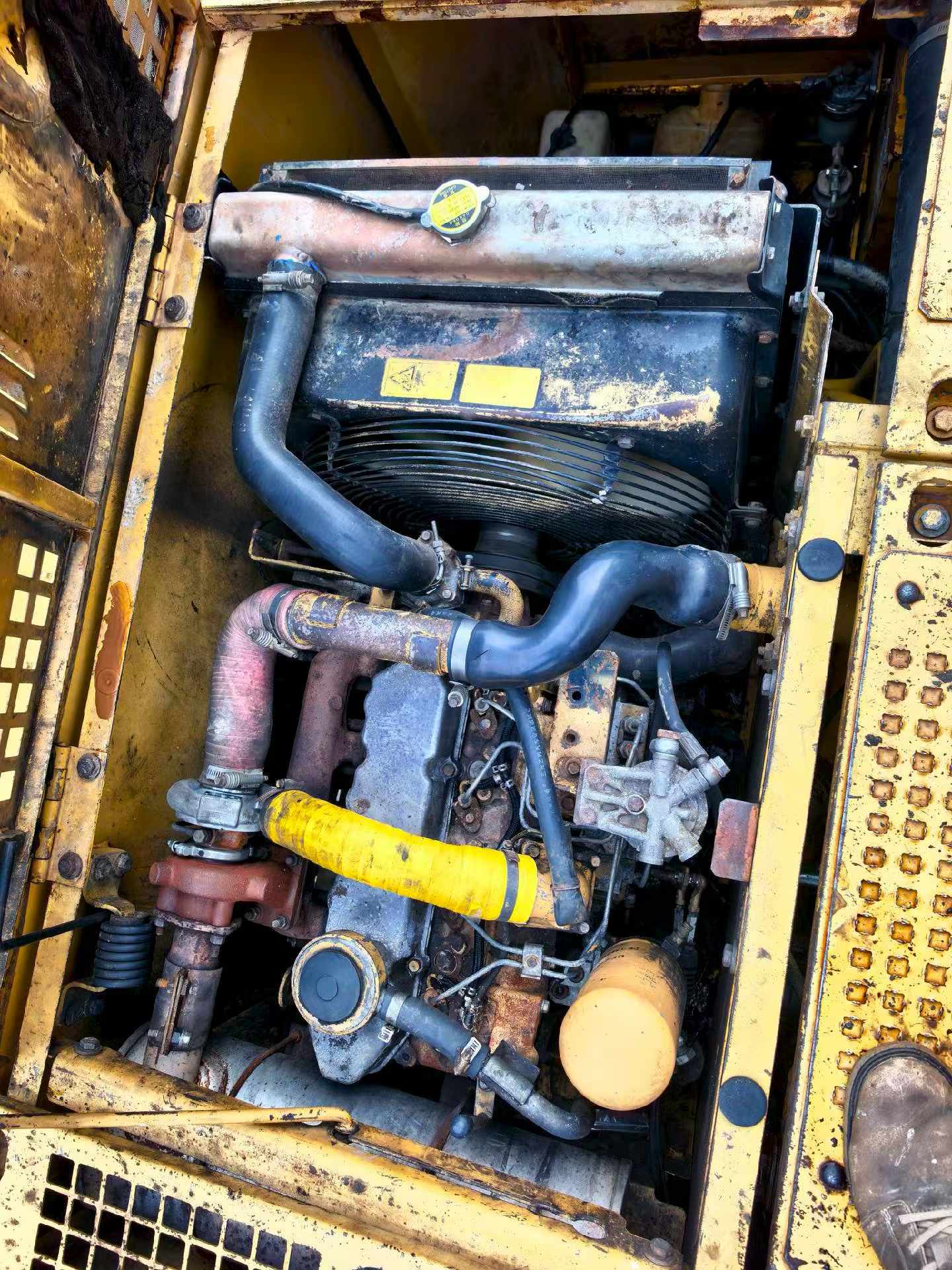

| Engine type | 3046T |
| Rated power (kw/rpm) | 70.1/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 4.3 |
| Rotation speed (rpm) | 12.9 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 62 |
| Rod digging force (kN) | 96 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 126.8 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.3 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.05 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 17.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162(including fuel tank) |
| Total transport length (mm) | 7570 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2760 |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2590 |
| Track ground length (mm) | 2780 |
| Maximum digging depth (mm) | 5550 |
| Maximum excavation height (mm) | 8475 |
| Maximum unloading height (mm) | 6095 |
| Maximum vertical digging depth (mm) | 4970 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8175 |
