2020 Caterpillar 312C
Product Description

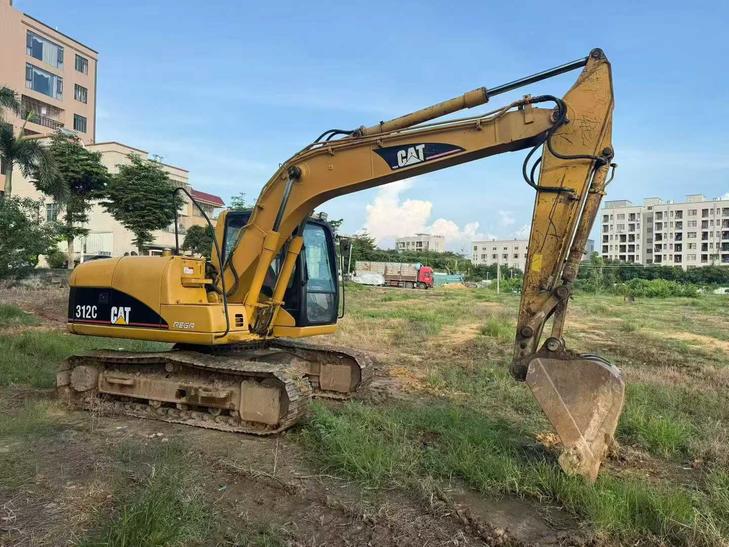

This 2020 Caterpillar 312C excavator is available in Guangdong, China. The machine features a newly installed track chain and has been performance-tested to ensure reliable operation. The 312C is recognized in the industry for its 13.5-ton operating weight class, delivering solid digging force and reach for medium-scale earthmoving, trenching, and site preparation work.
Key features include:
- New track chain installed
- Performance verified and ready for dispatch
- Located in Zhanjiang, Guangdong for inspection
- Complete documentation and video available upon request
This unit is suited for contractors and operators seeking dependable used equipment with recent maintenance. Inspection is welcome at the Zhanjiang location prior to shipment. Contact us for additional specifications, operational video, or shipping arrangements.
| Specifications | Value |
|---|---|
| No. | 1136864 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12777.7 |
| Bucket capacity (m³) | 0.55 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 3000 |
| Country of origin | Japan/Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | 3046T |
| Rated power (kw/rpm) | 70.1/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 4.3 |
| Rotation speed (rpm) | 12.9 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 62 |
| Rod digging force (kN) | 96 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 126.8 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.3 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.05 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 17.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162(including fuel tank) |
| Total transport length (mm) | 7570 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2760 |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2590 |
| Track ground length (mm) | 2780 |
| Maximum digging depth (mm) | 5550 |
| Maximum excavation height (mm) | 8475 |
| Maximum unloading height (mm) | 6095 |
| Maximum vertical digging depth (mm) | 4970 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8175 |
