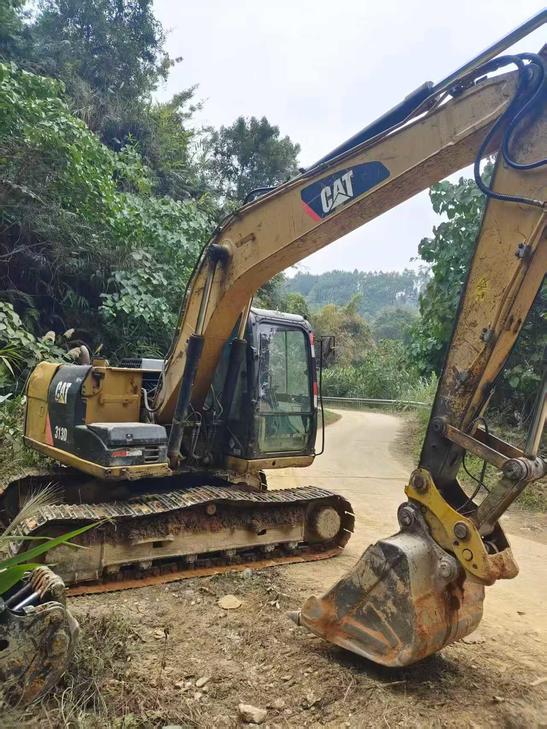

2011 Caterpillar 312D
Product Description
Built for serious work, the 2011 Caterpillar 312D delivers proven 12-ton performance at a fraction of new equipment cost. Powered by a Cat C4.2 ACERT engine producing 72 kW at 2,200 rpm, this water-cooled excavator handles demanding dig cycles with a bucket digging force of 96 kN and a maximum digging depth of 5,840 mm. Currently located in Guangxi, China, and ready for domestic or international deployment.
For buyers weighing new vs. used, this unit offers a compelling case: factory-engineered hydraulics, a 0.52 m³ backhoe bucket, and a 127 L/min main pump — all intact and operational — without the depreciation hit of purchasing new.
- Engine: Caterpillar C4.2 ACERT | 72 kW / 2,200 rpm | Water-cooled
- Operating Weight: 12,920 kg | Fuel Tank: 250 L
- Bucket Capacity: 0.52 m³ | Digging Force: 96 kN (bucket) / 62 kN (arm)
- Max Digging Depth: 5,840 mm | Max Reach: 8,430 mm
- Max Excavation Height: 8,580 mm | Max Unloading Height: 6,210 mm
- Travel Speed: 3.4 / 5.5 km/h | Gradeability: 70% / 35°
- Transport Dimensions: 7,590 × 2,590 × 2,970 mm
- Location: Guangxi, China | Available for Export
| Specifications | Value |
|---|---|
| No. | 1076552 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12920 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 2800 |
| Rod length (mm) | 3000 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C4.2ACERT |
| Rated power (kw/rpm) | 72/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 4.25 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 96 |
| Rod digging force (kN) | 62 |
| Travel speed (km/h) | 3.4/5.5 |
| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.3 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.05 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162(including fuel tank) |
| Total transport length (mm) | 7590 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2970 |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2590 |
| Track ground length (mm) | 2780 |
| Maximum digging depth (mm) | 5840 |
| Maximum excavation height (mm) | 8580 |
| Maximum unloading height (mm) | 6210 |
| Maximum vertical digging depth (mm) | 5160 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8430 |
| Maximum effective digging depth (mm) | 5640 |
