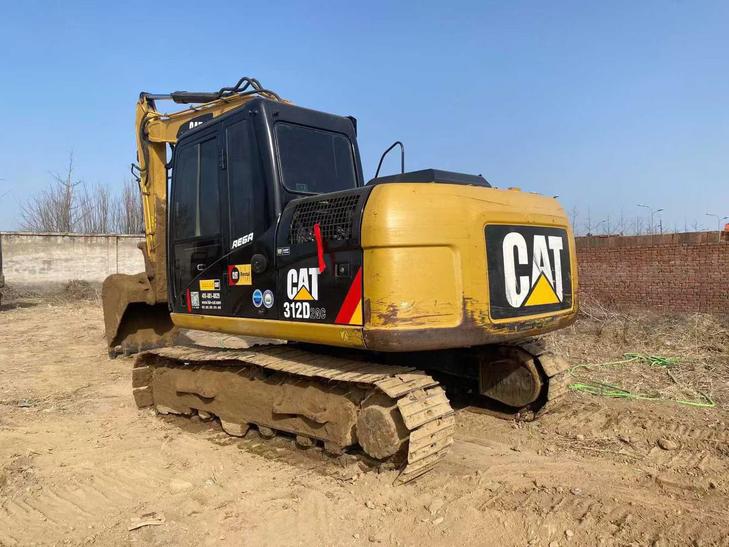

2020 Caterpillar 312D
Product Description
This 2020 Caterpillar 312D excavator offers reliable performance at a competitive price point. Currently located in Hebei, China, this machine retains its original factory paint and has been well-maintained throughout its operational life. The unit demonstrates strong working performance across all systems.
Key features include:
- Original factory paint finish
- Major components in original condition with no rebuilds
- Consistent operational performance
- Low operational hours for model year
- Ready for immediate deployment
The Caterpillar 312D is recognized in the construction and earthmoving sectors for its balanced combination of power, fuel efficiency, and operator comfort. This unit is available for inspection and represents a practical acquisition for contractors seeking dependable mid-size excavation equipment.
| Specifications | Value |
|---|---|
| No. | 1140603 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12920 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 2800 |
| Rod length (mm) | 3000 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C4.2ACERT |
| Rated power (kw/rpm) | 72/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 4.25 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 96 |
| Rod digging force (kN) | 62 |
| Travel speed (km/h) | 3.4/5.5 |
| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.3 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.05 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162(including fuel tank) |
| Total transport length (mm) | 7590 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2970 |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2590 |
| Track ground length (mm) | 2780 |
| Maximum digging depth (mm) | 5840 |
| Maximum excavation height (mm) | 8580 |
| Maximum unloading height (mm) | 6210 |
| Maximum vertical digging depth (mm) | 5160 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8430 |
| Maximum effective digging depth (mm) | 5640 |
