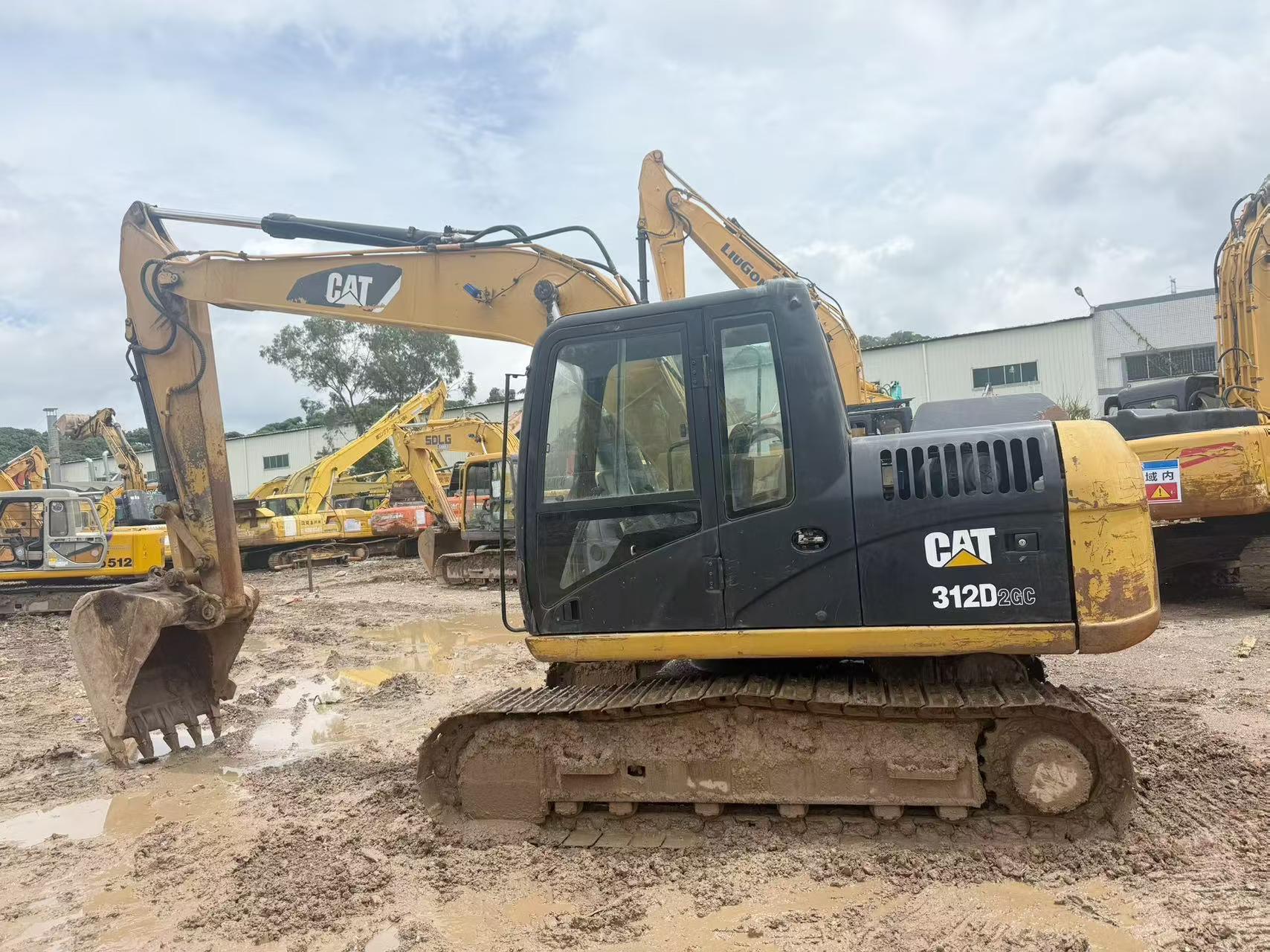

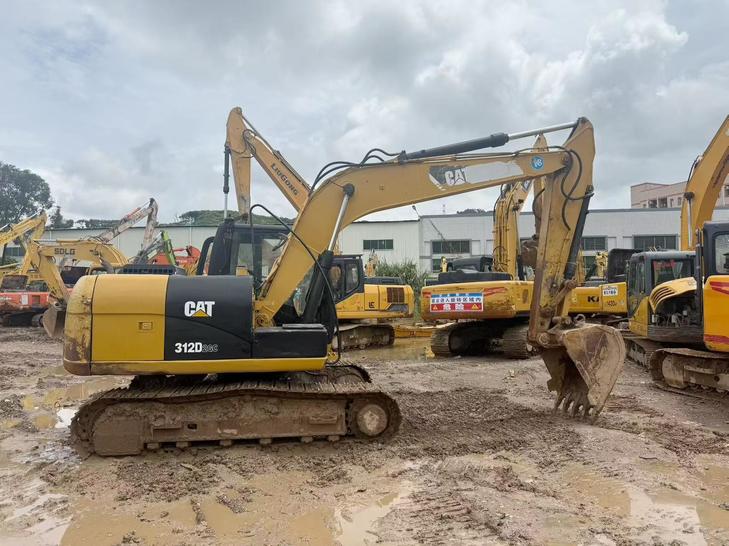

2020 Caterpillar 312D2GC
Product Description
This 2020 Caterpillar 312D2GC hydraulic excavator is ready for immediate deployment. Equipped with a direct-injection engine, this machine has been thoroughly inspected and certified for reliable performance on demanding job sites. Currently located in Guangdong, China, it represents an excellent value proposition for contractors and equipment operators seeking proven Caterpillar quality at a competitive price point.
- Year: 2020
- Model: Caterpillar 312D2GC

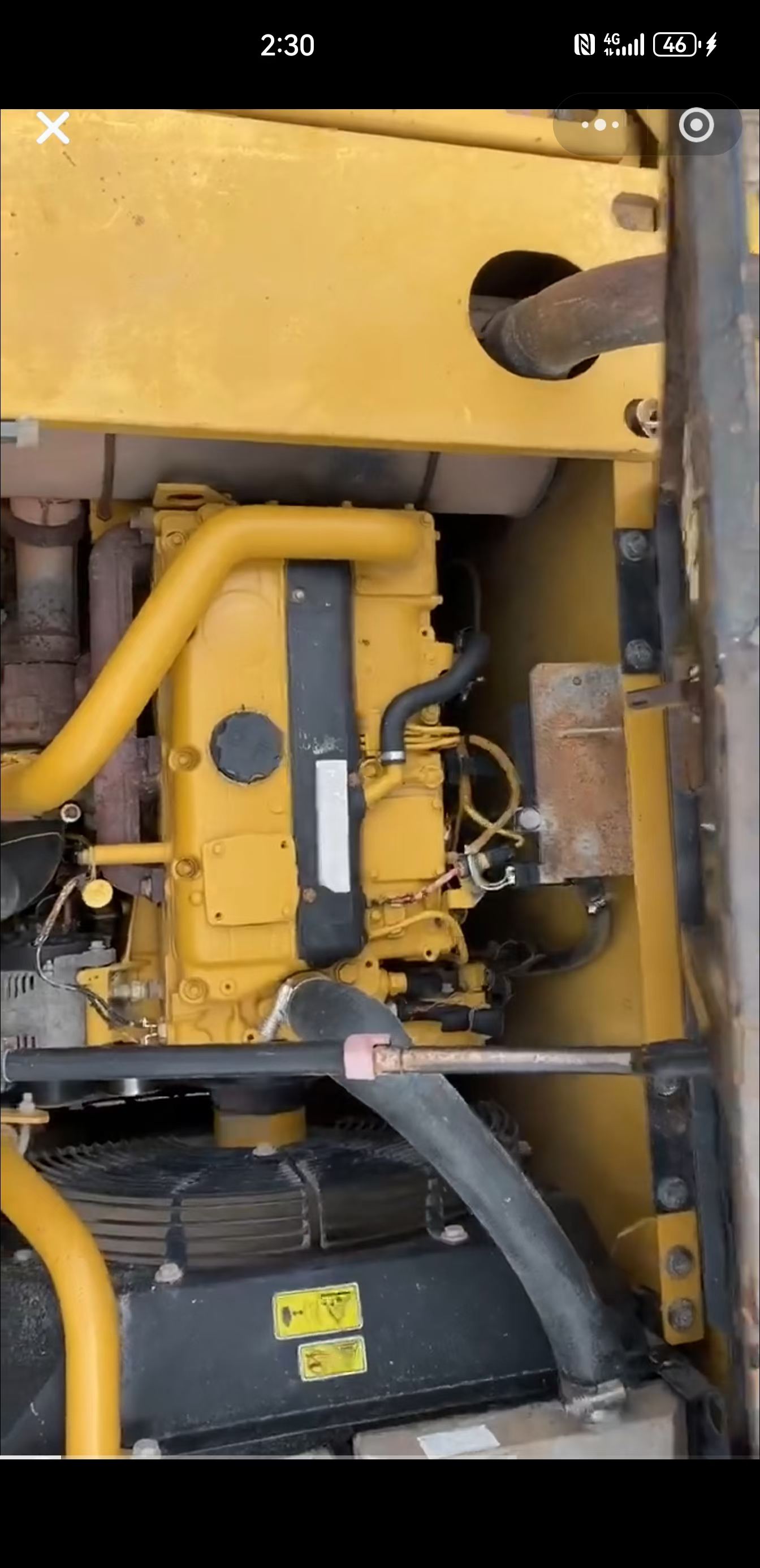

- Engine: Direct-injection diesel
- Condition: Performance-verified, site-ready
- Location: Guangdong Province, China
- Financing: Installment payment options available
Ideal for earthmoving, excavation, and construction applications. This unit combines Caterpillar's engineering excellence with low operating hours, making it a cost-effective addition to any fleet.
| Specifications | Value |
|---|---|
| No. | 1106146 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12500 |
| Bucket capacity (m³) | 0.53 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 2500 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar 3054C |
| Rated power (kw/rpm) | 59 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 127 |
| Displacement (L) | 4.4 |
| Ground specific pressure (Kpa) | 40.4 |
| Rotation speed (rpm) | 11.2 |
| Bucket digging force (kN) | 95 |
| Rod digging force (kN) | 65 |
| Maximum tractive force (kN) | 114 |
| Travel speed (km/h) | 5.1 |
| Turning torque (Nm) | 30.9 |
| Maximum flow of main pump (l/min) | 232 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Working Hydraulic Circuit (Mpa) | 30.5 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Pilot pump flow (L/min) | 21.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 91 |
| Engine Oil changes (L) | 16 |
| Coolant (L) | 18 |
| Hydraulic System (L) | 104 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2830 |
| Full cab height (mm) | 2670 |
| Counterweight ground clearance (mm) | 900 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2140 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Maximum digging depth (mm) | 5540 |
| Maximum excavation height (mm) | 8490 |
| Maximum unloading height (mm) | 6100 |
| Maximum vertical digging depth (mm) | 4910 |
| Maximum excavation radius of stop surface (mm) | 8180 |
| Maximum effective digging depth (mm) | 5340 |
