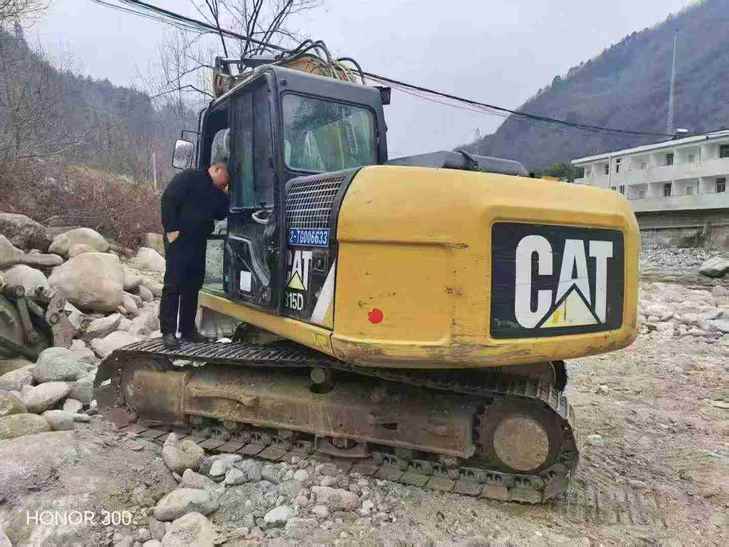

2012 Caterpillar 313D
Product Description
Built for precision and power, this 2012 Caterpillar 313D delivers 13 tons of reliable performance across construction, demolition, and grading operations. Equipped with a Cat C4.2 ACERT engine generating 67 kW of net power, this excavator handles demanding site work with consistent hydraulic flow and responsive controls. Water-cooled efficiency meets EPA Tier 3 and European IIIA emission standards while maintaining maximum productivity.
Operational specs include a 5,580 mm maximum digging depth, 8,220 mm excavation radius, and 0.52 m³ bucket capacity—ideal for foundation work, trenching, and material handling. The 4,650 mm boom and 2,500 mm stick provide extended reach without sacrificing stability. With 82 kN bucket digging force and 114 kN maximum tractive force, this machine moves earth efficiently on diverse terrain.
Key features:
- 13,430 kg working weight with 500 mm track plates for optimal ground pressure
- 250 L fuel tank and 162 L hydraulic system capacity for extended operation
- Compact transport dimensions: 7,610 mm length × 2,490 mm width
- Currently located in Shaoxing, Zhejiang—ready for immediate deployment
| Specifications | Value |
|---|---|
| No. | 1022337 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13430 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 2500 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 67 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 41.8 (with 500mm track plate) |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 82 |
| Rod digging force (kN) | 63 |
| Maximum tractive force (kN) | 114 |
| Travel speed (km/h) | 5.5 |
| Main overflow set pressure (Mpa) | 30.5 |
| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Pilot Oil Circuit (MPa) | 41.2 |
| Pilot pump flow (L/min) | 21.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162 (including fuel tank) |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2830 (to top of boom) |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2140 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 (standard) |
| Total track width (mm) | 2490 |
| Maximum digging depth (mm) | 5580 |
| Maximum unloading height (mm) | 6060 |
| Maximum vertical digging depth (mm) | 5040 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8220 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5380 |
Overview
No.1022337
Brand Name：
CaterpillarModel Number：
313DYear：
2012
Location：
Zhejiang China
Pub Date：
