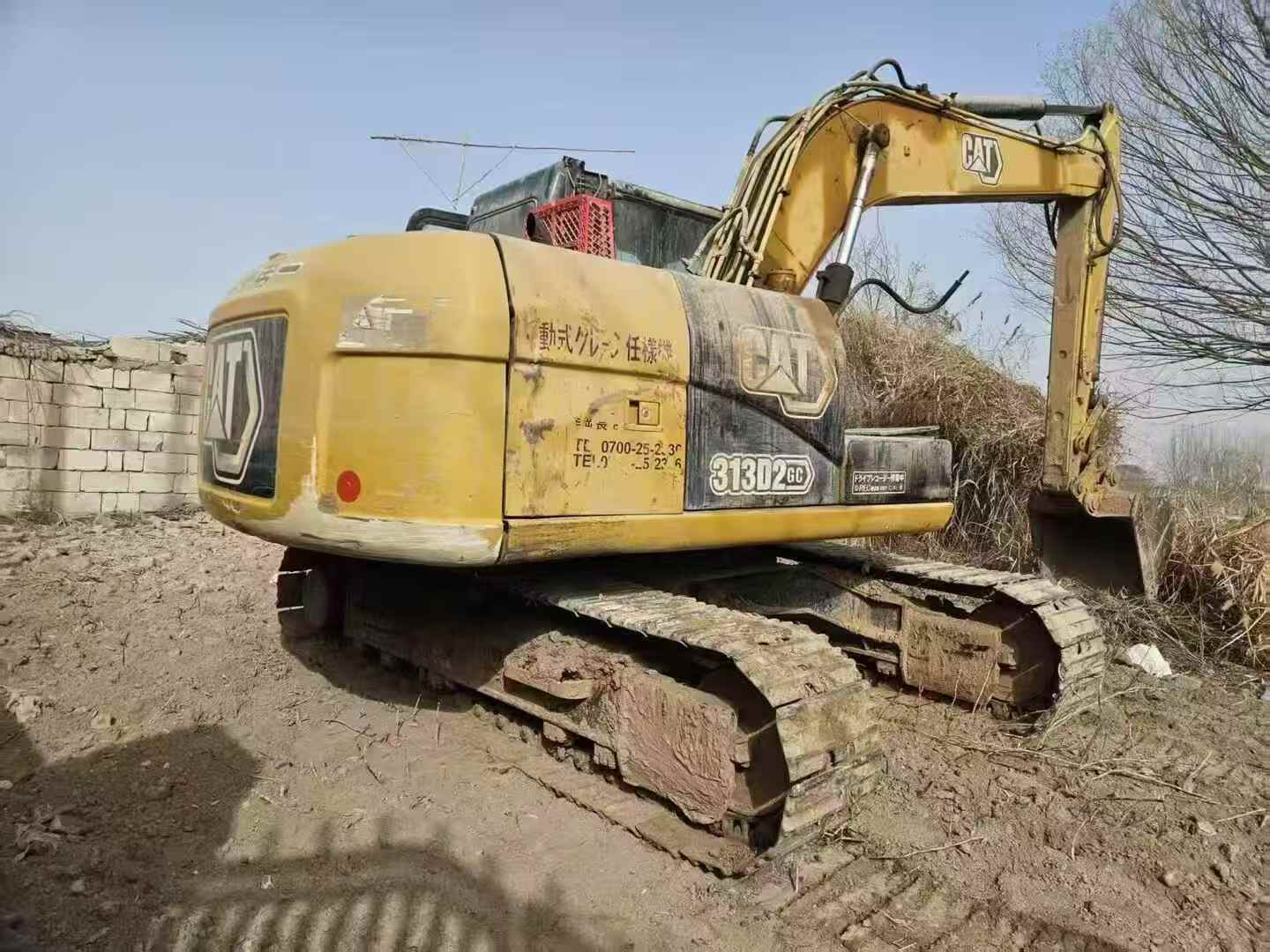

2013 Caterpillar 313D
Product Description
Maximize your excavation budget with this 2013 Caterpillar 313D, a proven 13-ton workhorse delivering exceptional value without compromising performance. Powered by the reliable Cat C4.2 ACERT engine producing 67 kW, this machine combines robust digging capabilities with fuel efficiency that keeps operating costs predictable. Currently located in Guizhou, this mid-size excavator offers an intelligent alternative to new equipment pricing while maintaining the quality standards Caterpillar is known for.
Performance specifications include:
- Operating weight of 13,430 kg with 0.52 m³ bucket capacity for versatile applications
- Impressive 82 kN bucket digging force and 63 kN rod digging force
- Maximum digging depth of 5,580 mm and reach of 8,220 mm
- Water-cooled 4.25L displacement engine meeting EPA Tier 3/EU Stage IIIA emissions standards
- Efficient hydraulic system with 127 L/min main pump flow
Invest strategically in equipment that delivers professional-grade results at a fraction of new machine costs. This joint venture-manufactured excavator represents smart capital allocation for contractors seeking reliable performance and proven Caterpillar engineering.
| Specifications | Value |
|---|---|
| No. | 1010608 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13430 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 2500 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

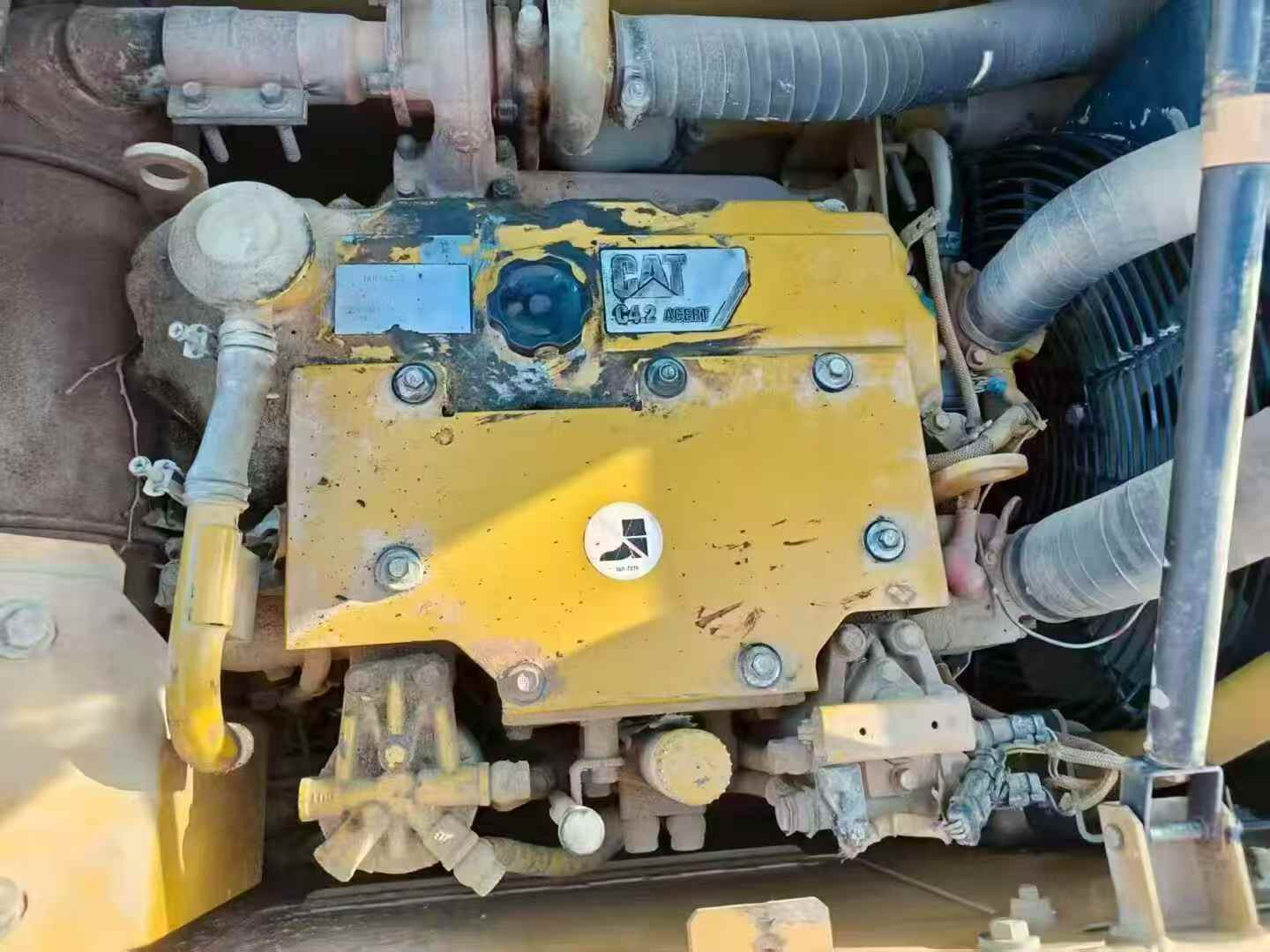

| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 67 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 41.8 (with 500mm track plate) |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 82 |
| Rod digging force (kN) | 63 |
| Maximum tractive force (kN) | 114 |
| Travel speed (km/h) | 5.5 |
| Main overflow set pressure (Mpa) | 30.5 |
| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Pilot Oil Circuit (MPa) | 41.2 |
| Pilot pump flow (L/min) | 21.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162 (including fuel tank) |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2830 (to top of boom) |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2140 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 (standard) |
| Total track width (mm) | 2490 |
| Maximum digging depth (mm) | 5580 |
| Maximum unloading height (mm) | 6060 |
| Maximum vertical digging depth (mm) | 5040 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8220 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5380 |
Overview
No.1010608
Brand Name：
CaterpillarModel Number：
313DYear：
2013
Location：
Guizhou China
Pub Date：
