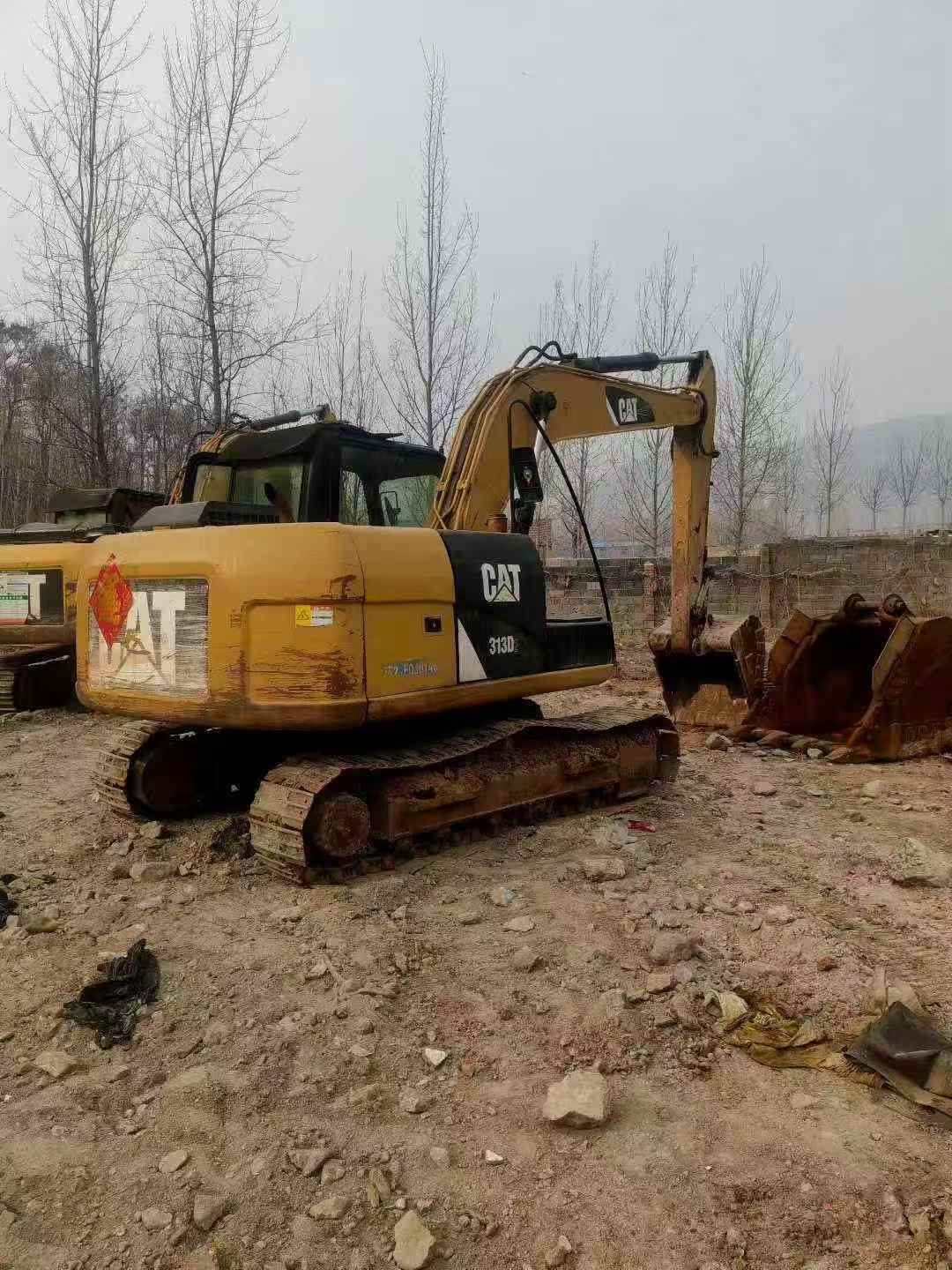

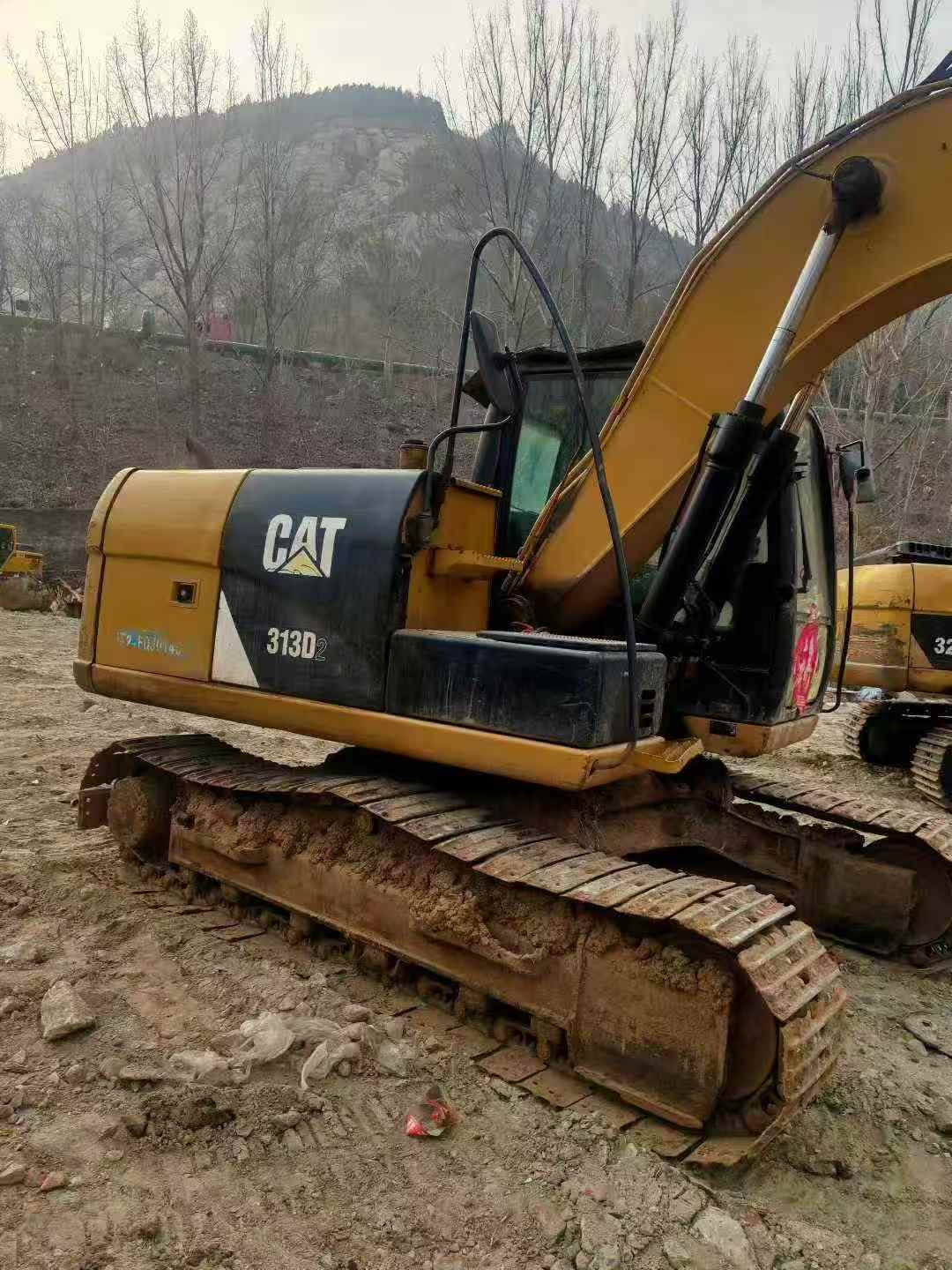

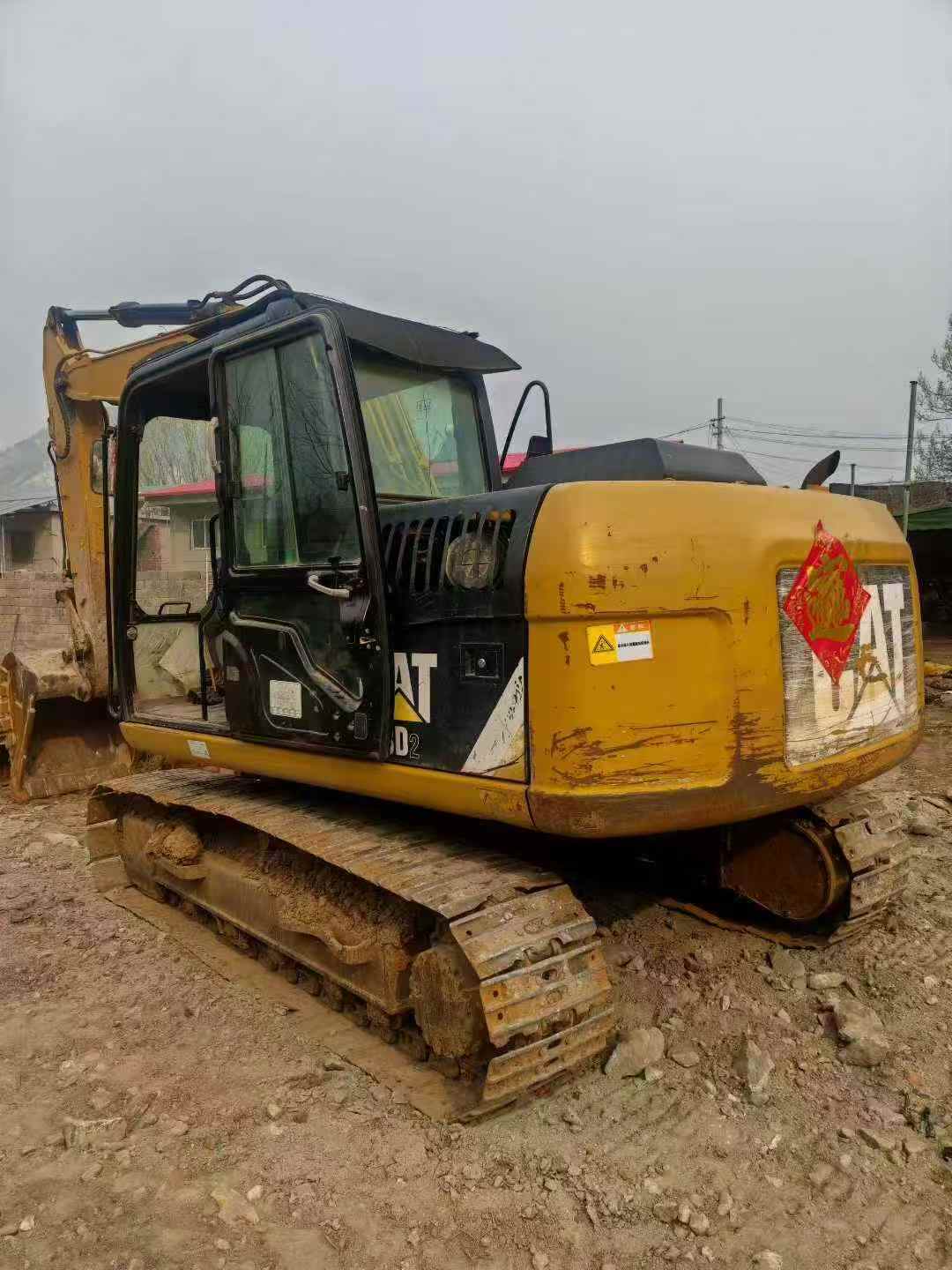

2014 Caterpillar 313D
Product Description
Engineered with Caterpillar's proven C4.2 ACERT engine delivering 67 kW of net power, this 2014 313D excavator combines robust hydraulic performance with fuel-efficient operation. Operating at 13 tons with a 13,430 kg working weight, the machine features a sophisticated hydraulic system with 127 L/min maximum pump flow and 30.5 MPa main overflow pressure, ensuring precise control across all functions. The Cat 313D reaches 5,580 mm maximum digging depth and 8,220 mm maximum excavation radius, while maintaining exceptional stability through its 41.8 kPa ground-specific pressure rating.
- Cat C4.2 ACERT water-cooled engine: 4.25L displacement, 4-cylinder configuration
- Superior digging force: 82 kN bucket force, 63 kN rod force
- Precision hydraulics: 162L total system capacity with dedicated pilot circuit
- Compact transport dimensions: 7,610 mm length × 2,490 mm width
- US EPA Tier 3 and European IIIA compliant emissions
- Currently located in Shandong, China
Built to Caterpillar's joint-venture manufacturing standards in China, this 313D represents a reliable mid-sized excavator platform for contractors requiring consistent performance in demanding applications.
| Specifications | Value |
|---|---|
| No. | 1032655 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13430 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 2500 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 67 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 41.8 (with 500mm track plate) |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 82 |
| Rod digging force (kN) | 63 |
| Maximum tractive force (kN) | 114 |
| Travel speed (km/h) | 5.5 |
| Main overflow set pressure (Mpa) | 30.5 |
| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Pilot Oil Circuit (MPa) | 41.2 |
| Pilot pump flow (L/min) | 21.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162 (including fuel tank) |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2830 (to top of boom) |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2140 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 (standard) |
| Total track width (mm) | 2490 |
| Maximum digging depth (mm) | 5580 |
| Maximum unloading height (mm) | 6060 |
| Maximum vertical digging depth (mm) | 5040 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8220 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5380 |
Overview
No.1032655
Brand Name：
CaterpillarModel Number：
313DYear：
2014
Location：
Shandong China
Pub Date：
