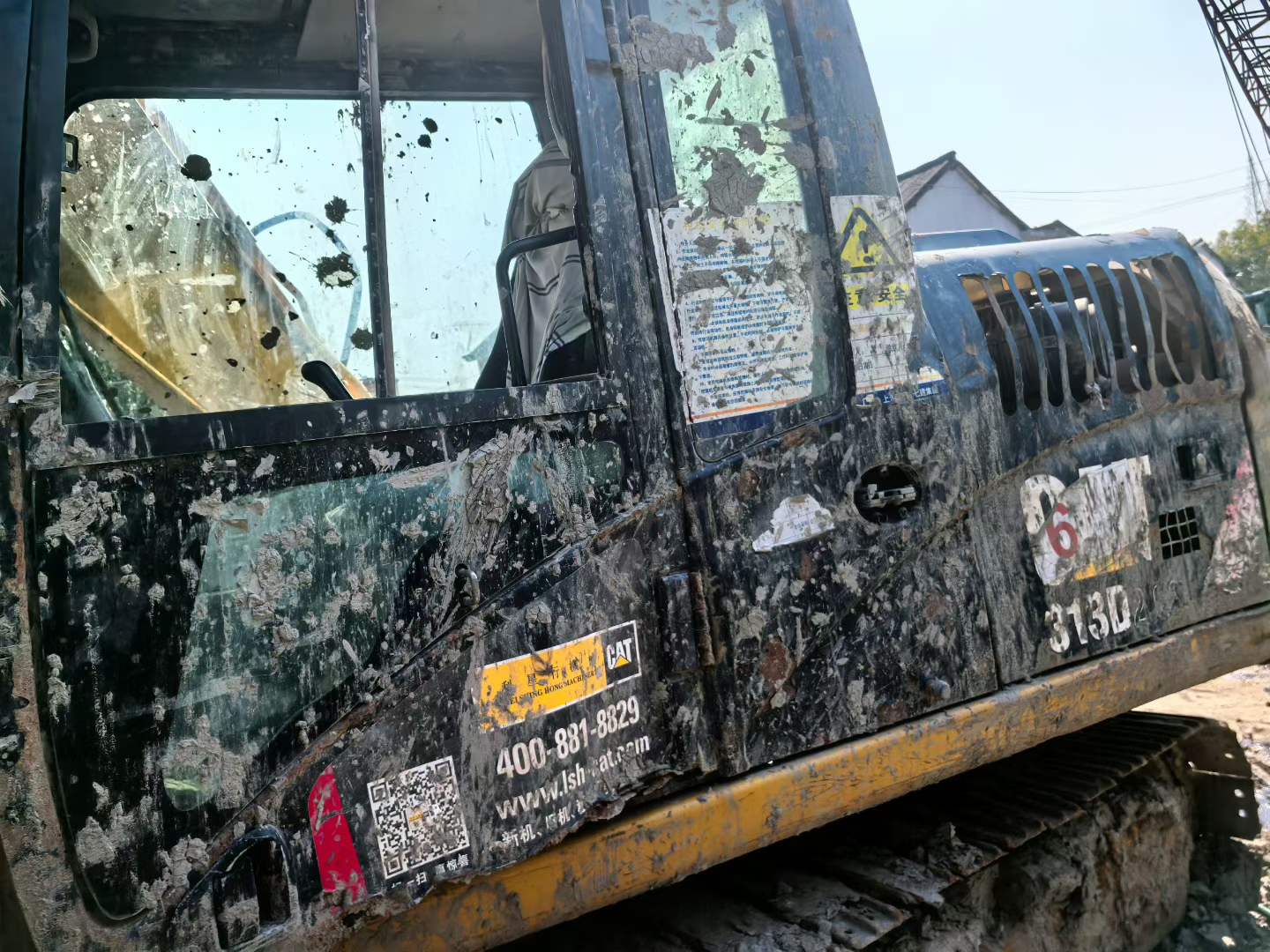

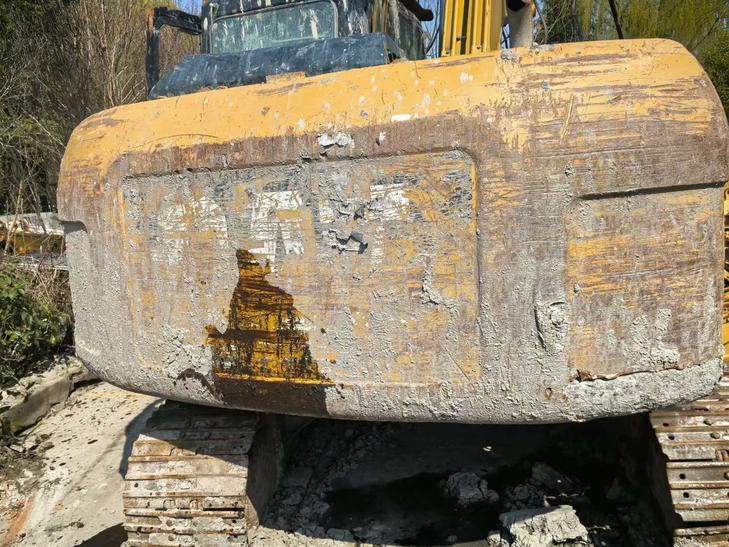

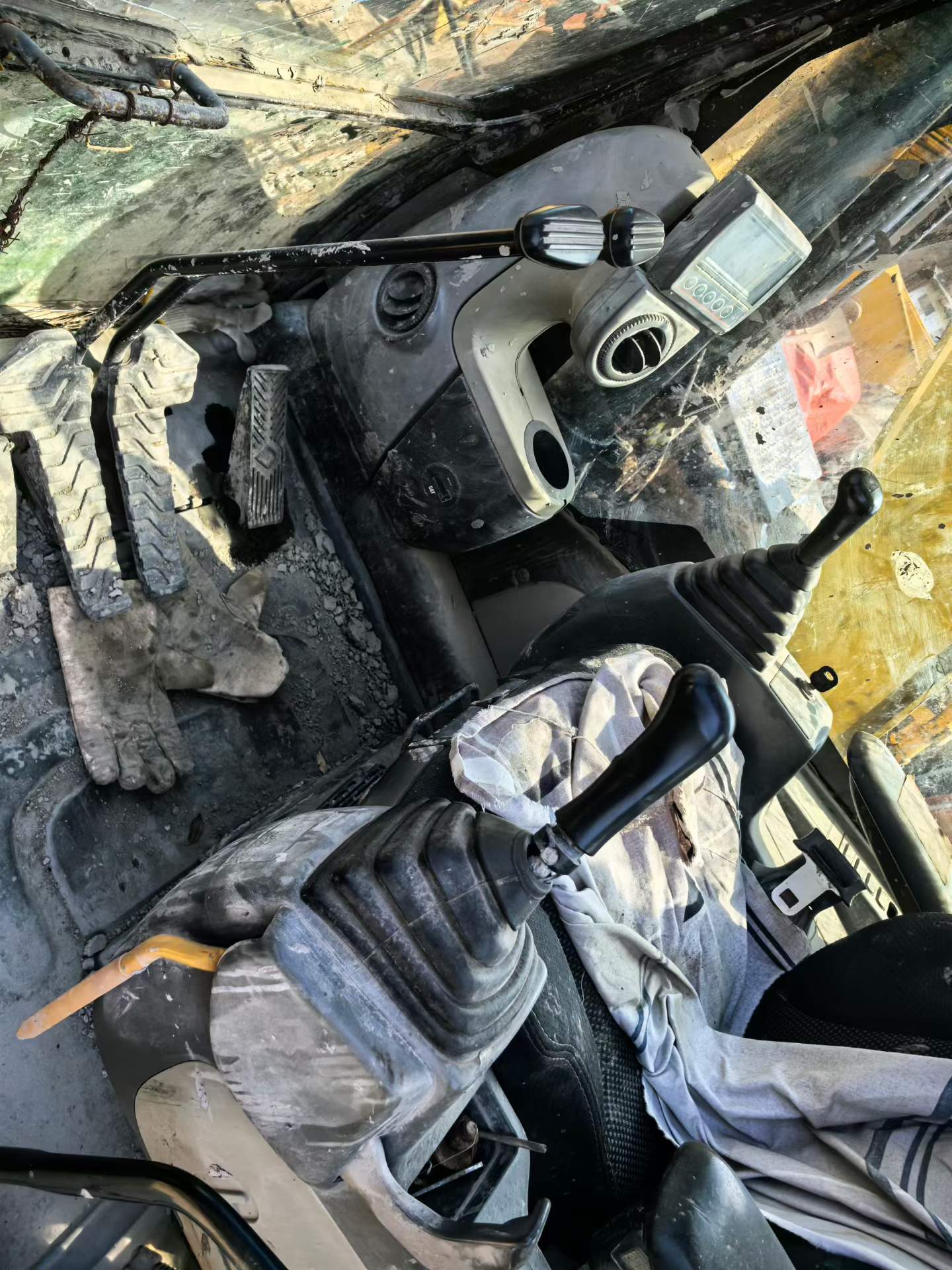

2016 Caterpillar 313D
Product Description
Available now in Shanghai, this 2016 Caterpillar 313D excavator delivers immediate deployment without factory lead times. Operating at 13 tons with a robust Cat C4.2 ACERT engine producing 67 kW net power, this machine combines proven reliability with efficient hydraulics for demanding jobsites across Asia-Pacific and beyond.
- Immediate Availability: Ready for fast shipment from Shanghai—skip months of waiting
- Powerful Performance: 82 kN bucket digging force, 8,220 mm maximum reach, 5,580 mm digging depth
- Proven Drivetrain: Water-cooled 4.25L diesel engine meeting EPA Tier 3 / EU Stage IIIA standards
- Versatile Capacity: 0.52 m³ bucket, 4,650 mm boom, 2,500 mm arm configuration
- Efficient Hydraulics: 127 L/min main pump flow, 30.5 MPa system pressure for responsive control
- Compact Transport: 7,610 mm length, 2,490 mm width—container-friendly dimensions for global logistics
Positioned in China's primary export hub, this 313D offers rapid deployment to construction, infrastructure, and utility projects. Secure your equipment today and maintain project momentum with
| Specifications | Value |
|---|---|
| No. | 1028442 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13430 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 2500 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 67 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 41.8 (with 500mm track plate) |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 82 |
| Rod digging force (kN) | 63 |
| Maximum tractive force (kN) | 114 |
| Travel speed (km/h) | 5.5 |
| Main overflow set pressure (Mpa) | 30.5 |
| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Pilot Oil Circuit (MPa) | 41.2 |
| Pilot pump flow (L/min) | 21.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162 (including fuel tank) |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2830 (to top of boom) |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2140 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 (standard) |
| Total track width (mm) | 2490 |
| Maximum digging depth (mm) | 5580 |
| Maximum unloading height (mm) | 6060 |
| Maximum vertical digging depth (mm) | 5040 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8220 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5380 |
see more
Overview
No.1028442
Brand Name：
CaterpillarModel Number：
313DYear：
2016
Location：
Shanghai China
