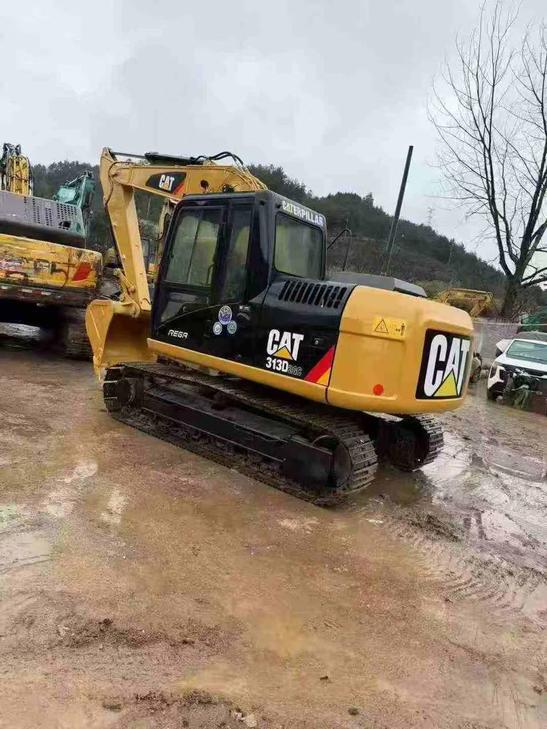

2016 Caterpillar 313D
Product Description
Built for precision and productivity, this 2016 Caterpillar 313D delivers reliable performance across diverse jobsites. Operating at 13 tons with a robust Cat C4.2 ACERT engine producing 67 kW of net power, this mid-size excavator combines fuel efficiency with commanding digging force—82 kN bucket force and 63 kN arm force handle tough material with ease.
Operators benefit from exceptional visibility and ergonomic cabin design, allowing confident maneuvering in confined spaces. With a compact tail swing radius of just 2,140 mm and precise hydraulic controls delivering 127 L/min flow, positioning around obstacles becomes intuitive. The 500 mm track plates distribute weight evenly at 41.8 kPa ground pressure, ensuring solid stability on varied terrain without excessive surface damage.
- Maximum digging depth: 5,580 mm
- Maximum reach: 8,220 mm
- Boom length: 4,650 mm / Arm length: 2,500 mm
- Travel speed: 5.5 km/h for efficient repositioning
- Fuel capacity: 250 L for extended operation
- Meets US EPA Tier 3 and EU Stage IIIA emissions standards
Currently located in Hunan, this versatile excavator is ready for global deployment.
| Specifications | Value |
|---|---|
| No. | 1033040 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13430 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 2500 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 67 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 41.8 (with 500mm track plate) |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 82 |
| Rod digging force (kN) | 63 |
| Maximum tractive force (kN) | 114 |
| Travel speed (km/h) | 5.5 |
| Main overflow set pressure (Mpa) | 30.5 |
| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Pilot Oil Circuit (MPa) | 41.2 |
| Pilot pump flow (L/min) | 21.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162 (including fuel tank) |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2830 (to top of boom) |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2140 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 (standard) |
| Total track width (mm) | 2490 |
| Maximum digging depth (mm) | 5580 |
| Maximum unloading height (mm) | 6060 |
| Maximum vertical digging depth (mm) | 5040 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8220 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5380 |
Overview
No.1033040
Brand Name：
CaterpillarModel Number：
313DYear：
2016
Location：
Hunan China
Pub Date：
