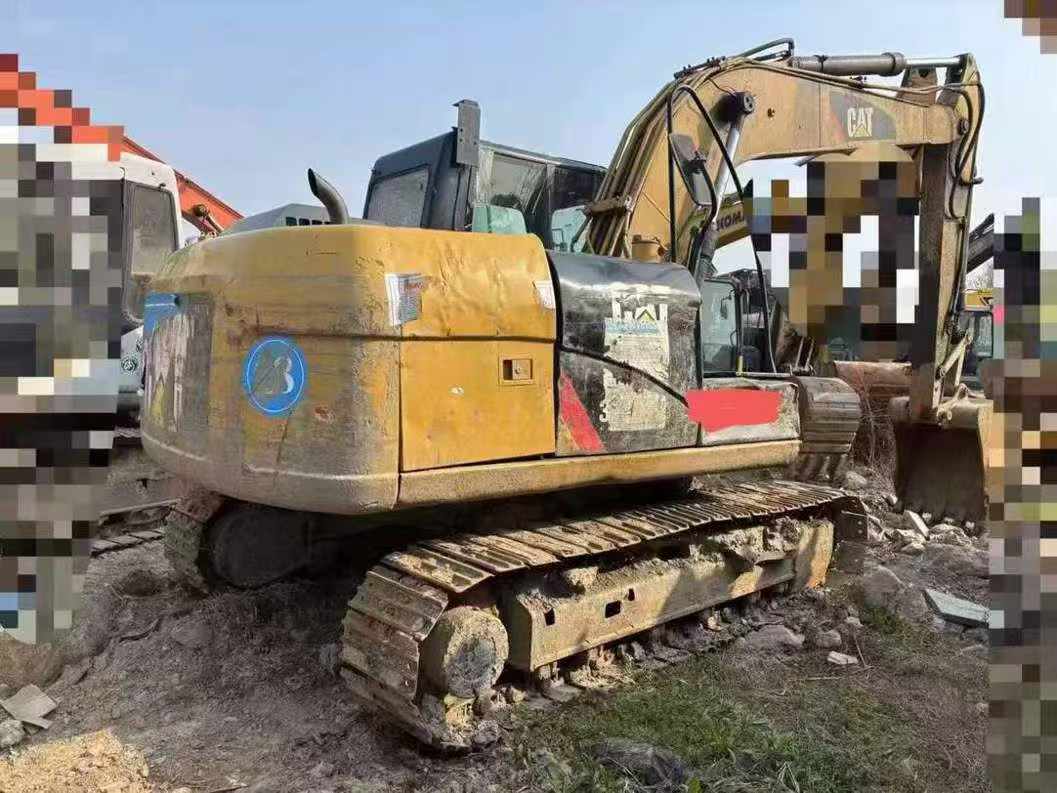

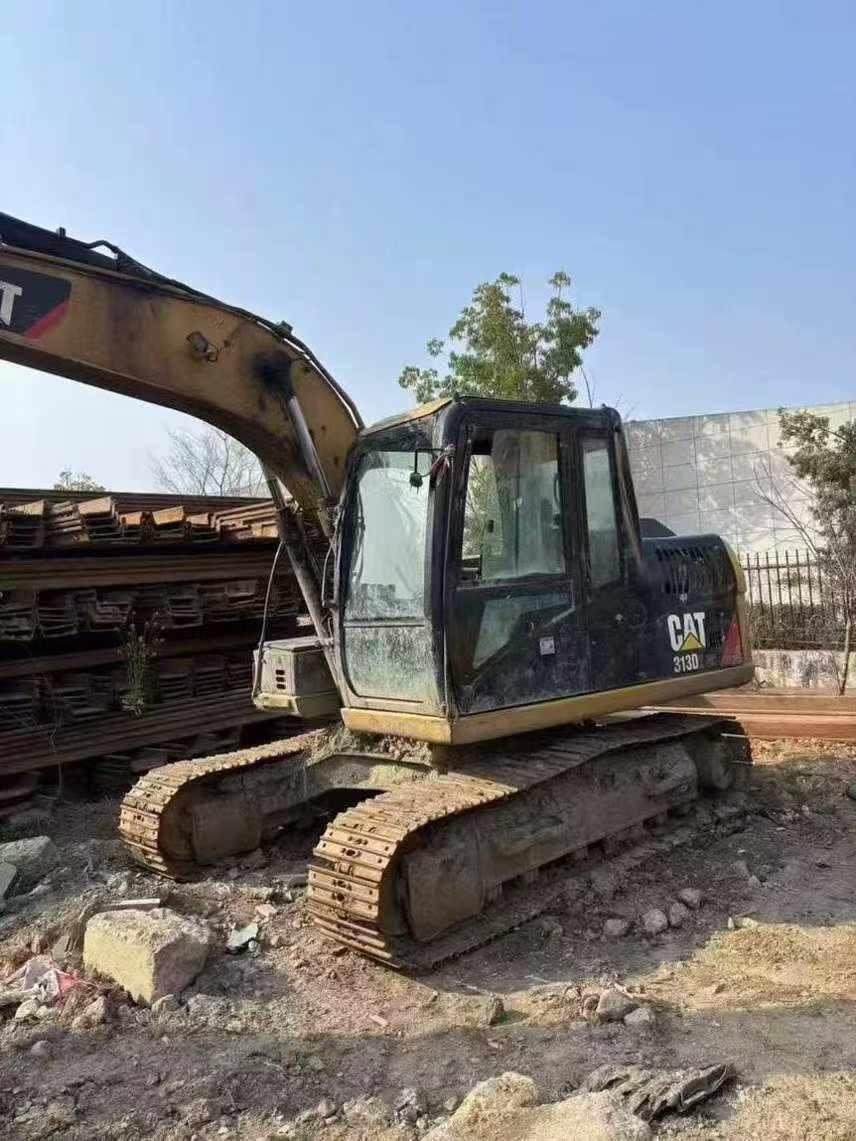

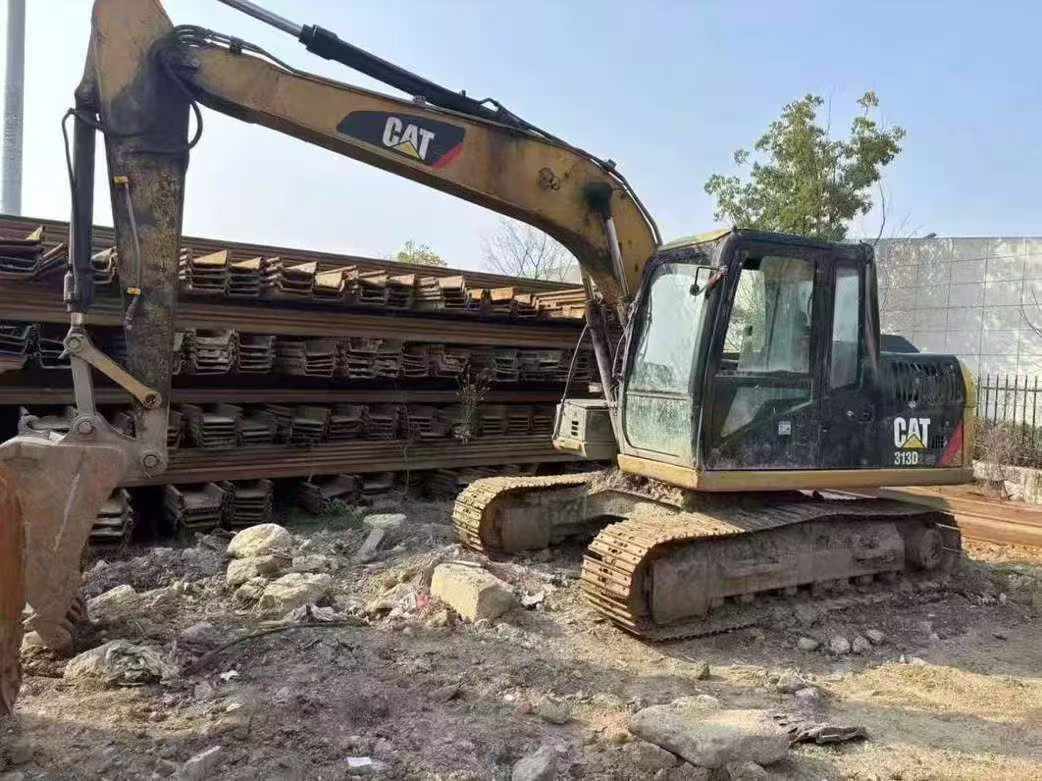

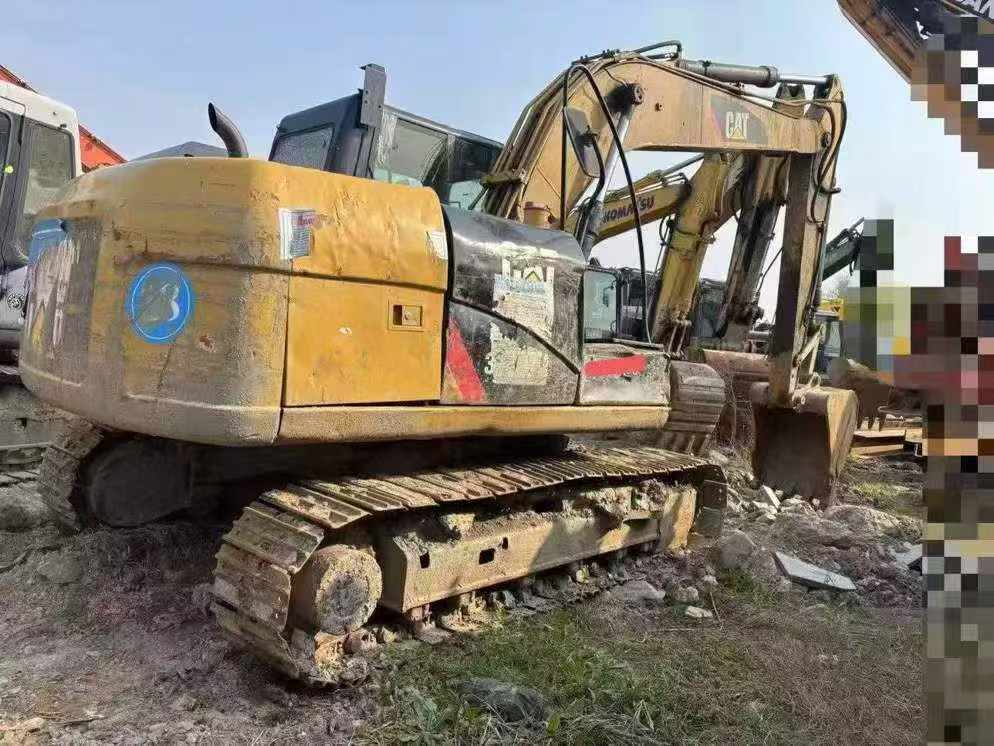

2016 Caterpillar 313D
Product Description
Built for mid-sized excavation work, this 2016 Caterpillar 313D delivers 13 tons of proven digging performance. Powered by a Cat C4.2 ACERT engine producing 67 kW, this machine handles daily site demands from foundation trenching to utility installation with consistent hydraulic power and operator precision.
- Digging Capacity: 5,580 mm maximum depth with 8,220 mm reach at ground level—ideal for deep trench work and grading operations

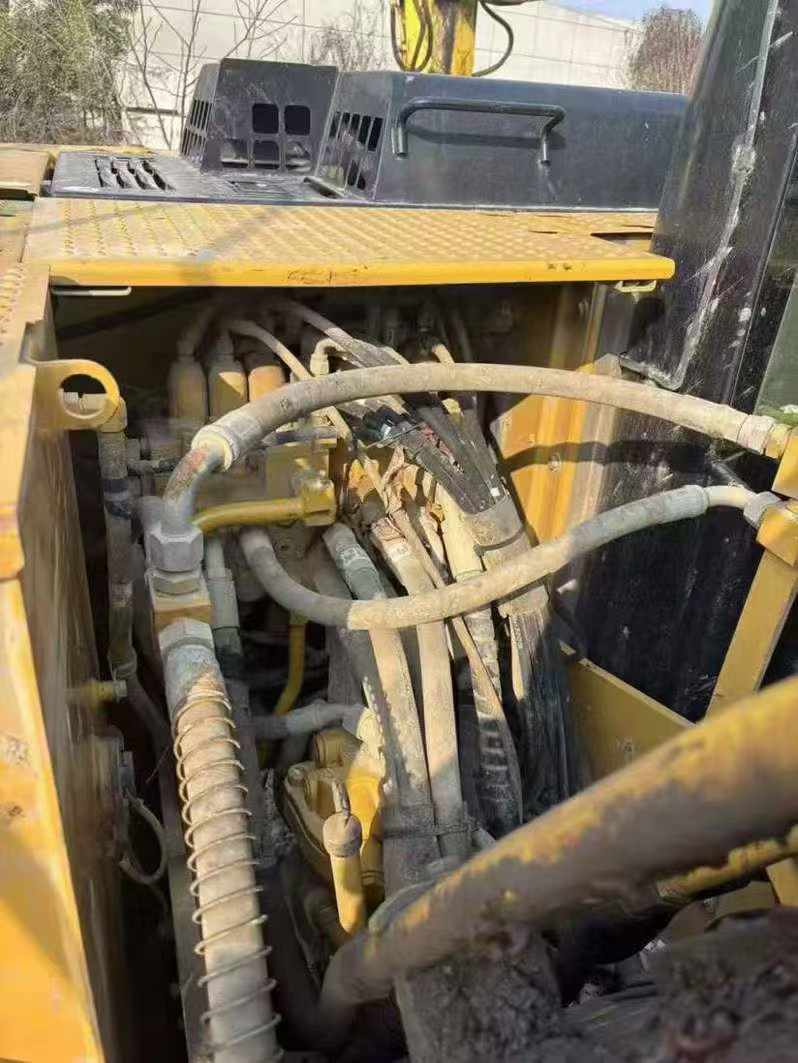

- Hydraulic Performance: 82 kN bucket digging force and 127 L/min main pump flow for efficient material loading and cycle times
- Reliable Power: Water-cooled 4.25L engine meets EPA Tier 3 and EU Stage IIIA emission standards
- Work-Ready Specs: 0.52 m³ bucket capacity, 4,650 mm boom, 2,500 mm stick configuration for versatile excavation tasks
- Maneuverability: 2,140 mm rear swing radius and 2,490 mm transport width fit confined jobsites
Currently located in Hangzhou, Zhejiang. This machine arrives ready for demolition prep, site grading, drainage installation, or loader support. Fuel tank holds 250L for extended operation between refills.
| Specifications | Value |
|---|---|
| No. | 1039550 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13430 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 2500 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

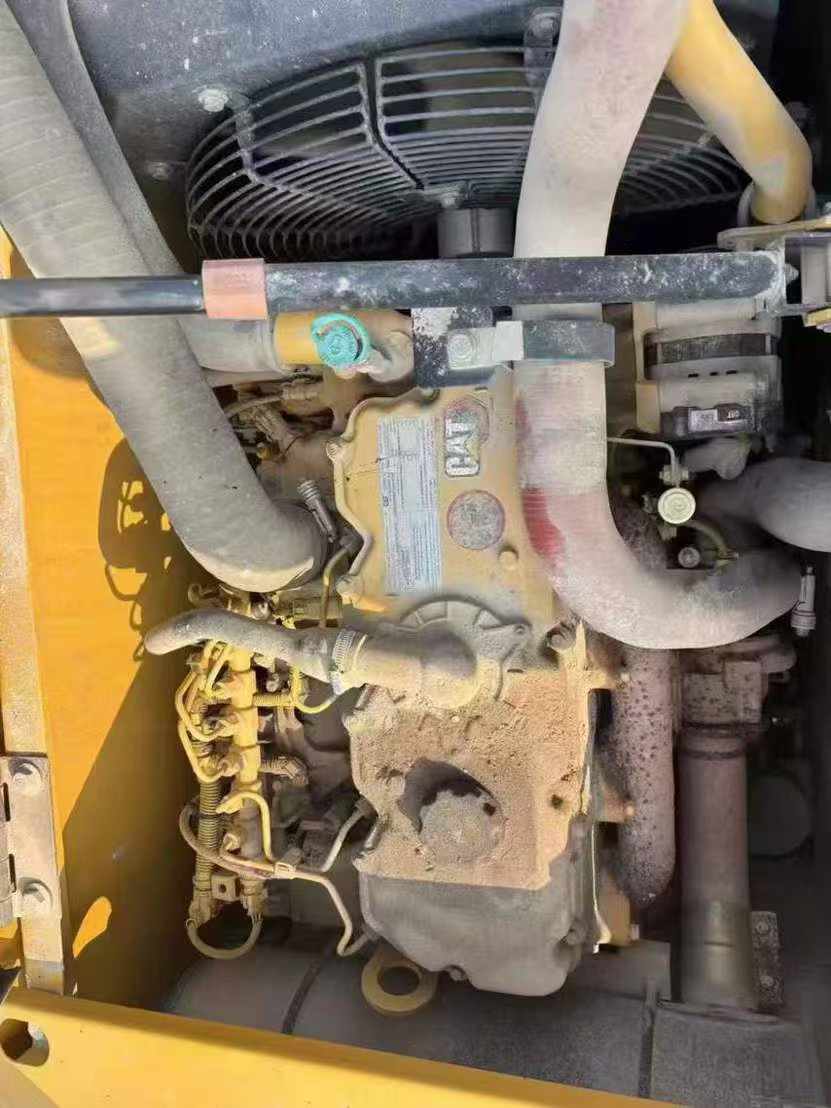

| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 67 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 41.8 (with 500mm track plate) |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 82 |
| Rod digging force (kN) | 63 |
| Maximum tractive force (kN) | 114 |
| Travel speed (km/h) | 5.5 |
| Main overflow set pressure (Mpa) | 30.5 |

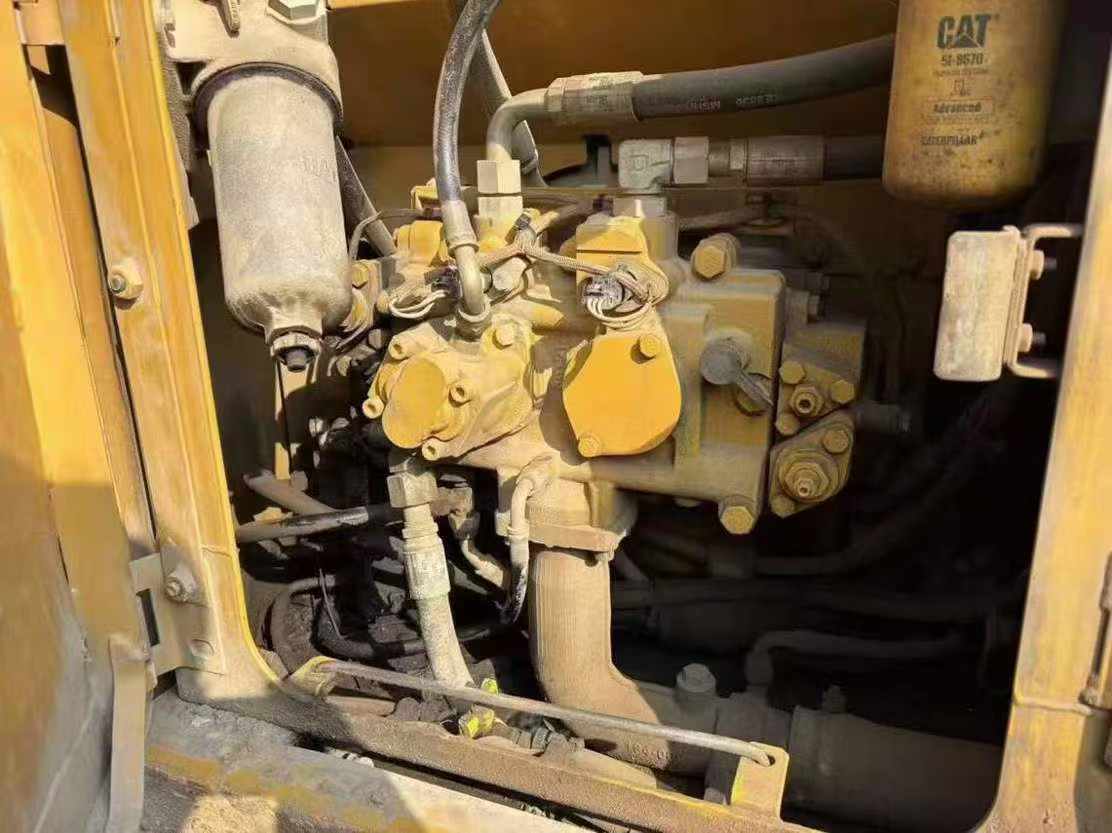

| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Pilot Oil Circuit (MPa) | 41.2 |
| Pilot pump flow (L/min) | 21.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162 (including fuel tank) |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2830 (to top of boom) |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2140 |

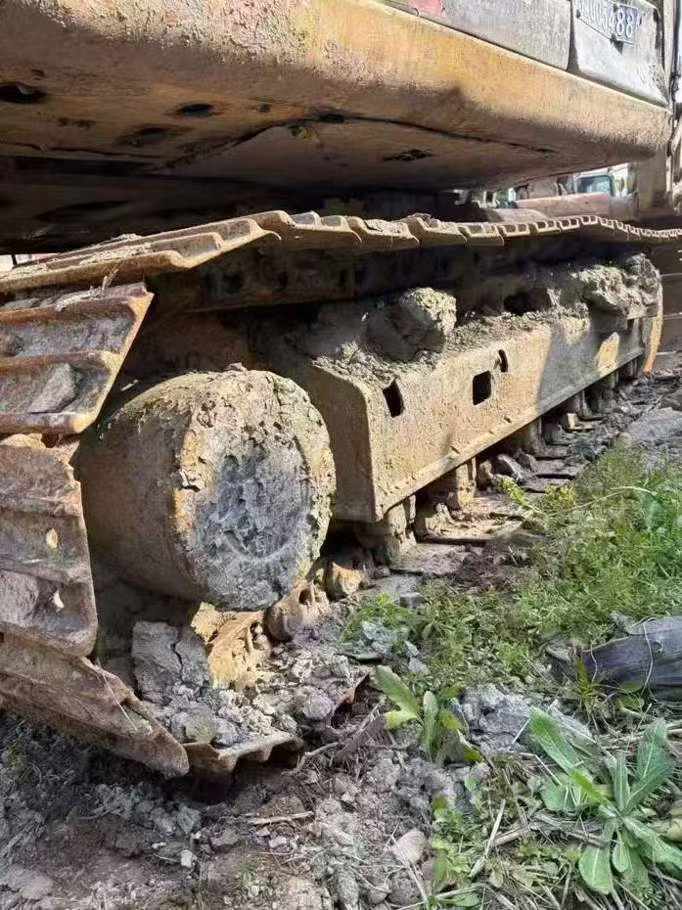

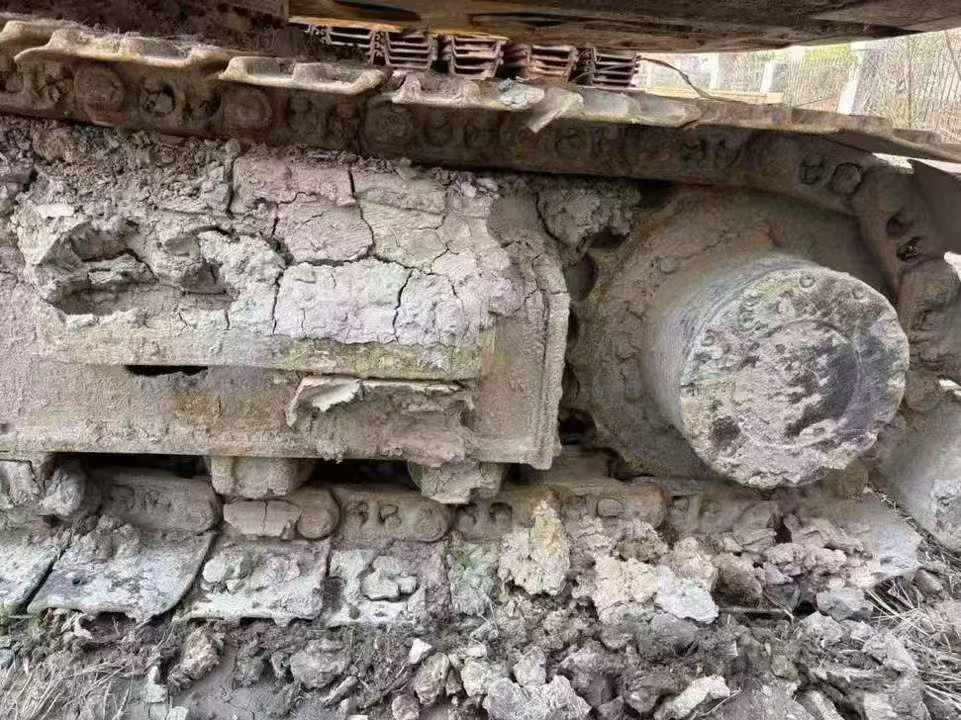

| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 (standard) |
| Total track width (mm) | 2490 |
| Maximum digging depth (mm) | 5580 |
| Maximum unloading height (mm) | 6060 |
| Maximum vertical digging depth (mm) | 5040 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8220 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5380 |
see more
Overview
No.1039550
Brand Name：
CaterpillarModel Number：
313DYear：
2016
Location：
Zhejiang China
