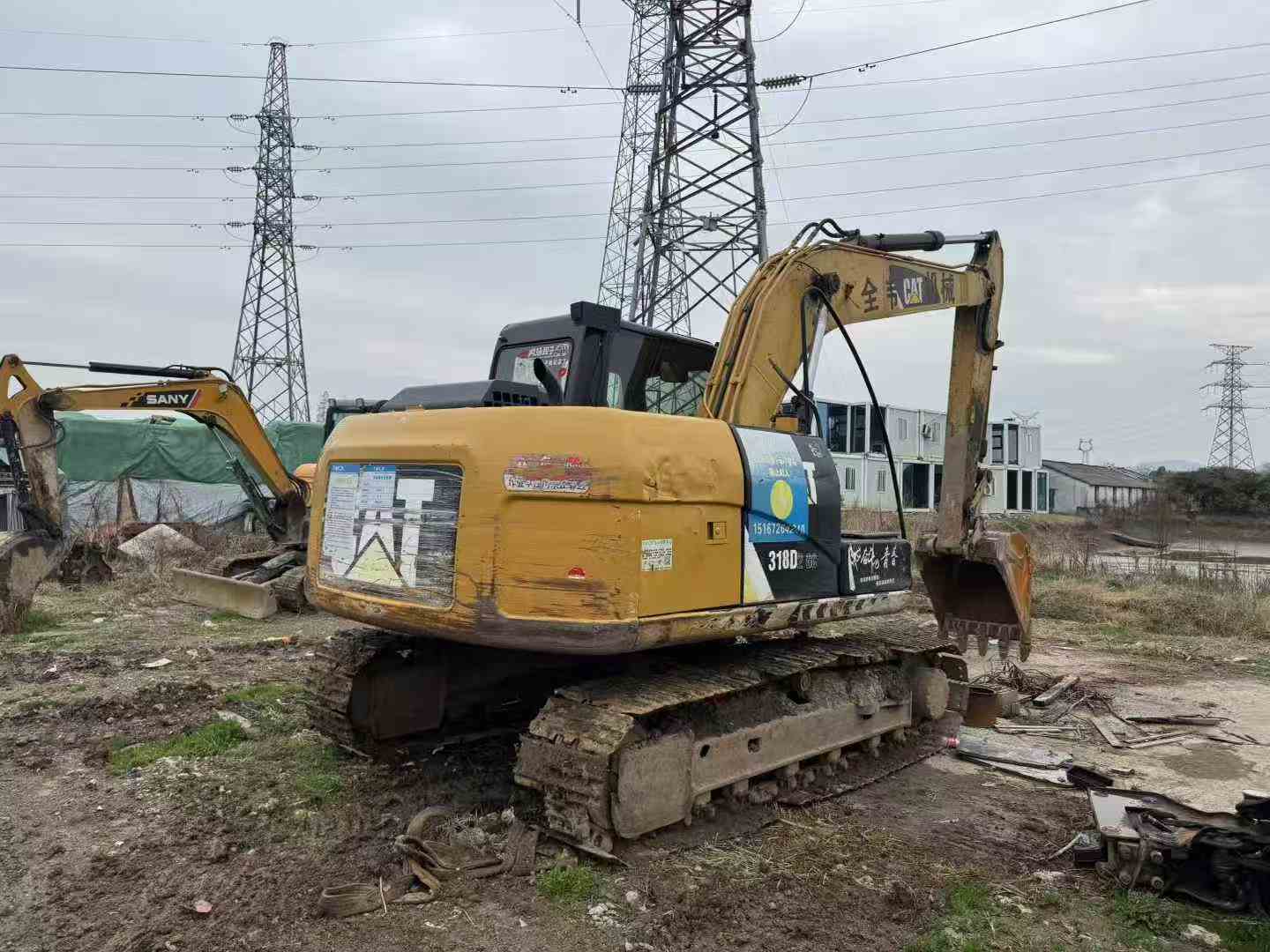

2017 Caterpillar 313D
Product Description
Engineered with Caterpillar's renowned C4.2 ACERT engine delivering 67 kW of net power, this 2017 313D excavator represents proven hydraulic excellence in the 13-ton class. Water-cooled reliability and EPA Tier 3/EU Stage IIIA compliance ensure consistent performance across demanding jobsites, while the advanced hydraulic system—featuring 127 L/min main pump flow and 30.5 MPa main overflow pressure—provides the muscle for precision earthmoving operations.
Operating specifications demonstrate true versatility:
- Maximum digging depth of 5,580 mm with 8,220 mm reach at ground level
- Bucket digging force: 82 kN; stick digging force: 63 kN
- 0.52 m³ bucket capacity optimized for utility and construction work
- Compact transport dimensions (7,610 × 2,490 × 2,830 mm) for easy mobilization
- 12.4 rpm rotation speed with dedicated 23 MPa rotary circuit
Currently located in Lishui, Zhejiang, this joint-venture manufactured machine combines Caterpillar engineering standards with practical fuel efficiency—250L fuel capacity supports extended operational periods. Ground pressure of just 41.8 kPa with standard 500 mm track plates minimizes surface disturbance while maintaining 114 kN
| Specifications | Value |
|---|---|
| No. | 1019756 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13430 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 2500 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

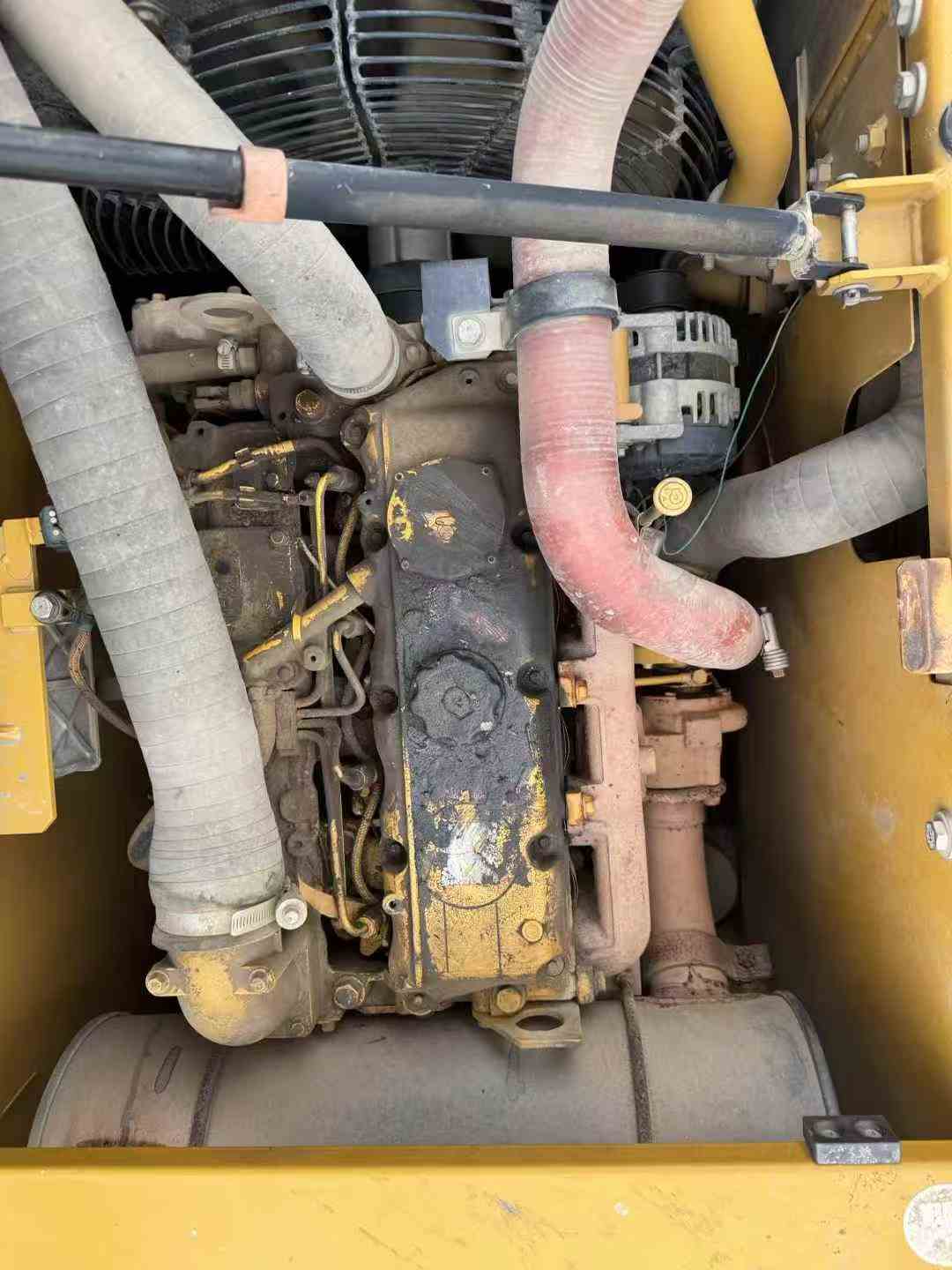

| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 67 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 41.8 (with 500mm track plate) |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 82 |
| Rod digging force (kN) | 63 |
| Maximum tractive force (kN) | 114 |
| Travel speed (km/h) | 5.5 |
| Main overflow set pressure (Mpa) | 30.5 |

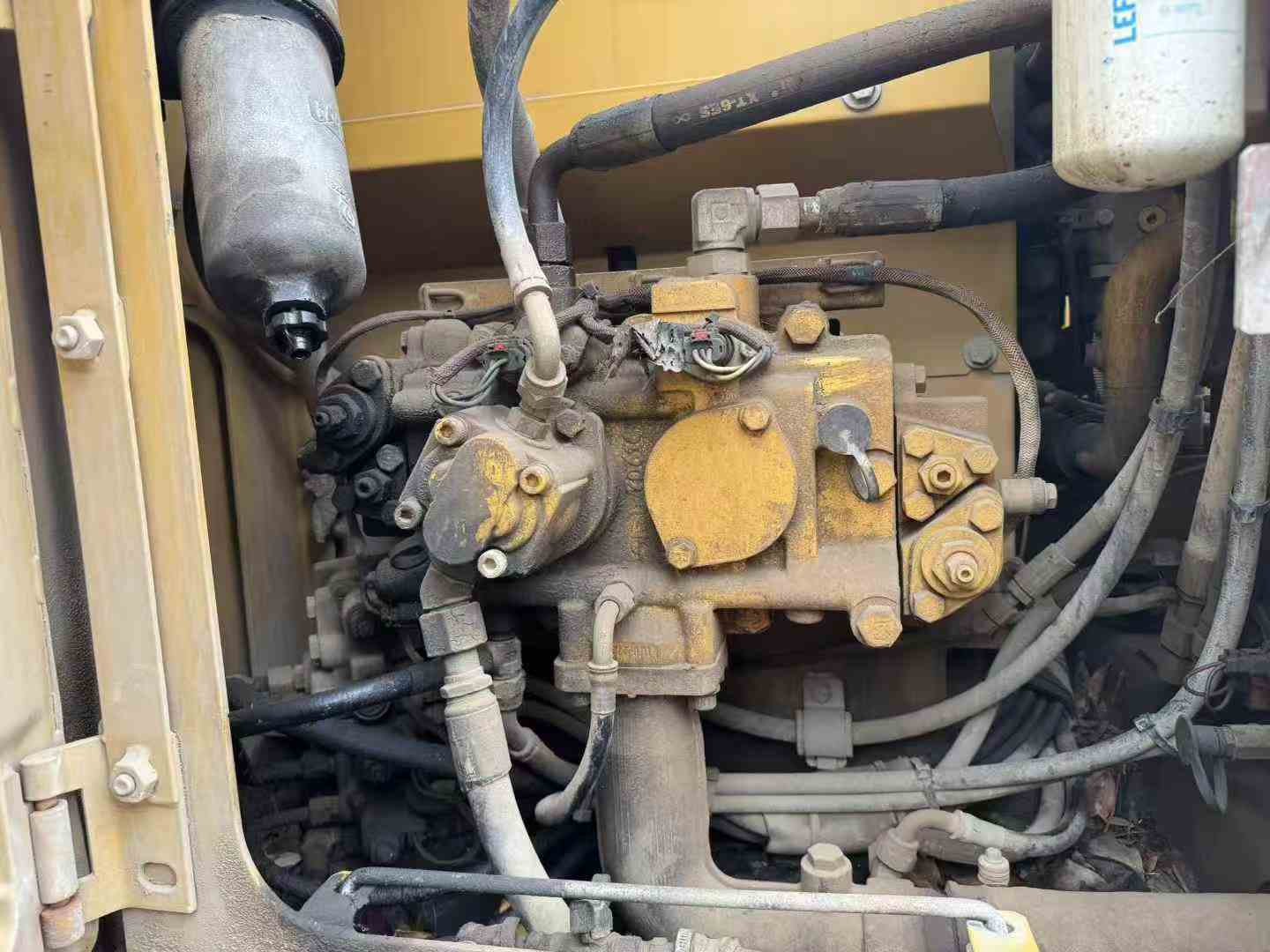

| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Pilot Oil Circuit (MPa) | 41.2 |
| Pilot pump flow (L/min) | 21.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162 (including fuel tank) |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2830 (to top of boom) |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2140 |

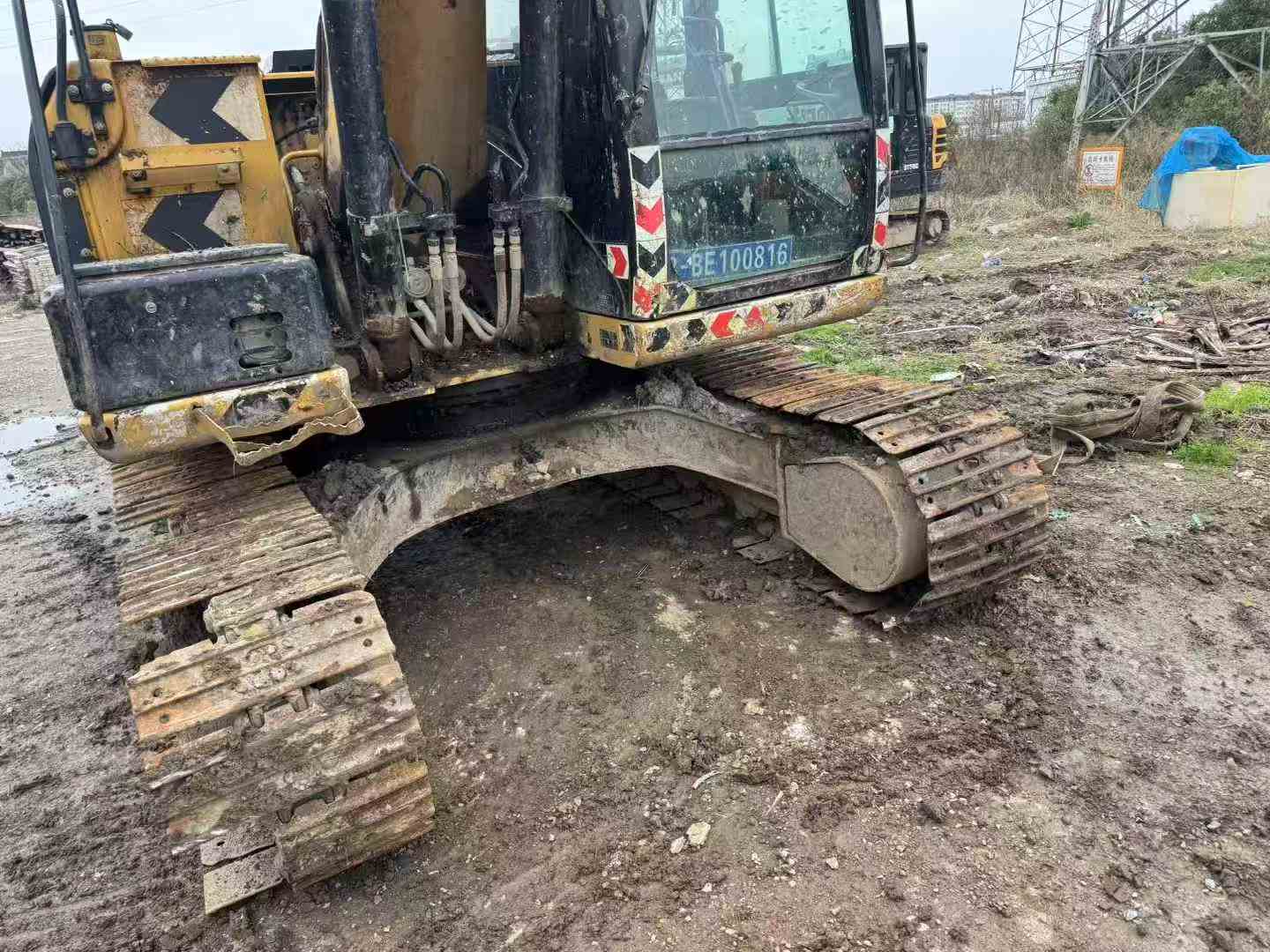

| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 (standard) |
| Total track width (mm) | 2490 |
| Maximum digging depth (mm) | 5580 |
| Maximum unloading height (mm) | 6060 |
| Maximum vertical digging depth (mm) | 5040 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8220 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5380 |
Overview
No.1019756
Brand Name：
CaterpillarModel Number：
313DYear：
2017
Location：
Zhejiang China
Pub Date：
