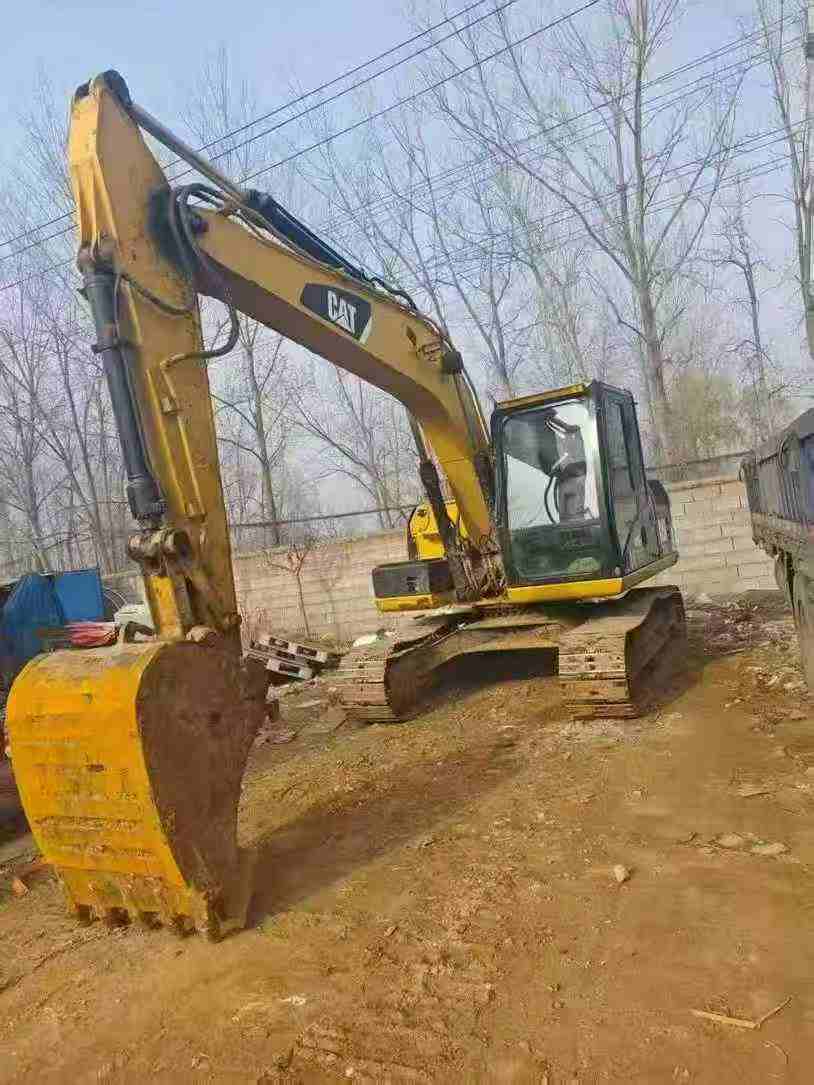

2017 Caterpillar 313D
Product Description

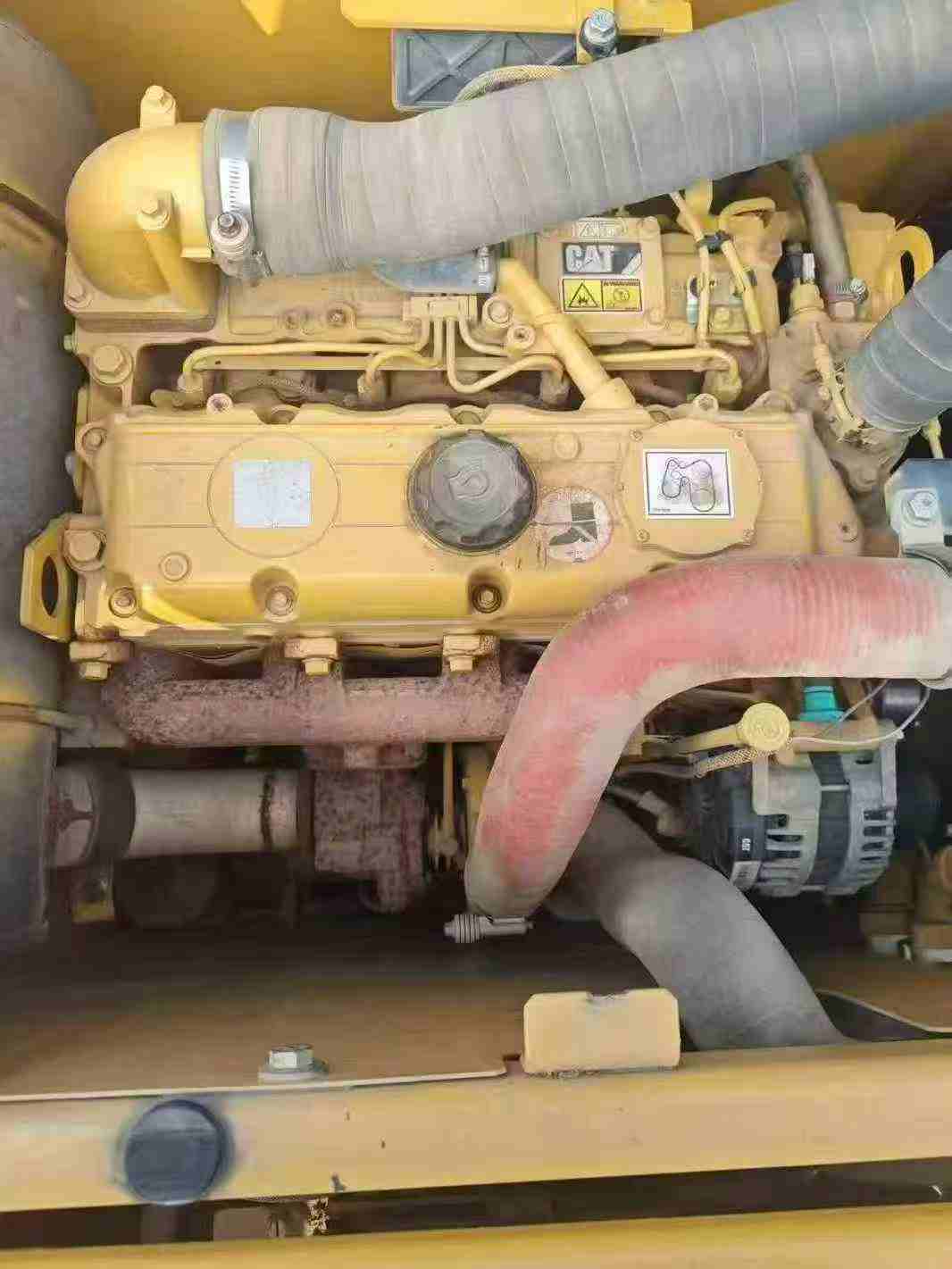

Engineered with Caterpillar's proven Cat C4.2 ACERT engine delivering 67 kW of net power, this 2017 313D excavator combines robust hydraulics with precision control for demanding excavation work. The water-cooled 4-cylinder powerplant meets US EPA Tier 3 and European IIIA emission standards while maintaining exceptional fuel efficiency from its 250-liter tank.
Operating at 13 tons with a 13,430 kg working weight, this mid-size excavator features a high-performance hydraulic system with 127 L/min main pump flow and 30.5 MPa overflow pressure. Bucket digging force reaches 82 kN, while rod digging force delivers 63 kN—providing reliable breakout power for varied ground conditions.
- Maximum digging depth: 5,580 mm with 8,220 mm reach
- 0.52 m³ bucket capacity with standard 500 mm track plates
- 4,650 mm boom and 2,500 mm stick configuration
- Compact transport dimensions: 7,610 × 2,490 × 2,830 mm
- 12.4 rpm rotation speed with 5.5 km/h travel capability
Currently located in Fujian, this joint-venture manufactured machine represents Caterpillar's commitment to hydraulic efficiency and operational durability in the 13-ton excavator class.
| Specifications | Value |
|---|---|
| No. | 1039108 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13430 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 2500 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 67 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 41.8 (with 500mm track plate) |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 82 |
| Rod digging force (kN) | 63 |
| Maximum tractive force (kN) | 114 |
| Travel speed (km/h) | 5.5 |
| Main overflow set pressure (Mpa) | 30.5 |
| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Pilot Oil Circuit (MPa) | 41.2 |
| Pilot pump flow (L/min) | 21.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162 (including fuel tank) |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2830 (to top of boom) |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2140 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 (standard) |
| Total track width (mm) | 2490 |
| Maximum digging depth (mm) | 5580 |
| Maximum unloading height (mm) | 6060 |
| Maximum vertical digging depth (mm) | 5040 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8220 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5380 |
Overview
No.1039108
Brand Name：
CaterpillarModel Number：
313DYear：
2017
Location：
Fujian China
Pub Date：
