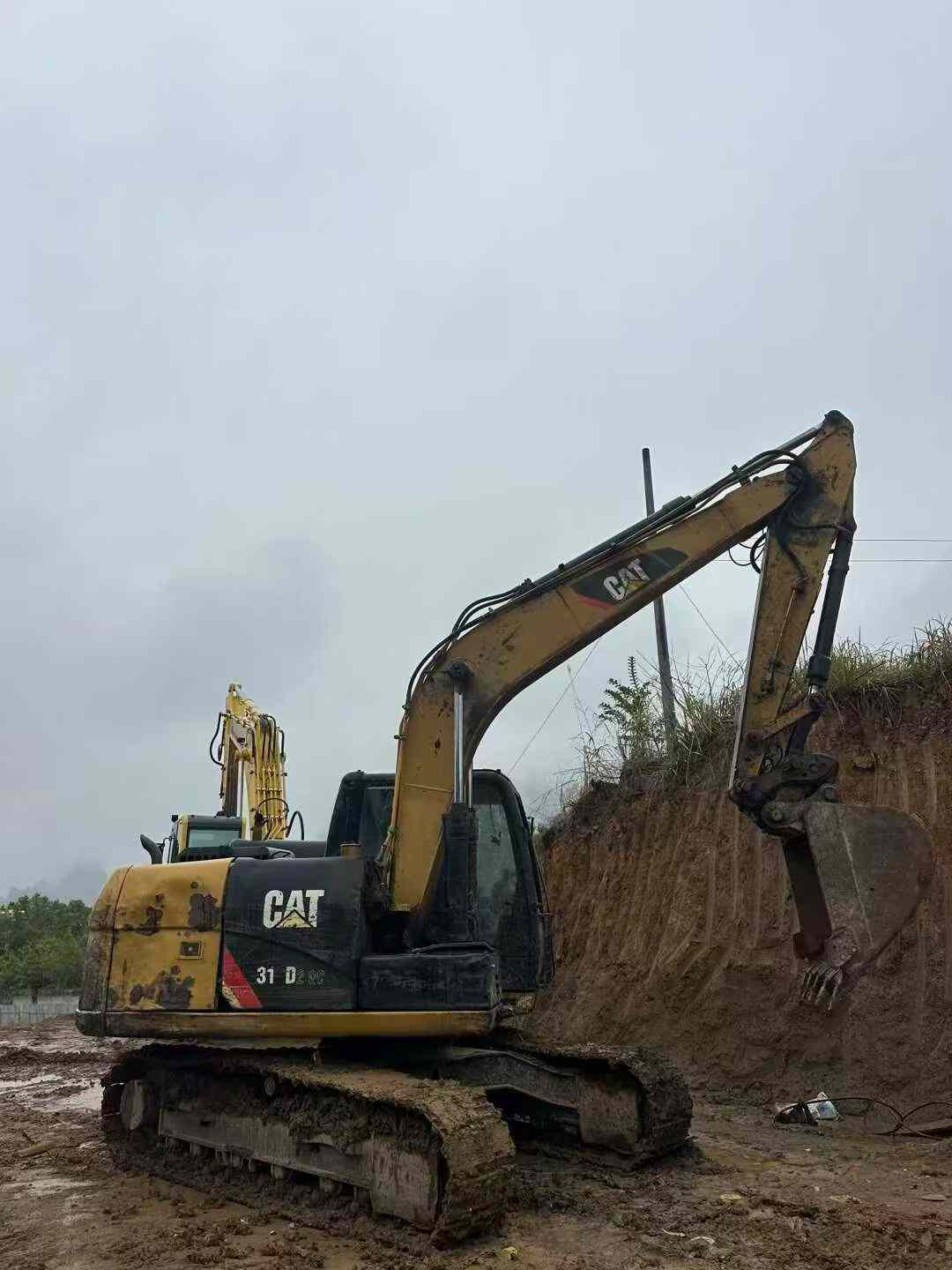

2019 Caterpillar 313D
Product Description

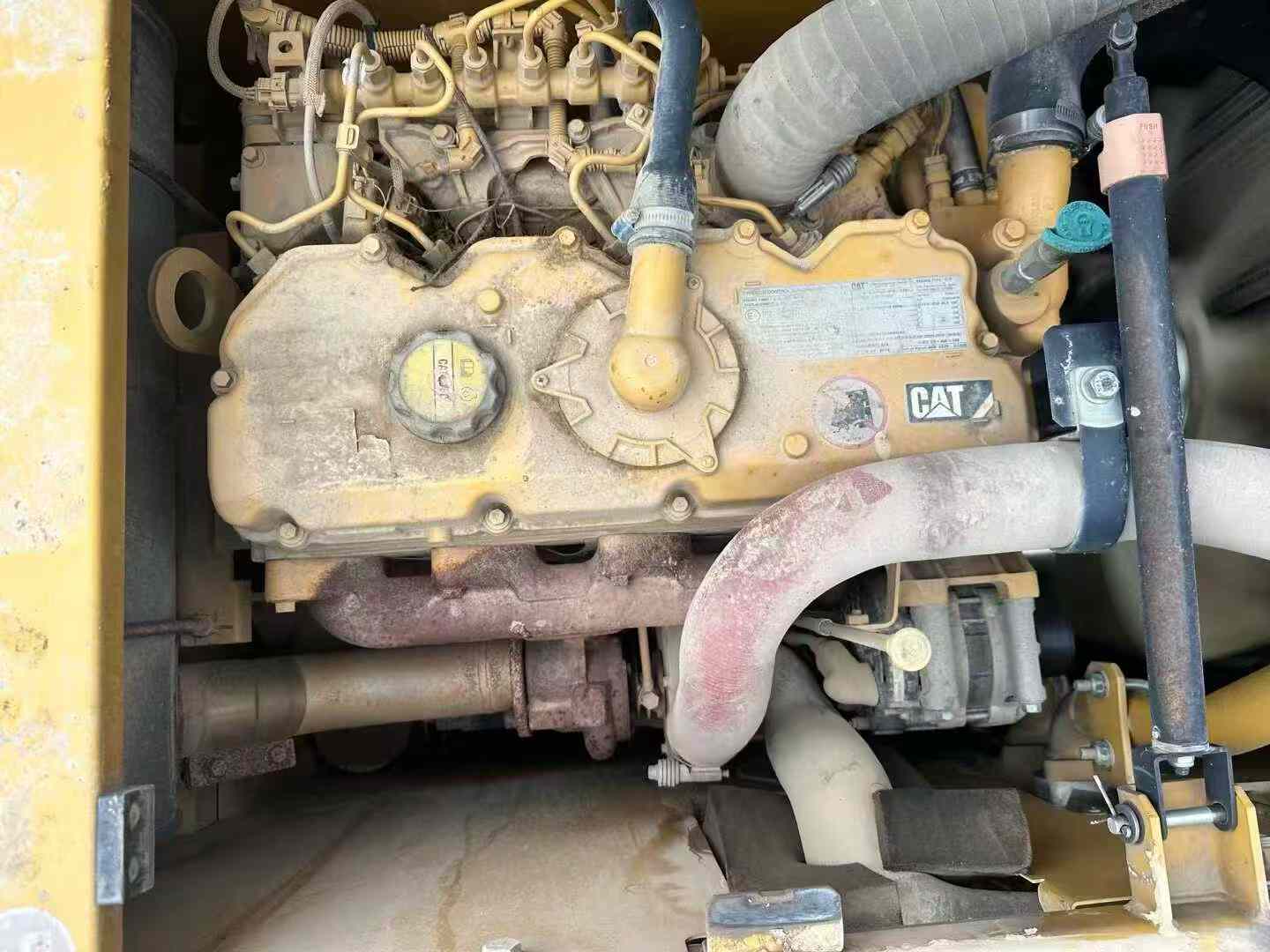

Engineered with Caterpillar's proven Cat C4.2 ACERT engine delivering 67 kW of net power, this 2019 313D excavator combines hydraulic precision with operational efficiency. The machine's 127 L/min main pump flow and 30.5 MPa system pressure provide consistent performance across demanding jobsites, while the water-cooled 4.25L displacement engine meets US EPA Tier 3 and European IIIA emission standards.
Built on a 13-ton platform with 13,430 kg working weight, the 313D offers exceptional digging capabilities through its 4,650mm boom and 2,500mm stick configuration. Operators benefit from 82 kN bucket digging force and 63 kN stick digging force, reaching a maximum digging depth of 5,580mm and excavation radius of 8,220mm. The 0.52 m³ bucket capacity balances productivity with fuel efficiency from its 250L tank.
Compact transport dimensions of 7,610mm length and 2,490mm width enable easy mobilization, while the 500mm track plates maintain 41.8 kPa ground pressure for stable operation. Currently located in Jinhua, Zhejiang, this joint venture-manufactured unit represents Caterpillar's commitment to hydraulic engineering excellence and reliable mid-size excavator performance.
| Specifications | Value |
|---|---|
| No. | 1010986 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13430 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 2500 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 67 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 41.8 (with 500mm track plate) |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 82 |
| Rod digging force (kN) | 63 |
| Maximum tractive force (kN) | 114 |
| Travel speed (km/h) | 5.5 |
| Main overflow set pressure (Mpa) | 30.5 |
| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Pilot Oil Circuit (MPa) | 41.2 |
| Pilot pump flow (L/min) | 21.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162 (including fuel tank) |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2830 (to top of boom) |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2140 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 (standard) |
| Total track width (mm) | 2490 |
| Maximum digging depth (mm) | 5580 |
| Maximum unloading height (mm) | 6060 |
| Maximum vertical digging depth (mm) | 5040 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8220 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5380 |
Overview
No.1010986
Brand Name：
CaterpillarModel Number：
313DYear：
2019
Location：
Zhejiang China
