2019 Caterpillar 313D
Product Description
Built to endure the toughest jobsites, this 2019 Caterpillar 313D excavator delivers proven performance with minimal wear. Powered by the reliable Cat C4.2 ACERT engine producing 67 kW of net power, this 13-ton workhorse combines efficiency with robust hydraulic systems designed for demanding applications. Water-cooled engineering and compliance with US EPA Tier 3 and European IIIA emission standards ensure operational longevity and environmental responsibility.
Currently located in Liuzhou, Guangxi, this machine features a 0.52 m³ bucket capacity and impressive digging capabilities—reaching 5,580 mm maximum depth with 82 kN bucket digging force. Its compact transport dimensions (7,610 mm length × 2,490 mm width) facilitate easy mobilization between sites, while the 8,220 mm maximum excavation radius provides exceptional reach for versatile earthmoving tasks.
- Working weight: 13,430 kg with optimal stability
- Hydraulic system: 127 L/min main pump flow at 30.5 MPa
- Boom and rod: 4,650 mm and 2,500 mm respectively
- Fuel capacity: 250 L for extended operation
- Maximum travel speed: 5.5 km/h
A proven workhorse from Caterpillar's joint venture manufacturing, ready for im
| Specifications | Value |
|---|---|
| No. | 1024772 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13430 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 2500 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

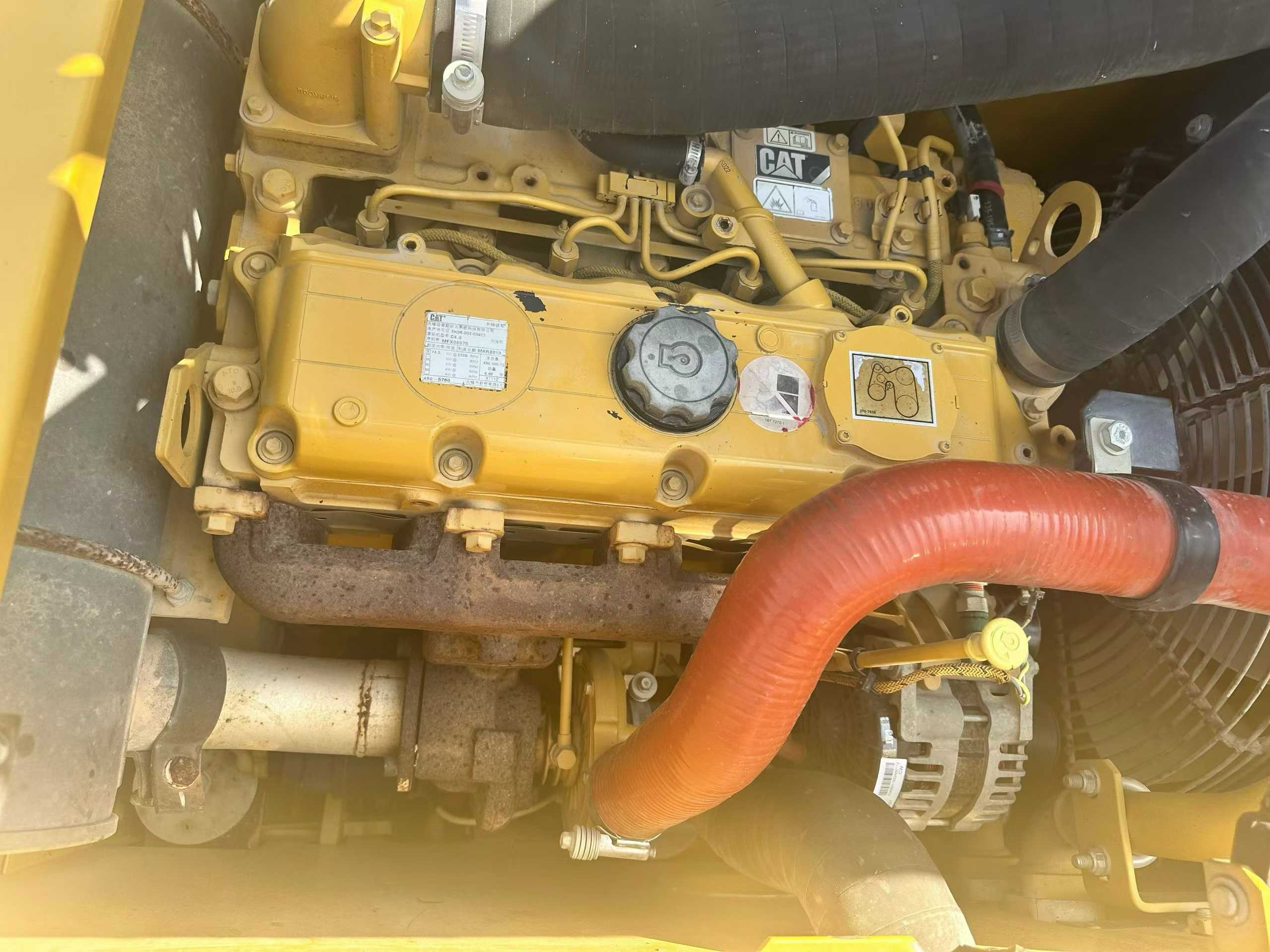

| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 67 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 41.8 (with 500mm track plate) |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 82 |
| Rod digging force (kN) | 63 |
| Maximum tractive force (kN) | 114 |
| Travel speed (km/h) | 5.5 |
| Main overflow set pressure (Mpa) | 30.5 |

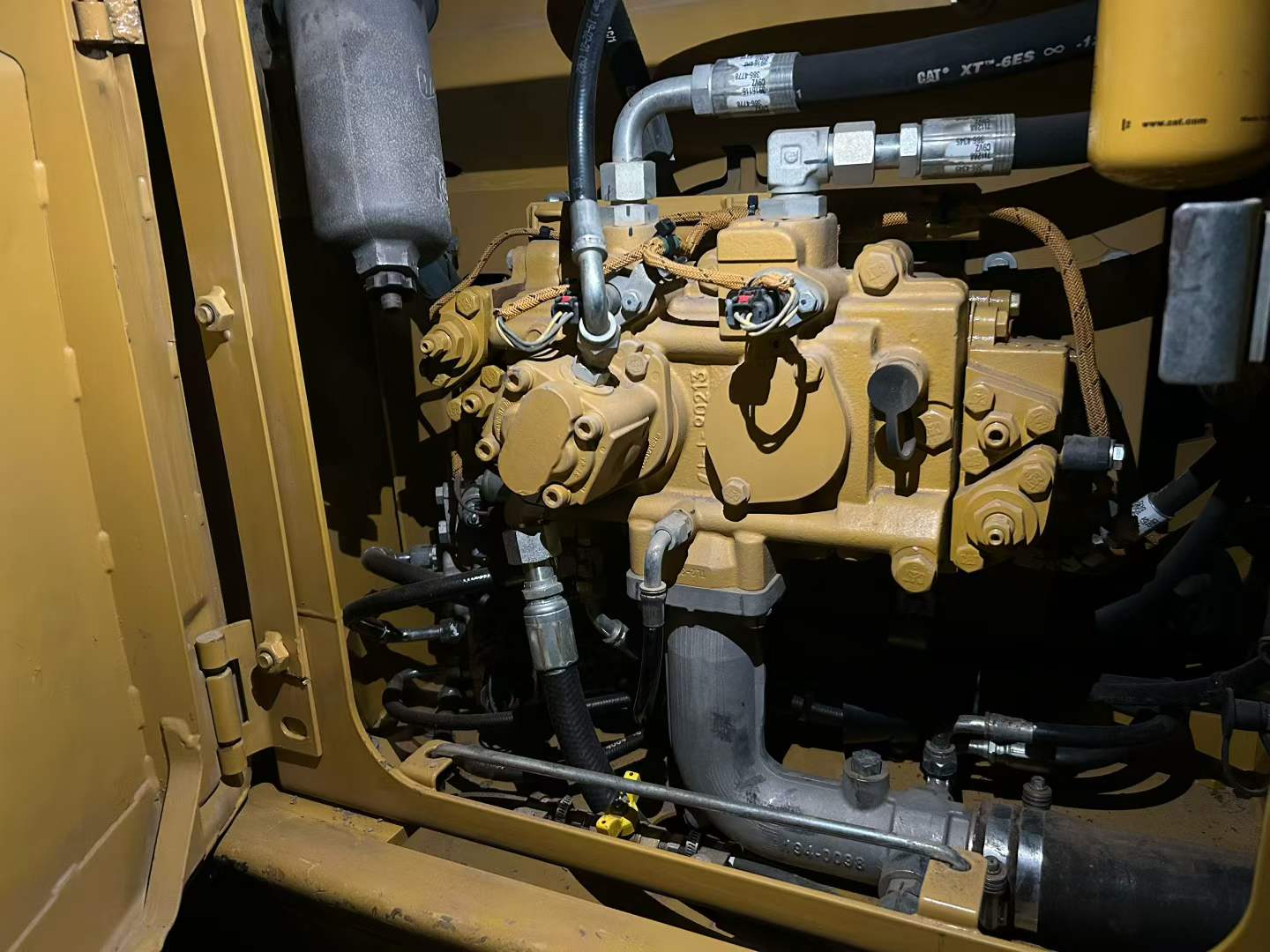

| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Pilot Oil Circuit (MPa) | 41.2 |
| Pilot pump flow (L/min) | 21.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162 (including fuel tank) |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2830 (to top of boom) |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2140 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 (standard) |
| Total track width (mm) | 2490 |
| Maximum digging depth (mm) | 5580 |
| Maximum unloading height (mm) | 6060 |
| Maximum vertical digging depth (mm) | 5040 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8220 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5380 |
Overview
No.1024772
Brand Name：
CaterpillarModel Number：
313DYear：
2019
Location：
Guangxi China
Pub Date：
