2020 Caterpillar 313D
Product Description

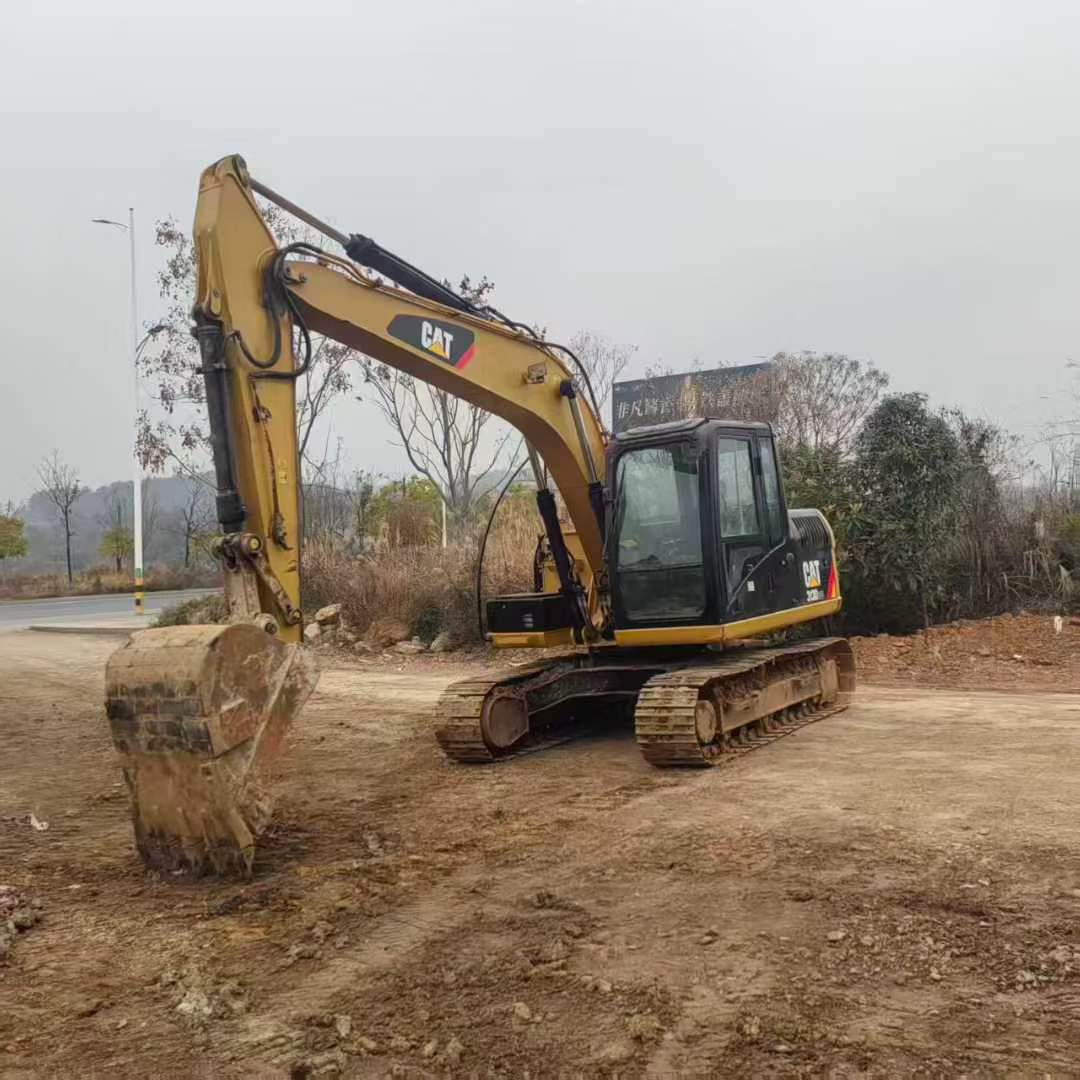

Strengthen your fleet with this 2020 Caterpillar 313D excavator, currently located in Hunan and ready for immediate deployment. Built at Caterpillar's Xuzhou facility, this 13-ton workhorse delivers consistent performance with its Cat C4.2 ACERT engine producing 67 kW of net power. Operating weight of 13,430 kg and a 0.52 m³ bucket capacity make it ideal for medium-duty applications across construction, utility, and landscaping projects.
Key specifications include:
- Maximum digging depth of 5,580 mm with 8,220 mm reach at ground level
- Powerful digging forces: 82 kN bucket force and 63 kN arm force
- Efficient hydraulics with 127 L/min main pump flow at 30.5 MPa
- Compact transport dimensions: 7,610 mm length × 2,490 mm width
- Meets US EPA Tier 3 and EU Stage IIIA emission standards
With 250L fuel capacity and proven water-cooled engine technology, this machine minimizes downtime between jobs. Perfect as a backup unit or fleet expansion, the 313D offers the reliability contractors demand when primary equipment is committed elsewhere. Compact footprint and 12.4 rpm rotation speed ensure productivity in confined spaces.
| Specifications | Value |
|---|---|
| No. | 1008063 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13430 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 2500 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

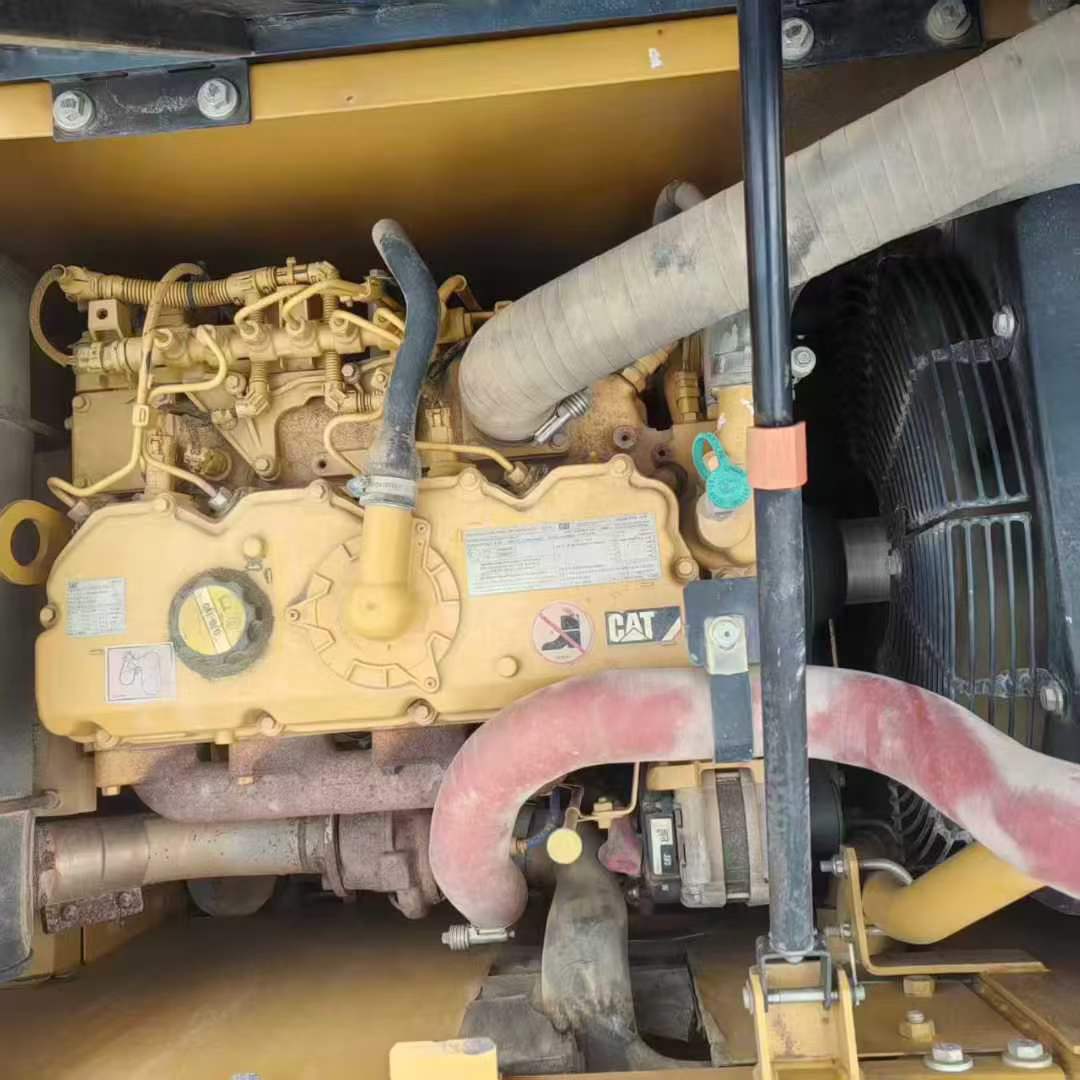

| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 67 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 41.8 (with 500mm track plate) |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 82 |
| Rod digging force (kN) | 63 |
| Maximum tractive force (kN) | 114 |
| Travel speed (km/h) | 5.5 |
| Main overflow set pressure (Mpa) | 30.5 |

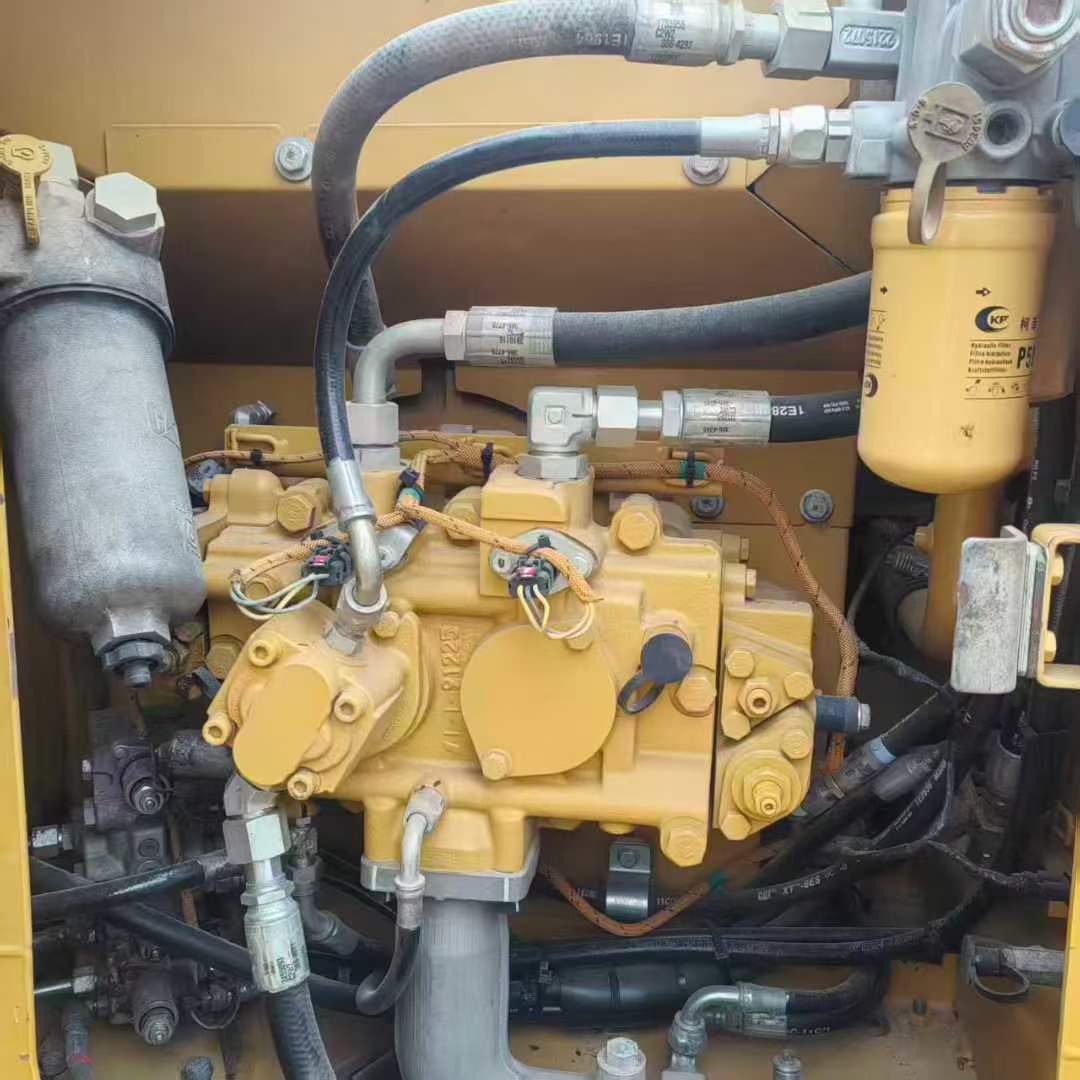

| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Pilot Oil Circuit (MPa) | 41.2 |
| Pilot pump flow (L/min) | 21.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162 (including fuel tank) |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2830 (to top of boom) |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2140 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 (standard) |
| Total track width (mm) | 2490 |
| Maximum digging depth (mm) | 5580 |
| Maximum unloading height (mm) | 6060 |
| Maximum vertical digging depth (mm) | 5040 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8220 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5380 |
Overview
No.1008063
Brand Name：
CaterpillarModel Number：
313DYear：
2020
Location：
Hunan China
Pub Date：
