2020 Caterpillar 313D
Product Description

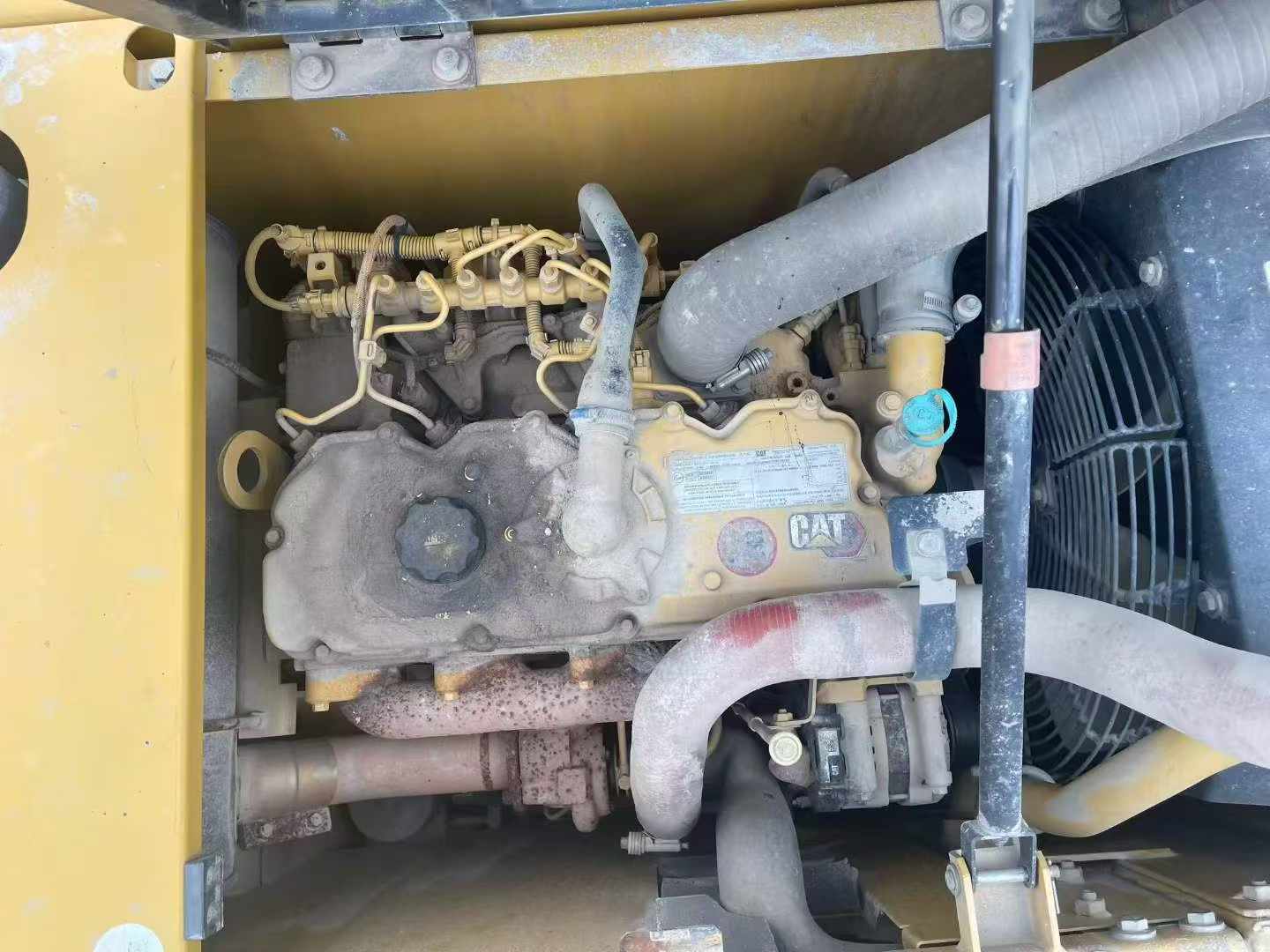

Built for mid-size excavation work, this 2020 Caterpillar 313D delivers 13 tons of operational capacity across demanding job sites. Powered by a Cat C4.2 ACERT engine generating 67 kW net output, this machine combines reliable hydraulic performance with fuel-efficient operation. Currently located in Hangzhou, Zhejiang, it arrives site-ready for immediate deployment on grading, trenching, and foundation projects.
- Maximum digging depth of 5,580 mm reaches deep trenches and utility installations
- Bucket capacity of 0.52 m³ handles material loading with consistent cycle times
- Digging force of 82 kN (bucket) and 63 kN (rod) cuts through compacted soil and clay
- Compact transport dimensions (7,610 mm length) facilitate trailer movement between sites
- Water-cooled 4-cylinder engine meets EPA Tier 3 and EU IIIA emission standards
- Main pump flow of 127 L/min supports responsive hydraulic functions
With a working weight of 13,430 kg and 500 mm standard track plates, this excavator maintains stability during digging and loading operations. Ground pressure of 41.8 kPa minimizes surface disturbance on prepared surfaces. Maximum reach extends to 8,220 mm from the r
| Specifications | Value |
|---|---|
| No. | 1043392 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13430 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 2500 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 67 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 41.8 (with 500mm track plate) |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 82 |
| Rod digging force (kN) | 63 |
| Maximum tractive force (kN) | 114 |
| Travel speed (km/h) | 5.5 |
| Main overflow set pressure (Mpa) | 30.5 |
| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Pilot Oil Circuit (MPa) | 41.2 |
| Pilot pump flow (L/min) | 21.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162 (including fuel tank) |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2830 (to top of boom) |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2140 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 (standard) |
| Total track width (mm) | 2490 |
| Maximum digging depth (mm) | 5580 |
| Maximum unloading height (mm) | 6060 |
| Maximum vertical digging depth (mm) | 5040 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8220 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5380 |
Overview
No.1043392
Brand Name：
CaterpillarModel Number：
313DYear：
2020
Location：
Zhejiang China
Pub Date：
