2020 Caterpillar 313D
Product Description

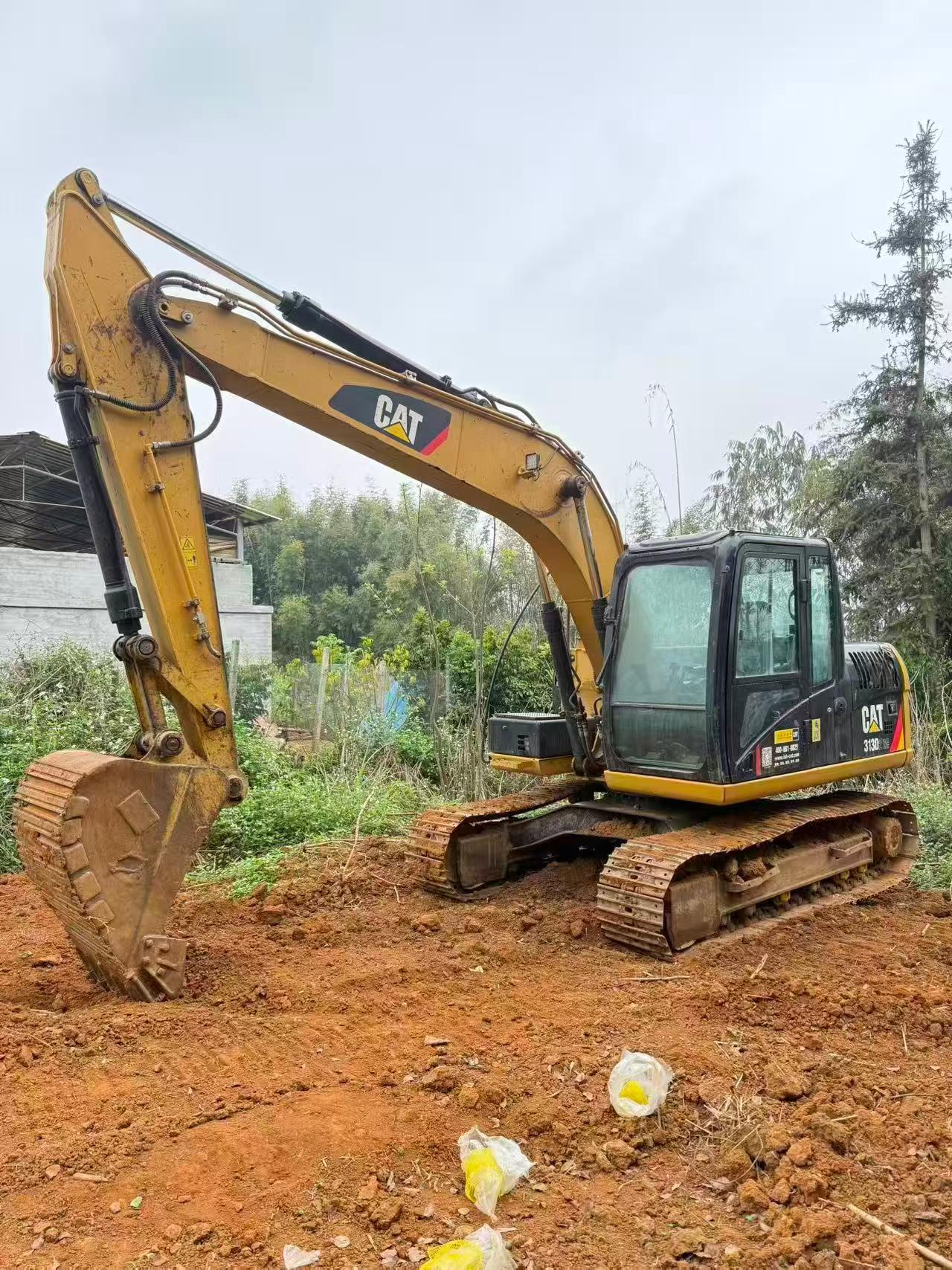

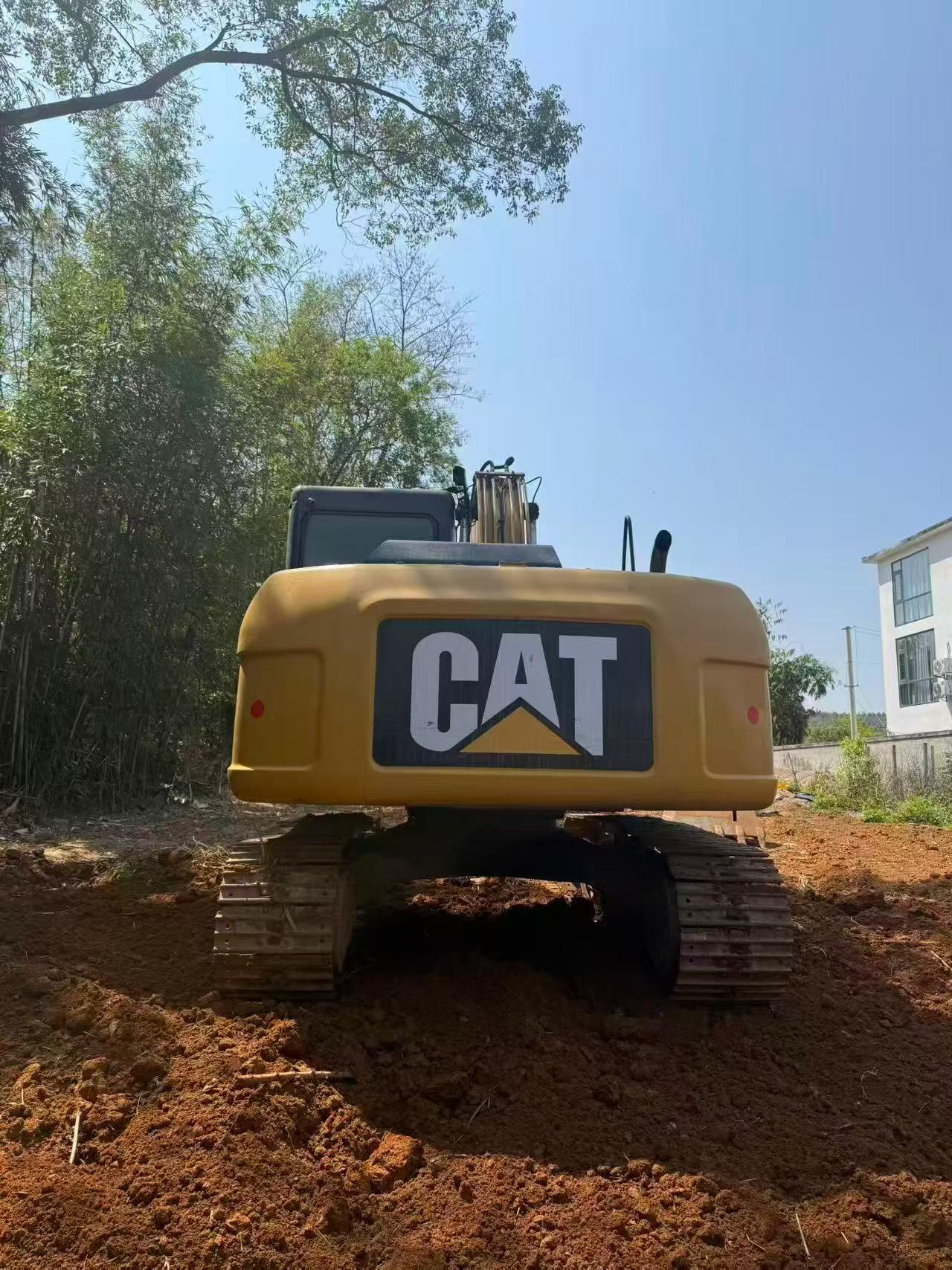

Boost your fleet capacity with this 2020 Caterpillar 313D excavator, currently stationed in Maoming, Guangdong. Built for contractors who need reliable backup equipment without compromise, this 13-ton workhorse delivers consistent performance across residential, utility, and commercial projects. Powered by the proven Cat C4.2 ACERT engine producing 67 kW, it meets US EPA Tier 3 and European IIIA emission standards while maintaining strong fuel efficiency from its 250L tank.
Operational specs include:
- Maximum digging depth of 5,580 mm with 8,220 mm reach at ground level
- Bucket digging force of 82 kN and 0.52 m³ standard capacity
- Compact transport dimensions (7,610 × 2,490 × 2,830 mm) for easy mobilization

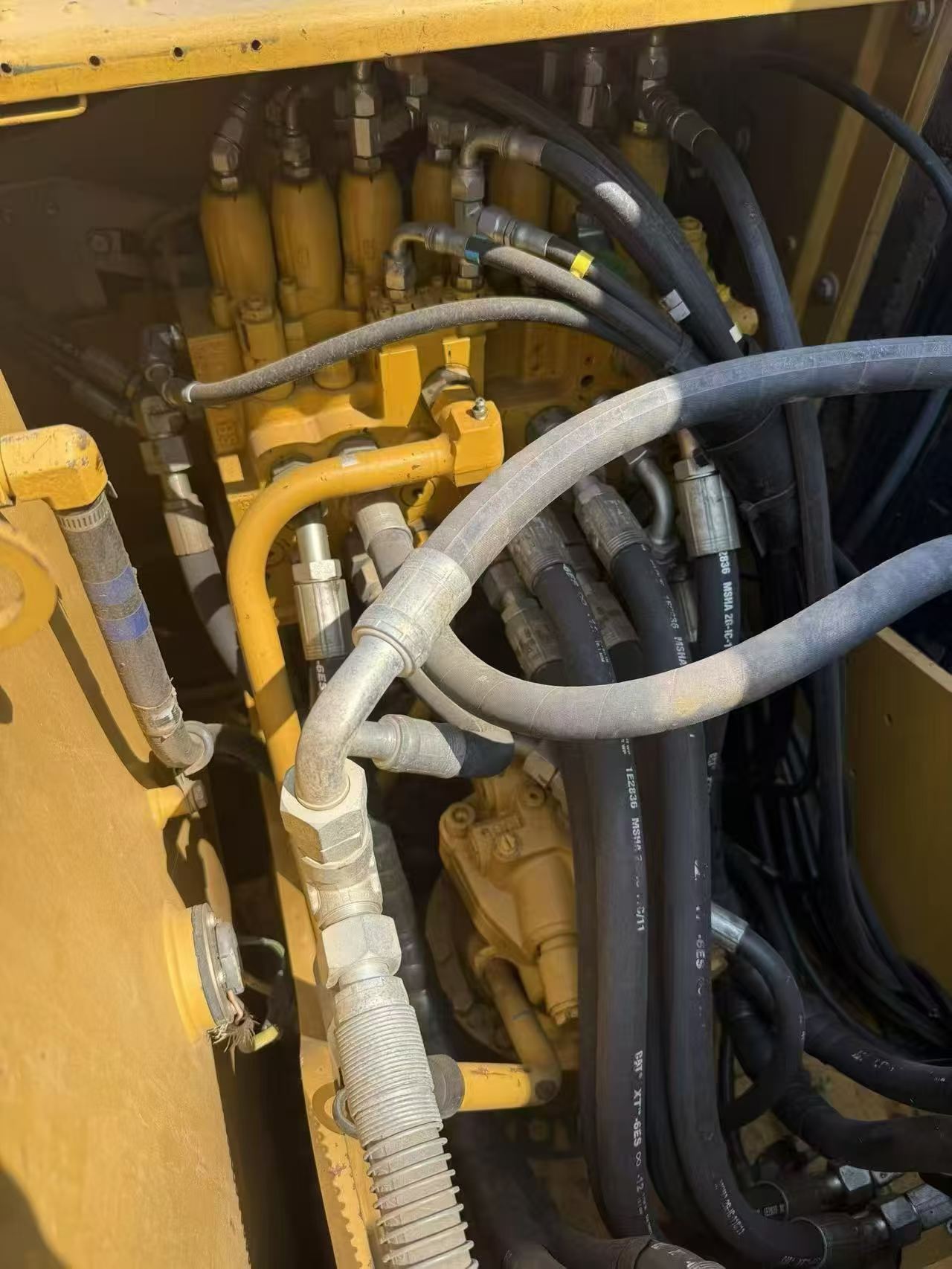

- Hydraulic system delivering 127 L/min at 30.5 MPa for smooth, responsive control
- Water-cooled 4-cylinder engine with 4.25L displacement

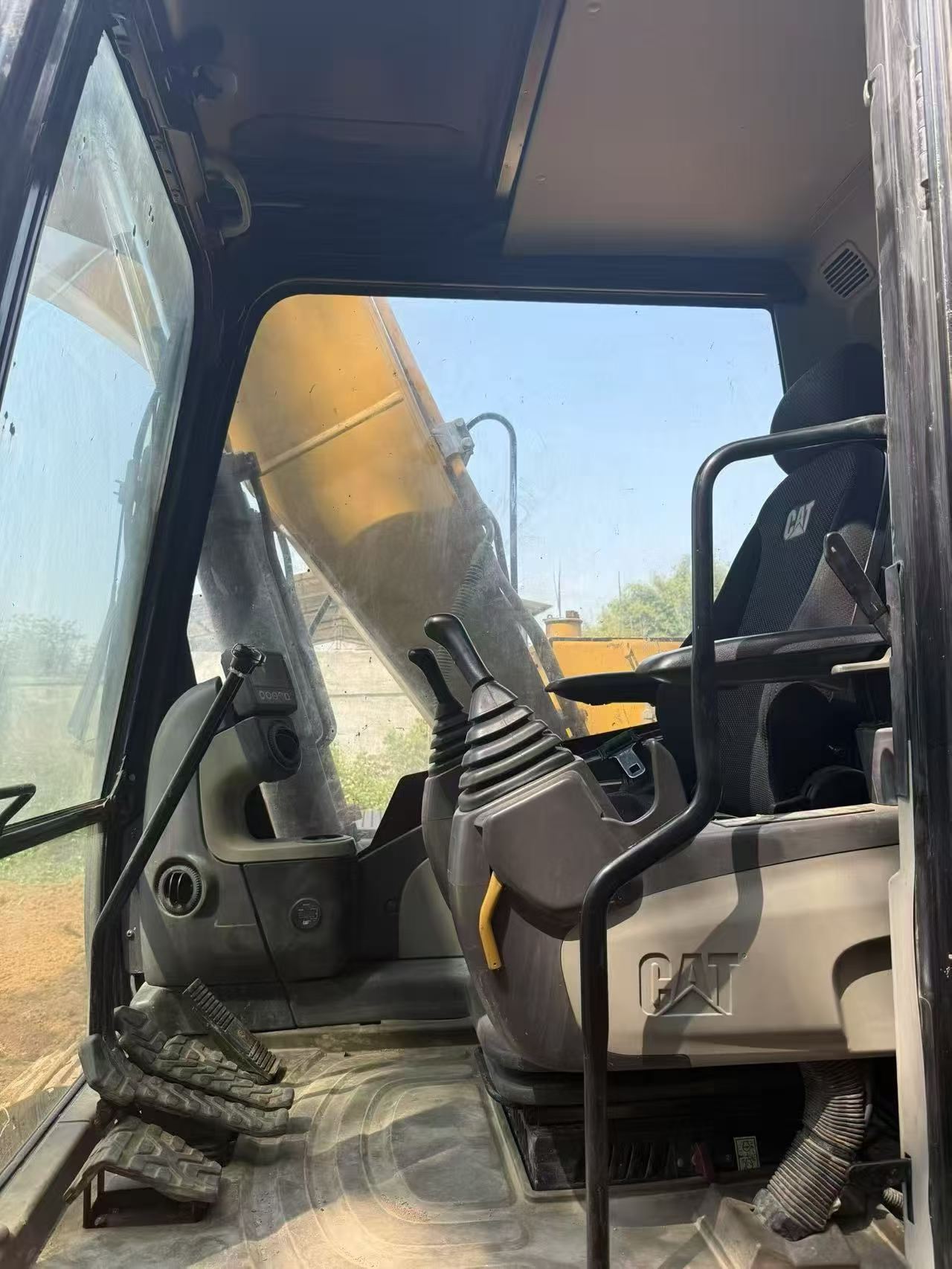

Whether you're covering maintenance downtime or scaling operations for peak season, this Xuzhou-manufactured unit integrates seamlessly into existing Cat fleets with familiar controls and service protocols. Factory-spec hydraulics and a 13,430 kg working weight ensure productivity matches your primary machines.
| Specifications | Value |
|---|---|
| No. | 1048710 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13430 |

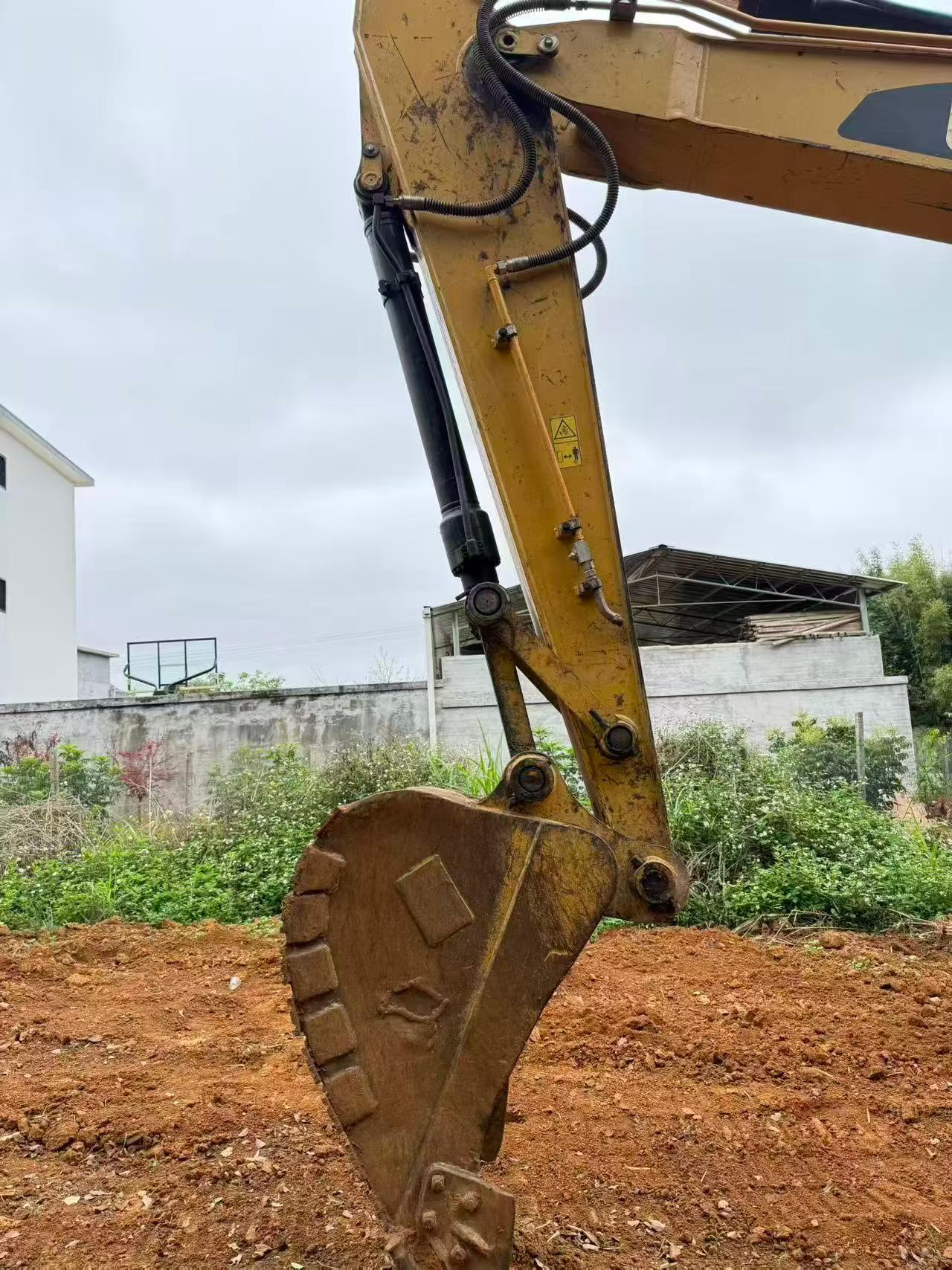

| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 2500 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

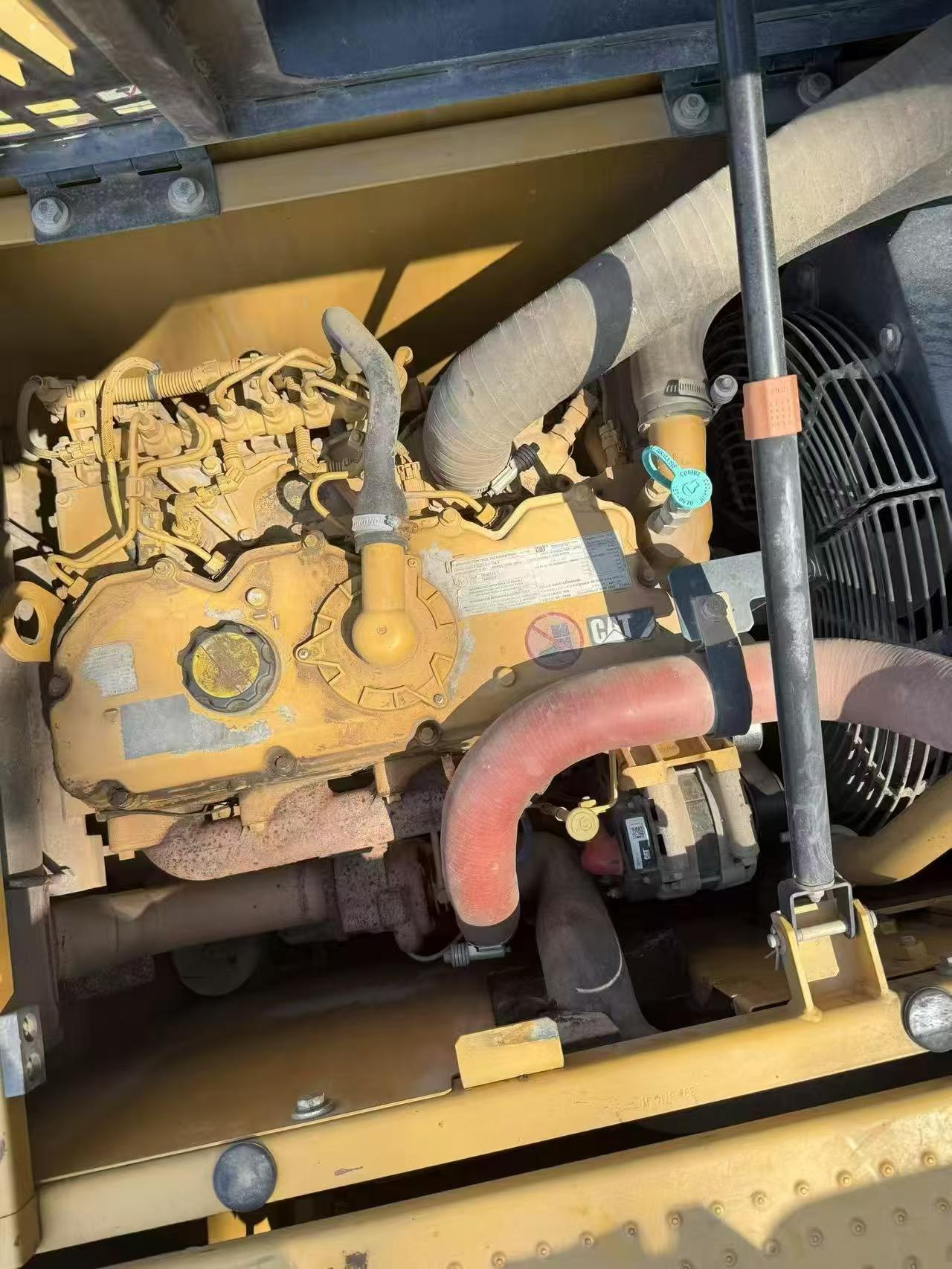

| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 67 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 41.8 (with 500mm track plate) |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 82 |
| Rod digging force (kN) | 63 |
| Maximum tractive force (kN) | 114 |
| Travel speed (km/h) | 5.5 |
| Main overflow set pressure (Mpa) | 30.5 |

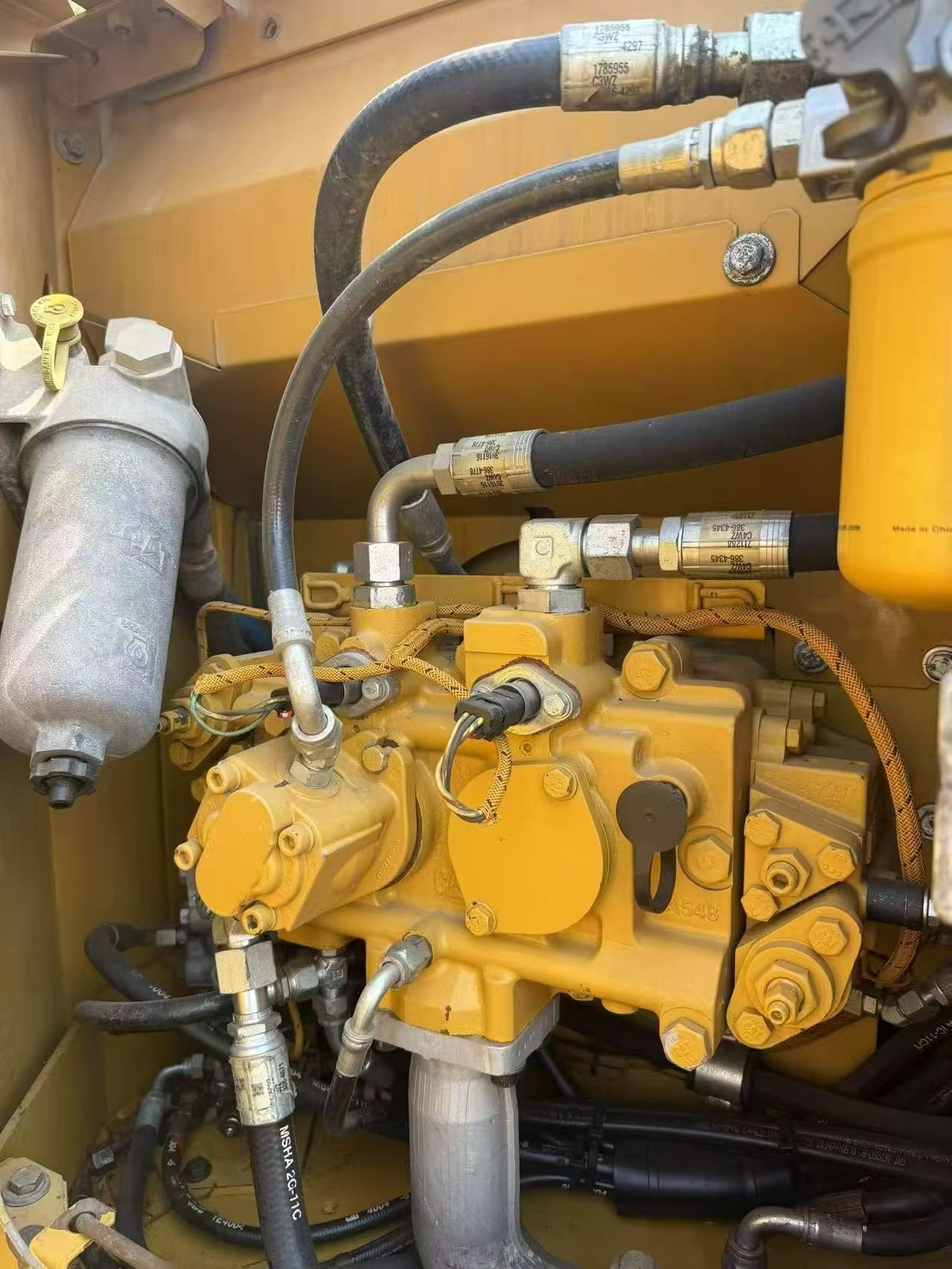

| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Pilot Oil Circuit (MPa) | 41.2 |
| Pilot pump flow (L/min) | 21.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162 (including fuel tank) |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2830 (to top of boom) |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2140 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 (standard) |
| Total track width (mm) | 2490 |
| Maximum digging depth (mm) | 5580 |
| Maximum unloading height (mm) | 6060 |
| Maximum vertical digging depth (mm) | 5040 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8220 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5380 |
