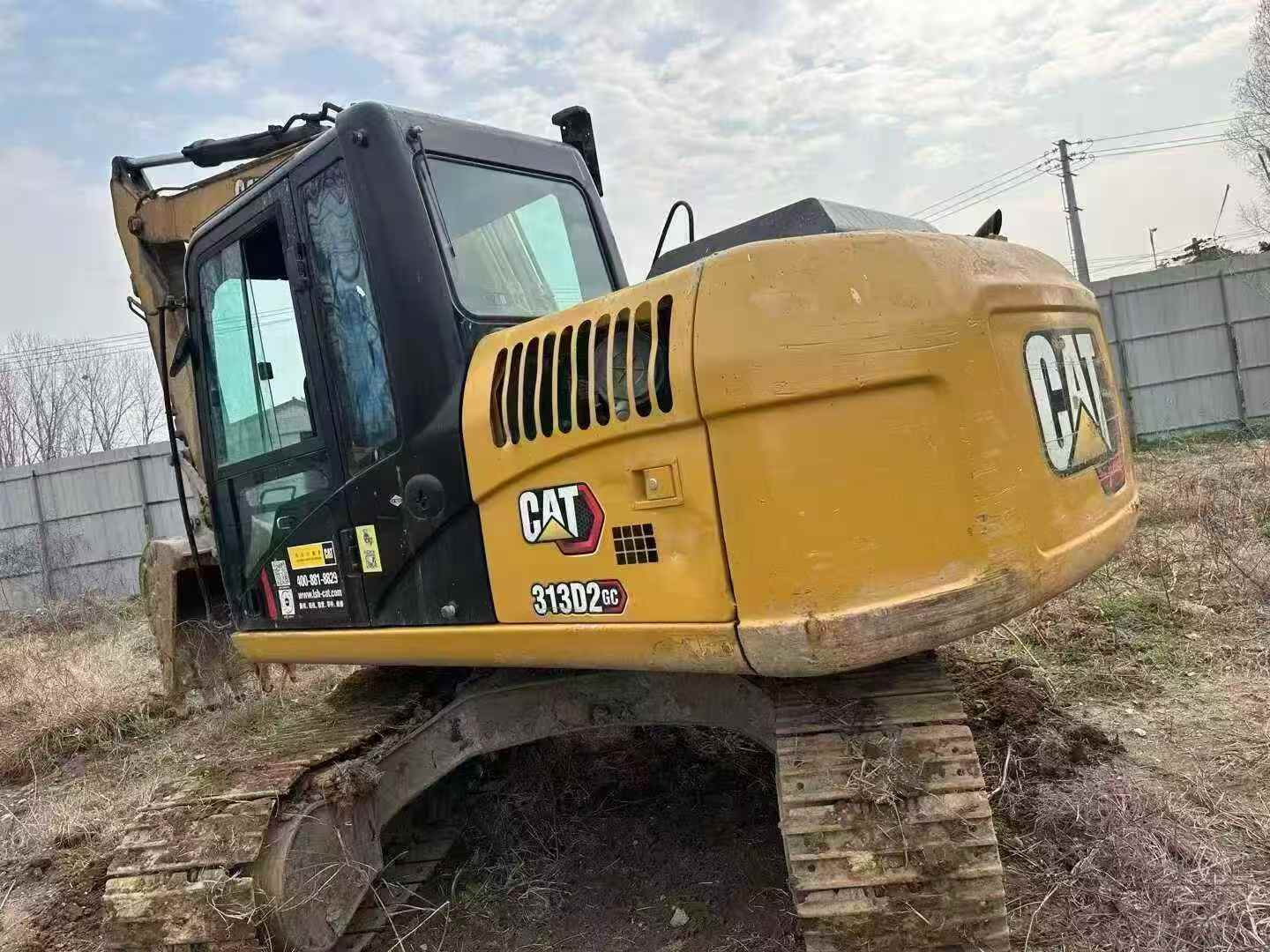

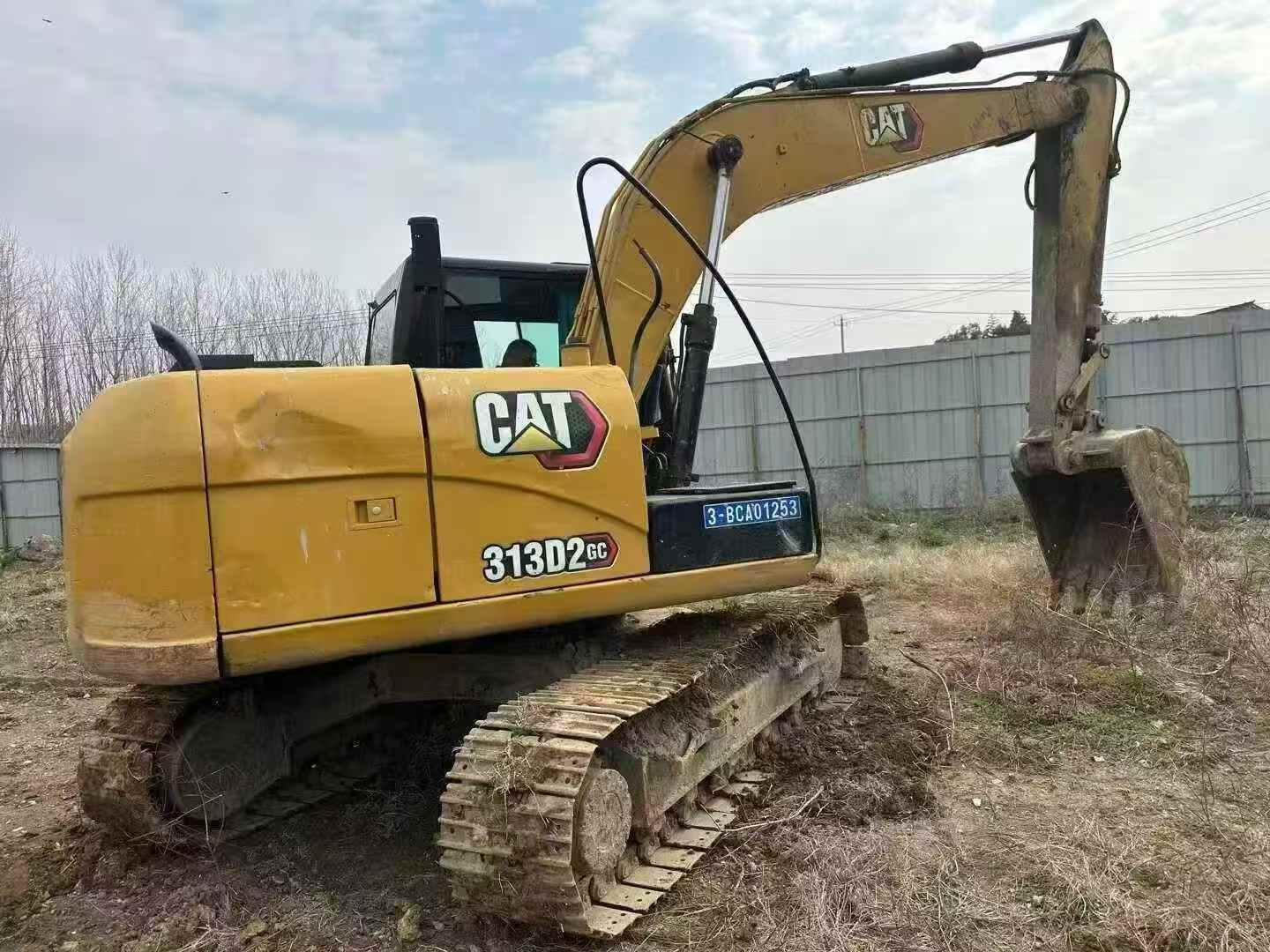

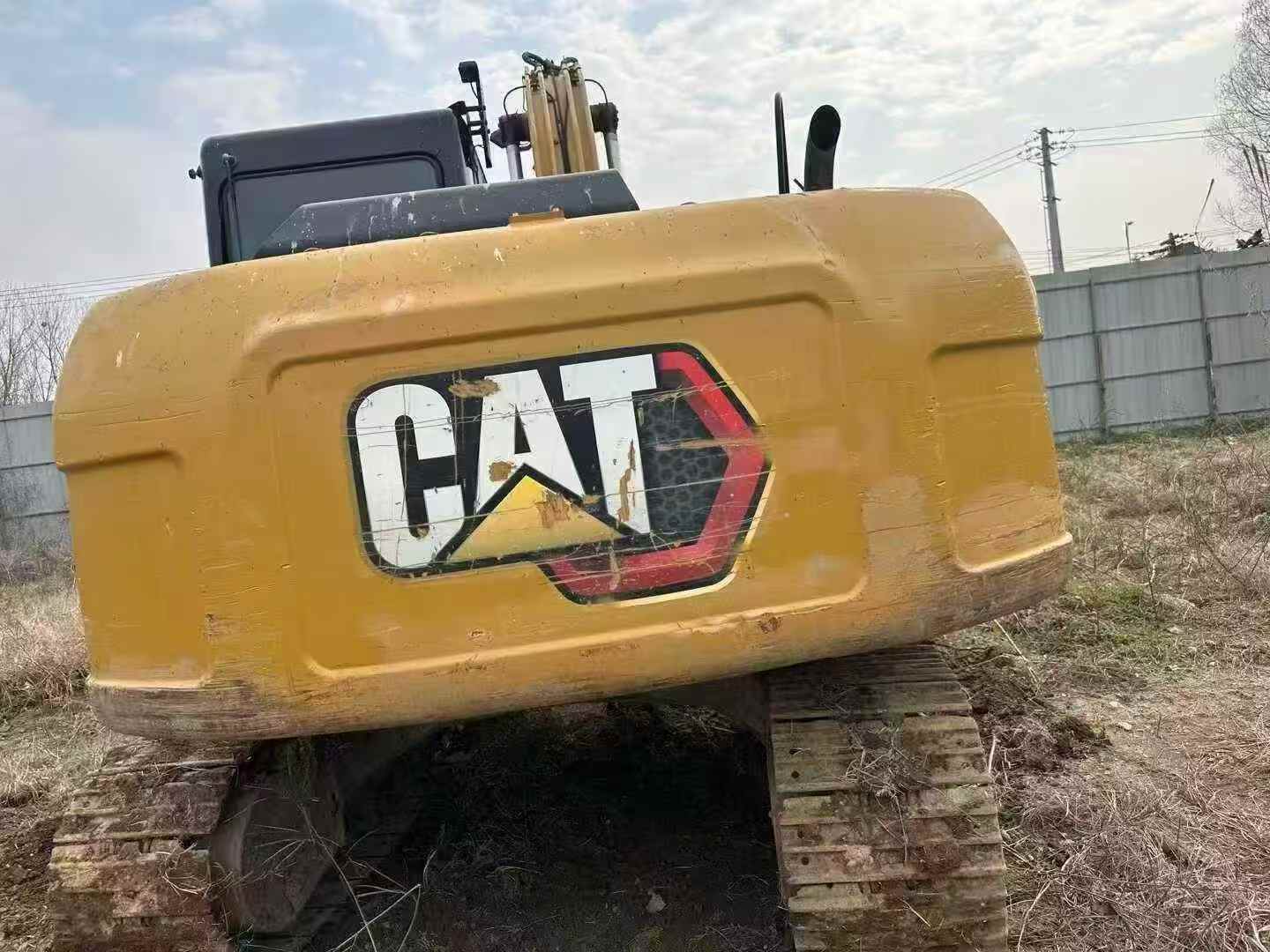

2021 Caterpillar 313D
Product Description
Proven performance meets robust engineering in this 2021 Caterpillar 313D excavator, a 13-ton workhorse built for demanding jobsites. Powered by the reliable Cat C4.2 ACERT engine delivering 67 kW of net power, this machine combines fuel efficiency with consistent hydraulic performance. Currently located in Guizhou, this excavator features a 0.52 m³ bucket capacity and impressive digging capabilities—reaching 5,580 mm maximum depth and 8,220 mm excavation radius.
- Working Weight: 13,430 kg with optimal 41.8 kPa ground pressure
- Hydraulic Power: 127 L/min main pump flow, 30.5 MPa system pressure
- Digging Force: 82 kN bucket force, 63 kN rod force for tough materials
- Compact Transport: 7,610 mm length × 2,490 mm width for easy relocation
- Emissions Compliant: Meets US EPA Tier 3 and European IIIA standards
Built to last through years of heavy use, this Xuzhou-manufactured excavator demonstrates Caterpillar's commitment to durability. With 250L fuel capacity and water-cooled reliability, it's engineered for extended operation cycles with minimal downtime.
| Specifications | Value |
|---|---|
| No. | 1028979 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13430 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 2500 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

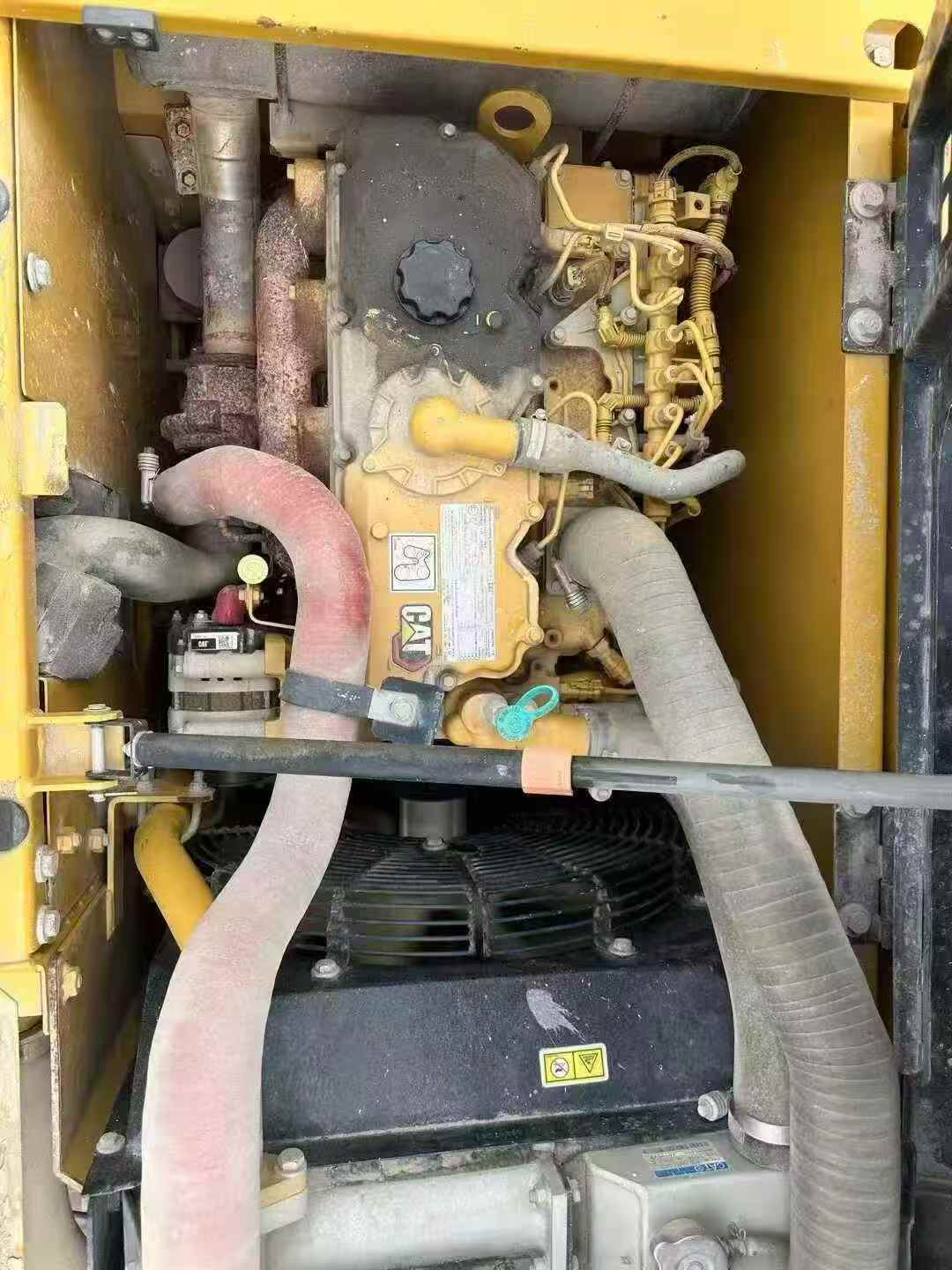

| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 67 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 41.8 (with 500mm track plate) |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 82 |
| Rod digging force (kN) | 63 |
| Maximum tractive force (kN) | 114 |
| Travel speed (km/h) | 5.5 |
| Main overflow set pressure (Mpa) | 30.5 |
| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Pilot Oil Circuit (MPa) | 41.2 |
| Pilot pump flow (L/min) | 21.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162 (including fuel tank) |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2830 (to top of boom) |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2140 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 (standard) |
| Total track width (mm) | 2490 |
| Maximum digging depth (mm) | 5580 |
| Maximum unloading height (mm) | 6060 |
| Maximum vertical digging depth (mm) | 5040 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8220 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5380 |
Overview
No.1028979
Brand Name：
CaterpillarModel Number：
313DYear：
2021
Location：
Guizhou China
