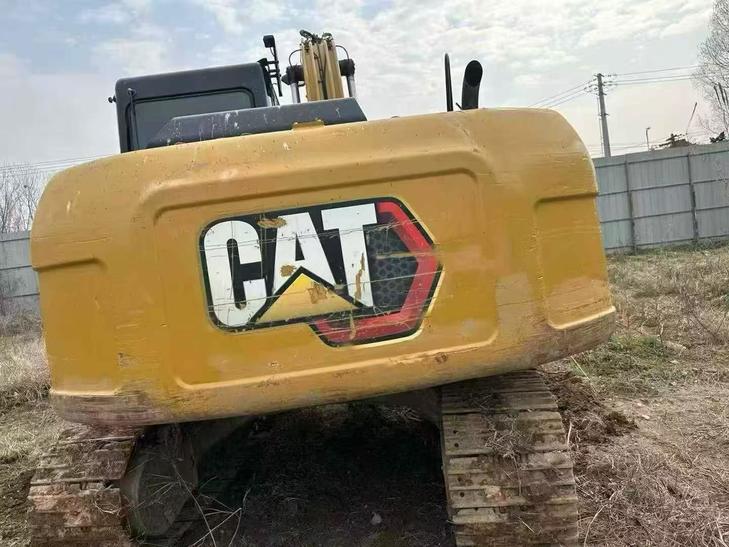

2021 Caterpillar 313D
Product Description
Powered by the reliable Cat C4.2 ACERT engine delivering 67 kW of net power, this 2021 Caterpillar 313D excavator offers precision control and consistent performance across demanding jobsites. With a 13-ton operating weight and 0.52 m³ bucket capacity, operators benefit from balanced power-to-weight dynamics that enhance stability during digging, grading, and material handling tasks.
Designed with operator efficiency in mind, the spacious cab provides excellent all-around visibility, reducing blind spots and improving jobsite awareness. Responsive hydraulic controls and a 12.4 rpm rotation speed enable smooth, predictable movements, while the low ground specific pressure of 41.8 kPa minimizes ground disturbance on sensitive terrain.
- Maximum digging depth: 5,580 mm
- Bucket digging force: 82 kN
- Maximum reach: 8,220 mm
- Travel speed: 5.5 km/h
- Compact transport dimensions: 7,610 × 2,490 × 2,830 mm
Currently located in Hunan, this joint-venture manufactured model meets US EPA Tier 3 and European IIIA emission standards, combining proven Caterpillar engineering with practical versatility for medium-duty excavation projects.
| Specifications | Value |
|---|---|
| No. | 1032727 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13430 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 2500 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 67 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 41.8 (with 500mm track plate) |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 82 |
| Rod digging force (kN) | 63 |
| Maximum tractive force (kN) | 114 |
| Travel speed (km/h) | 5.5 |
| Main overflow set pressure (Mpa) | 30.5 |
| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Pilot Oil Circuit (MPa) | 41.2 |
| Pilot pump flow (L/min) | 21.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162 (including fuel tank) |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2830 (to top of boom) |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2140 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 (standard) |
| Total track width (mm) | 2490 |
| Maximum digging depth (mm) | 5580 |
| Maximum unloading height (mm) | 6060 |
| Maximum vertical digging depth (mm) | 5040 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8220 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5380 |
Overview
No.1032727
Brand Name：
CaterpillarModel Number：
313DYear：
2021
Location：
Hunan China
