2023 Caterpillar 313D
Product Description
Proven reliability meets precision engineering in this 2023 Caterpillar 313D midi excavator, currently located in Zhejiang. Operating at 13 tons with a robust 67kW Cat C4.2 ACERT engine, this machine delivers consistent performance across demanding jobsites. The 4650mm boom and 2500mm arm provide an impressive 8220mm maximum reach, while 82kN bucket digging force tackles tough materials with confidence.
Caterpillar's global parts network ensures minimal downtime—critical for contractors managing tight project schedules. This joint venture model combines advanced hydraulics (127 L/min main pump flow, 30.5 MPa system pressure) with the durability that maintains strong resale value years after purchase. Compact transport dimensions of 7610mm length allow easy mobilization between sites.
- Working Weight: 13,430 kg with 0.52 m³ bucket capacity
- Digging Depth: 5580mm maximum, 5040mm vertical wall capability
- Fuel Efficiency: 250L tank, EPA Tier 3 / EU Stage IIIA compliant
- Hydraulic System: 162L total capacity for responsive operation
- Travel Speed: 5.5 km/h with 114kN tractive force
Back
| Specifications | Value |
|---|---|
| No. | 1043755 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13430 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 2500 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

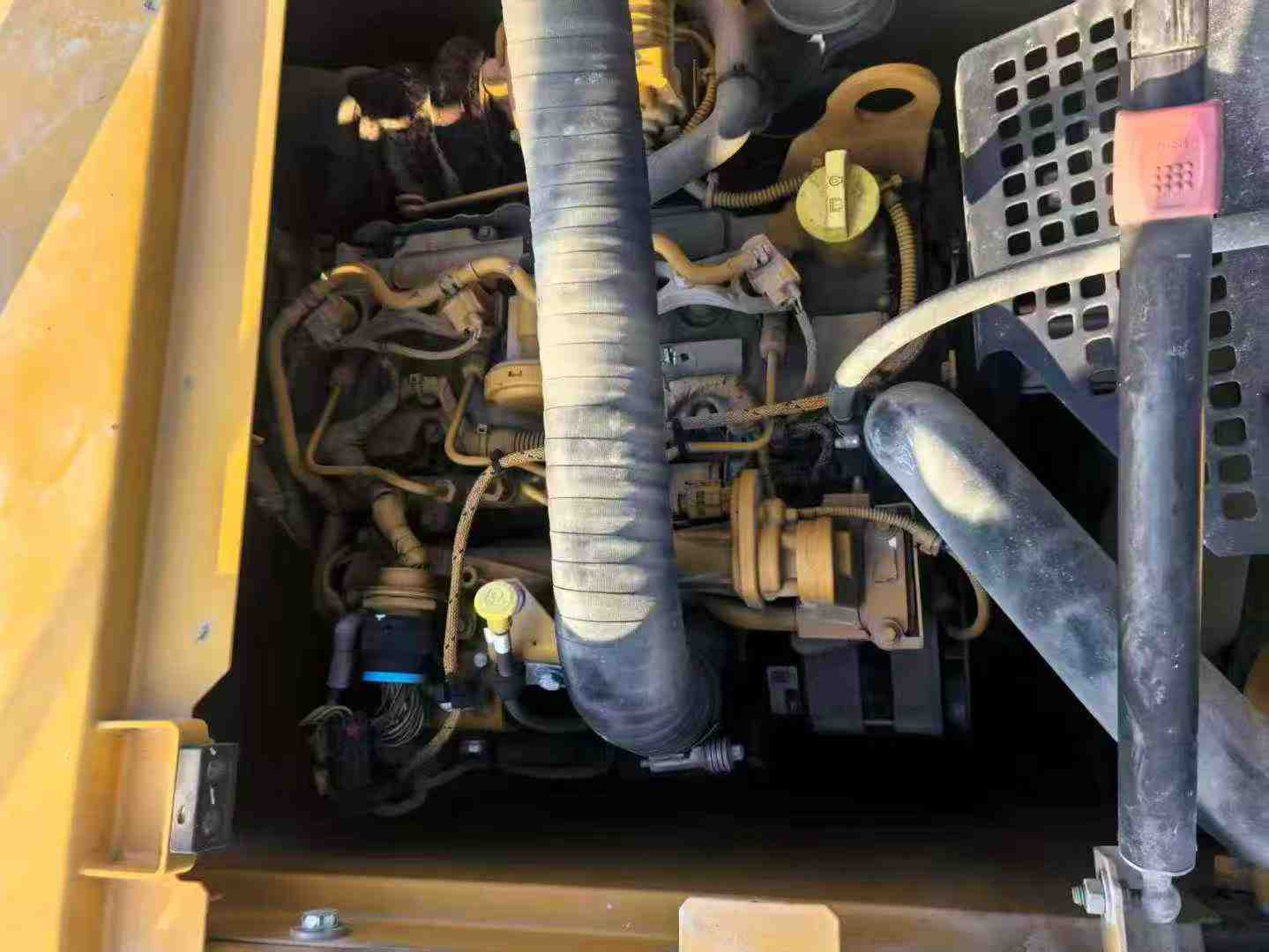

| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 67 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 41.8 (with 500mm track plate) |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 82 |
| Rod digging force (kN) | 63 |
| Maximum tractive force (kN) | 114 |
| Travel speed (km/h) | 5.5 |
| Main overflow set pressure (Mpa) | 30.5 |
| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Pilot Oil Circuit (MPa) | 41.2 |
| Pilot pump flow (L/min) | 21.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162 (including fuel tank) |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2830 (to top of boom) |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2140 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 (standard) |
| Total track width (mm) | 2490 |
| Maximum digging depth (mm) | 5580 |
| Maximum unloading height (mm) | 6060 |
| Maximum vertical digging depth (mm) | 5040 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8220 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5380 |
Overview
No.1043755
Brand Name：
CaterpillarModel Number：
313DYear：
2023
Location：
Zhejiang China
Pub Date：
