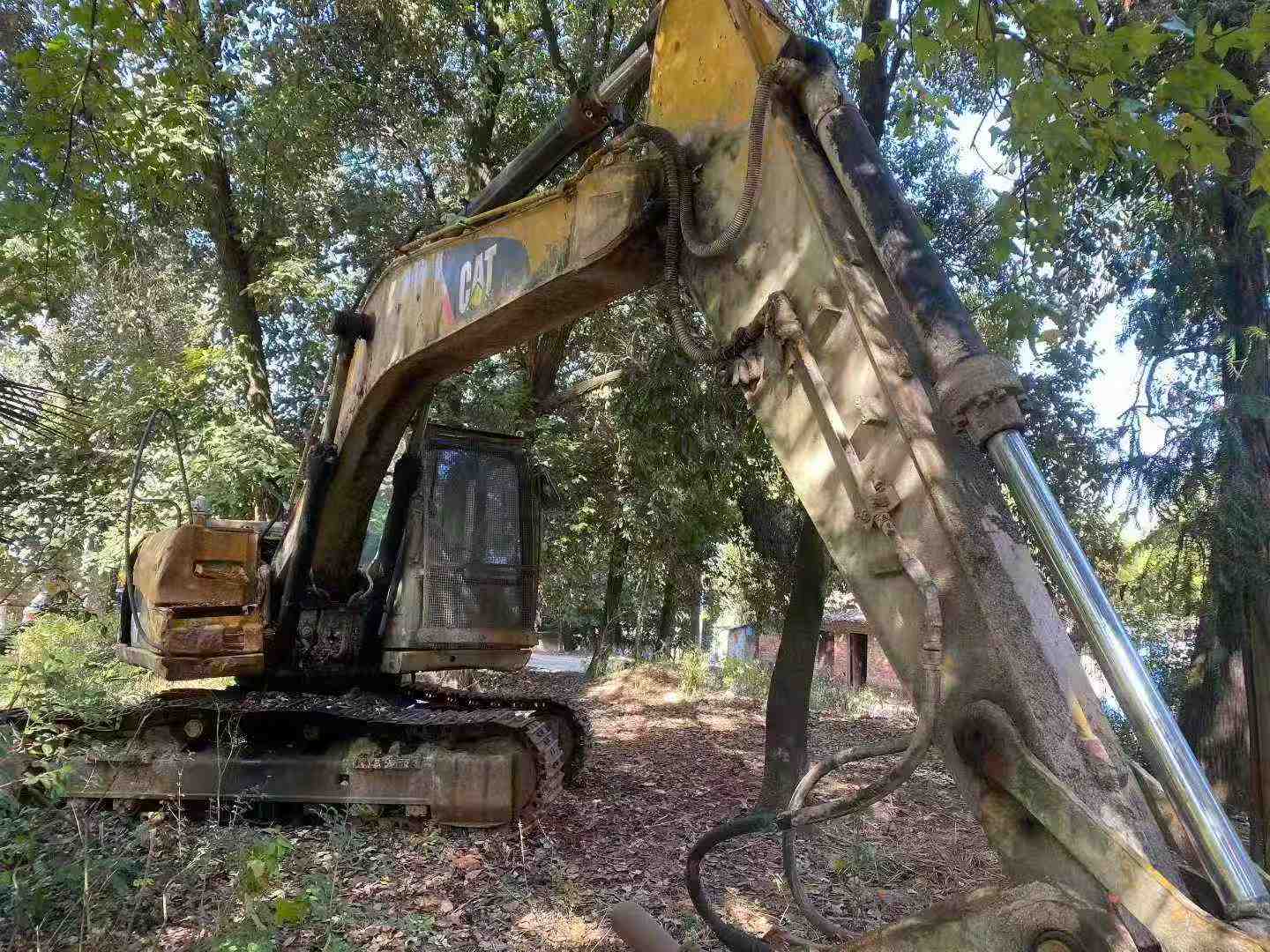

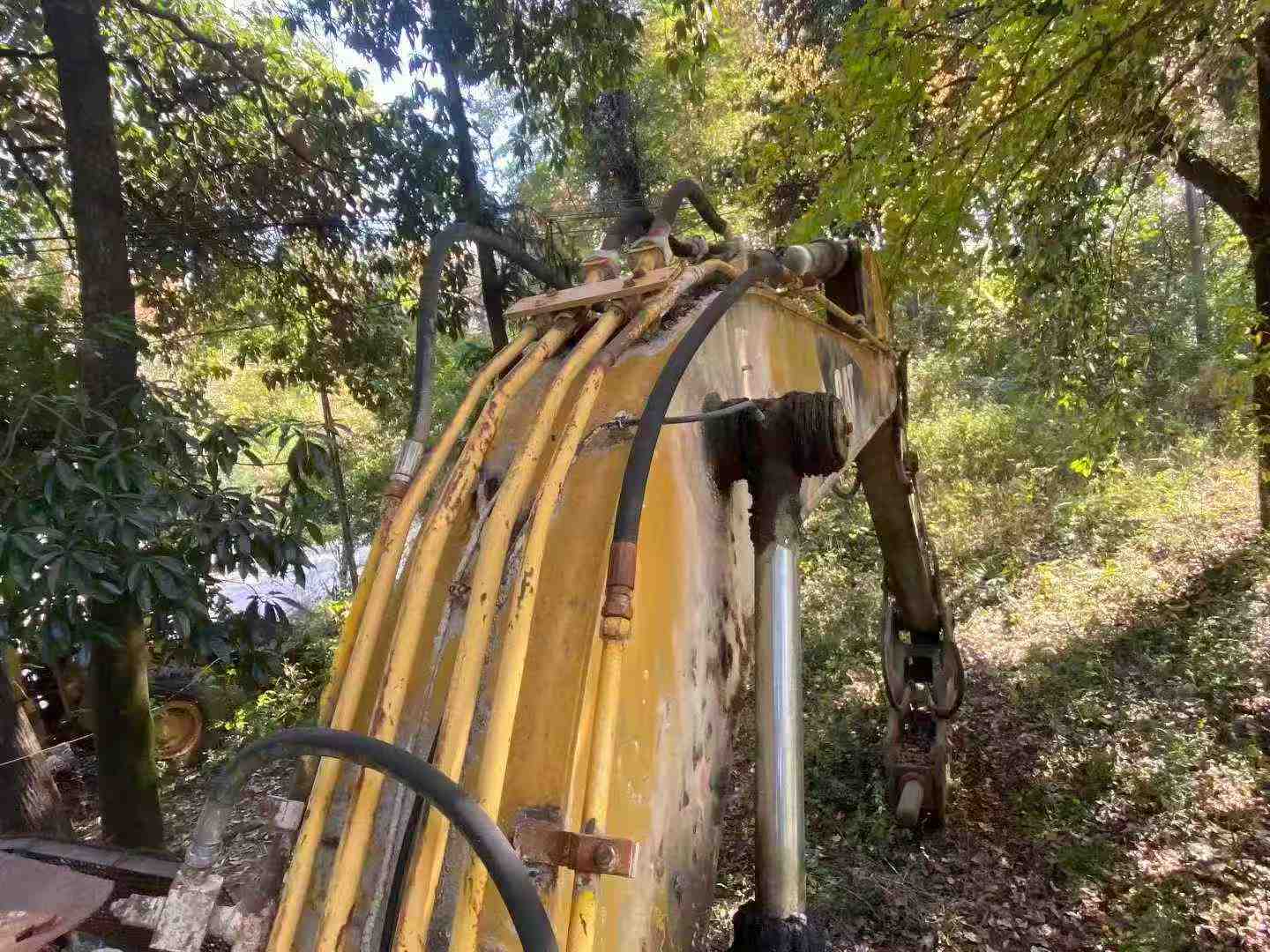

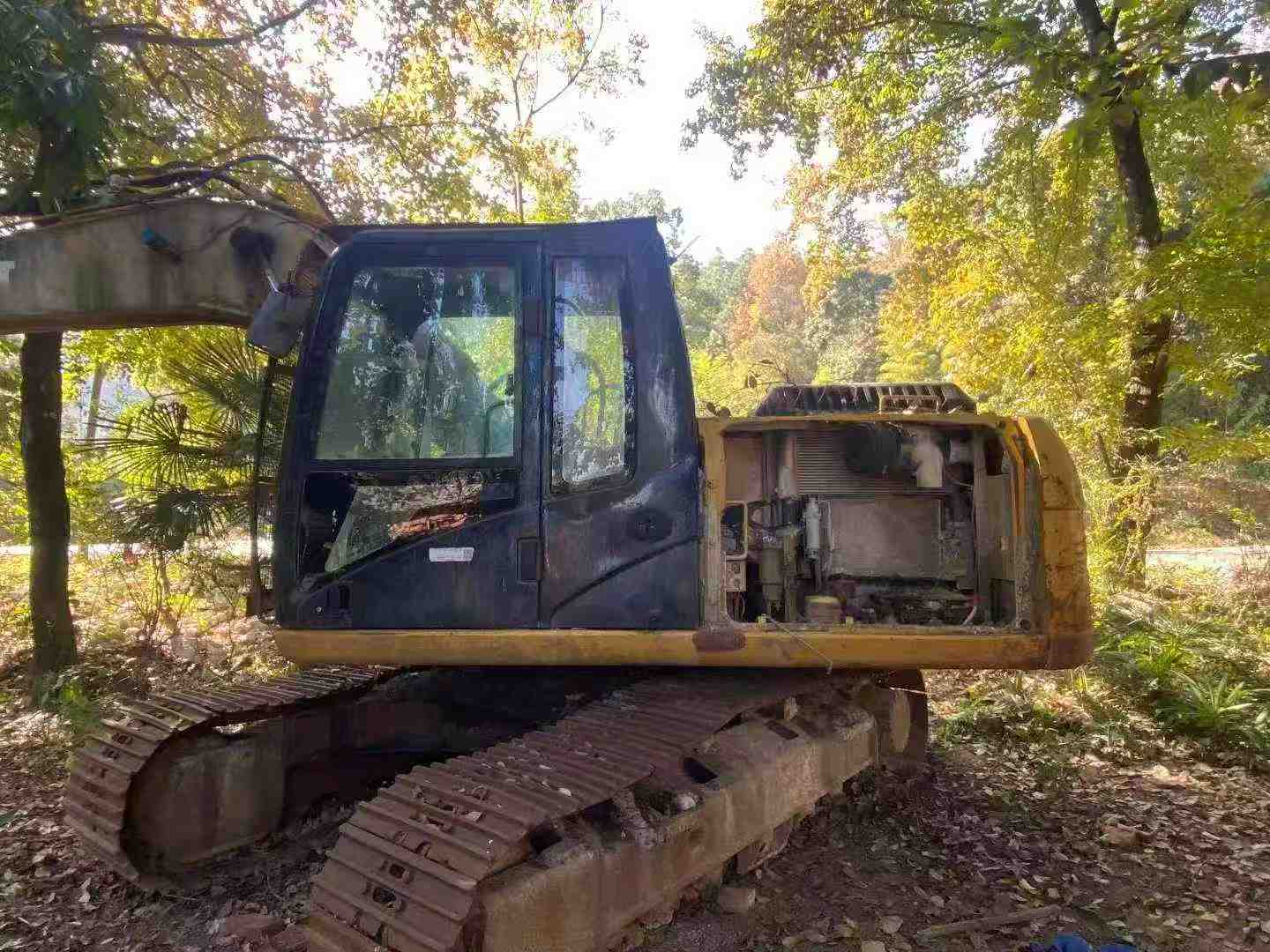

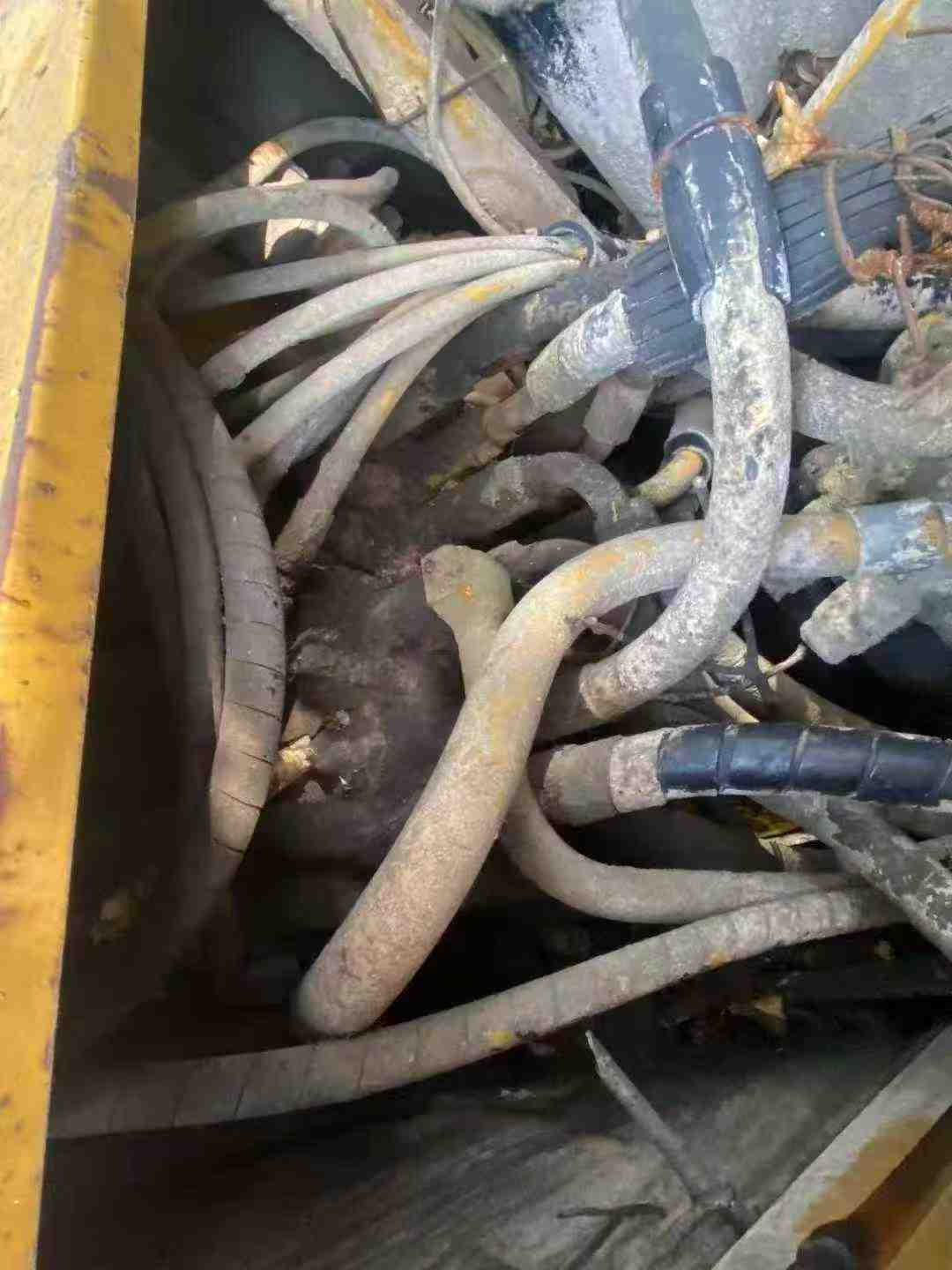

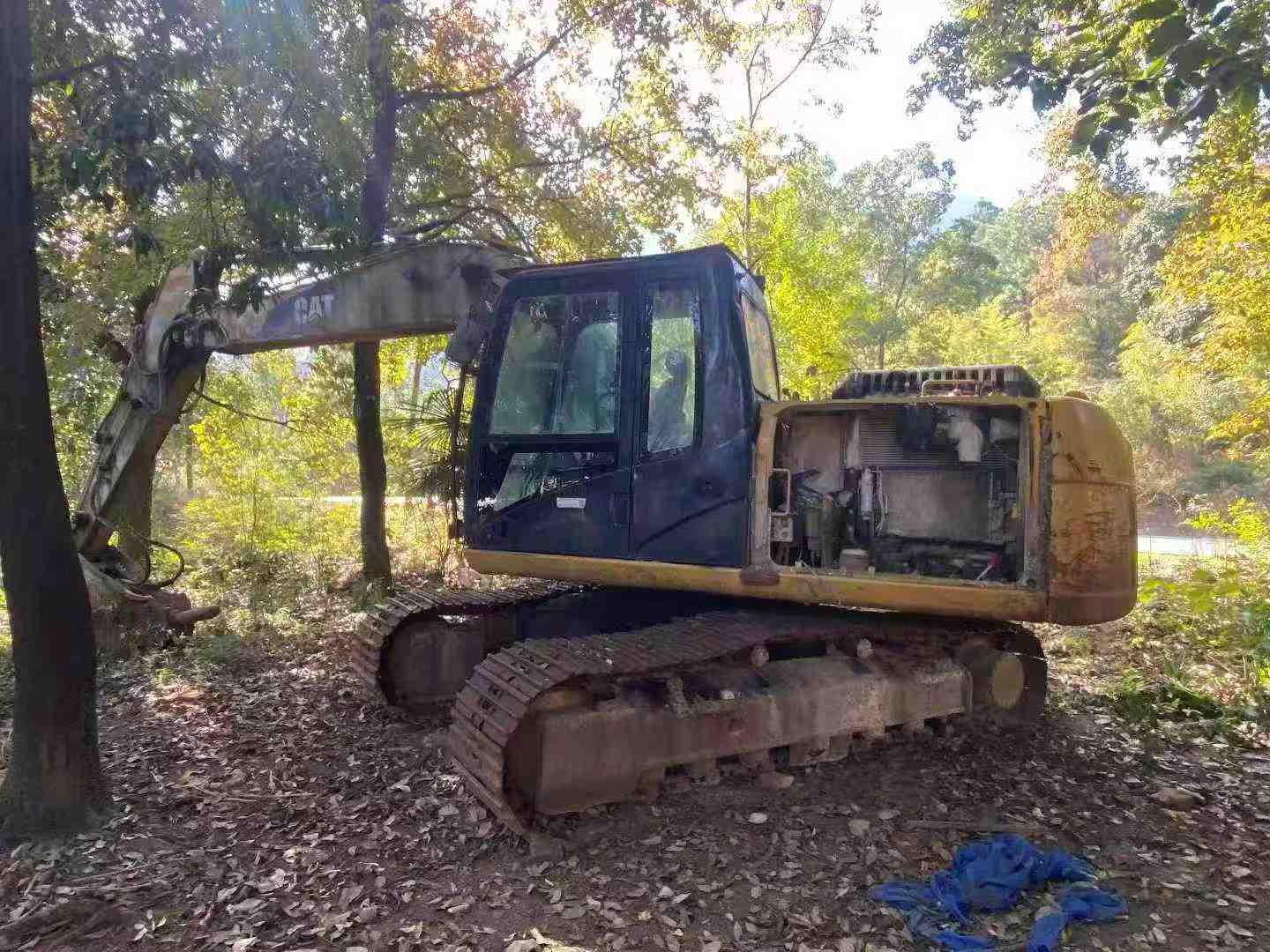

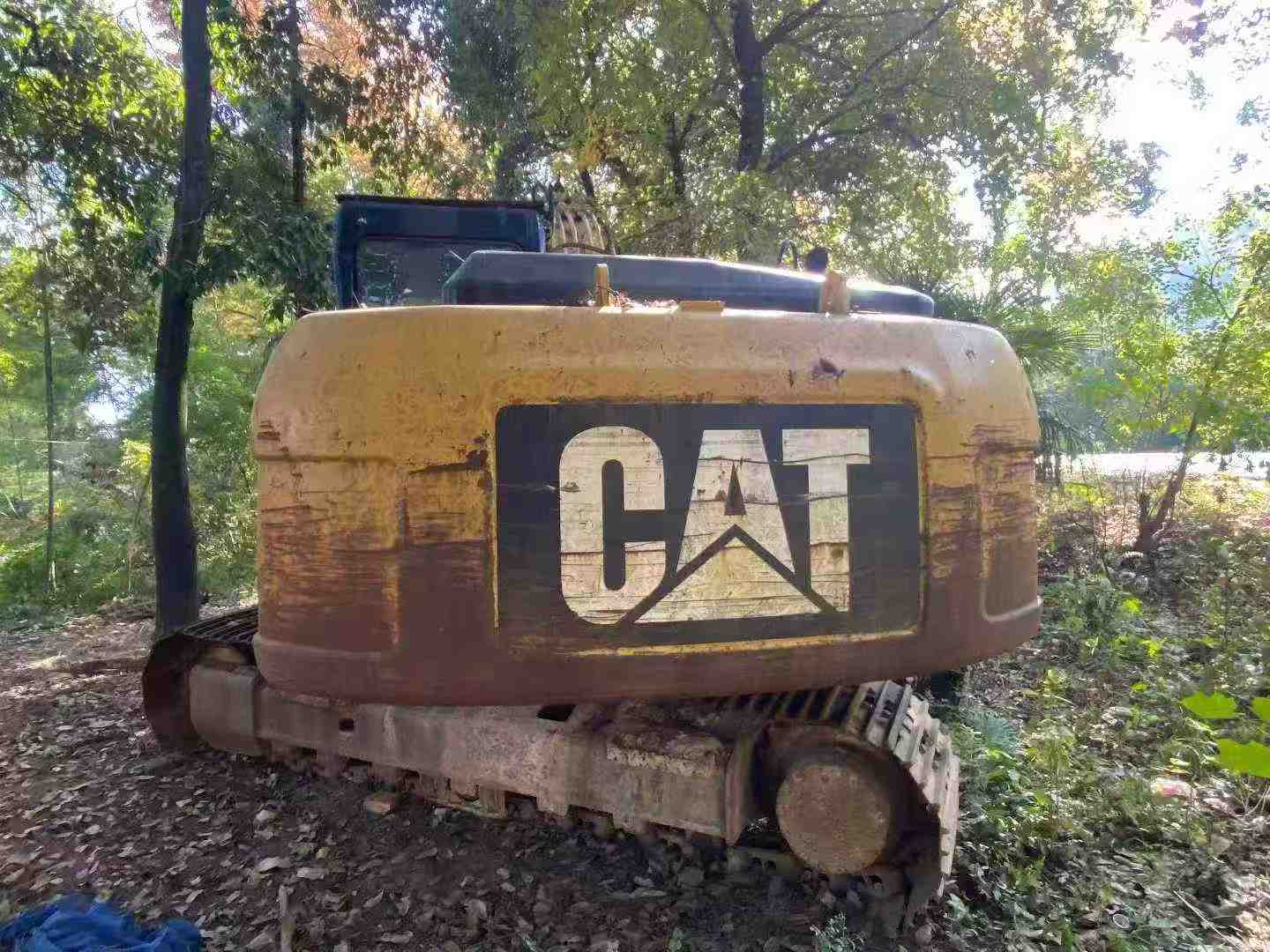

2016 Caterpillar 315DL
Product Description
Get to work immediately with this 2016 Caterpillar 315DL excavator, currently located in Zhejiang Shaoxing. Powered by the reliable CAT C4.2 ACERT engine delivering 91kW, this 17,280kg machine handles demanding excavation, grading, and demolition tasks across construction and infrastructure projects. Maximum digging depth reaches 5,720mm with an 8,430mm excavation radius at stop surface, while the 0.61m³ backhoe bucket moves material efficiently on every cycle.
- 15-ton operating class with proven Caterpillar hydraulics
- 5,100mm boom and 2,250mm stick for versatile reach
- 150 L/min main pump flow ensures responsive cycle times
- 300L fuel capacity minimizes refueling downtime
- Track-type undercarriage with 600mm-wide shoes for stability
- Full cab protection at 2,870mm height
Built for productivity on foundations, trenching, and material handling applications. This joint venture/import unit combines field-proven components with straightforward maintenance access. Site-ready condition means you're moving dirt, not waiting on repairs.
| Specifications | Value |
|---|---|
| No. | 1018773 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 17280 |
| Bucket capacity (m³) | 0.61 |
| Boom length (mm) | 5100 |
| Rod length (mm) | 2250 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT C4.2 ACERT |
| Rated power (kw/rpm) | 91 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.3 |
| Ground specific pressure (Kpa) | 40.7 |
| Rotation speed (rpm) | 10.2 |
| Travel speed (km/h) | 5.6 |
| Main overflow set pressure (Mpa) | 35 |
| Rotary hydraulic motor type | 22.5 |
| Type of walking hydraulic motor | 35 |
| Maximum flow of main pump (l/min) | 150 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-100 x 1048 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-120 x 1331 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-110 x 1193 |
| Fuel Tank (L) | 300 |
| Hydraulic Tank (L) | 106 |
| Engine Oil changes (L) | 17.5 |
| Coolant (L) | 22 |
| Hydraulic System (L) | 190 |
| Total transport length (mm) | 8520 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2930 |
| Full cab height (mm) | 2870 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 460 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2590 |
| Track ground length (mm) | 3170 |
| Maximum digging depth (mm) | 5720 |
| Maximum excavation height (mm) | 8740 |
| Maximum unloading height (mm) | 6140 |
| Maximum vertical digging depth (mm) | 4920 |
| Maximum excavation radius of stop surface (mm) | 8430 |
Overview
No.1018773
Brand Name：
CaterpillarModel Number：
315DLYear：
2016
Location：
Zhejiang China
Pub Date：
