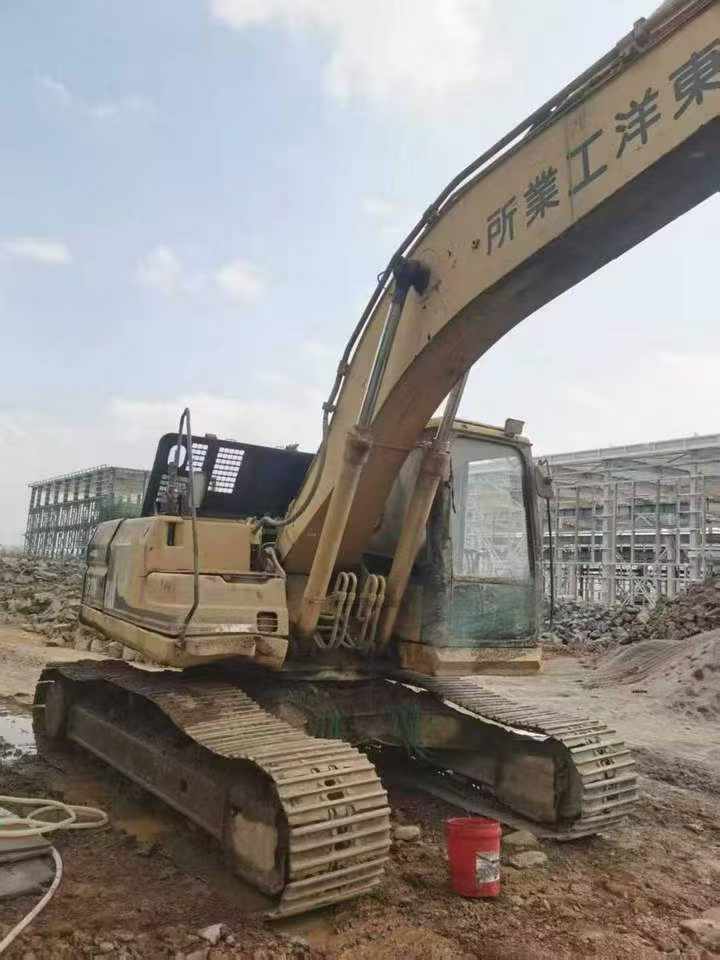

2016 Caterpillar 320B
Product Description
Engineered with precision and built for demanding excavation operations, this 2016 Caterpillar 320B represents proven hydraulic excellence in the 20-ton class. Powered by the robust CAT 3066T engine delivering 99.9 kW at 1800 rpm, this machine combines a 6.4L displacement with exceptional fuel efficiency from its 340L tank capacity. Hydraulic performance stands at the forefront with a 185 l/min main pump flow and working circuit pressure of 34.3 MPa, ensuring responsive control across all functions.
Key technical specifications include:
- Operating weight: 19,400 kg with 0.92 m³ bucket capacity
- Maximum digging depth of 6,640 mm and reach of 9,780 mm
- Boom length: 5,680 mm; Arm length: 2,900 mm
- Dual boom cylinders (2×120×1260 mm) for superior lifting force
- Travel speeds: 3.4/5.5 km/h with 10.7 rpm rotation speed
- Compact transport dimensions: 9,440×2,800×2,940 mm
Currently located in Huizhou, Guangdong, this joint venture-manufactured excavator demonstrates Caterpillar's commitment to hydraulic engineering and operational reliability in medium-duty construction applications.
| Specifications | Value |
|---|---|
| No. | 1007082 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19400 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

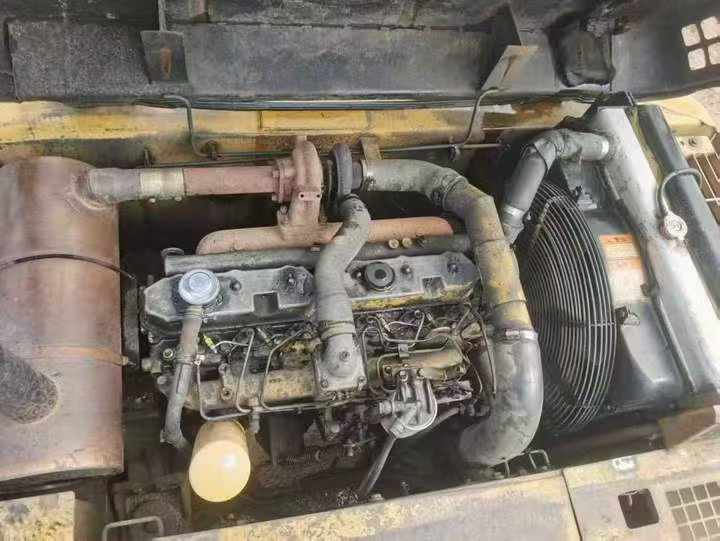

| Engine type | Caterpillar CAT 3066T |
| Rated power (kw/rpm) | 99.9/1800 |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Rotation speed (rpm) | 10.7 |
| Travel speed (km/h) | 3.4/5.5 |

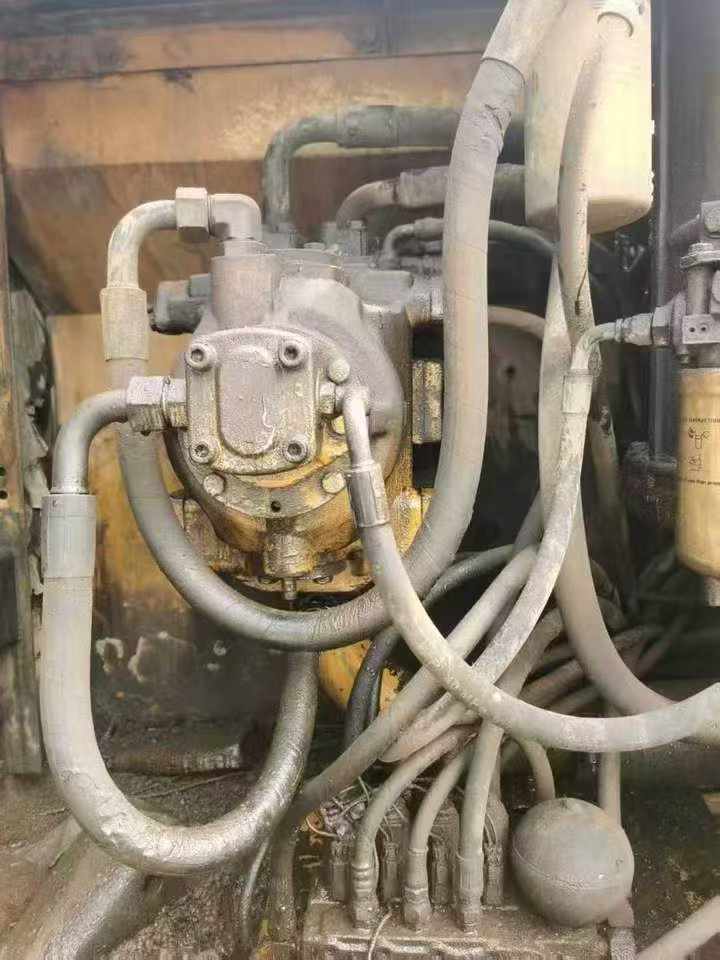

| Maximum flow of main pump (l/min) | 185 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 20.5 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 220 |
| Total transport length (mm) | 9440 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2940 |
| Full cab height (mm) | 2940 |
| Minimum ground clearance (mm) | 475 |
| Back end turning radius (mm) | 2750 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3265 |
| Maximum digging depth (mm) | 6640 |
| Maximum excavation height (mm) | 9470 |
| Maximum unloading height (mm) | 6570 |
| Maximum vertical digging depth (mm) | 6040 |
| Maximum excavation radius of stop surface (mm) | 9780 |
Overview
No.1007082
Brand Name：
CaterpillarModel Number：
320BYear：
2016
Location：
Guangdong China
Pub Date：
