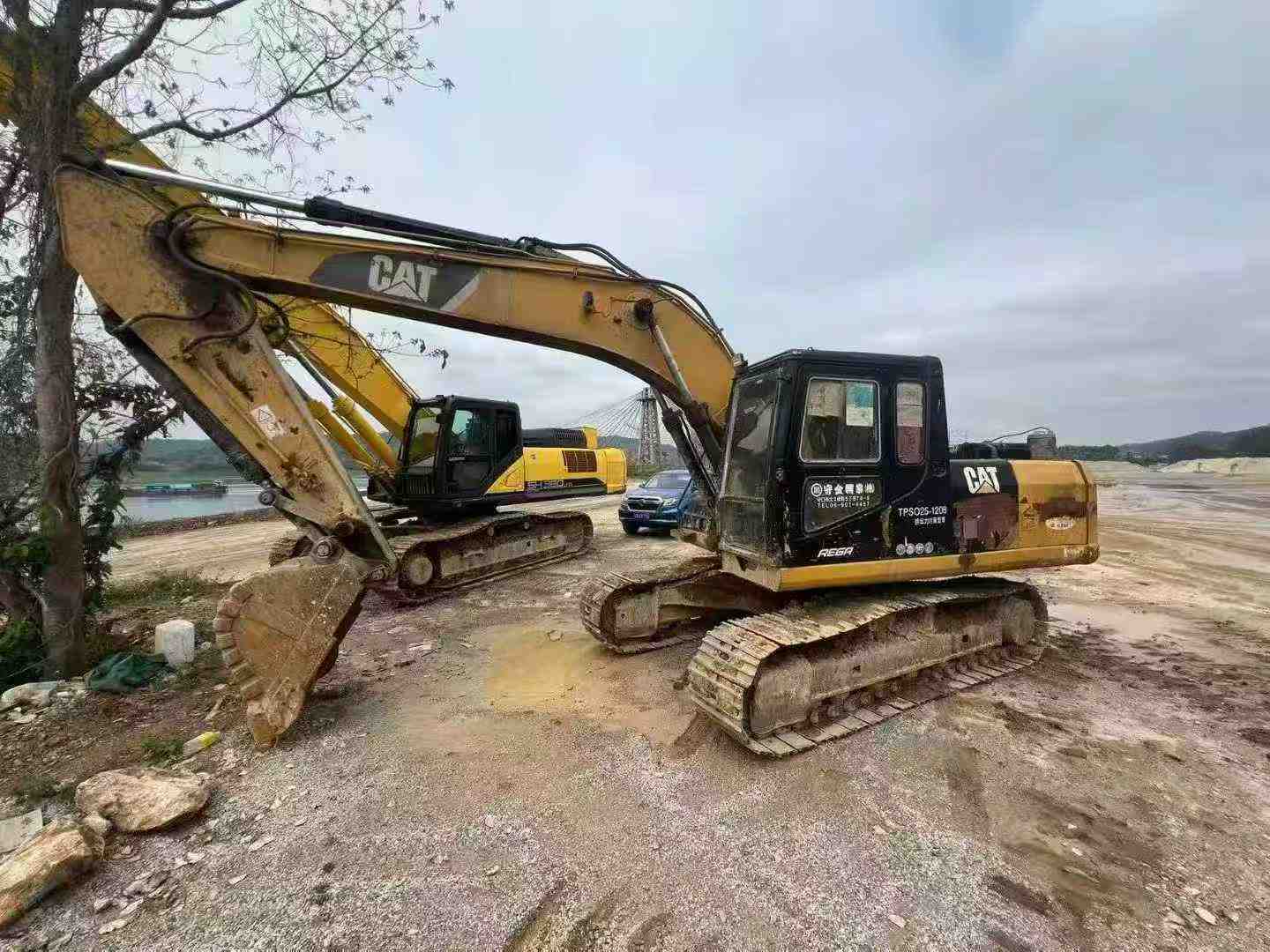

2016 Caterpillar 320B
Product Description
Built for heavy-duty excavation and grading, this 2016 Caterpillar 320B delivers reliable performance across demanding job sites. Operating at 20 tons with a 0.92 m³ backhoe bucket, this machine tackles deep trenching, foundation work, and demolition with precision. The CAT 3066T engine produces 99.9 kW at 1800 rpm, driving a 185 l/min main pump that powers through soil, rock, and debris without hesitation.
- Maximum digging depth of 6,640 mm reaches below-grade utilities and footings
- 9,780 mm excavation radius covers wide work areas from a single position
- 5,680 mm boom and 2,900 mm arm provide versatile reach for loading and placement
- 34.3 MPa working hydraulic circuit ensures strong breakout force
- 340L fuel tank supports extended shifts with fewer refueling interruptions
- 2,800 mm transport width allows legal road movement between sites
Currently located in Zhangzhou, Fujian, this Japanese-origin excavator is inspection-ready and prepared for immediate deployment. Hydraulic systems, undercarriage, and engine components are operational and maintained for continuous productivity.
| Specifications | Value |
|---|---|
| No. | 1024978 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19400 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

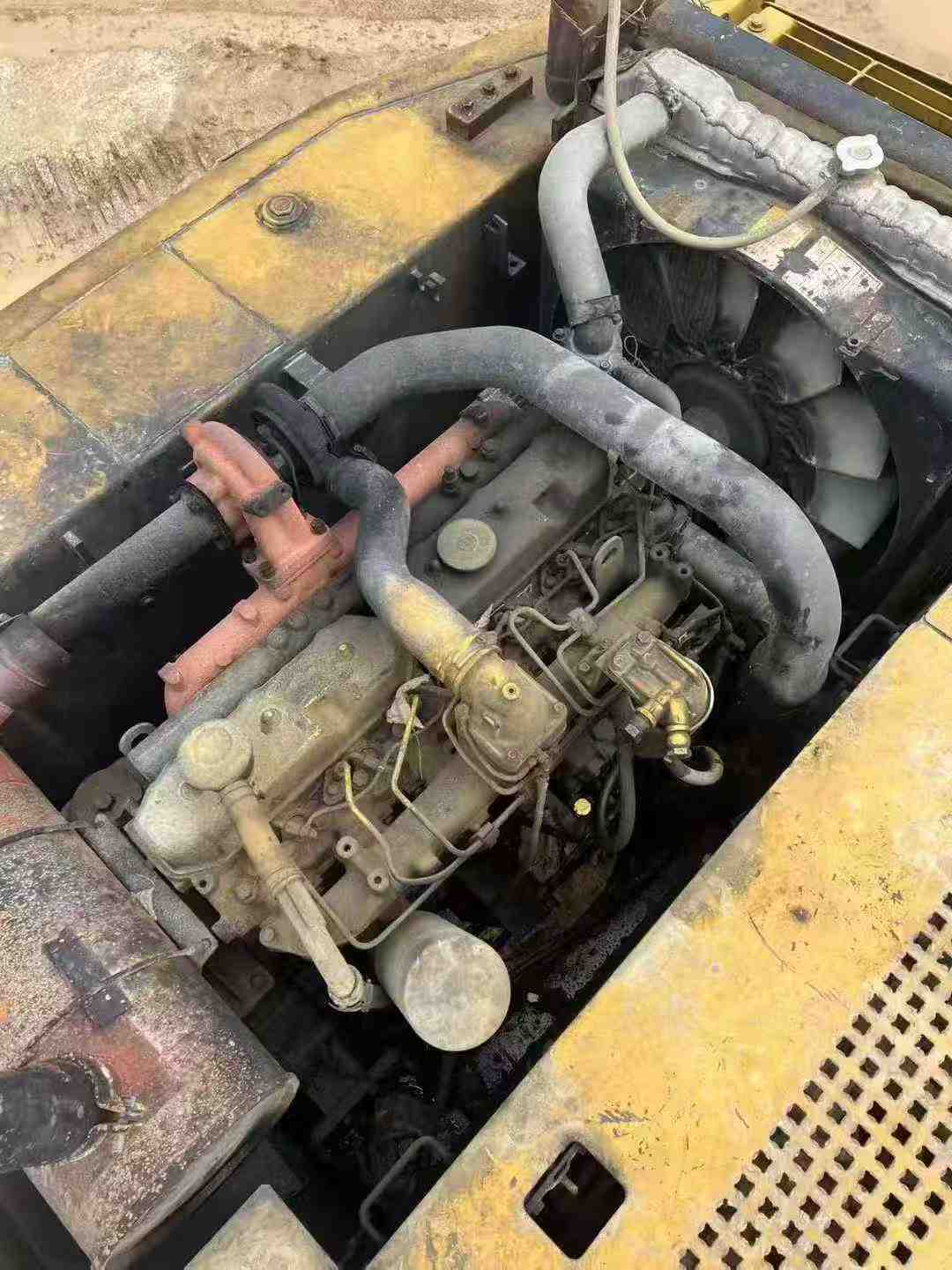

| Engine type | Caterpillar CAT 3066T |
| Rated power (kw/rpm) | 99.9/1800 |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Rotation speed (rpm) | 10.7 |
| Travel speed (km/h) | 3.4/5.5 |
| Maximum flow of main pump (l/min) | 185 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 20.5 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 220 |
| Total transport length (mm) | 9440 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2940 |
| Full cab height (mm) | 2940 |
| Minimum ground clearance (mm) | 475 |
| Back end turning radius (mm) | 2750 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3265 |
| Maximum digging depth (mm) | 6640 |
| Maximum excavation height (mm) | 9470 |
| Maximum unloading height (mm) | 6570 |
| Maximum vertical digging depth (mm) | 6040 |
| Maximum excavation radius of stop surface (mm) | 9780 |
