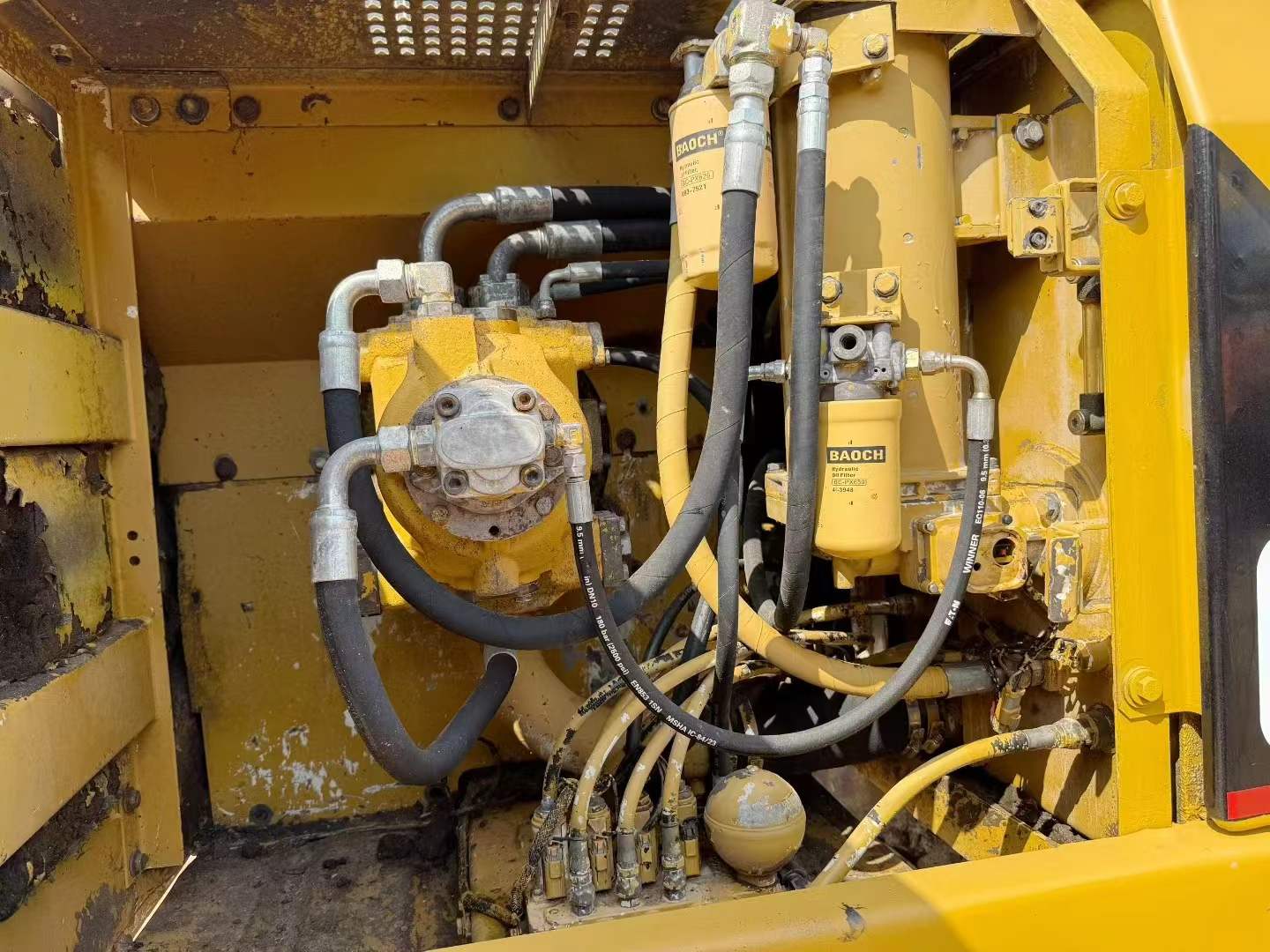

Name: Used Excavators 2016 Caterpillar 320B
Brand: Caterpillar
SKU: USED-1041860
Availability: InStock
Rating: 4.6 (08 reviews)

Sany

Caterpillar

XCMG

Hitachi

Komatsu

Doosan

Kobelco

Hyundai

Volvo

Sumitomo

Kato

Case

Yanmar

JohnDeere

Liebherr

Engineered with Caterpillar's proven CAT 3066T diesel engine delivering 99.9 kW at 1800 rpm, this 2016 320B excavator represents joint-venture manufacturing excellence with Japanese-origin quality standards. Operating at 20 tons with a 19,400 kg working weight, this machine combines a 6.4L displacement powerplant with a high-capacity 185 l/min main pump for consistent hydraulic performance across demanding job sites.

Hydraulic circuit pressures reach 34.3 MPa in both working and traveling systems, while the 0.92 m³ backhoe bucket moves through a 9,780 mm maximum excavation radius. With a 6,640 mm maximum digging depth and 9,470 mm maximum excavation height, this unit handles deep foundation work and high-reach applications with equal capability.

<ul>
<li>Dual 120 x 1260 mm boom cylinders for enhanced lifting stability</li>
<li>340L fuel tank and 220L hydraulic system capacity for extended operation</li>
<li>Compact 2,750 mm rear turning radius for confined spaces</li>
<li>Currently located in Meizhou, Guangdong, ready for global shipment</li>
</ul>

Proven in demanding environments since 2018, this Sany SY205C excavator delivers the reliability heavy contractors depend on. Operating at 20 tons with a robust 21,500 kg working weight, this machine combines a powerful 118 kW engine with exceptional digging force—138 kN bucket force and 109 kN arm force—to tackle the toughest excavation challenges. With a maximum digging depth of 6,600 mm and reach extending to 10,280 mm, this workhorse handles large-scale earthmoving with precision and efficiency.

Built to last through years of rigorous operation, the SY205C features durable undercarriage components including 600 mm track plates and 3,360 mm ground contact length for superior stability on varied terrain. Its 70% climbing ability and 440 mm ground clearance ensure performance in challenging job sites. Currently located in Hubei, China, this proven excavator represents exceptional value for operators seeking dependable performance backed by Sany's manufacturing quality.

<ul>
<li>Bucket capacity: 0.9-1.1 m³</li>
<li>Maximum digging height: 9,600 mm</li>
<li>Travel speed: 5.4/3.3 km/h</li>
<li>Rotation speed: 11 rpm</li>
</ul>

Sany SY205C

Maximize your equipment budget with this 2016 Sumitomo SH80-6 excavator from Hubei—delivering proven 8-ton performance at a fraction of new equipment costs. Powered by a reliable Isuzu AU-4LE2X engine producing 40kW at 2000 rpm, this compact workhorse combines Japanese engineering with exceptional value retention. At 7,460 kg working weight and a 0.38 m³ bucket capacity, it tackles demanding jobsites while maintaining a competitive operating footprint of just 2,320 mm width.

<ul>
 <li>Maximum Reach: 6,460 mm digging radius with 4,050 mm depth capability</li>
 <li>Robust Power: 56.4 kN bucket digging force and 39.3 kN rod digging force</li>
 <li>Efficient Operation: 120L fuel tank, 29.4 MPa hydraulic system, 5.1 km/h travel speed</li>
 <li>Compact Mobility: 1,750 mm rear turning radius for confined work areas</li>
 <li>Smart Investment: Joint venture quality with proven 1,690 mm rod length for versatile applications</li>
</ul>

Secure high-performance excavation capability without the premium price tag. This well-maintained unit offers immediate deployment potential for contractors seeking reliable productivity and superior ROI.

Sumitomo SH80-6

Proven performance meets exceptional value in this 2018 Doosan DH150 excavator, currently located in Hubei. Operating at 15 tons with traditional power, this joint venture/imported machine delivers the reliability Doosan is renowned for across global construction and mining operations. Equipped with a standard backhoe bucket, it's engineered for versatile earthmoving tasks where uptime and productivity matter most.

Doosan's reputation in the used equipment market stems from three critical advantages:

<ul>
<li>Parts Availability: Extensive dealer networks and aftermarket support ensure minimal downtime, even years after production</li>
<li>Resale Value: Doosan machines consistently retain stronger market value compared to lesser-known brands</li>
<li>Service Documentation: Well-established maintenance protocols and diagnostic systems reduce ownership costs</li>
</ul>

For contractors seeking dependable mid-size excavation power without the premium of new equipment, this DH150 represents a calculated investment. Contact Fair Trade Machinery today for detailed specifications, inspection reports, and competitive export pricing to your destination.

Doosan DH150

Engineered with precision hydraulics and proven ISUZU power, this 2013 Kobelco SK75 delivers consistent performance across demanding jobsites. At its core sits the ISUZU AU4LE2X engine—a water-cooled, 4-cylinder powerplant generating 41 kW at 2200 rpm through 2.179L displacement. Hydraulic architecture features a double variable displacement axial piston pump working at 29.4 Mpa, supported by dedicated circuits: 27.5 Mpa for travel, 14.5 Mpa for rotation, ensuring responsive control under load.

Built to joint venture/import standards in Chengdu, this 7-ton excavator combines compact dimensions with impressive reach capabilities. Maximum digging radius extends to 6,460 mm while maintaining a tight 1,760 mm front turning radius—critical for confined spaces. Vertical digging depth reaches 3,450 mm, backed by a maximum excavation height of 7,390 mm. Dual travel speeds (2.8/5.3 km/h) optimize productivity between positioning and transport modes.

Key Technical Specifications:
<ul>
<li>Working weight: 7,000 kg (approximate)</li>
<li>Hydraulic oil capacity: 120L system volume</li>
<li>Fuel capacity: 120L for extended operation</li>
<li>Transport height: 2,630 mm</li>
<li>Currently located in Hubei Provin

Kobelco SK75

Built for precision and control, this 2021 XCMG XE135B crawler excavator delivers exceptional operator performance in demanding construction environments. Operating at 13 tons with a robust ISUZU BB-4BG1TRP engine producing 69.6 kW, this machine combines reliable power with refined handling characteristics. Dual plunger pumps supply 2×123 L/min hydraulic flow, ensuring responsive control across all functions while maintaining smooth operation during extended shifts.

Operators benefit from excellent stability thanks to 2910mm track ground contact and optimized 42 kPa ground pressure distribution. The spacious cabin provides commanding visibility across the 8296mm maximum digging radius, with intuitive pilot controls operating at 3.9 MPa for precise bucket and boom positioning. Equipped with a 0.4-0.52 m³ bucket, 85 kN bucket digging force, and 5538mm maximum digging depth, this Xuzhou-manufactured excavator handles varied excavation tasks with consistent reliability.

<ul>
<li>Water-cooled 4-cylinder turbocharged engine for sustained performance</li>
<li>Low-effort pilot hydraulics reduce operator fatigue</li>
<li>Wide 500mm track plates enhance stability on soft ground</li>
<li>Currently located in Hubei, ready for globa

XCMG XE135B

Available now in 湖北, this 2016 Volvo EC200 excavator delivers 20-ton performance without factory wait times. Powered by proven traditional diesel technology and engineered to joint venture/import standards, this machine is ready for immediate deployment to your job site. Skip months of lead time and mobilize your operations faster with equipment that's inspection-ready and prepared for shipment.

<ul>
<li>Year: 2016</li>
<li>Model: Volvo EC200</li>
<li>Operating Weight: 20 tons</li>
<li>Power Type: Traditional diesel</li>
<li>Configuration: Backhoe</li>
<li>Origin: Joint venture/Import manufacturer</li>
<li>Current Location: 湖北, China</li>
</ul>

Secure this field-proven EC200 today and eliminate downtime caused by new equipment procurement delays. Fast logistics coordination available for domestic and international buyers requiring urgent earthmoving capacity.

Volvo EC200

Engineered in Kunshan with precision hydraulics and a robust SANY D03S3 engine, this 2016 SY65C delivers 42kW of rated power at 2100 rpm with water-cooling efficiency. The variable swashplate plunger pump system generates 149 L/min maximum flow, driving a main overflow pressure of 26 MPa for consistent performance across demanding excavation tasks. With a 6-ton working weight and 6700 kg operational capacity, this compact excavator combines mobility with substantial digging force.

<ul>
 <li>Bucket digging force: 56 kN; rod digging force: 35.6 kN</li>
 <li>Maximum digging reach: 6160 mm; depth: 3985 mm</li>
 <li>4-cylinder engine with 2.77L displacement, 1900 N·m maximum torque</li>
 <li>Hydraulic system: 145L fuel tank, 120L hydraulic reservoir</li>
 <li>Travel speeds: 2.4/4.8 km/h with 70% (35°) climbing capability</li>
 <li>Compact transport dimensions: 6000×2160×2560 mm</li>
 <li>Currently located in Hubei Province, China</li>
</ul>

Built for operators requiring reliable performance in confined job sites, this model demonstrates SANY's commitment to hydraulic efficiency and structural durability in the 6-ton excavator category.

Sany SY65C

Ready to deploy from Zhejiang, this 2016 Komatsu PC110-7 eliminates factory wait times and gets your crew working faster. Powered by a reliable Komatsu SAA4D95LE-3 engine delivering 65kW at 2200rpm, this 11-ton excavator combines proven hydraulic performance with immediate availability. With a maximum digging depth of 5060mm and reach extending to 7730mm, it handles medium-duty excavation, trenching, and site preparation with consistent productivity.

<ul>
<li>Operating weight: 10,980 kg with 0.48m³ bucket capacity</li>
<li>Hydraulic system: 226L/min flow for responsive cycle times</li>
<li>Digging force: 86kN bucket, 56kN arm for tough ground conditions</li>
<li>Water-cooled 3.26L engine meets EPA/EU Tier 2 standards</li>
<li>Travel speed: 2.7-5.5 km/h for efficient site mobility</li>
<li>Compact transport dimensions: 7170mm length, 2490mm width</li>
</ul>

Available now in Zhejiang—skip months of production delays. Fast shipping coordination to jobsites across Asia, Africa, and beyond. Contact Fair Trade Machinery today for immediate purchase and logistics support.

Komatsu PC110-7

Built for precision and all-day productivity, this 2016 Komatsu PC130-7 delivers reliable performance in demanding excavation environments. Operating at 13 tons with a Komatsu SAA4D95LE-3 engine producing 66 kW at 2200 rpm, this machine combines power with operational efficiency. The water-cooled, turbocharged diesel engine with intercooler ensures consistent output across extended shifts.

Operators benefit from exceptional control and visibility in the spacious cabin, positioned at 2175 mm for comprehensive worksite awareness. Responsive hydraulics deliver 226 l/min maximum flow through the main pump, enabling smooth simultaneous operations. The machine achieves an impressive 8290 mm maximum digging radius and 5520 mm digging depth, while maintaining stability through its 2880 mm track ground length and 1990 mm track gauge.

<ul>
<li>Working Weight: 12,600 kg with 0.53 m³ bucket capacity</li>
<li>Digging Force: 93.2 kN bucket / 61.8 kN rod for tough material</li>
<li>Travel Speed: 2.7-5.5 km/h with 70% grading ability</li>
<li>Fuel Capacity: 247 L tank supports extended operation</li>
<li>Low Ground Pressure: 38 kPa minimizes surface disturbance</li>
</ul>

Currently located in Zhejiang, this PC130-7 represents prove

Komatsu PC130-7

Operating a 65-ton excavator demands precision, and this 2023 XCMG XE650DP delivers exactly that from its ergonomically designed cabin. Rated at 280 kW at 2000 rpm, this Chinese-manufactured machine combines substantial power with operator-centric engineering. Weighing 55,400 kg, the XE650DP provides exceptional stability during heavy-duty excavation tasks, while its backhoe bucket configuration ensures versatile digging performance across demanding job sites.

<ul>
<li>Year: 2023</li>
<li>Brand: XCMG</li>
<li>Model: XE650DP</li>
<li>Tonnage: 65 tons</li>
<li>Working Weight: 55,400 kg</li>
<li>Rated Power: 280 kW/2000 rpm</li>
<li>Power Type: Traditional</li>
<li>Bucket: Backhoe</li>
<li>Origin: Made in China</li>
<li>Current Location: Sichuan, China</li>
</ul>

Enhanced cabin visibility allows operators to maintain full situational awareness during complex maneuvers, reducing fatigue during extended shifts. Currently located in Sichuan, this low-hour unit represents a reliable solution for contractors requiring proven hydraulic excavator performance in minin

XCMG XE650DP

Engineered for maximum productivity, this 37-ton excavator delivers exceptional performance through its robust GH-6HK1XKSC engine. Rated at 212kW (2000 rpm) with 1080 N·m peak torque, the 6-cylinder turbocharged powerplant provides reliable output for demanding excavation tasks. The 2024 SY375H combines a 1.9 m³ bucket capacity with impressive digging forces—235 kN bucket force and 210 kN arm force—ensuring efficient material handling across heavy-duty applications.

Superior hydraulic engineering defines this model's operational capability. With a maximum digging reach of 10,750 mm and excavation depth of 7,155 mm, the machine covers extensive work zones while maintaining precision. The 8.8 rpm rotation speed and 70% grading ability enable versatile positioning on challenging terrain. Water-cooled direct injection technology and a 540L fuel tank support extended operation cycles, while the 68.8 kPa ground pressure minimizes surface impact.

Currently located in Wenzhou, Zhejiang Province, this Chinese-manufactured excavator represents proven construction-grade equipment ready for immediate deployment in mining, infrastructure, and earthmoving projects worldwide.

Sany SY375H

Available now in Guangdong Shenzhen, this 2018 Hyundai R385LVS excavator delivers 38-ton performance without factory wait times. Powered by a HYUNDAI HE8.9 engine producing 221 kW at 1850 rpm, this machine combines a 1.9 m³ bucket capacity with a 10,520 mm maximum digging radius for serious earthmoving productivity. Fast deployment to your site means your crew starts generating revenue immediately.

<ul>
<li>38,900 kg working weight with 6,150 mm boom and 2,800 mm arm</li>
<li>Dual variable plunger pumps (2×315 L/min) for responsive hydraulic power</li>
<li>Maximum digging depth: 6,750 mm; maximum reach: 10,520 mm</li>
<li>Water-cooled 8.9L six-cylinder engine with 610L fuel capacity</li>
<li>9.5 rpm rotation speed and 70% climbing ability for demanding terrain</li>
<li>Ready for immediate inspection and shipping from Shenzhen</li>
</ul>

Skip months of lead times on new equipment. This joint-venture manufactured excavator offers proven reliability with the logistical advantage of same-region availability. Arrange your site visit today and put this R385LVS to work within days, not quarters.

Hyundai R385LVS

Maximize your equipment budget with this 2016 XCMG XE470 excavator—a proven 47-ton workhorse that delivers flagship performance without the flagship price. Powered by a reliable traditional diesel engine and equipped with a versatile backhoe bucket, this Chinese-manufactured machine handles demanding excavation, loading, and trenching operations with consistent productivity. Currently positioned in Guangxi, China, this unit represents a strategic alternative to costly new purchases, offering immediate deployment capability at a fraction of capital expenditure.

<ul>
 <li>Operating Weight: 47 tons—optimal for large-scale earthmoving and infrastructure projects</li>
 <li>Power System: Traditional diesel engine for proven reliability and global serviceability</li>
 <li>Configuration: Backhoe bucket arrangement for versatile digging applications</li>
 <li>Manufacturing Origin: XCMG, China—established heavy equipment engineering</li>
 <li>Model Year: 2016—mature operational history with substantial service life remaining</li>
 <li>Current Location: Guangxi, China—available for international shipping arrangements</li>
</ul>

XCMG XE470

Engineered with Caterpillar's proven hydraulic architecture, this 2016 320A excavator delivers 20 tons of operational capacity backed by traditional power systems designed for sustained performance in demanding environments. Built under joint venture/import manufacturing standards, the machine incorporates advanced hydraulic flow management that maximizes breakout force while maintaining fuel efficiency across extended duty cycles.

Technical specifications include:
<ul>
<li>20-ton operating weight optimized for medium-scale earthmoving operations</li>
<li>Traditional power plant engineered for reliability and serviceability</li>
<li>Backhoe configuration providing superior reach and digging depth</li>
<li>Joint venture/import manufacturing ensuring adherence to global quality protocols</li>
<li>Currently located in Hunan, available for immediate deployment</li>
</ul>

Hydraulic responsiveness remains a defining characteristic of the 320A series, with precision control valves enabling operators to execute complex maneuvers with minimal cycle times. This unit represents proven Caterpillar engineering at an accessible price point for contractors requiring dependable excavation capacity.

Caterpillar 320A

Built in 2016 at Doosan's Yantai facility, this DH215-7 represents one of the most dependable mid-size excavators in today's used equipment market. Operating at 21 tons with a proven DB58T1 engine delivering 147kW, this machine combines Korean engineering standards with widespread global parts support—a critical advantage when minimizing downtime on active job sites.

Currently located in Sichuan, this excavator offers exceptional resale protection thanks to Doosan's established dealer network across Asia and beyond. The DH215-7 platform maintains strong residual values due to its straightforward maintenance requirements and readily available components. Key specifications include:

<ul>
<li>Maximum digging reach: 9,970mm with 6,660mm depth capability</li>
<li>Bucket capacity: 0.86m³ with 136.2kN digging force</li>
<li>Multiple boom configurations (2,400/2,900/3,500mm rod options)</li>
<li>350L fuel capacity for extended operational shifts</li>
<li>Compact 2,750mm tail swing radius for confined work areas</li>
</ul>

Doosan's reputation for durability translates directly into lower total ownership costs. This DH215-7 provides the reliability contractors demand with the parts accessibility that keeps machines productive

Doosan DH215-7

Built for precision work in tight urban sites and confined job zones, this 2018 Doosan DH55 mini excavator delivers immediate productivity across digging, grading, and light demolition tasks. Powered by traditional diesel for proven reliability, this 5.5-ton machine combines joint venture engineering standards with practical jobsite performance. Currently located in Maoming, Guangdong, it arrives site-ready with a backhoe bucket configuration optimized for trenching, foundation prep, and utility installations.

<ul>
 <li>Compact 5.5-ton platform maneuvers efficiently in restricted access areas</li>
 <li>Traditional diesel power ensures consistent performance and simple maintenance</li>
 <li>Backhoe bucket included—ready for excavation work from day one</li>
 <li>Joint venture manufacturing guarantees component quality and durability</li>
 <li>2018 model year provides modern operator comfort and control systems</li>
 <li>Ideal for landscaping crews, utility contractors, and residential developers</li>
</ul>

No downtime, no modifications required. Load, transport, and put this Doosan to work on your next project. Available now from Fair Trade Machinery's Guangdong facility.

Specifications	Value
No.	1041860
Tonnage (tons)	20
Working weight (kg)	19400
Bucket capacity (m³)	0.92
Boom length (mm)	5680
Rod length (mm)	2900
Country of origin	Japan
power	Traditional power
manufacturer	Joint venture/Import
bucket	backhoe

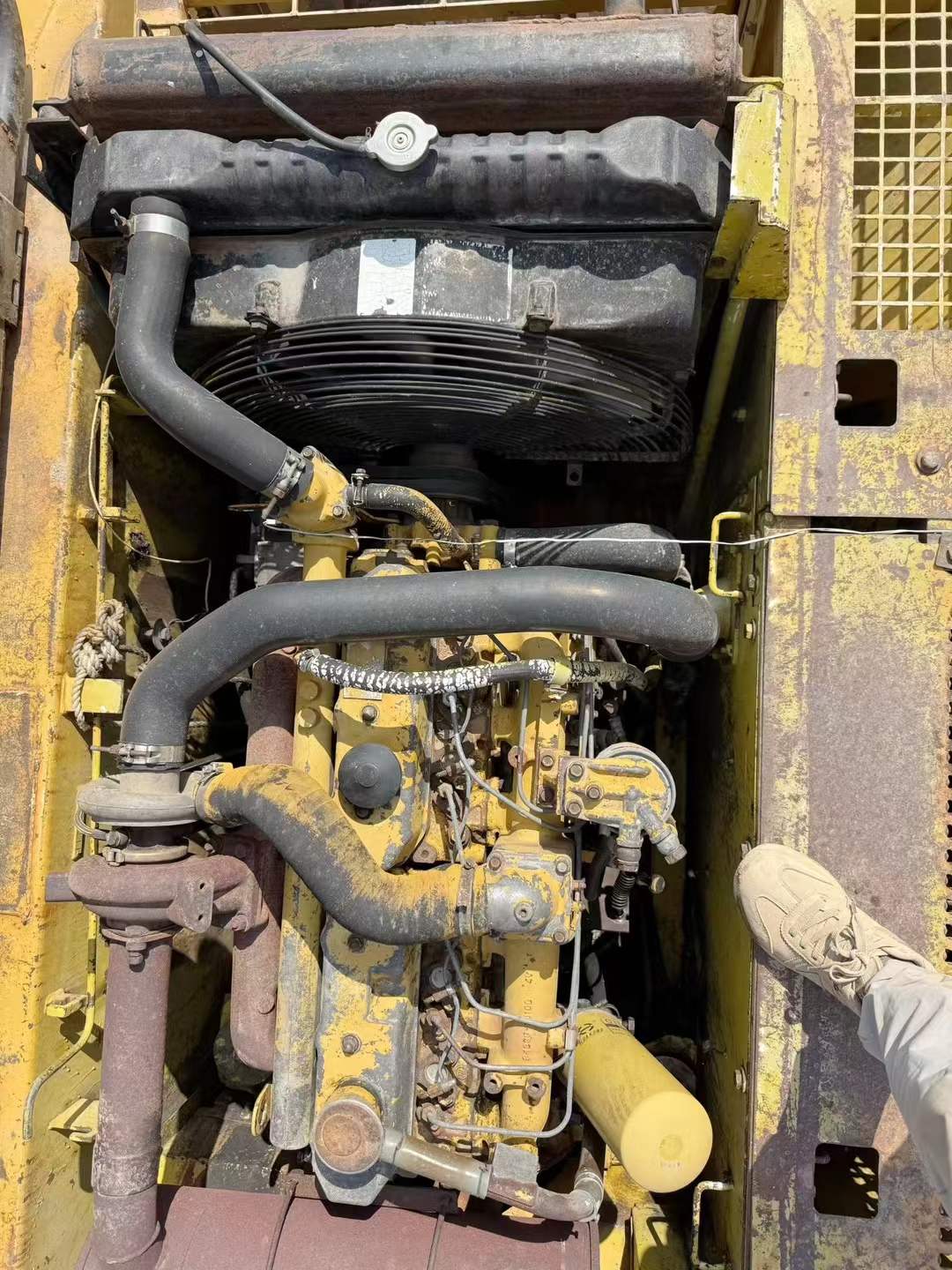

Engine type	Caterpillar CAT 3066T
Rated power (kw/rpm)	99.9/1800
Cylinder diameter × stroke (mm)	102 x 130
Displacement (L)	6.4
Rotation speed (rpm)	10.7
Travel speed (km/h)	3.4/5.5
Maximum flow of main pump (l/min)	185
Traveling Hydraulic Circuit (Mpa)	34.3
Rotary Hydraulic Circuit (Mpa)	23
Working Hydraulic Circuit (Mpa)	34.3
Pilot Oil Circuit (MPa)	4.12
Bucket cylinders - Number × diameter × stroke (mm)	1-120 x 1030
Bucket rod cylinders - Number × diameter × stroke (mm)	1-140 x 1430
Boom cylinders - Number × diameter × stroke (mm)	2-120 x 1260
Fuel Tank (L)	340
Hydraulic Tank (L)	130
Engine Oil changes (L)	20.5
Coolant (L)	25
Hydraulic System (L)	220
Total transport length (mm)	9440
Total transport width (mm)	2800
Total transport height (mm)	2940
Full cab height (mm)	2940
Minimum ground clearance (mm)	475
Back end turning radius (mm)	2750
Track gauge (mm)	2200

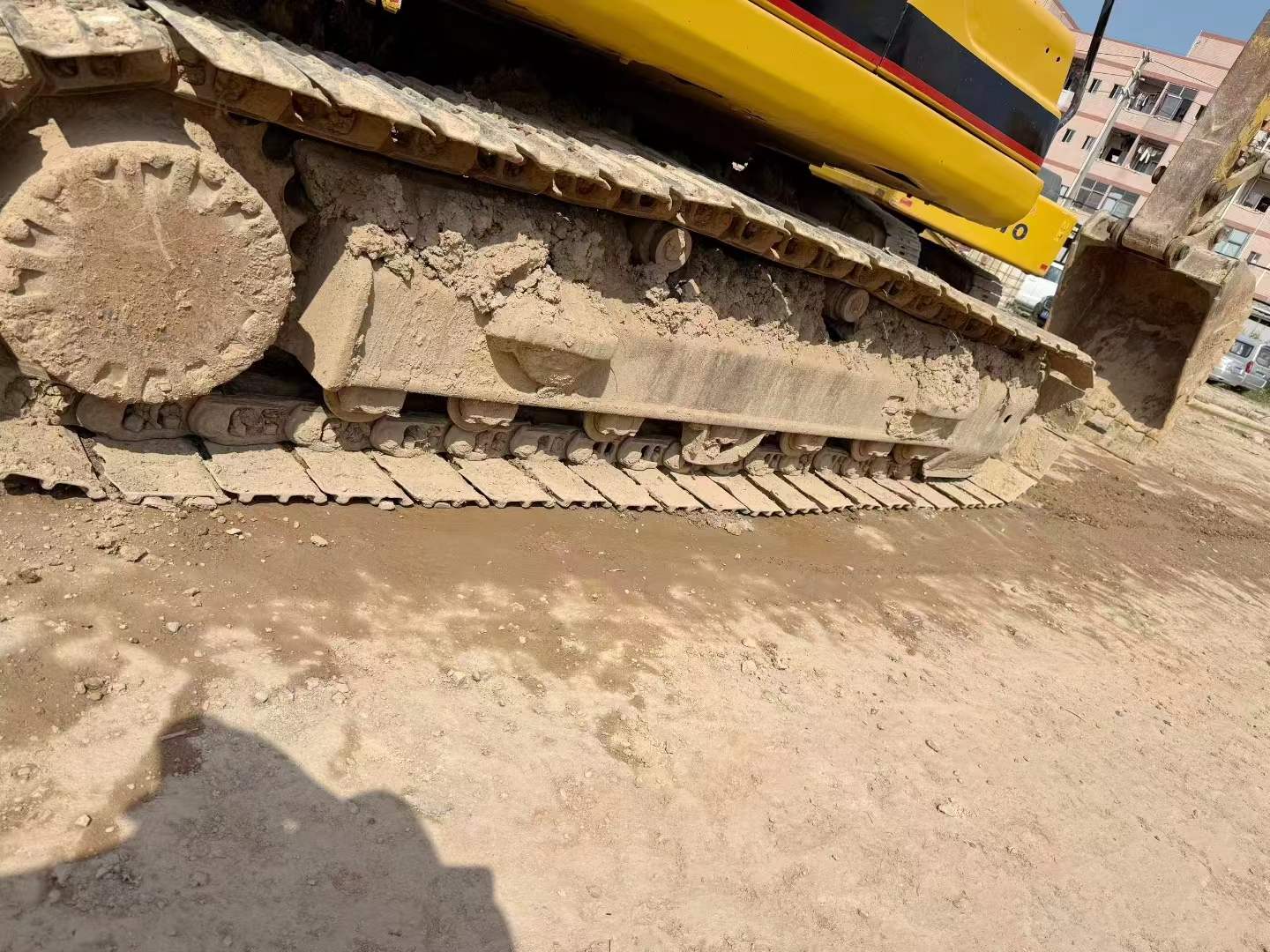

Track plate width (mm)	600
Total track width (mm)	2800
Track ground length (mm)	3265
Maximum digging depth (mm)	6640
Maximum excavation height (mm)	9470
Maximum unloading height (mm)	6570
Maximum vertical digging depth (mm)	6040
Maximum excavation radius of stop surface (mm)	9780

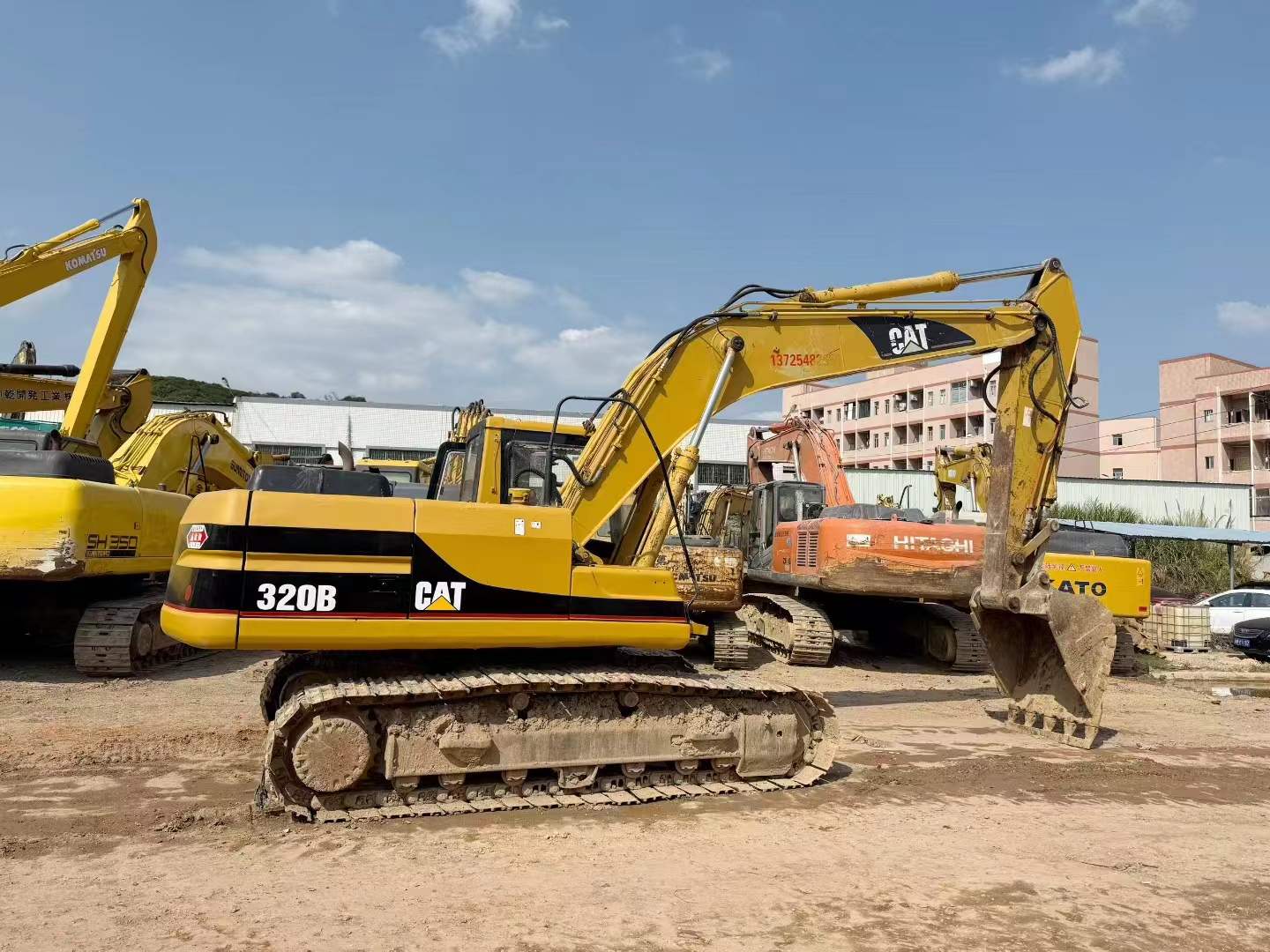

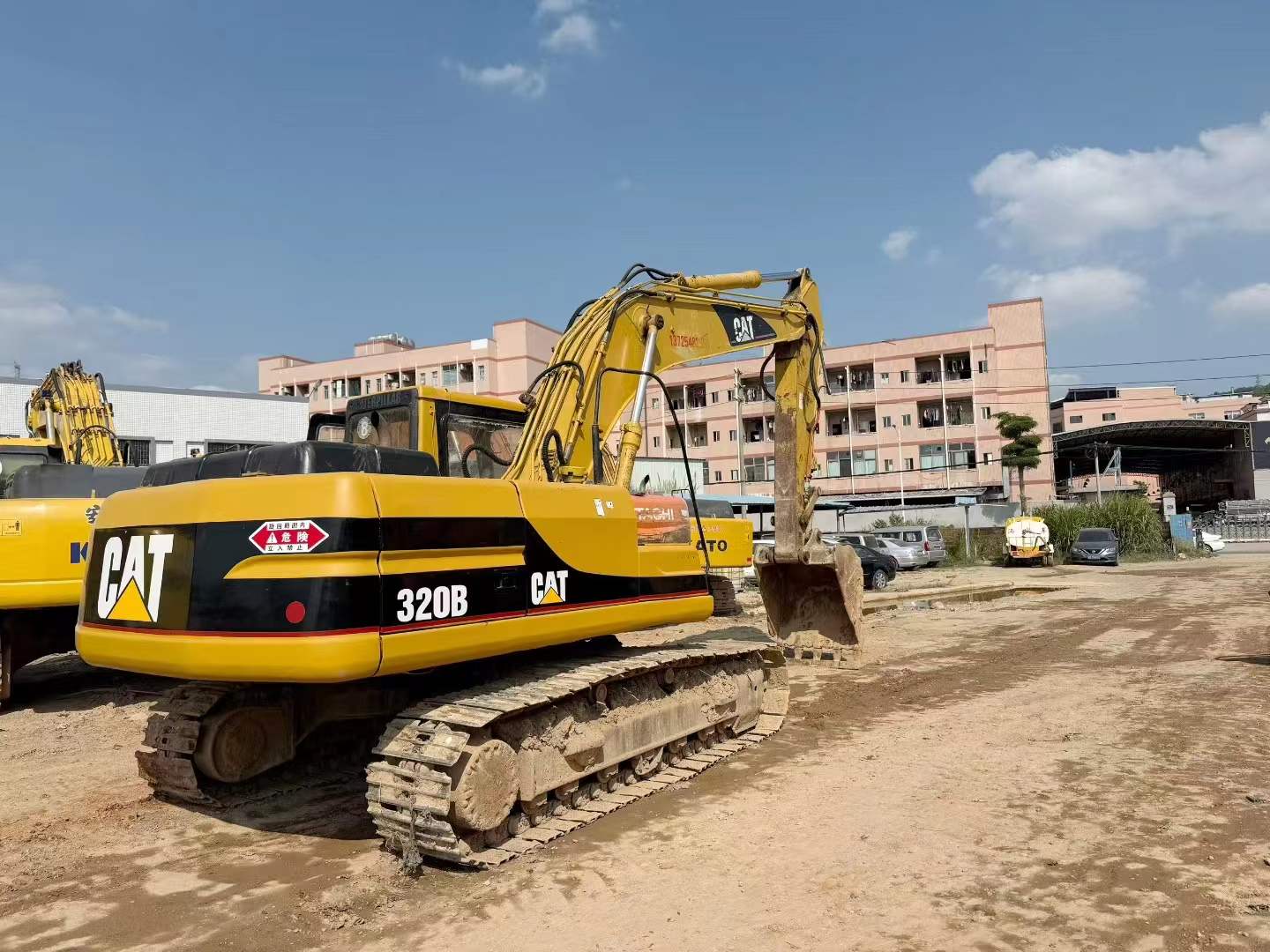

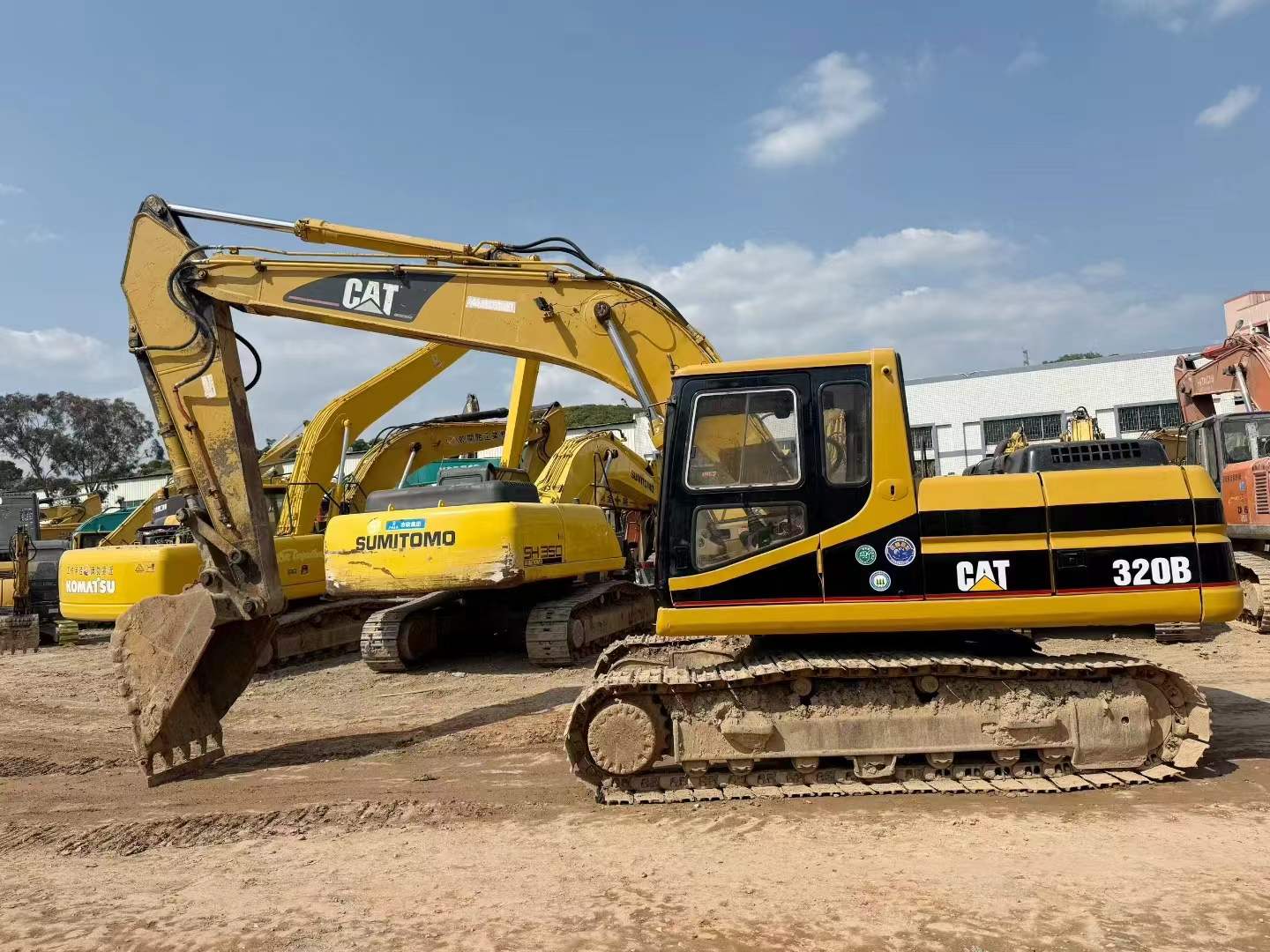

2016 Caterpillar 320B
