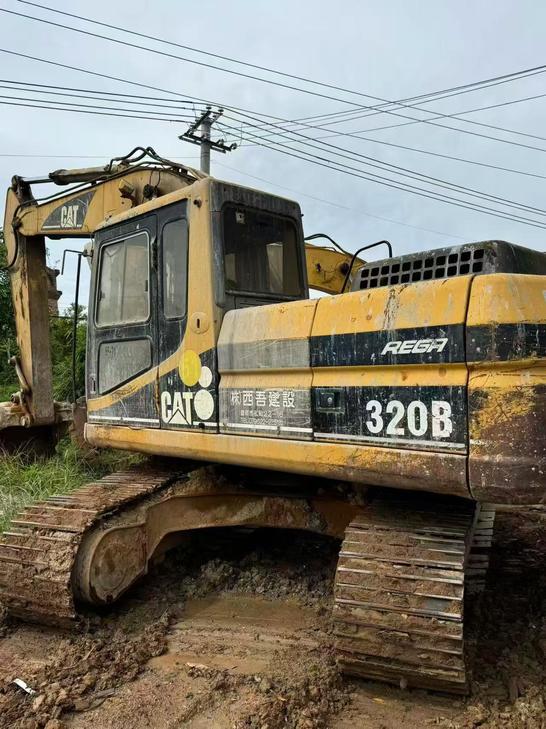

2020 Caterpillar 320B
Product Description
This 2020 Caterpillar 320B hydraulic excavator represents reliable performance for medium-duty construction and earthmoving applications. As an authentic Caterpillar unit, this machine delivers the durability and operational efficiency expected from the 320 series. Currently located in Guangdong, China, this excavator is well-suited for contractors and operators seeking dependable equipment in the Asian market.
The CAT 320B is engineered for versatility across construction sites, utility work, and general excavation tasks. Key attributes include:
- Proven Caterpillar hydraulic system for responsive control
- Medium-class operating weight optimized for transportation and jobsite mobility
- Robust undercarriage designed for extended service life
- Operator cabin with essential controls and visibility
- Compatible with standard Caterpillar attachments and work tools
This unit offers an opportunity to acquire genuine Caterpillar quality at used equipment value. Ideal for businesses expanding their fleet or requiring additional capacity for ongoing projects.
| Specifications | Value |
|---|---|
| No. | 1084006 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19400 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066T |
| Rated power (kw/rpm) | 99.9/1800 |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Rotation speed (rpm) | 10.7 |
| Travel speed (km/h) | 3.4/5.5 |
| Maximum flow of main pump (l/min) | 185 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 20.5 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 220 |
| Total transport length (mm) | 9440 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2940 |
| Full cab height (mm) | 2940 |
| Minimum ground clearance (mm) | 475 |
| Back end turning radius (mm) | 2750 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3265 |
| Maximum digging depth (mm) | 6640 |
| Maximum excavation height (mm) | 9470 |
| Maximum unloading height (mm) | 6570 |
| Maximum vertical digging depth (mm) | 6040 |
| Maximum excavation radius of stop surface (mm) | 9780 |
Overview
No.1084006
Brand Name：
CaterpillarModel Number：
320BYear：
2020
Location：
Guangdong China
Pub Date：
