2020 Caterpillar 320B
Product Description
This 2020 Caterpillar 320B excavator is now available from our Zhejiang, China facility. Equipped with its original hydraulic pump system, this machine offers reliable performance for mid-sized excavation and earthmoving operations. The 320B series is recognized for its balanced combination of digging force, reach, and fuel efficiency, making it suitable for construction, demolition, and infrastructure projects.
- Year: 2020
- Model: Caterpillar 320B
- Original hydraulic pump intact
- Location: Zhejiang, China
- Export-ready pricing available
This unit represents a cost-effective solution for contractors seeking proven Caterpillar quality in the used equipment market. Standard inspection and shipping arrangements can be coordinated to your destination port. Contact us for current availability, detailed specifications, and competitive export pricing.
| Specifications | Value |
|---|---|
| No. | 1110737 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19400 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

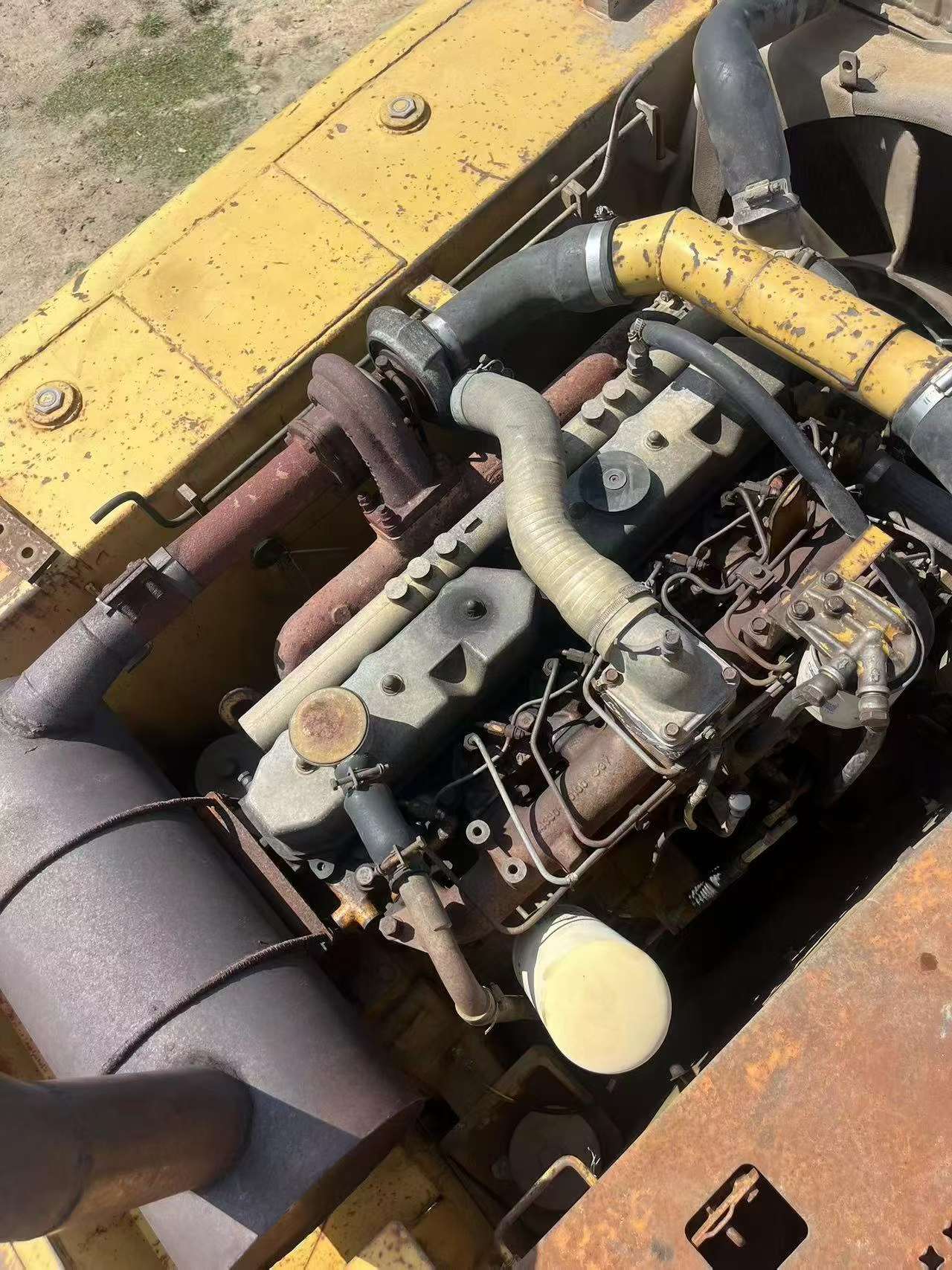

| Engine type | Caterpillar CAT 3066T |
| Rated power (kw/rpm) | 99.9/1800 |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Rotation speed (rpm) | 10.7 |
| Travel speed (km/h) | 3.4/5.5 |
| Maximum flow of main pump (l/min) | 185 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 20.5 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 220 |
| Total transport length (mm) | 9440 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2940 |
| Full cab height (mm) | 2940 |
| Minimum ground clearance (mm) | 475 |
| Back end turning radius (mm) | 2750 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3265 |
| Maximum digging depth (mm) | 6640 |
| Maximum excavation height (mm) | 9470 |
| Maximum unloading height (mm) | 6570 |
| Maximum vertical digging depth (mm) | 6040 |
| Maximum excavation radius of stop surface (mm) | 9780 |
Overview
No.1110737
Brand Name：
CaterpillarModel Number：
320BYear：
2020
Location：
Zhejiang China
Pub Date：
