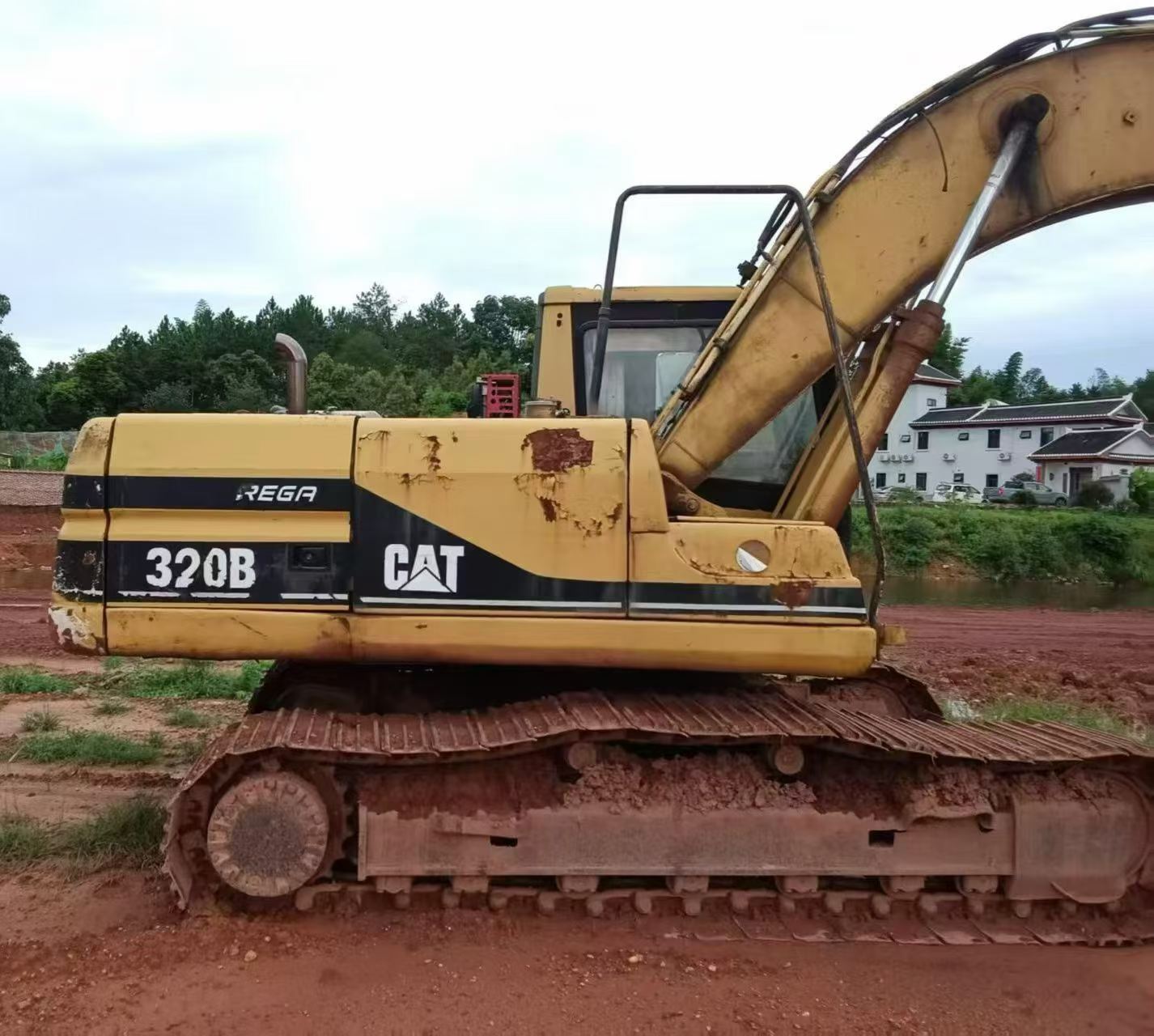

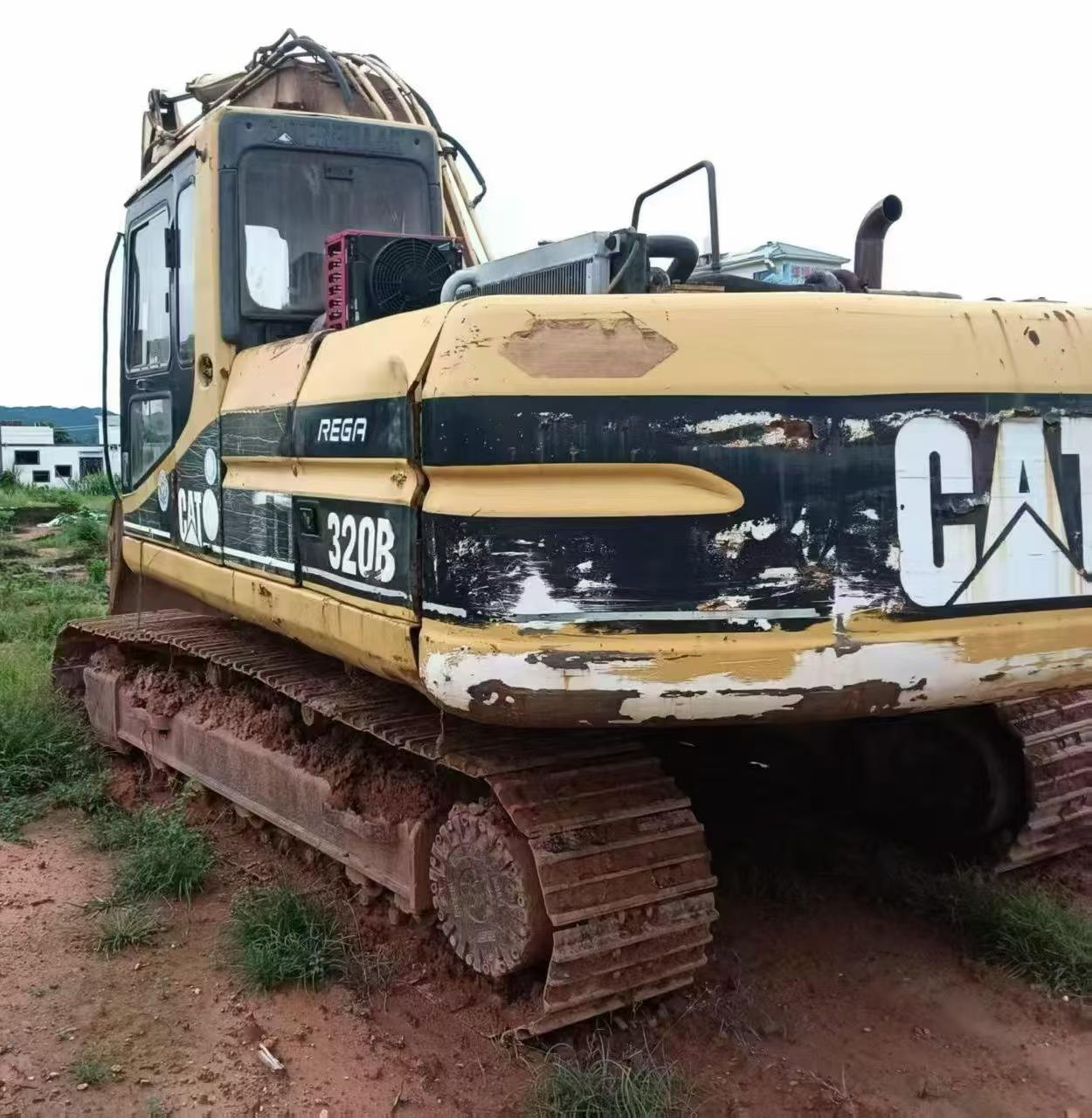

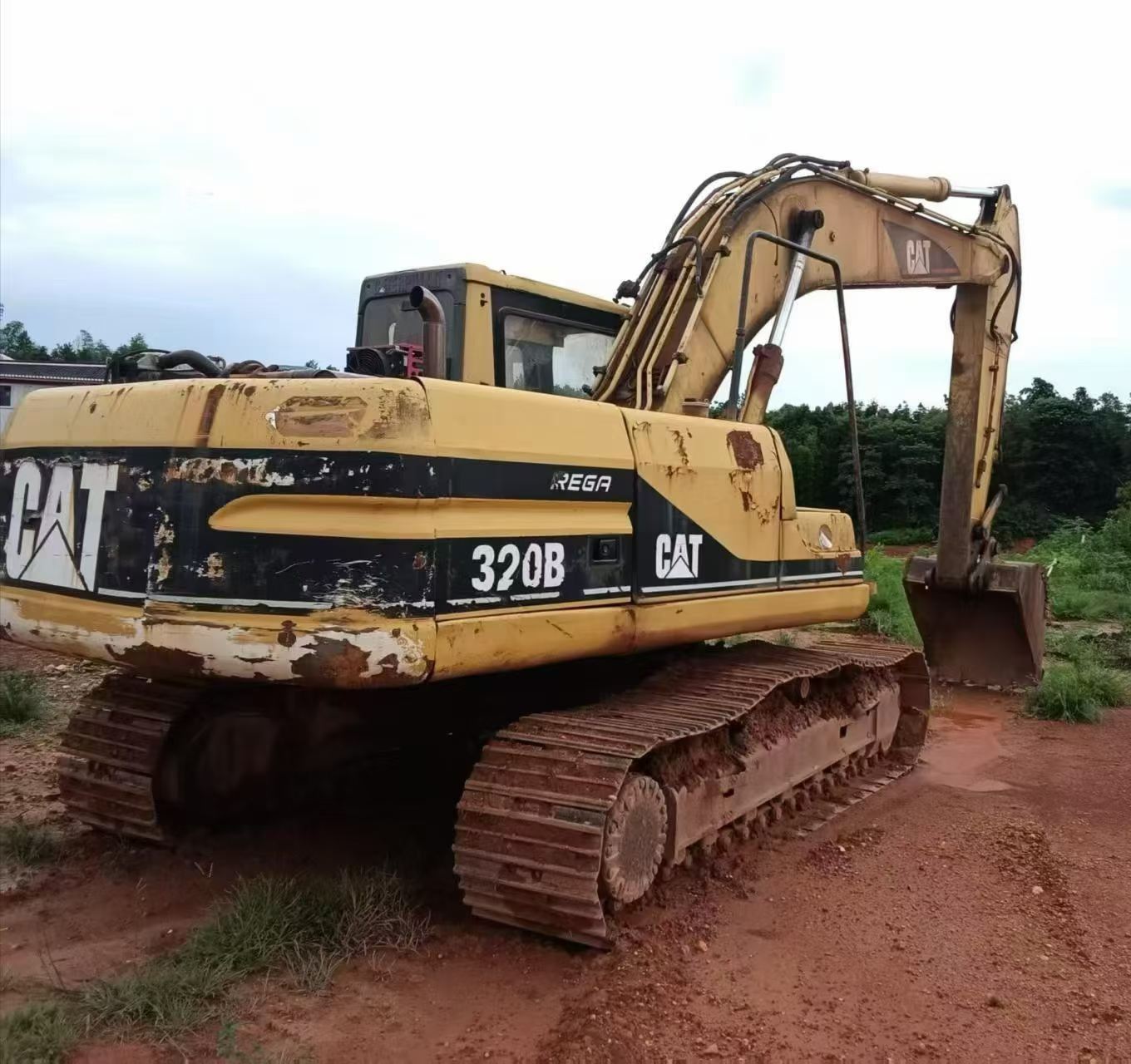

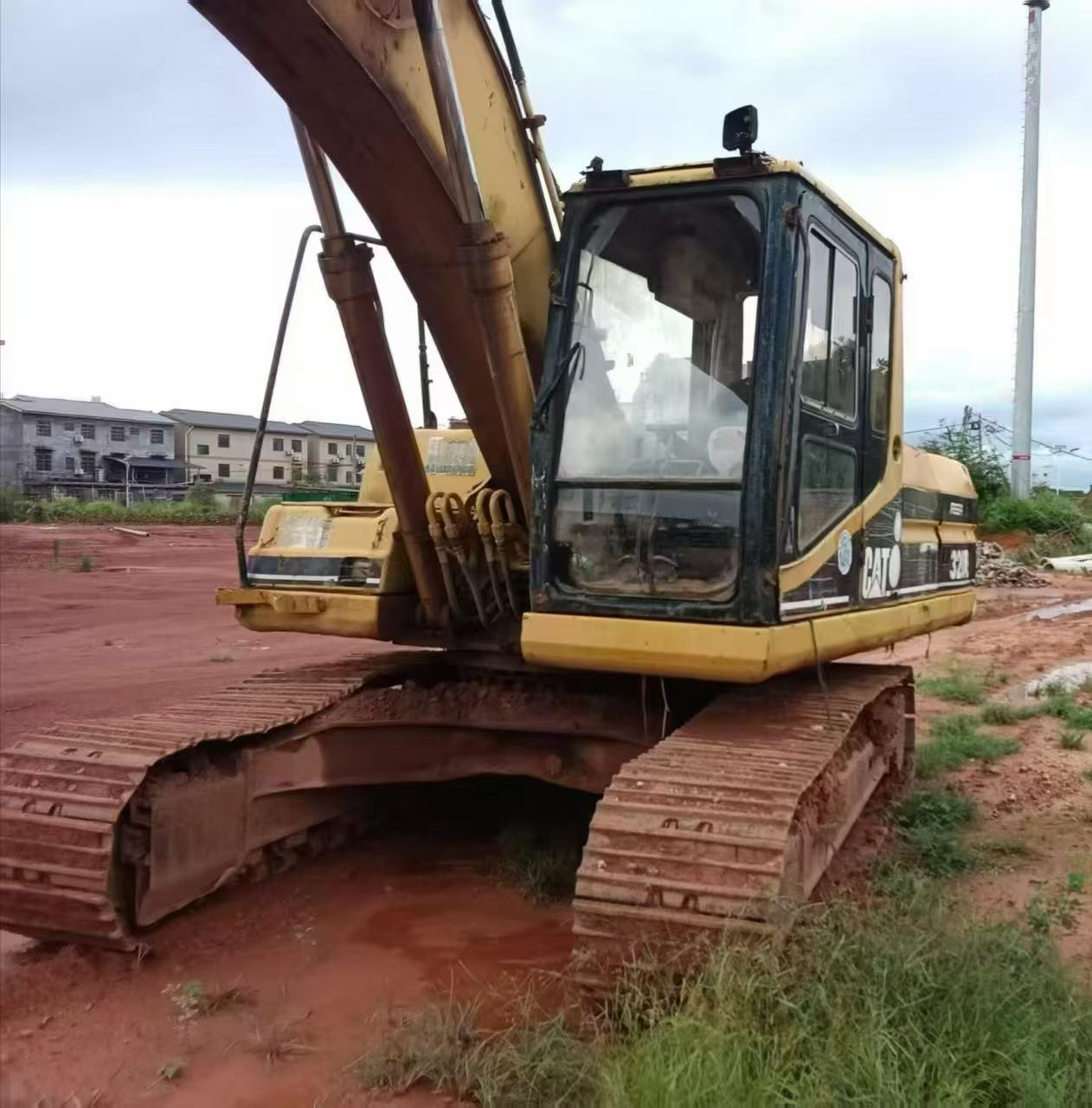

2020 Caterpillar 320B











Product Description
Discover the reliability and performance of the 2020 Caterpillar 320B, available in Guangdong, China. This used excavator is a robust choice for your construction and excavation needs, known for its durability and efficiency on the job site. The 320B model is favored for its balance of power and precision, making it an ideal addition to any fleet. With a history of solid performance, this machine is ready to take on demanding tasks.
- Year: 2020
- Brand: Caterpillar
- Model: 320B
- Location: Guangdong, China
- Condition: Used, well-maintained
| Specifications | Value |
|---|---|
| No. | 1120780 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19400 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

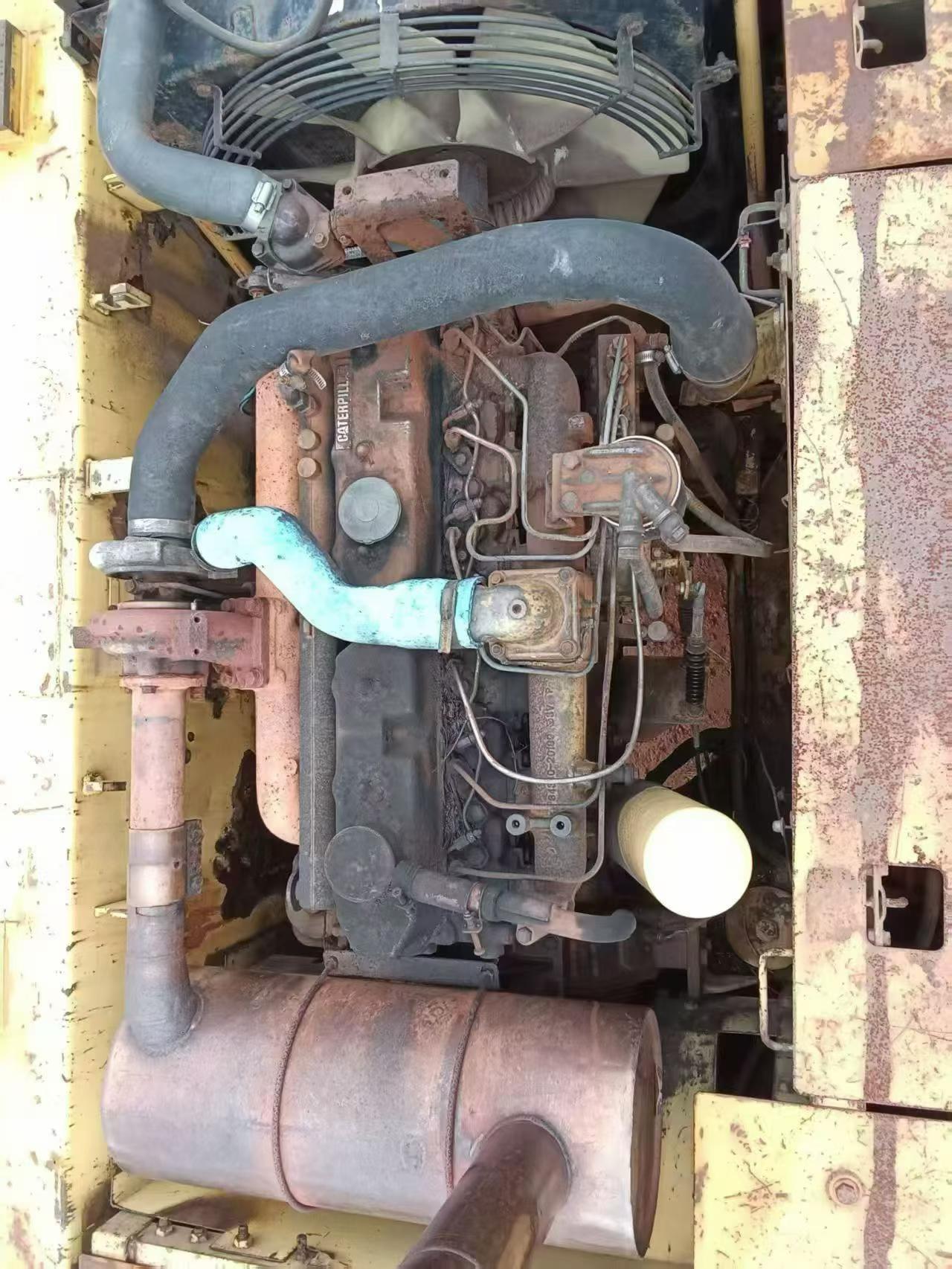

| Engine type | Caterpillar CAT 3066T |
| Rated power (kw/rpm) | 99.9/1800 |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Rotation speed (rpm) | 10.7 |
| Travel speed (km/h) | 3.4/5.5 |
| Maximum flow of main pump (l/min) | 185 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 20.5 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 220 |
| Total transport length (mm) | 9440 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2940 |
| Full cab height (mm) | 2940 |
| Minimum ground clearance (mm) | 475 |
| Back end turning radius (mm) | 2750 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3265 |
| Maximum digging depth (mm) | 6640 |
| Maximum excavation height (mm) | 9470 |
| Maximum unloading height (mm) | 6570 |
| Maximum vertical digging depth (mm) | 6040 |
| Maximum excavation radius of stop surface (mm) | 9780 |
