2016 Caterpillar 320C
Product Description

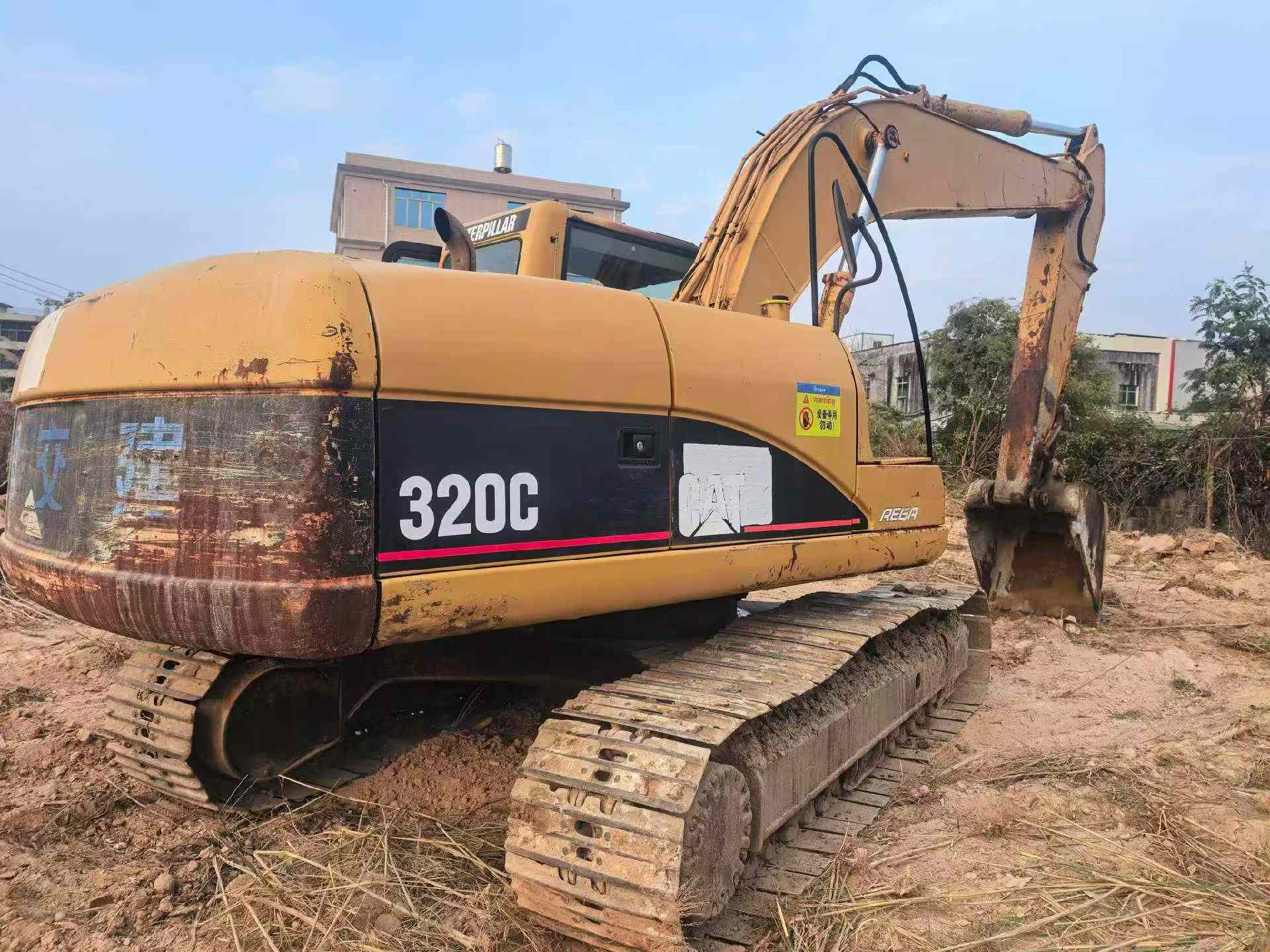

Secure proven performance without the premium price tag with this 2016 Caterpillar 320C excavator, currently located in Fuzhou, Fujian. Powered by the reliable CAT 3066 ATAAC engine delivering 110kW at 1800 rpm, this 20-ton machine combines robust digging capability with operational efficiency that matches your bottom line expectations.
Operating specifications include a maximum digging depth of 6,550mm and excavation radius of 9,710mm, supported by impressive bucket digging force of 132kN. The 0.8m³ backhoe bucket, 5,680mm boom, and 2,900mm arm configuration provide versatile reach for diverse jobsite requirements. Water-cooled hydraulic systems maintain consistent performance across extended duty cycles.
- Working weight: 21,115kg with stable 48.02kPa ground pressure

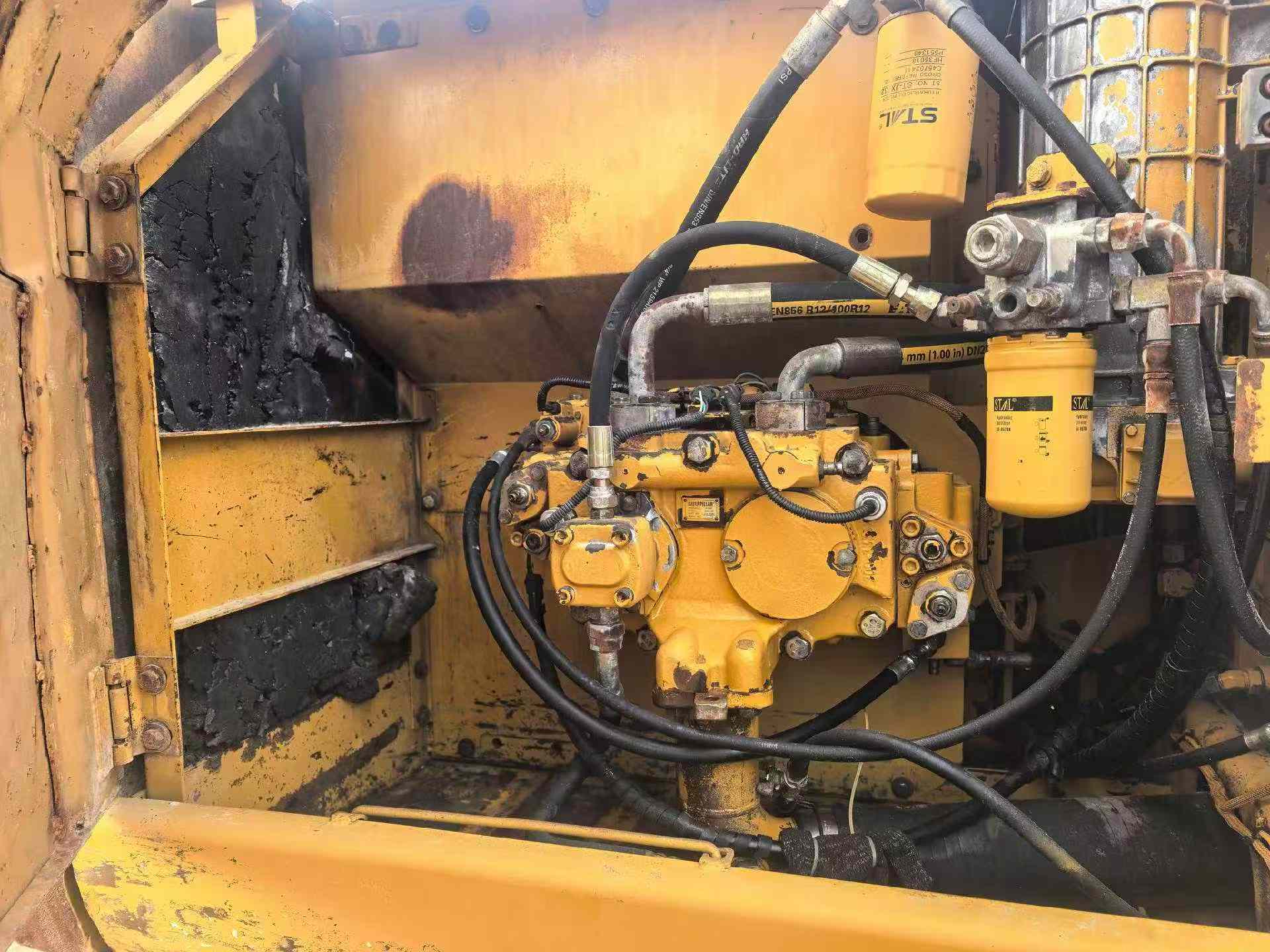

- Hydraulic flow: 205 L/min main pump capacity
- Fuel efficiency: 320L tank for prolonged operation
- Transport dimensions: 9,390mm × 2,800mm × 3,050mm
Invest strategically in field-tested Caterpillar engineering at a fraction of replacement cost. This joint venture manufactured unit delivers the durability and parts support you require without the new equipment depreciation curve.
| Specifications | Value |
|---|---|
| No. | 1013231 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

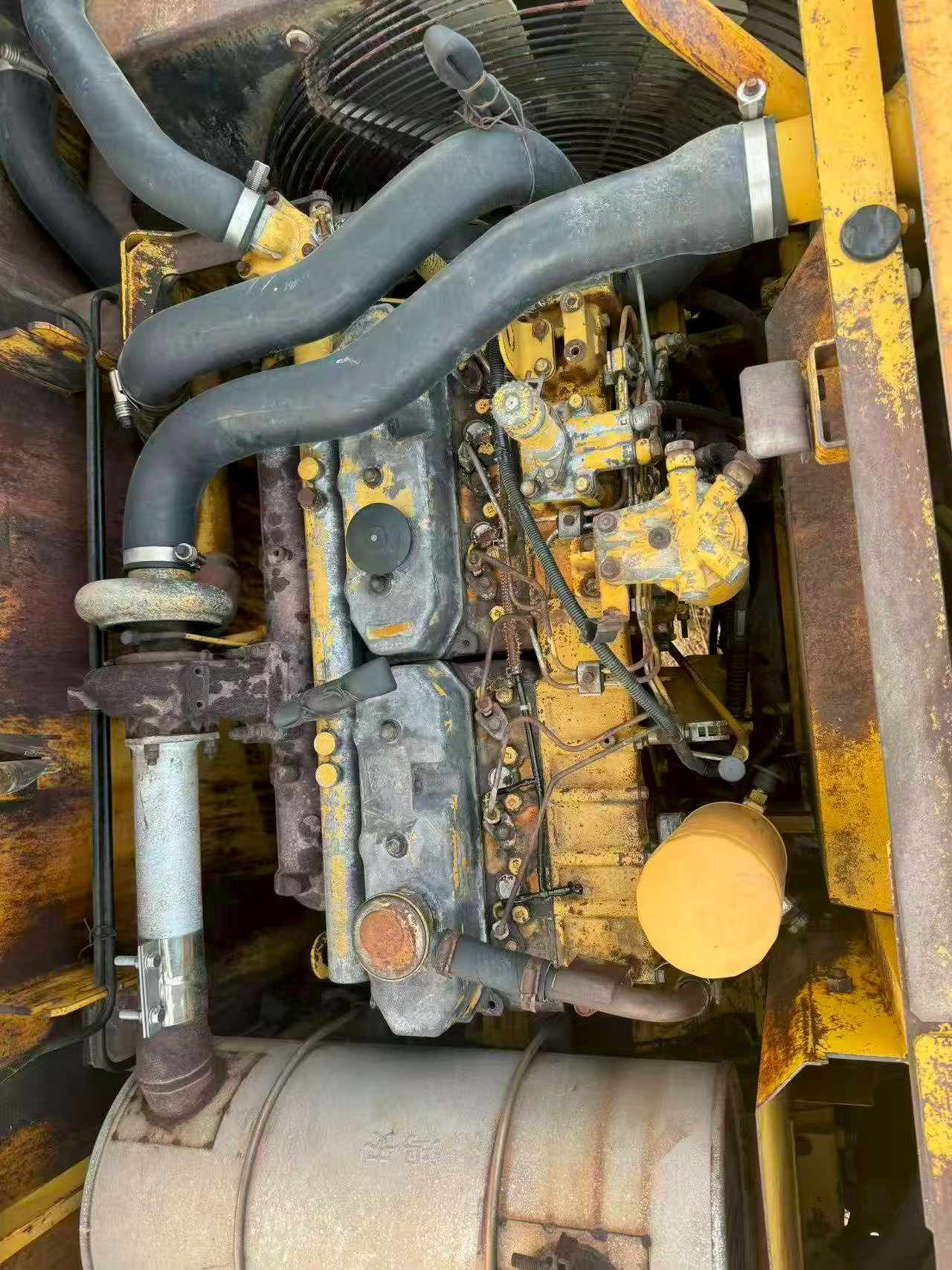

| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
