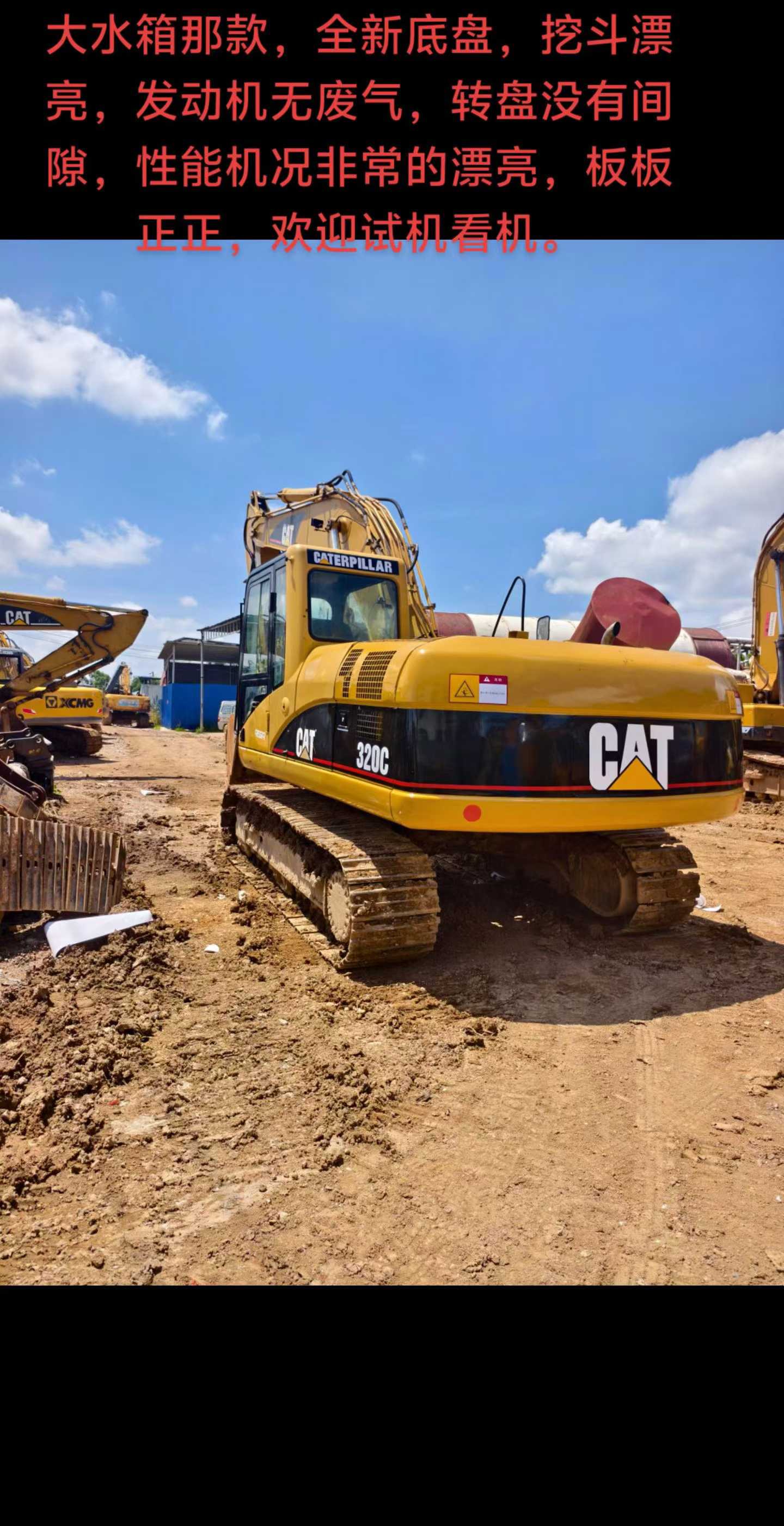

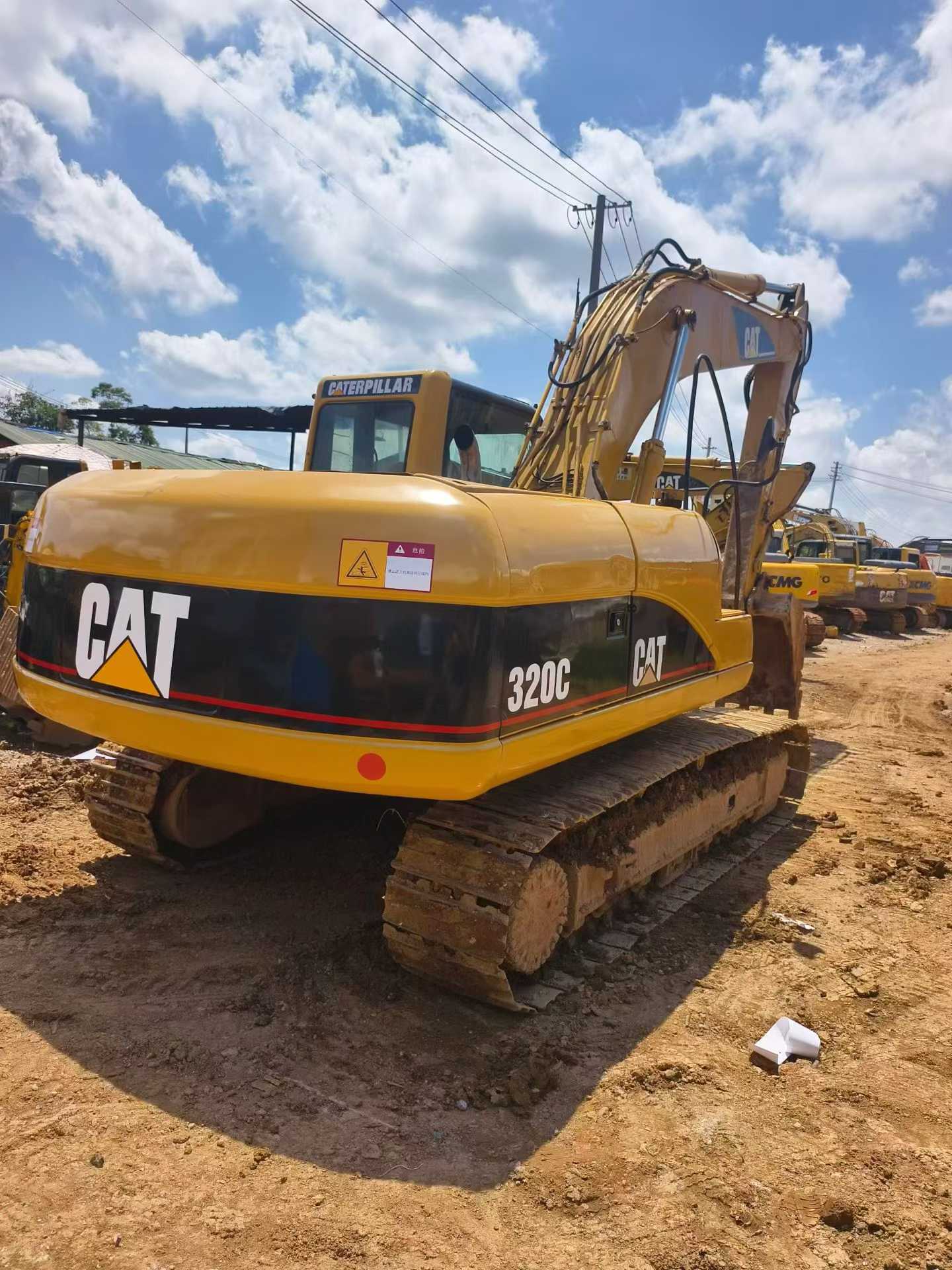

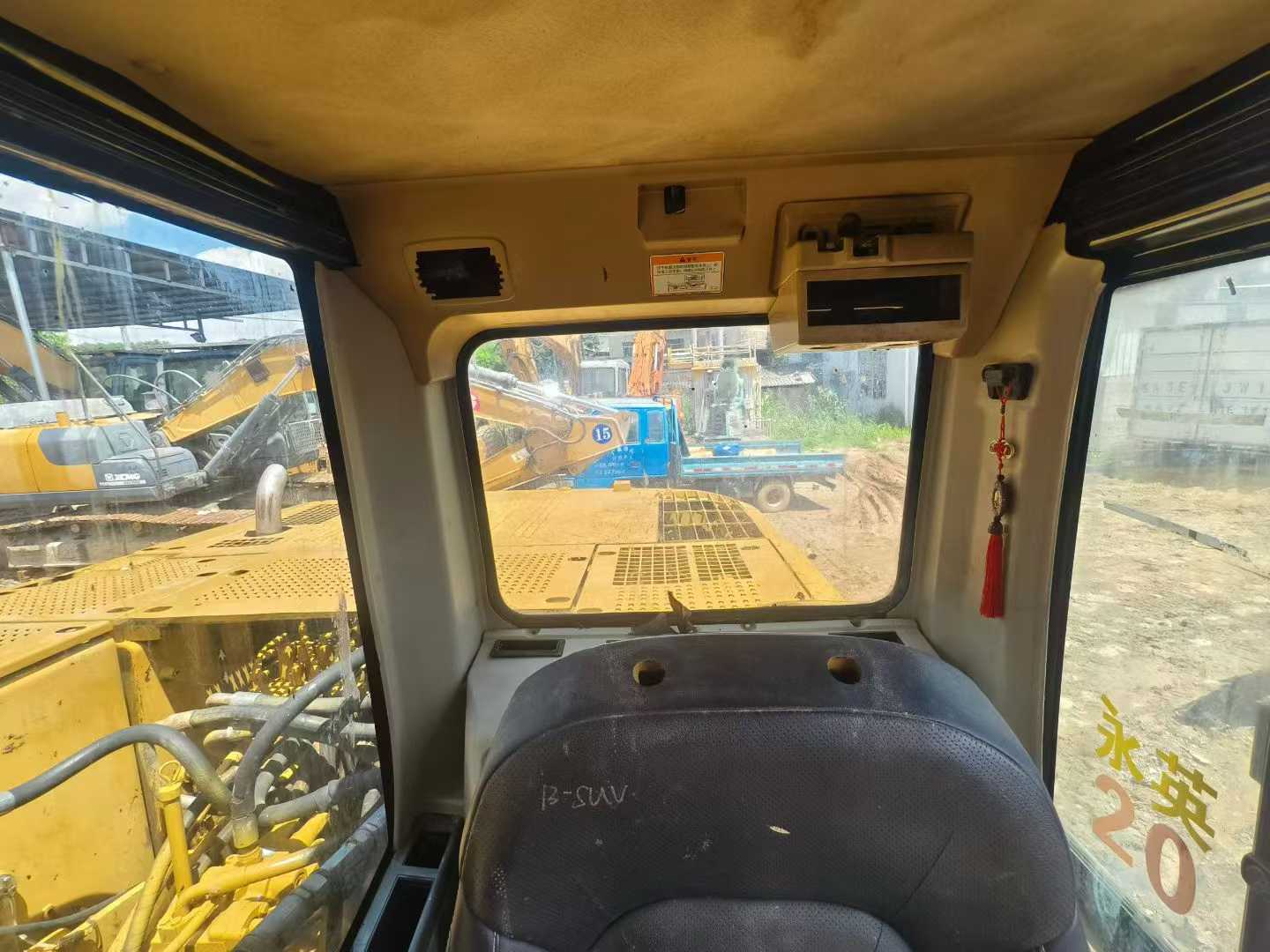

2016 Caterpillar 320C
Product Description
Available now in 广西南宁, this 2016 Caterpillar 320C excavator delivers immediate deployment to your worksite—no factory lead times, no waiting. Operating at 20 tons with a robust 110kW Caterpillar 3066 ATAAC engine, this machine handles demanding excavation tasks with an 0.8m³ bucket capacity and 132kN digging force. Built for productivity, it features a 5680mm boom and 2900mm stick, reaching a maximum digging depth of 6550mm and excavation radius of 9710mm.
- Ready for fast shipment from 南宁 to your project location
- Water-cooled 6.4L displacement engine rated at 1800 RPM
- 205 L/min main pump flow for responsive hydraulic performance
- Compact transport dimensions: 9390mm length × 2800mm width
- 600mm track plates with 3260mm ground contact length for stability
- 320L fuel tank supports extended operational shifts
Skip months of procurement delays. This joint venture-built excavator combines proven Caterpillar engineering with immediate availability. Contact Fair Trade Machinery today to arrange inspection and expedited delivery to your construction site.
| Specifications | Value |
|---|---|
| No. | 1018810 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |

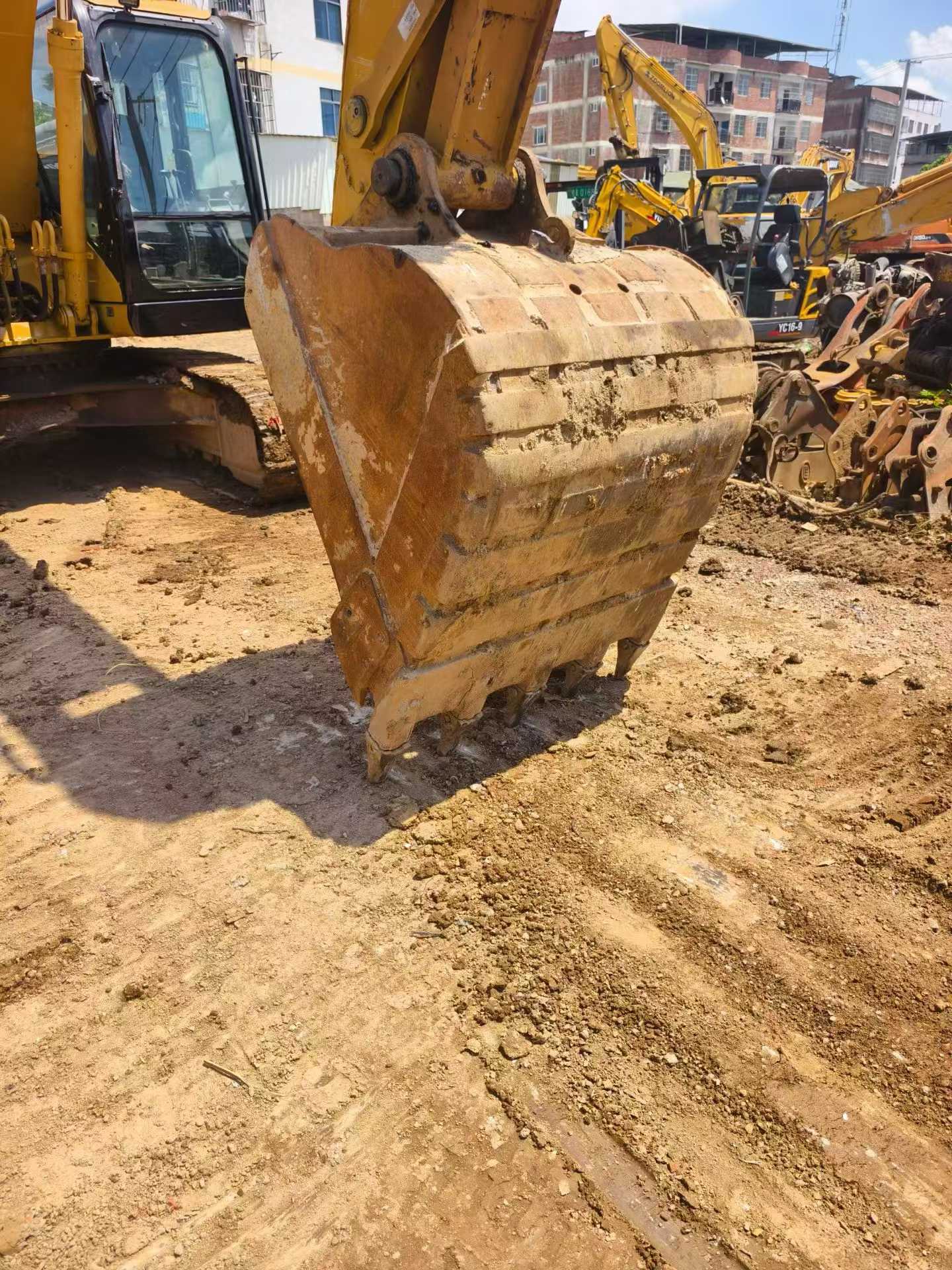

| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |

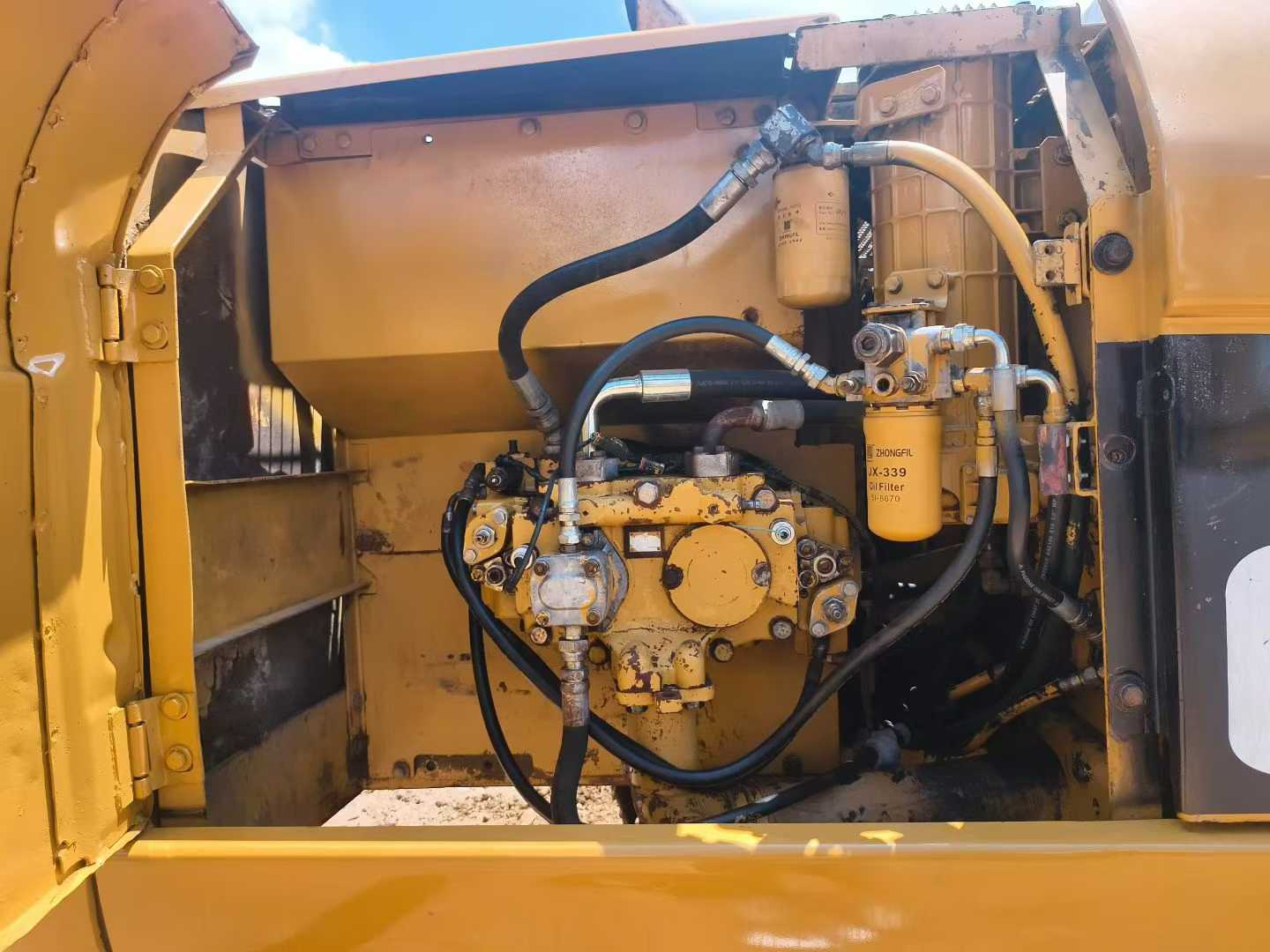

| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |

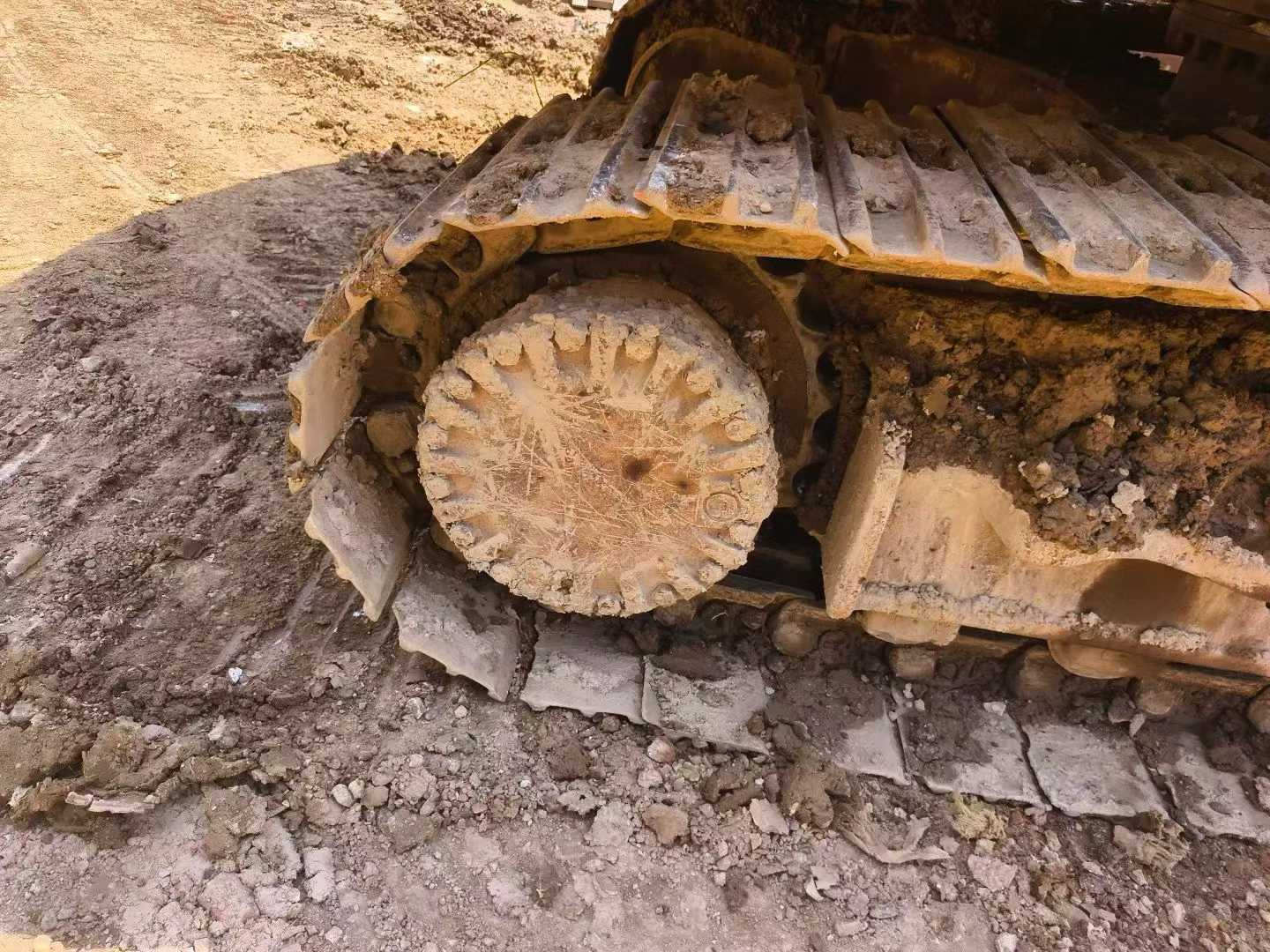

| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Overview
No.1018810
Brand Name：
CaterpillarModel Number：
320CYear：
2016
Location：
Guangxi China
Pub Date：
