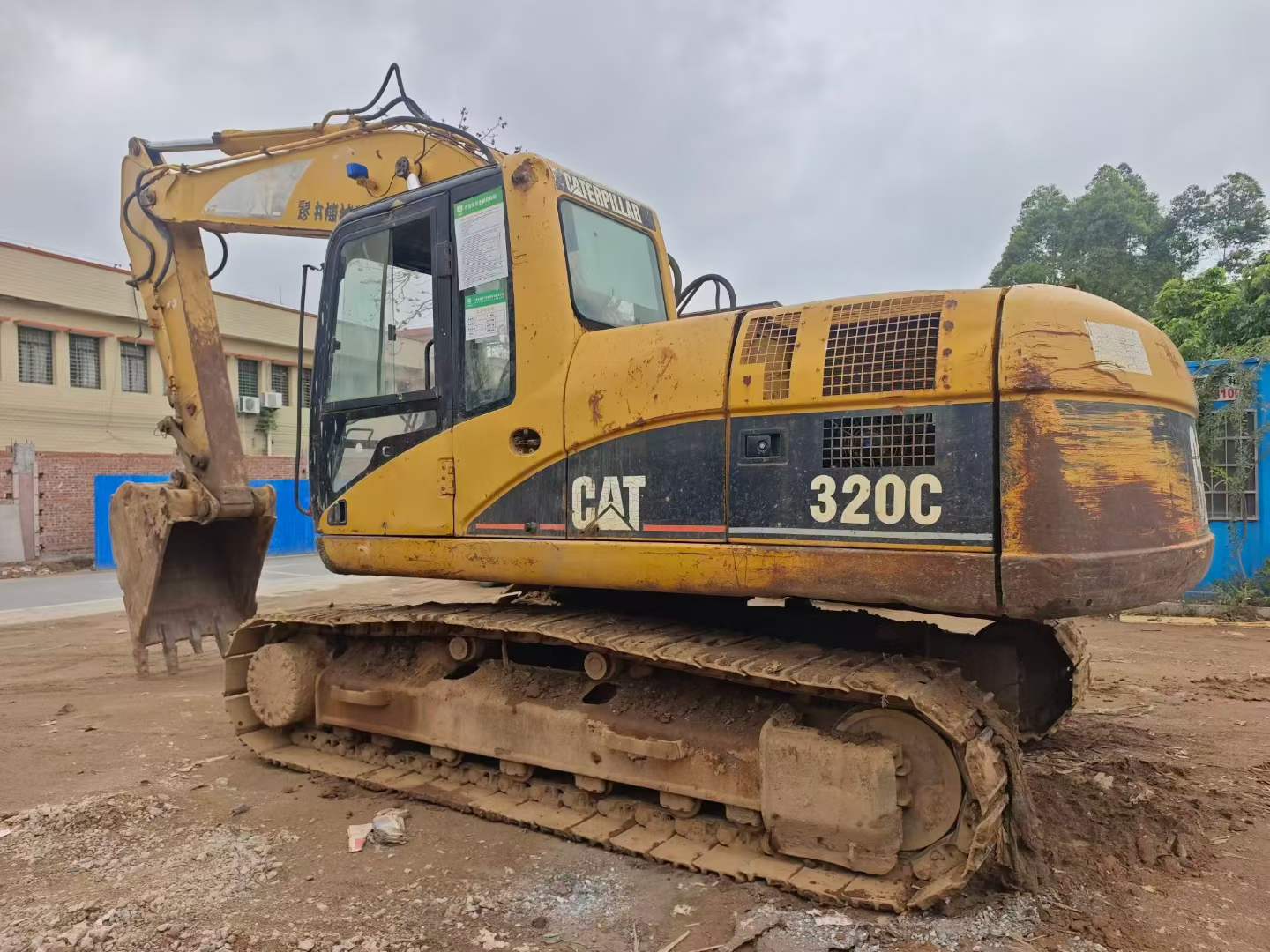

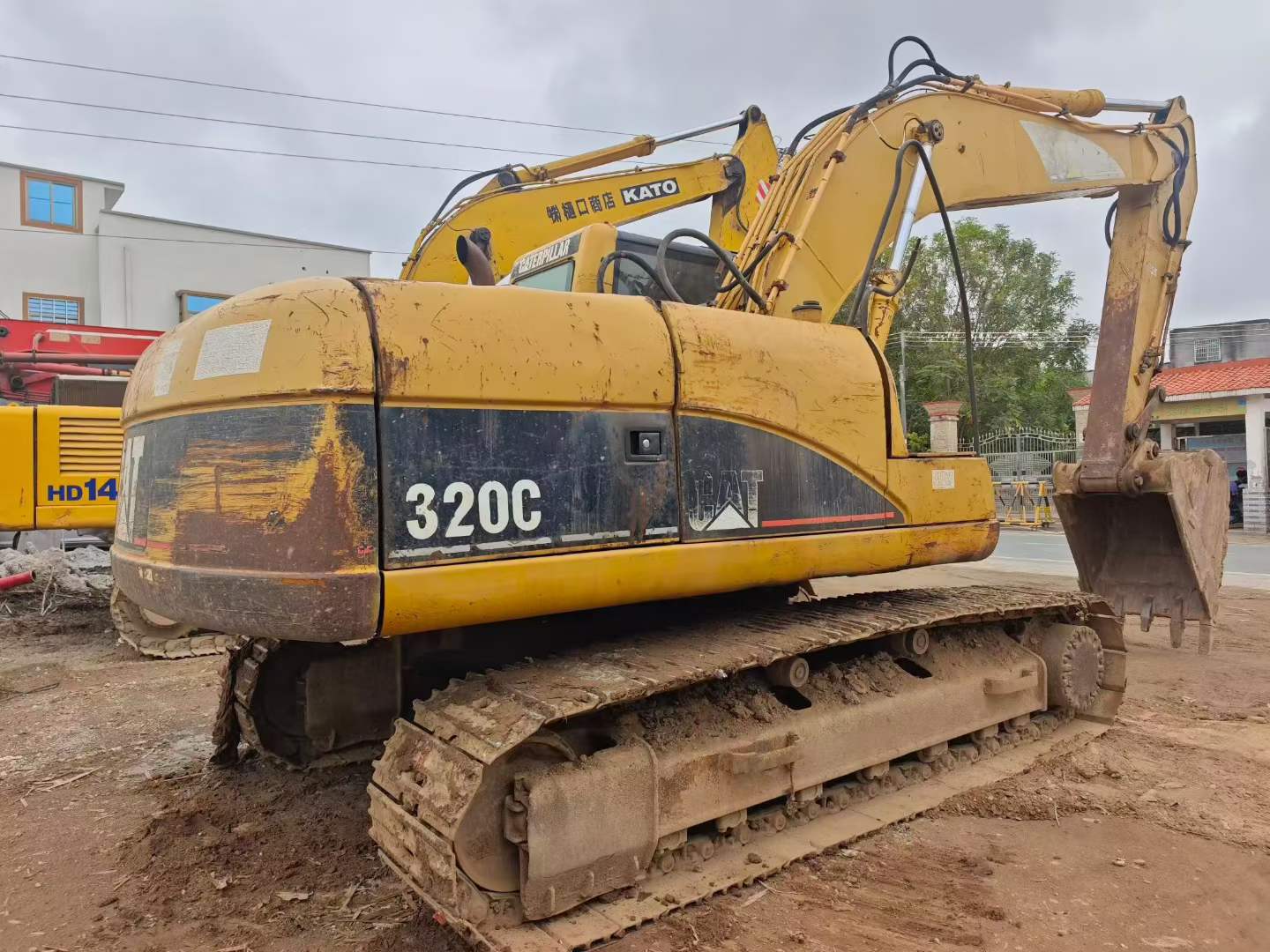

2016 Caterpillar 320C
Product Description
Available now in Guangdong Maoming, this 2016 Caterpillar 320C excavator delivers immediate deployment without factory lead times. Powered by a robust CAT 3066 ATAAC engine generating 110 kW at 1800 rpm, this 21-ton workhorse combines proven hydraulics with field-ready reliability. Skip months of waiting—fast-track your project timeline with equipment that's inspection-ready and positioned for rapid mobilization across South China and international markets.
- Operating Weight: 21,115 kg with 0.8 m³ bucket capacity
- Reach & Depth: 9,710 mm max excavation radius, 6,550 mm digging depth

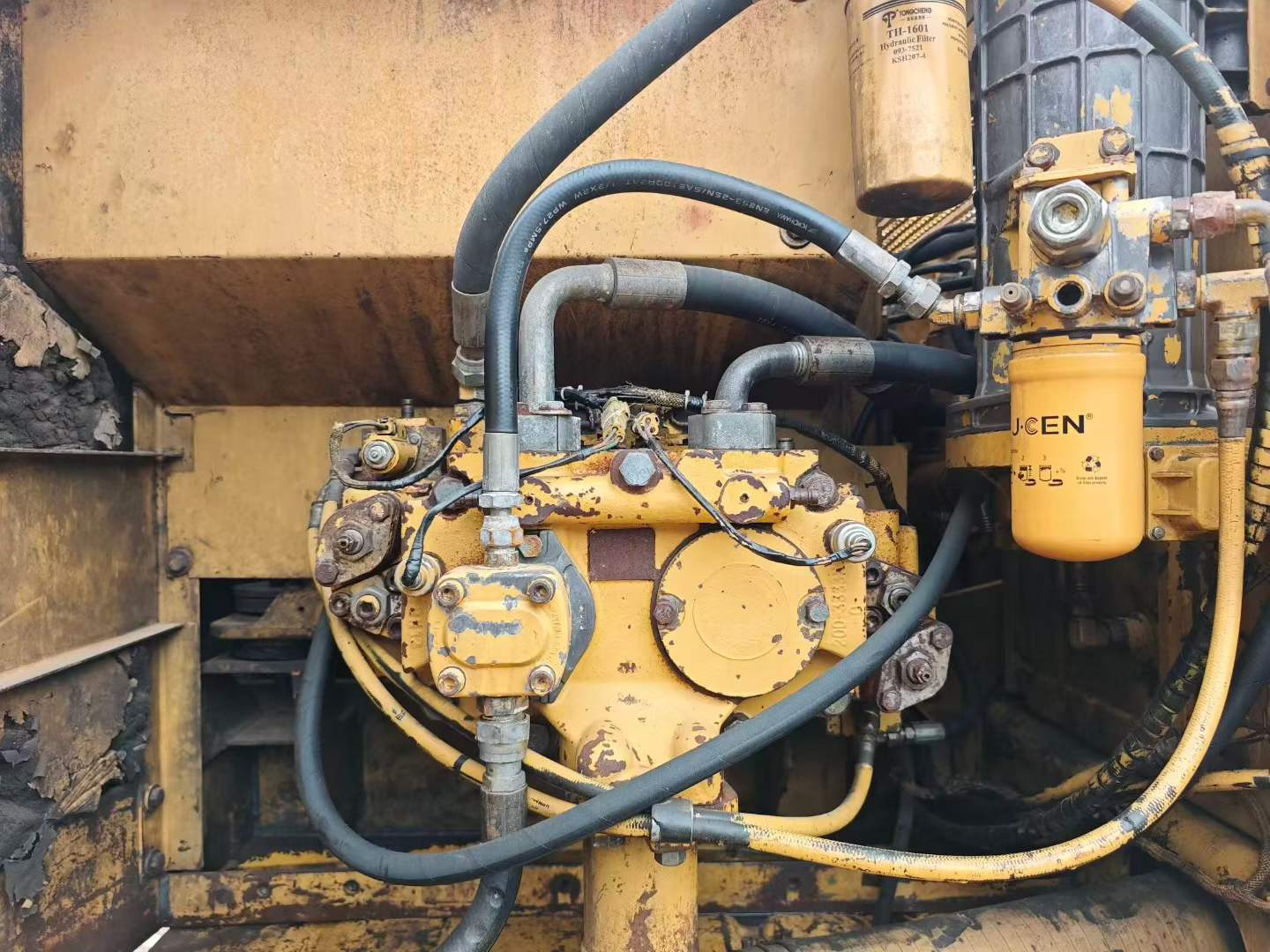

- Hydraulic Performance: 205 L/min main pump flow, 132 kN bucket digging force
- Power System: Water-cooled 6.4L diesel engine, 34.3 MPa working pressure
- Dimensions: 9,390 mm transport length, 2,800 mm width, 3,050 mm height
- Mobility: 5.5 km/h travel speed, 11.5 rpm rotation speed
Secure this joint venture-manufactured unit today and eliminate procurement delays. Direct shipping from Maoming ensures faster logistics to your jobsite compared to new equipment orders.
| Specifications | Value |
|---|---|
| No. | 1024137 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
