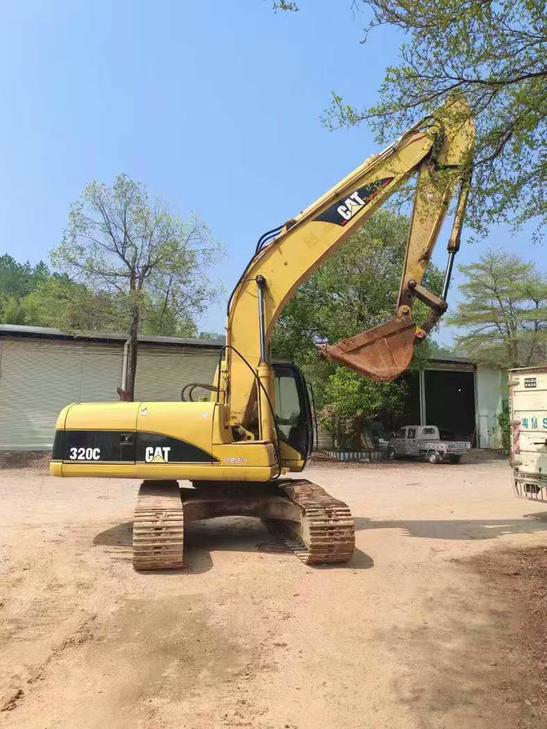

2016 Caterpillar 320C
Product Description
Built for high-demand earthmoving and excavation projects, this 2016 Caterpillar 320C delivers 110 kW of proven power through its reliable CAT 3066 ATAAC engine. Operating at 21,115 kg working weight with a 0.8 m³ bucket capacity, this 20-ton excavator handles digging depths to 6,550 mm and reaches 9,440 mm maximum excavation height. Equipped with robust hydraulic systems—205 l/min main pump flow and 34.3 MPa working pressure—this machine generates 132 kN bucket digging force and 99 kN rod digging force for demanding trenching, grading, and demolition tasks.
Currently located in Huizhou, Guangdong, this excavator features water-cooled reliability, 5,680 mm boom and 2,900 mm stick configuration for optimal reach and breakout force. The 320C provides 9,710 mm maximum excavation radius and maintains 460 mm ground clearance for challenging terrain. With 320L fuel capacity and comprehensive hydraulic systems, this machine offers extended operational periods between refueling.
- Immediate deployment capability with proven Caterpillar drivetrain
- Versatile performance for trenching, loading, and site preparation
- Compact 2,800 mm transport width for easy mobilization
- Complete with full cab prote
| Specifications | Value |
|---|---|
| No. | 1030292 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

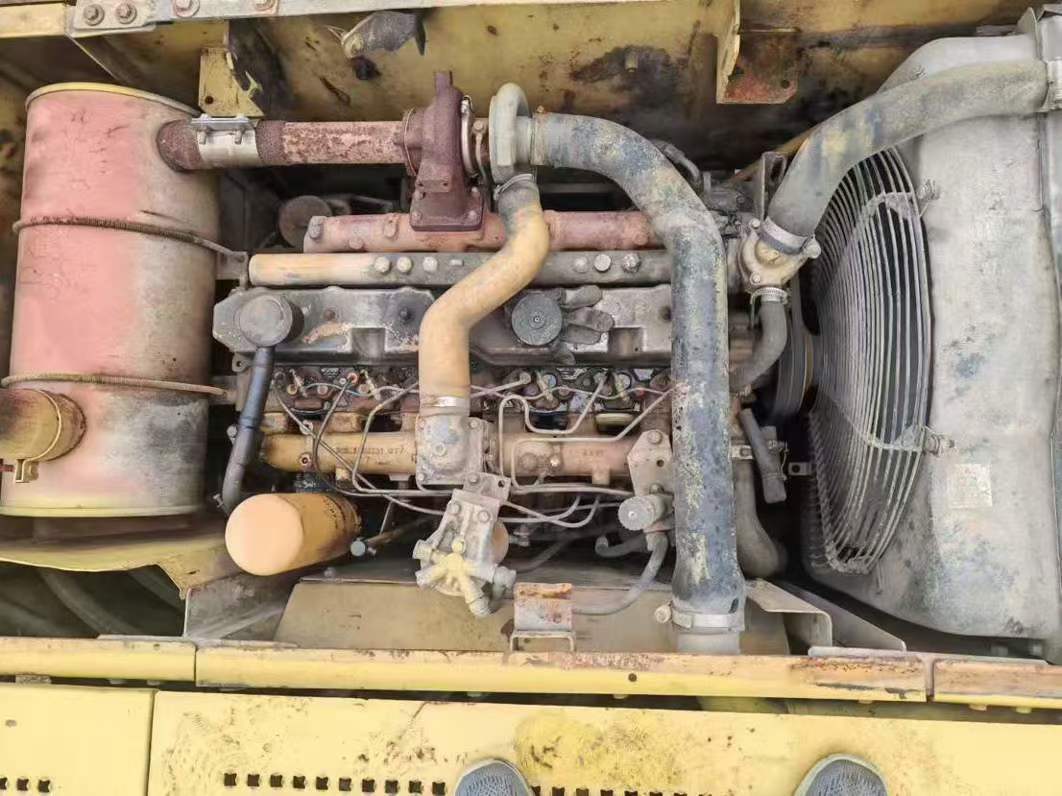

| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Overview
No.1030292
Brand Name：
CaterpillarModel Number：
320CYear：
2016
Location：
Guangdong China
Pub Date：
