2016 Caterpillar 320C
Product Description
Maximize your excavation ROI with this proven 2016 Caterpillar 320C hydraulic excavator from Fujian. Built on Caterpillar's legendary reliability, this 20-ton workhorse delivers exceptional value at a fraction of new equipment costs.

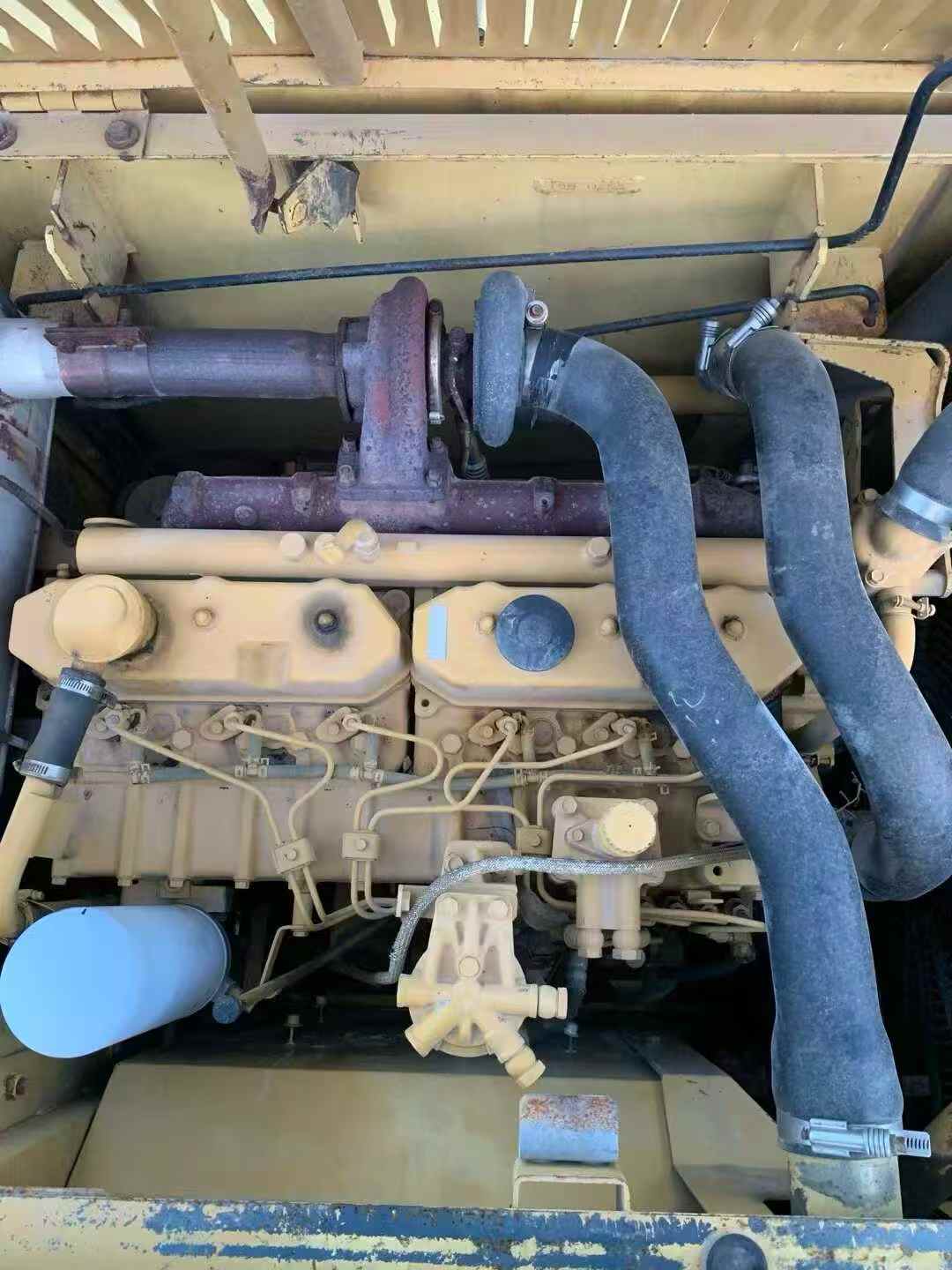

Powered by the robust CAT 3066 ATAAC engine producing 110kW at 1800 RPM, this machine combines proven performance with operational efficiency. The 0.8m³ bucket capacity and impressive 132kN digging force tackle demanding applications while maintaining fuel economy through the 320L tank system.
- Maximum digging depth: 6,550mm for versatile job site capability
- 9,710mm excavation radius maximizes operational reach

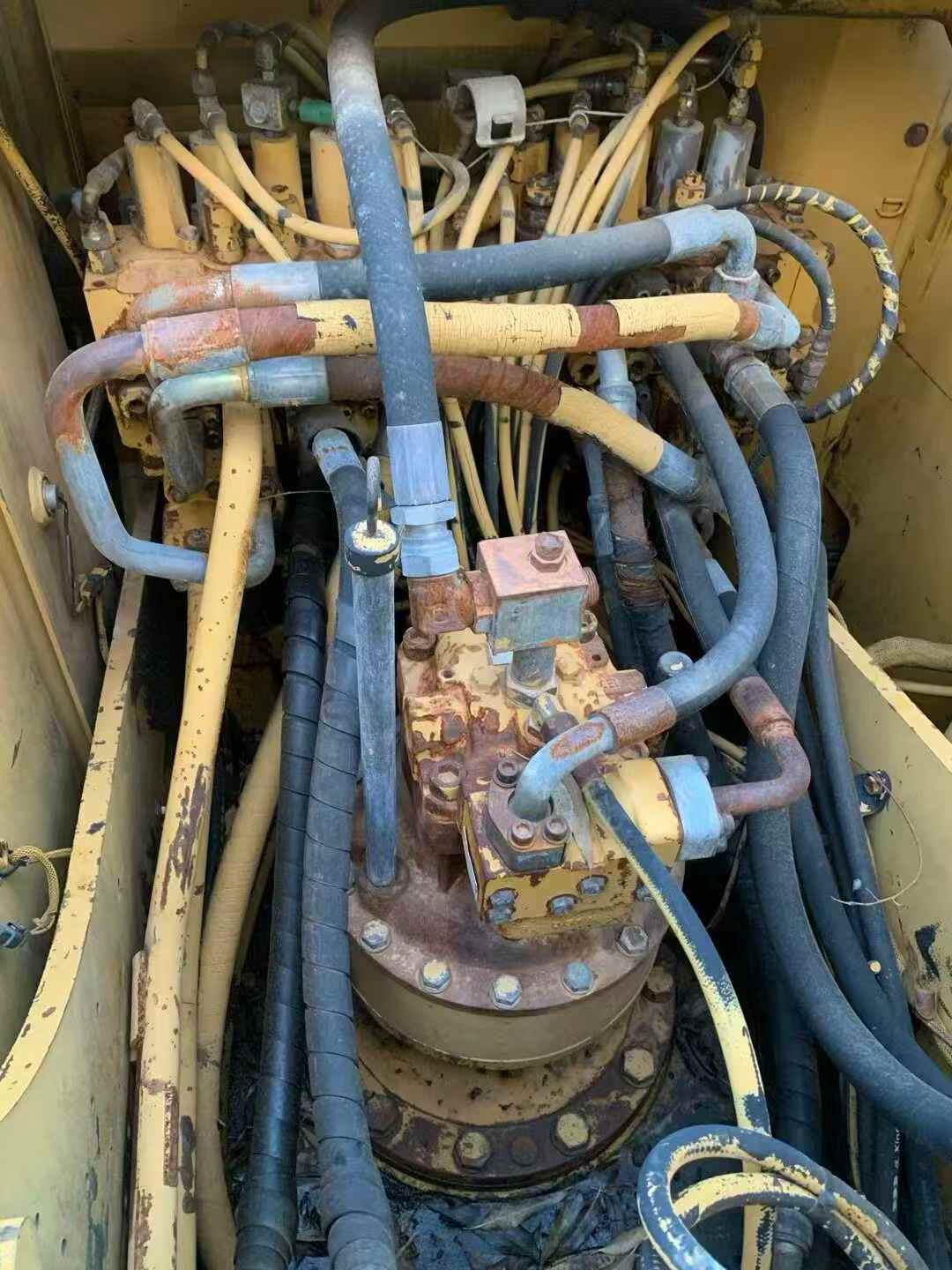

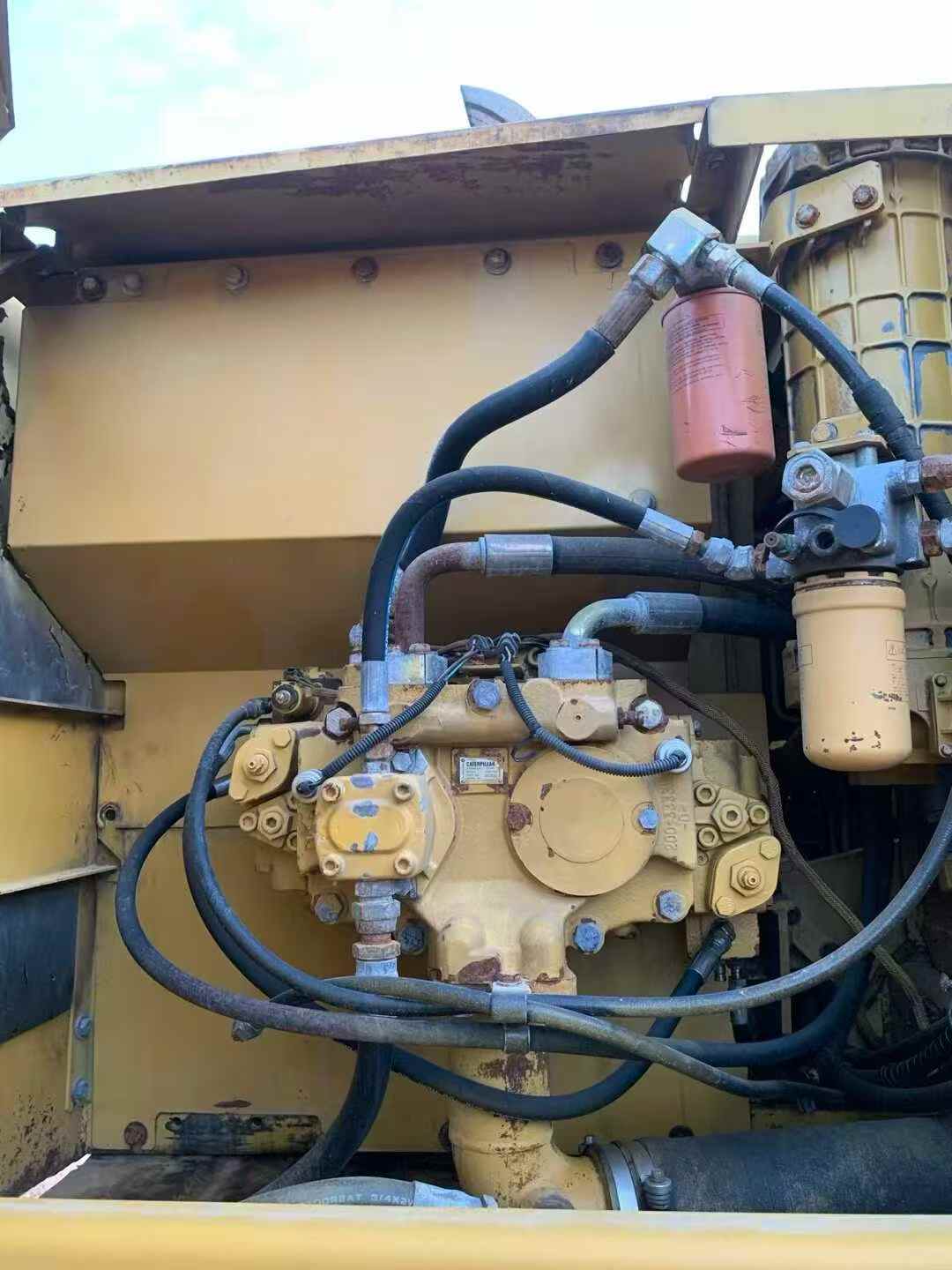

- Advanced hydraulic system with 205L/min main pump flow
- Compact 2,800mm transport width for easy mobilization
- Water-cooled 6.4L displacement engine ensures consistent performance
Smart contractors choose quality used equipment that delivers immediate productivity without the depreciation hit. This CAT 320C offers the perfect balance of capability, reliability, and cost-effectiveness for your next project investment.
| Specifications | Value |
|---|---|
| No. | 992945 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Overview
No.992945
Brand Name：
CaterpillarModel Number：
320CYear：
2016
Location：
Fujian China
