2016 Caterpillar 320C
Product Description
```html
Built for demanding excavation work, this 2016 Caterpillar 320C delivers proven performance across construction and earthmoving applications. Operating at 20 tons with a robust 110kW Caterpillar 3066 ATAAC engine, this machine handles deep trenching, foundation work, and material loading with consistent power. Currently located in Guangxi Laibin, it arrives site-ready with comprehensive hydraulic systems and field-tested components.
- Maximum digging depth of 6,550mm reaches below-grade requirements efficiently
- 0.8m³ bucket capacity with 132kN digging force tackles compacted soil and rocky terrain
- 9,710mm excavation radius provides extensive working range without repositioning
- Water-cooled 6.4L engine maintains optimal operating temperatures during extended shifts
- 205 L/min main pump flow ensures responsive hydraulic performance under load
- 5,680mm boom and 2,900mm arm configuration balances reach with break
| Specifications | Value |
|---|---|
| No. | 995644 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

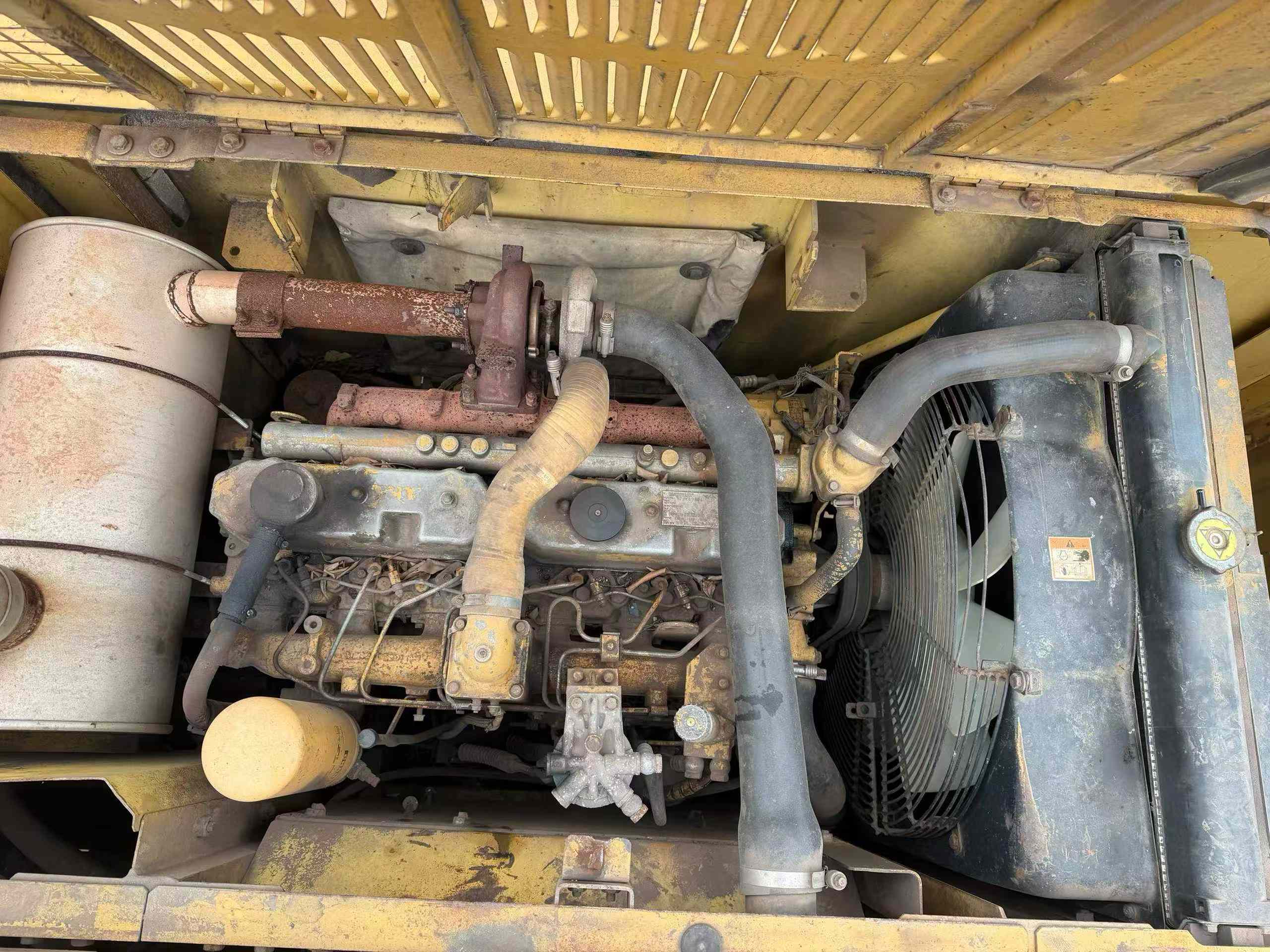

| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
see more
Overview
No.995644
Brand Name：
CaterpillarModel Number：
320CYear：
2016
Location：
Guangxi China
Pub Date：
