2020 Caterpillar 320C
Product Description
This 2020 Caterpillar 320C hydraulic excavator presents a solid opportunity for operations requiring proven mid-size performance. With approximately 7,000+ operating hours, the machine demonstrates complete functionality across all major systems. Located in Guangdong, China, this unit features the updated intercooler configuration that enhances engine efficiency and thermal management in demanding work cycles.
Key attributes include:
- Caterpillar 320C platform with reliable hydraulic architecture
- Enhanced intercooler system for improved operating temperatures
- Complete structural and operational condition verified
- Mid-range hours suitable for continued productive service
- Available for inspection in Guangdong province
The 320C remains a benchmark in the 20-metric-ton excavator class, offering balanced digging force, fuel efficiency, and serviceability. This unit is ready for deployment in construction, earthmoving, or material handling applications. Contact us to arrange technical evaluation and logistics.
| Specifications | Value |
|---|---|
| No. | 1083365 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

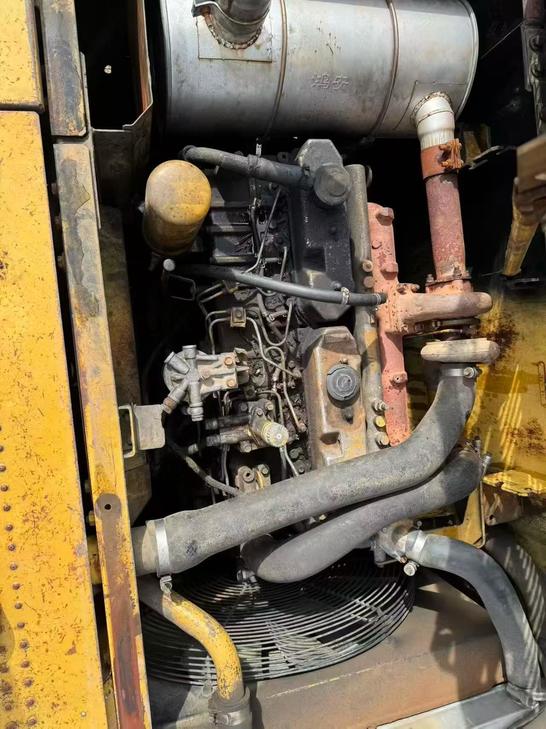

| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Overview
No.1083365
Brand Name：
CaterpillarModel Number：
320CYear：
2020
Location：
Guangdong China
Pub Date：
