2020 Caterpillar 320C
Product Description

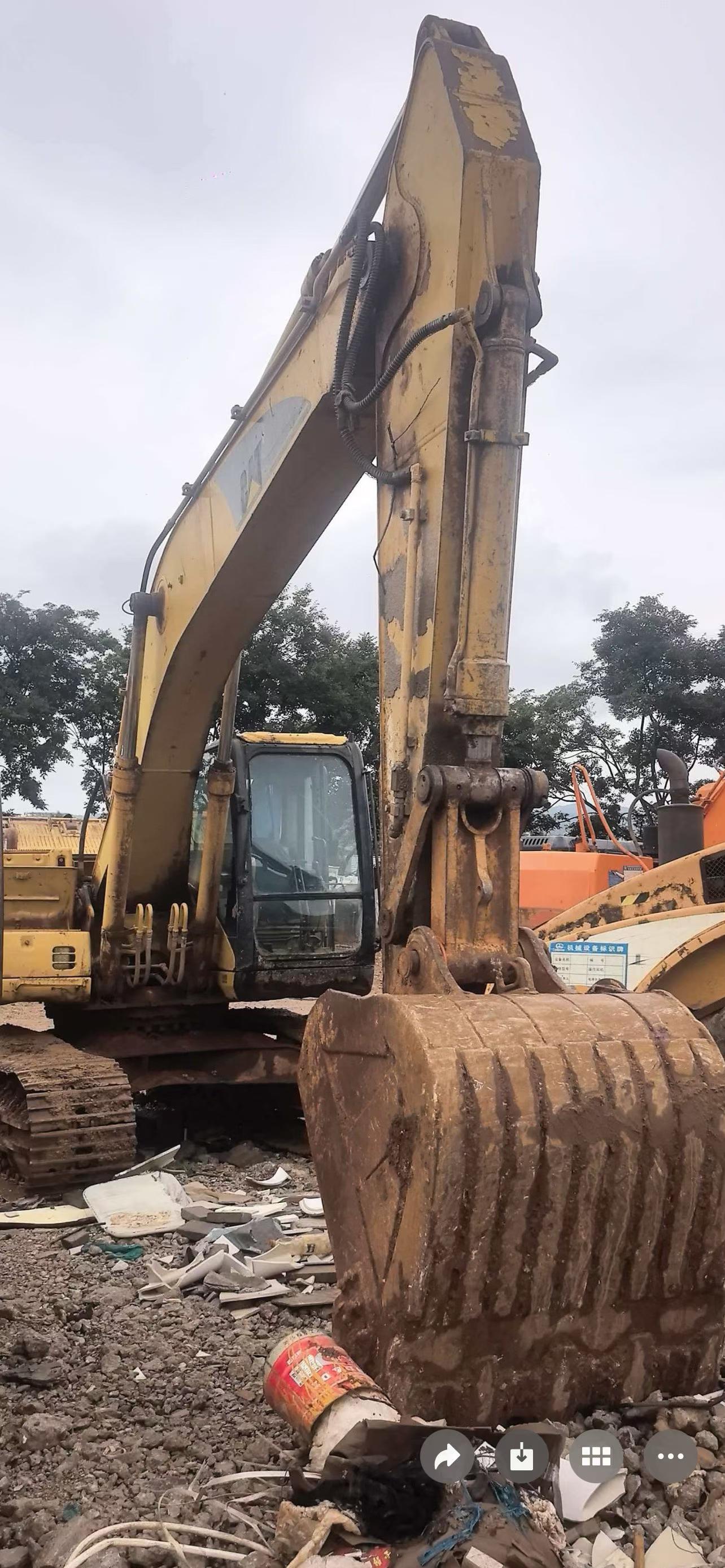

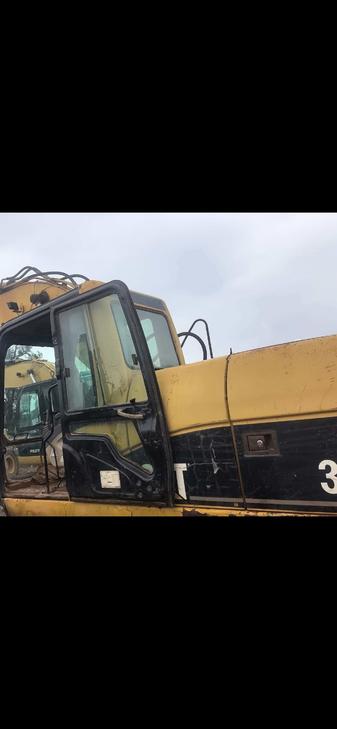

This 2020 Caterpillar 320C hydraulic excavator is currently available in Guangdong, China. With approximately 70,000+ operating hours, this machine represents a cost-effective solution for contractors and operators seeking proven Caterpillar reliability in a mid-size excavator platform.
The 320C is recognized for its balanced performance in general construction, earthmoving, and infrastructure projects. This unit features the intercooler configuration, supporting consistent engine performance across extended work cycles.
- Year: 2020
- Model: Caterpillar 320C
- Operating Hours: 70,000+
- Location: Guangdong, China
- Status: In stock, ready for inspection
Suitable for medium-duty applications including site preparation, trenching, material handling, and demolition. Inspection welcome. Contact us for detailed specifications, current condition reports, and shipping arrangements.
| Specifications | Value |
|---|---|
| No. | 1101252 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
