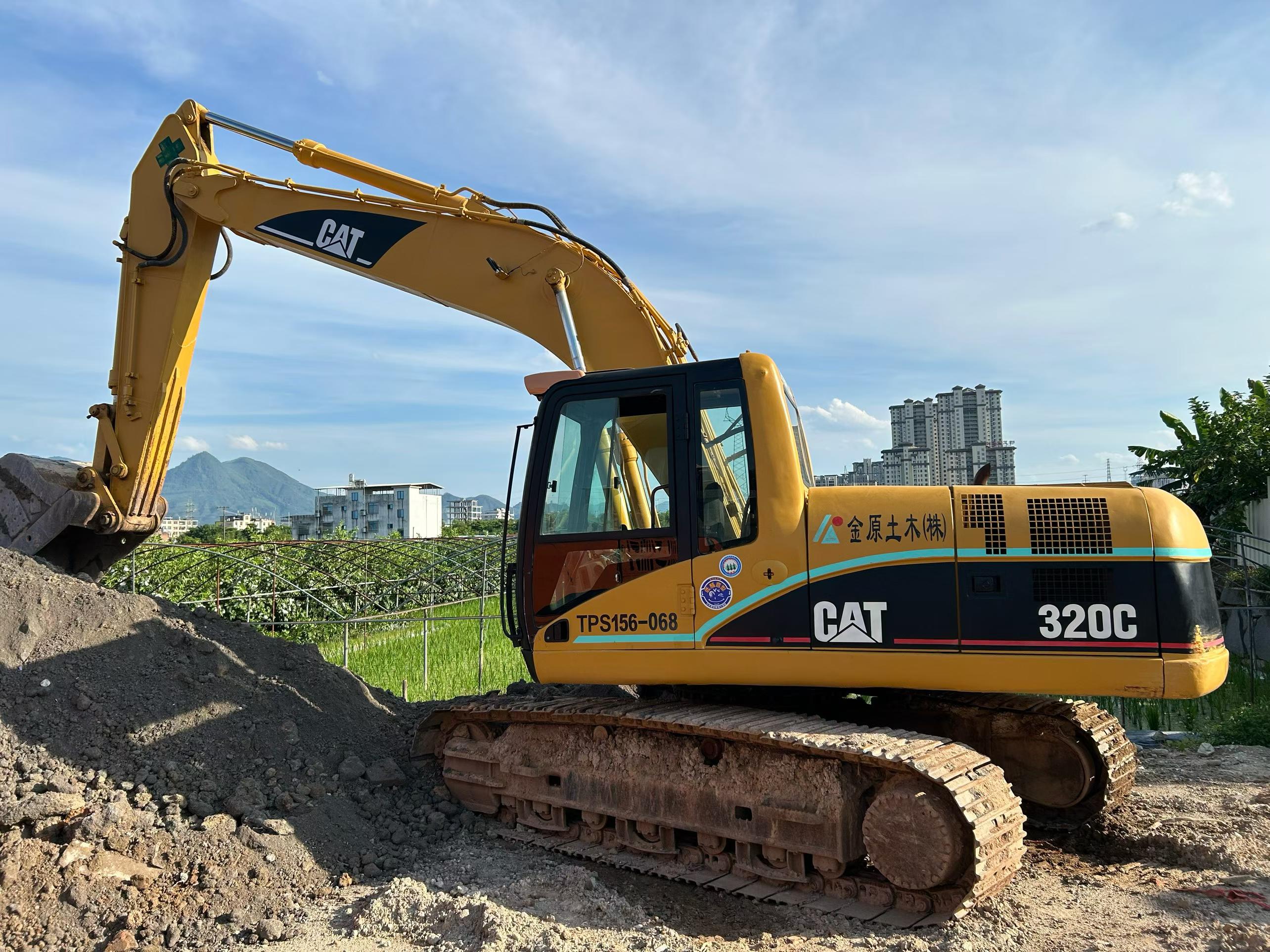

2020 Caterpillar 320C
Product Description
This 2020 Caterpillar 320C excavator offers reliable performance for demanding construction and earthmoving applications. Known for its responsive hydraulics and quick cycle times, this machine delivers efficient operation across a range of job sites. Located in Fujian, China, it represents a solid option for contractors seeking proven Cat quality in the mid-size excavator class.
Key features:
- Fast hydraulic response for increased productivity
- Durable undercarriage designed for extended service life
- Spacious operator cab with excellent visibility
- Fuel-efficient engine meeting emission standards
- Versatile attachment compatibility
The 320C's combination of power, precision, and serviceability makes it a dependable choice for excavation, trenching, and material handling tasks. This used unit is available for inspection in Fujian.
| Specifications | Value |
|---|---|
| No. | 1104953 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
see more
Overview
No.1104953
Brand Name：
CaterpillarModel Number：
320CYear：
2020
Location：
Fujian China
